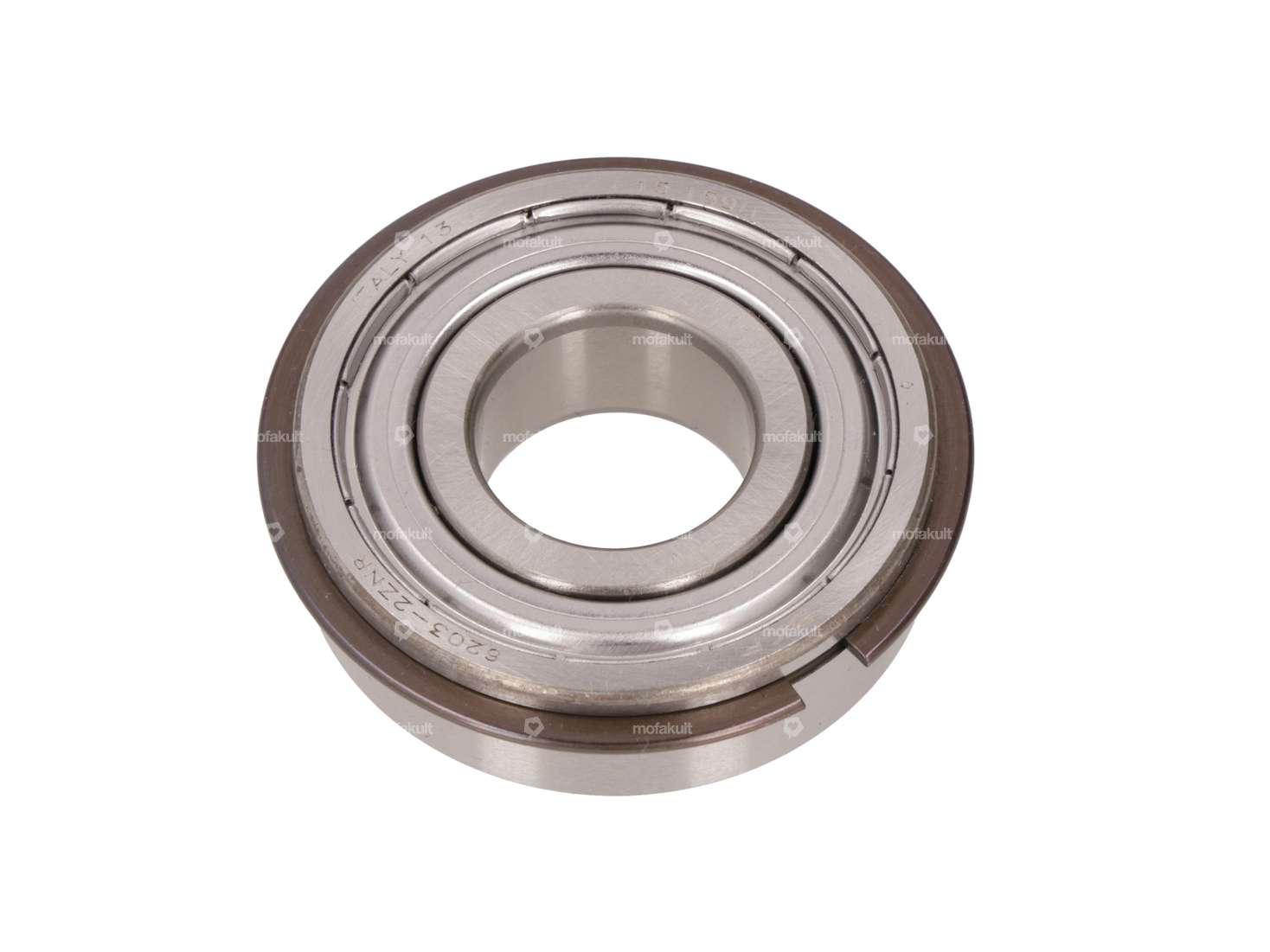

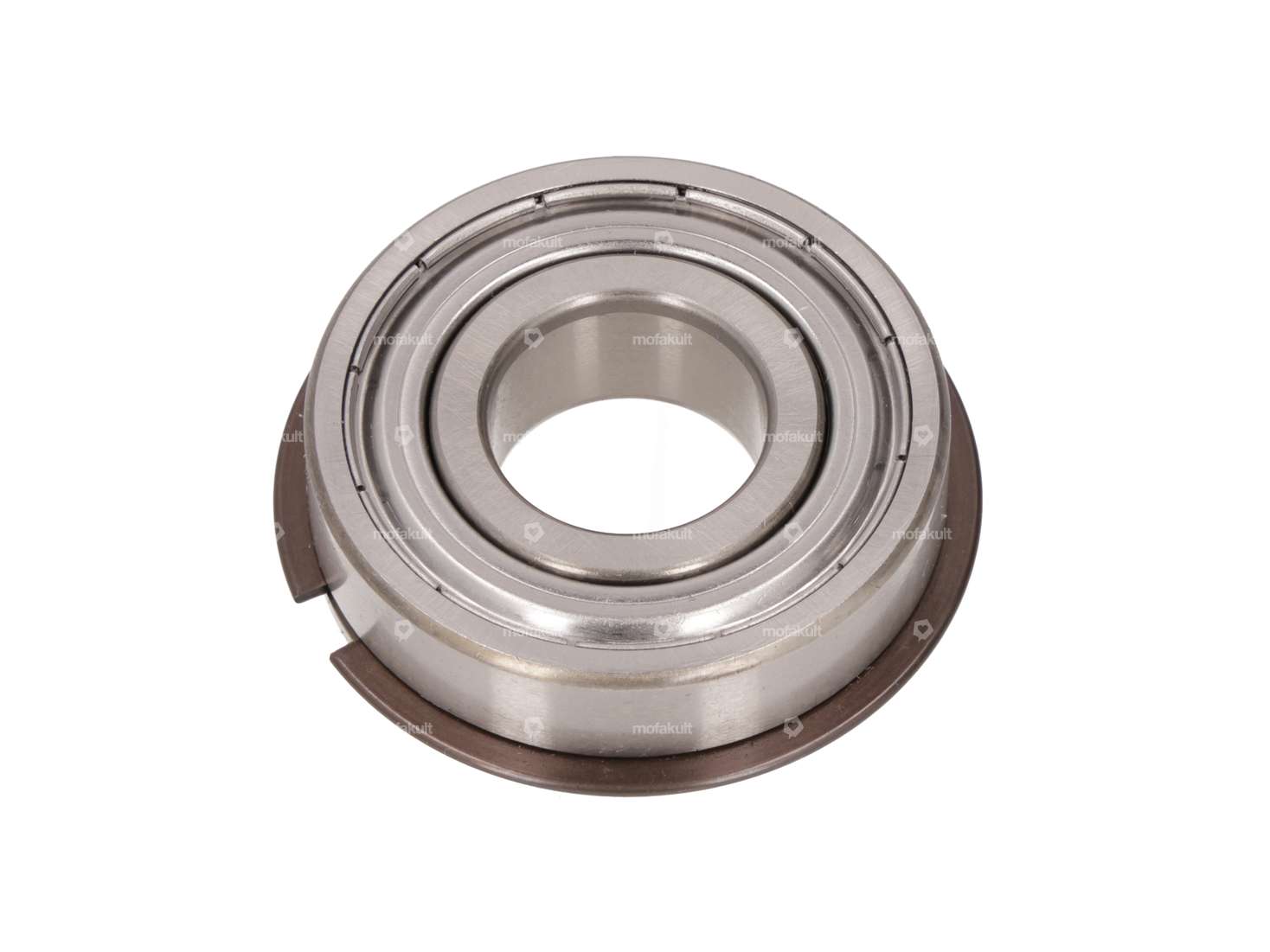

SKF 6203 2ZNR ball bearing 17/40/12 with outer ring (old model) | Puch E50

NTN 6203 NR C3 ball bearing 17/40/12(11) with outer ring (new model) | Puch E50

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Width: 12 mm · Inner ring width: 11 mm · Manufacturer: NTN · Ø outside: 40 mm · Bearing clearance: C3 · Groove ring: Yes · Ø inside: 17 mm

NTN 6203 NR C3 ball bearing with outer ring (old model) | Puch E50

Bearing type: Deep groove ball bearing · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: Yes · Material: Steel · Surface: blank · Ø inside: 17 mm · Stock number: 6203 · Ø outside: 40 mm · Ø outside: 44 mm · Ball bearing closed: No · Width: 12 mm · Area of application: Standard

swiing® revival crankshaft standard with mounted bearings | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: Standard · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 873 g · Number of gears: 1 pcs · Puch OEM number: 349.1.10.115.0 · Puch OEM number: 900.6203 · Puch OEM number: 900.6233 · Puch OEM number: 901.3801 · Puch OEM number: 902.3835

swiing® ingenious crankshaft High End with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 968 g · Number of gears: 1 pcs

NSK 6203 NR ball bearing 17/40/12 with outer ring (old model) | Puch E50

Material: Steel · Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: NSK · Ø outside: 40 mm · Ø outside: 44 mm · Groove ring: Yes · Ø inside: 17 mm · Ball bearing closed: No

swiing® ingenious clutch springs reinforced (+20%) | Puch E50

Spring design: Pressure spring · Ø wire: 1.7 mm · Manufacturer: swiing® ingenious parts · Total length: 28 mm · Material: Spring steel · Surface: coated · Color: blue · Number of components: 3 pcs · Ø inside: 4.8 mm · Ø outside: 8.3 mm · Area of application: Tuning

swiing® revival gasket cylinder base | Puch Kat

Material: Sealing paper · Thickness: 0.6 mm · Place of use: Cylinder base · Manufacturer: swiing® revival parts

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: No · Material: Steel · Surface: blank · Ø inside: 17 mm · Ø outside: 40 mm · Area of application: Standard · Ball bearing closed: No

swiing® revival stud bolt M6 x 106 mm (10.9 strength)

Manufacturer: swiing® revival parts · Total length: 106 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Rito Crankshaft Racing | Puch E50

Material: Steel · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Manufacturer: Rito · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Area of application: Racing · Area of application: Tuning · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 14 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs

M8 sealing ring Fiber

Material: Fiber · Surface: raw · Thickness: 1 mm · Place of use: Carburetor · Place of use: Motor housing · Ø outside: 13.7 mm · Ø inside: 8.3 mm · Area of application: Standard · Puch OEM number: 26482

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Ø outside: 116 mm · Ø inside: 106 mm · Thickness: 1 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

Oil seal FPM 17/40/7 DUO | Puch E50

Temperature resistance (min.): -30 - 200 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Width: 7 mm · Manufacturer: Puch · Material: FPM - Fluororubber · Surface: rubberized · Ø inside: 17 mm · Ø outside: 40 mm · Area of application: Standard

NTN 6203 C3 ball bearing 17/40/12 | Puch E50

Bearing type: Deep groove ball bearing · Stock number: 6203 · Width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Ø inside: 17 mm · Ø outside: 40 mm

SKF 6203 2ZNR Ball bearing 17/40/12 with bearing outer ring

Bearing type: Deep groove ball bearing · Bearing cage: Sheet steel cage · Stock number: 6203 · Width: 12 mm · Manufacturer: SKF · Dust protection type: 2ZNR - Non-contact seal made of sheet steel on both sides · Bearing clearance: CN (standard) · Material: Steel · Ø inside: 17 mm · Ø outside: 40 mm · Area of application: Standard · Ball bearing closed: Yes
