Siggnature weld-on spigot mudguard | Puch Maxi N

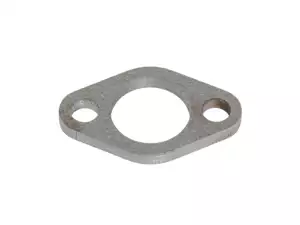

Siggnature flange 23 mm for welding on

Manufacturer: Siggnature · Surface: raw · Color: silver · Material: Steel · Ø mounting hole: 8.2 mm · Ø inside: 23 mm · Thickness: 5 mm · Hole spacing: 38 mm

Siggnature guide tab Brake anchor plate for welding on

Manufacturer: Siggnature · Ø slotted hole: 8 mm · Surface: raw · Material: Steel · Thickness: 5 mm · Mounting type: Weld

Siggnature solid weld-on steering stop | Puch Maxi S, N

Manufacturer: Siggnature · Material: Steel · Surface: raw · Thickness: 5 mm · Mounting type: Weld · Width: 31 mm · Height: 25 mm

Siggnature retaining bracket 30x20x5 mm for welding on

Manufacturer: Siggnature · Surface: raw · Material: Steel · Ø mounting hole: 5 mm · Thickness: 5 mm · Height: 30 mm · Width: 20 mm · Mounting type: Weld

Siggnature retaining bracket 30x20x3 mm for welding on

Manufacturer: Siggnature · Surface: raw · Material: Steel · Ø mounting hole: 5 mm · Thickness: 3 mm · Height: 30 mm · Width: 20 mm · Mounting type: Weld

Siggnature mounting bracket 60x20x3 mm slotted hole for welding

Manufacturer: Siggnature · Ø slotted hole: 6 mm · Surface: raw · Material: Steel · Thickness: 3 mm · Total length: 60 mm · Width: 20 mm · Mounting type: Weld

Siggnature mounting bracket 60x20x5 mm slotted hole for welding

Manufacturer: Siggnature · Ø slotted hole: 6 mm · Surface: raw · Material: Steel · Thickness: 5 mm · Total length: 60 mm · Width: 20 mm · Mounting type: Weld

Siggnature wheel mounts for welding on 12 mm wheel axle

Surface: raw · Manufacturer: Siggnature · Ø axle: 12 mm · Mounting type: Weld · Material: Steel · Thickness: 5 mm

Siggnature wheel mounts for welding on 10.5 mm wheel axle

Manufacturer: Siggnature · Ø axle: 10.5 mm · Material: Steel · Surface: raw · Thickness: 5 mm · Mounting type: Weld

swiing® ingenious exhaust 22 mm camouflaged 2-piece | Puch Maxi S, N

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Ø outside: 59 mm · Ø Silencer: 54.5 mm · Color: Chrome · Number of fixing points: 4 pcs · Ø Flame tube outside: 22 mm · Exhaust type: Flute · Total length: 910 mm · Mounting type: Stud bolts & nuts · Mounting type: Welded lug · Flame tube attachment: Flange

GPO control bearing set M26x1 mm | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Ø mounting frame: 31 mm · Ø outside: 41 mm · Ø inside: 26.8 mm · Color: silver · Thread type: MF26x1 (fine pitch thread)

swiing® revival 17" rear fender Inox | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: polished · Folding the ends: closed folded · Folding the ends: not folded · Shape of the mudguard: angular · Total length over ends: 625 mm · Color: Chrome · Scope: 940 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 285 mm · Wheel size [inch]: 17 " · Mounting type: Nuts & bolts

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut

GPO rear mudguard attachment 17" | Puch Maxi N

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Number of fixing points: 4 pcs · Wheel size [inch]: 17 " · Mounting type: Nuts & bolts · Total length: 300 mm · Ø mounting hole: 6 mm

swiing® revival 17" front fender square Inox | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: polished · Folding the ends: closed folded · Shape of the mudguard: angular · Total length over ends: 565 mm · Color: Chrome · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 200 mm · Wheel size [inch]: 17 " · Mounting type: Nuts & bolts

Exhaust mounting plate | Puch Maxi N

Manufacturer: Made in Portugal · Material: Steel · Surface: galvanized (blue) · Number of fixing points: 2 pcs · Cranking (offset): 23 mm · Ø mounting hole: 8.5 mm · Ø mounting hole: 11 mm

swiing® revival brake support bolt short Inox | Puch Maxi, Supermaxi

Drive: Outer edge · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Number of components: 3 pcs · Width across flats SW: 13 mm · Width across flats SW: 17 mm · Ø shaft: 9.8 mm · Ø External head: 14 mm · Thread type: MF10x1 (fine pitch thread) · Shank: Yes · Total length: 32 mm · Shank length: 9.5 mm · Area of application: Standard · Thread length: 13 mm

GPO brake cam & retaining plate set | Puch Maxi N

Manufacturer: GPO · Material: Chrome steel (known as Nirosta®) · Material: Steel · Surface: galvanized (blue)

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom | Puch Maxi S, N

Possible lever positions: open / closed / reserve · Material lever: Aluminum · Filter type: Plastic net · Thread type: MF12x1 (fine pitch thread) · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Puch OEM number: 349.3.22.030.0 · Puch OEM number: 349.4.22.030.0
