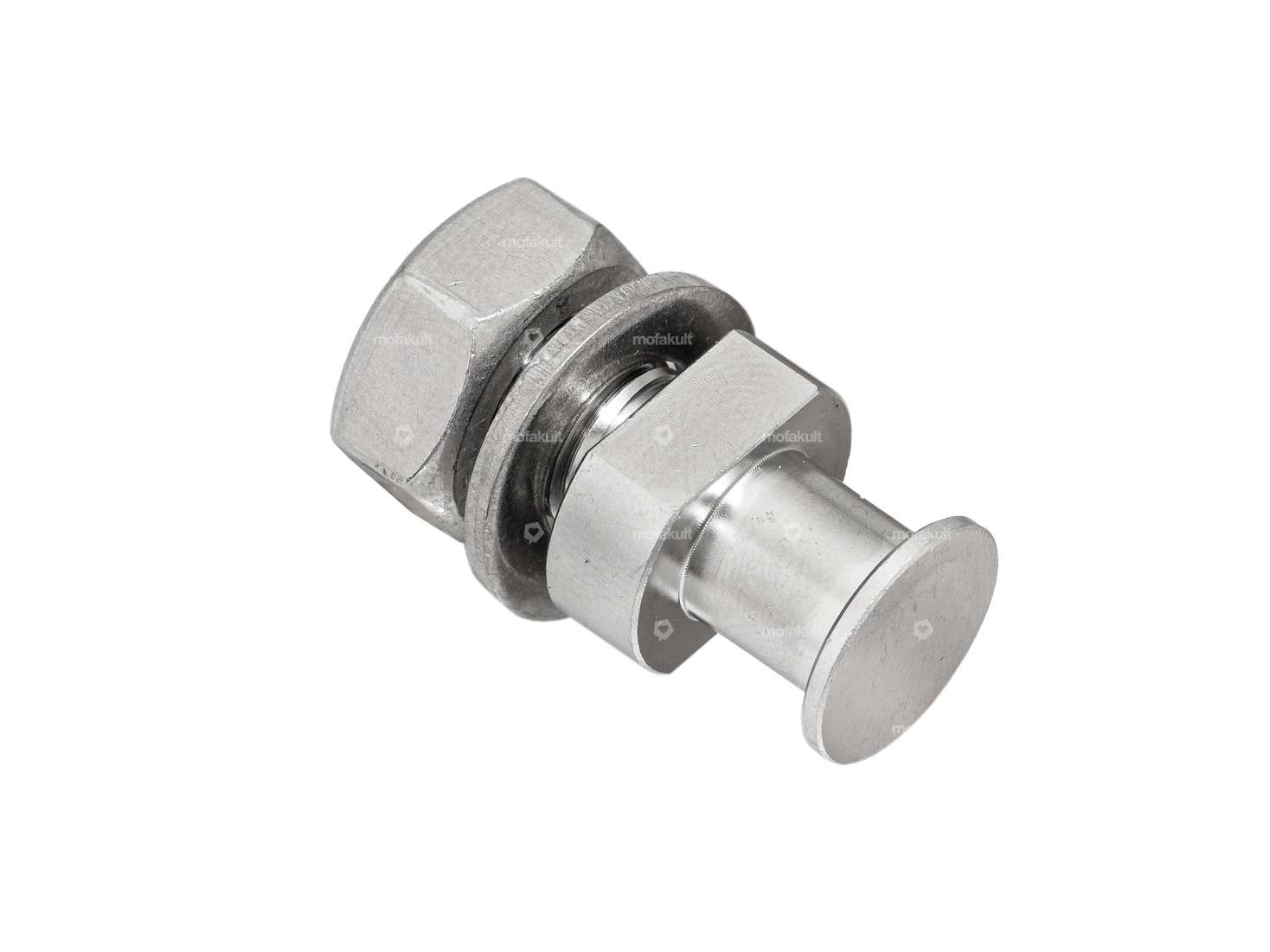

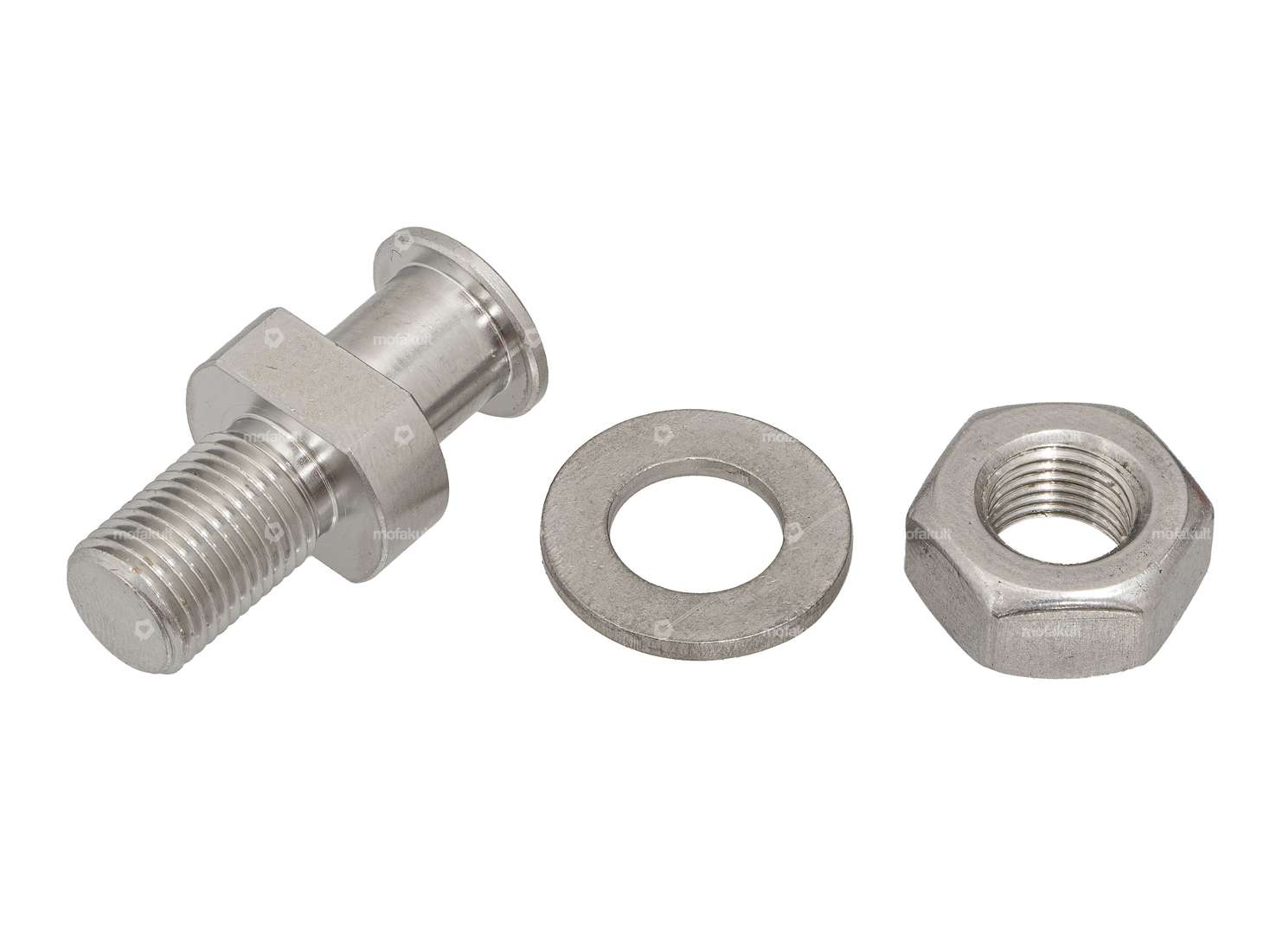

Short version of the bolt for holding the support plate (brake anchor plate) made of stainless steel for your Puch Maxi S, N, S-2A / Supermaxi LG1, LG2 mopeds
Including M10x1 nut and matching washer.
Total length: 32 mm
Ø bolt: 9.8 mm
Thread: M10
The M10x1 nut and a matching washer for the stud are included in the scope of delivery.
Nostalgic product for the highest demands of the quality brand swiing®.
Original Puch spare part number: 349.1.41.008.1
| Drive | Outer edge |
| Ø External head | 14 mm |
| Manufacturer | swiing® revival parts |
| Thread length | 13 mm |
| Material | Chrome steel (colloquially known as stainless steel) |
| Area of application | Standard |
| Total length | 32 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Width across flats | 13 mm, 17 mm |
| Nominal diameter (thread) | 10 mm |
| Shank | Yes |
| Shank length | 9.5 mm |
| Ø shaft | 9.8 mm |
| Number of components | 3 pcs |
| Puch | E50 ZA50 (air-cooled) |
