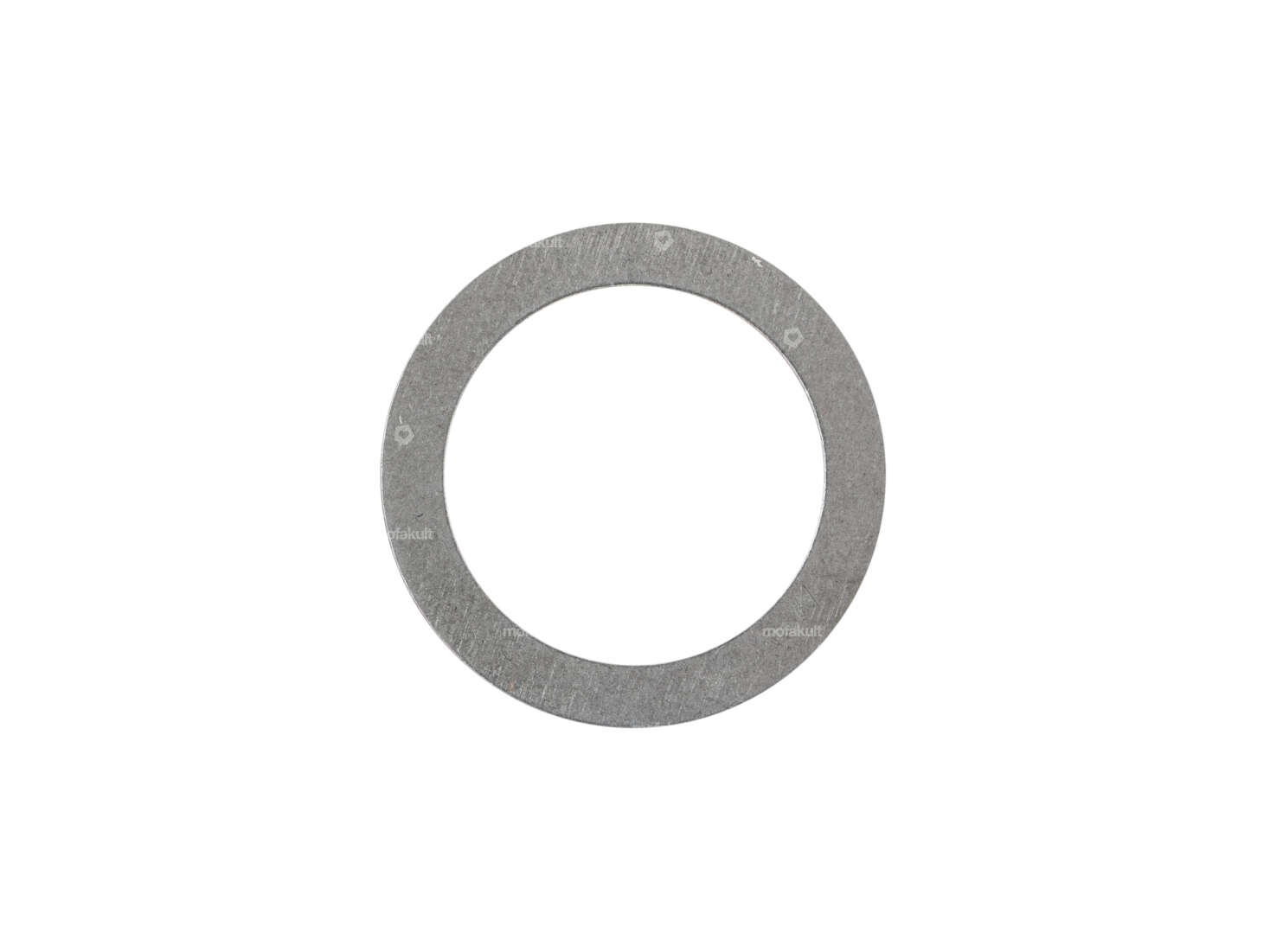

Spacer washer 19.1x26x0.5 mm for the countershaft in the gearwheel of the second gear on Sachs 503 ABL, AB, AC and ADV engines.
The spacer washer, which is mounted between the freewheel body and the bearing rollers or bearing rings, is made of hardened spring steel.
Ø inner: 19.1 mm
Ø outer: 26 mm
Thickness: 0.5 mm
Tolerance: DIN988 (-0.03 mm permissible for thickness)
This component is also known as a shim, bearing washer or thrust washer, depending on how it is used.
Original Sachs spare part number: A5615
| Nominal diameter inside | 19 mm |
| Tolerance | DIN 988 (-0.03 mm) |
| Manufacturer | Sachs |
| Material | Spring steel |
| Surface | Hardened |
| Ø outside | 26 mm |
| Ø inside | 19.1 mm |
| Thickness | 0.5 mm |
| Pony OEM number | A5615 |
| Sachs OEM no. | 0244 171 001 |
| Sachs | 503 - ABL, AB, AC, ADV |
Accessories & related products
swiing® revival gearbox cover gasket | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1888)
Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Thickness: 0.35 mm · Width: 130 mm · Total length: 200 mm · Number of components: 1 pcs · Number of fixing points: 6 pcs · Pony OEM number: A1888 · Sachs OEM no.: 0250 150 000
EUR 6.65

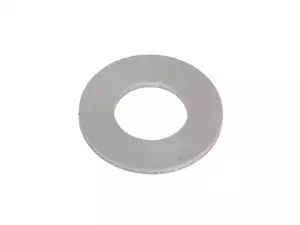

swiing® revival thrust washer 19/38/2.5 gear wheel 1st gear | Sachs 503 AB, ABL (A1198)
Tolerance: DIN 988 (-0.03 mm) · Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Ø outside: 38 mm · Ø inside: 19.1 mm · Surface: hardened & ground · Thickness: 2.5 mm · Pony OEM number: A1198 · Sachs OEM no.: 0244 201 100
EUR 13.40

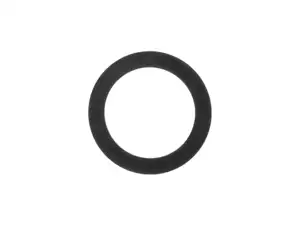

Shim 19/26/0.3 Freewheel 2nd gear | Sachs 503 ABL, AB, AC, ADV (A1197)
