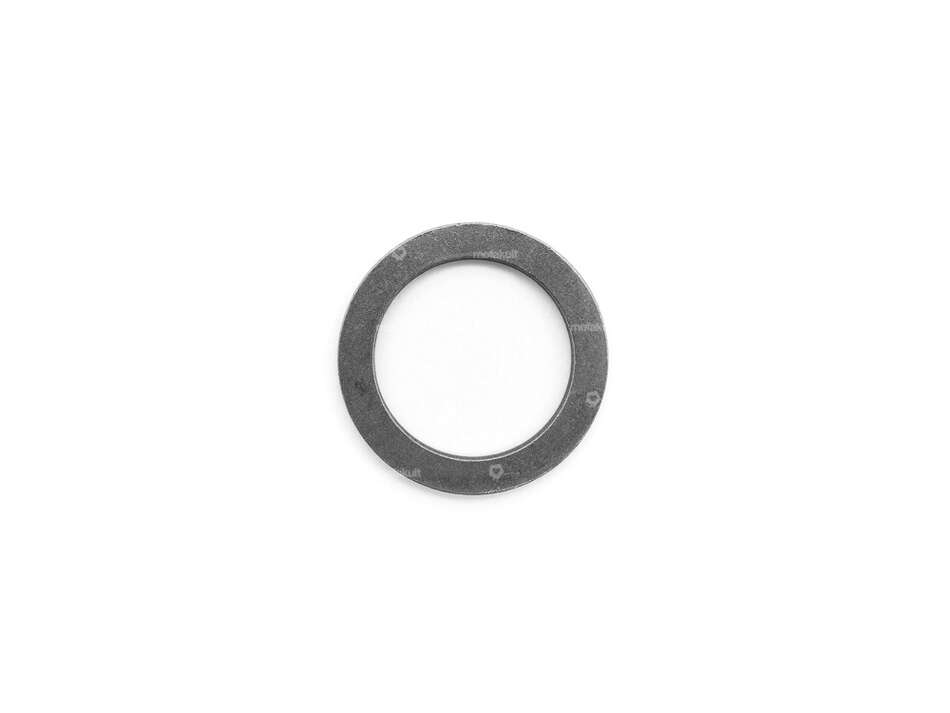

Shim to adjust the axial play of the crankshaft.
These shims are placed under the ball bearings to achieve the desired crankshaft play of 0.03 to 0.08 mm.
Outer diameter: 21 mm
Inner diameter: 15 mm
Thickness: 0.2 mm
| Manufacturer | Sachs |
| Material | Steel |
| Surface | blank / oiled |
| Nominal diameter inside | 15 mm |
| Thickness | 0.2 mm |
| Ø inside | 15 mm |
| Ø outside | 21 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 503 - AAL, ABL, 2AL / 2BL, AB |
