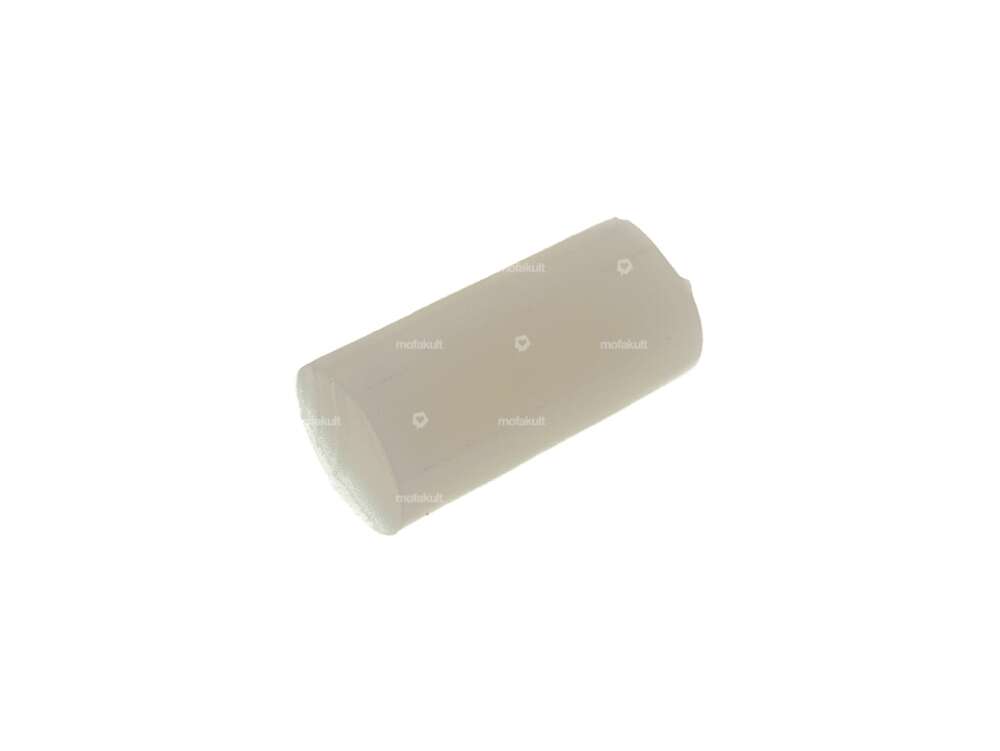

Rubber stop kickstart mechanism | Sachs

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Place of use: Cylinder base · Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.5 mm · Hole pattern [mm]: 40.5 x 51

Rubber grommet round 2 cables | Sachs 502, 503, 504, 505, 535, 508 (A1923)

Material: Rubber · Color: black · Ø Cable bushing: 2.2 mm · Ø Bundle: 10.5 mm · Ø outside: 12.8 mm · Ø mounting hole: 8.5 mm · Waistband height: 2 mm · Total length: 7 mm · Pony OEM number: A1923 · Sachs OEM no.: 0260 020 000

Nut left-hand thread M21x1 galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Drive: External hexagon · Width across flats: 26 mm · Height: 4 mm · Thread type: MF21x1 LH (fine/left-hand thread) · Strength class: 8

GPO sealing ring 12.8/19/2.4 shift/clutch lever | Sachs 50/2, 503 A3844

Manufacturer: GPO · Material: NBR · Ø inside: 12.8 mm · Ø outside: 19 mm · Thickness: 2.4 mm · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000

Notched nail clutch lever Ø 3 x 20 mm Sachs 50/2, 50/3, 50/4, 503 AB/ABL/2AL/2BL (A1784)

Manufacturer: Sachs · Ø outside: 3 mm · Total length: 20 mm · Pony OEM number: A1784 · Sachs OEM no.: 0249 023 000

Rubber washer under notched nail | Sachs 50/2, 503 AB/AC/ABL (A3890)

Material: Rubber · Color: black · Ø inside: 3 mm · Ø outside: 10 mm · Height: 1.8 mm · Pony OEM number: A3890 · Sachs OEM no.: 0660 002 000

GPO gasket set slot version | Sachs 50/3 3-speed engine

Manufacturer: GPO · Number of components: 8 pcs · Ø outlet inside: 28 mm · Hole pattern [mm]: 51 x 40 · Hole spacing inlet: 31 mm · Area of application: Standard

swiing® revival crankshaft "Original" | Sachs 50/2, 50/3

Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Number of gears: 3 pcs · Total length of crankpin on clutch side: 40.6 mm · Total length crankpin ignition side: 63.2 mm · Ø crank webs: 30 mm · Weight: 901 g · Area of application: Standard · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 8 mm · Thread length: 11 mm · Length 1st paragraph: 18.7 mm · Length 2nd paragraph: 14 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm · Pony OEM number: A2565 · Sachs OEM no.: 0286 139 400

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: E15 · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Material: Steel · Area of application: High End · Area of application: Standard · Bearing type: Deep groove ball bearing · Thread type: MF20.8x1 LH (fine/left-hand thread) · Width: 8 mm · Ø inside: 15 mm · Ø outside: 35 mm · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105
