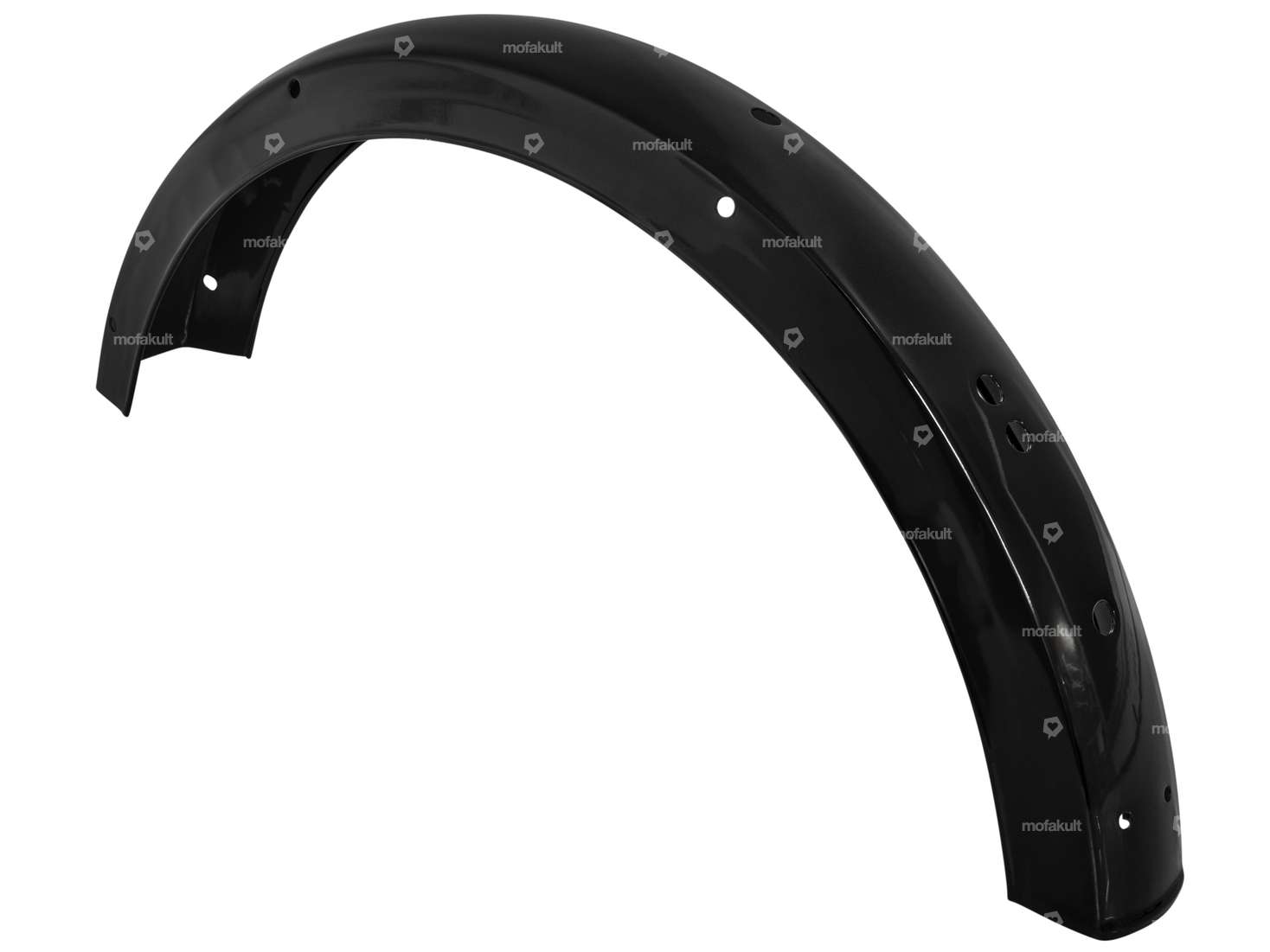

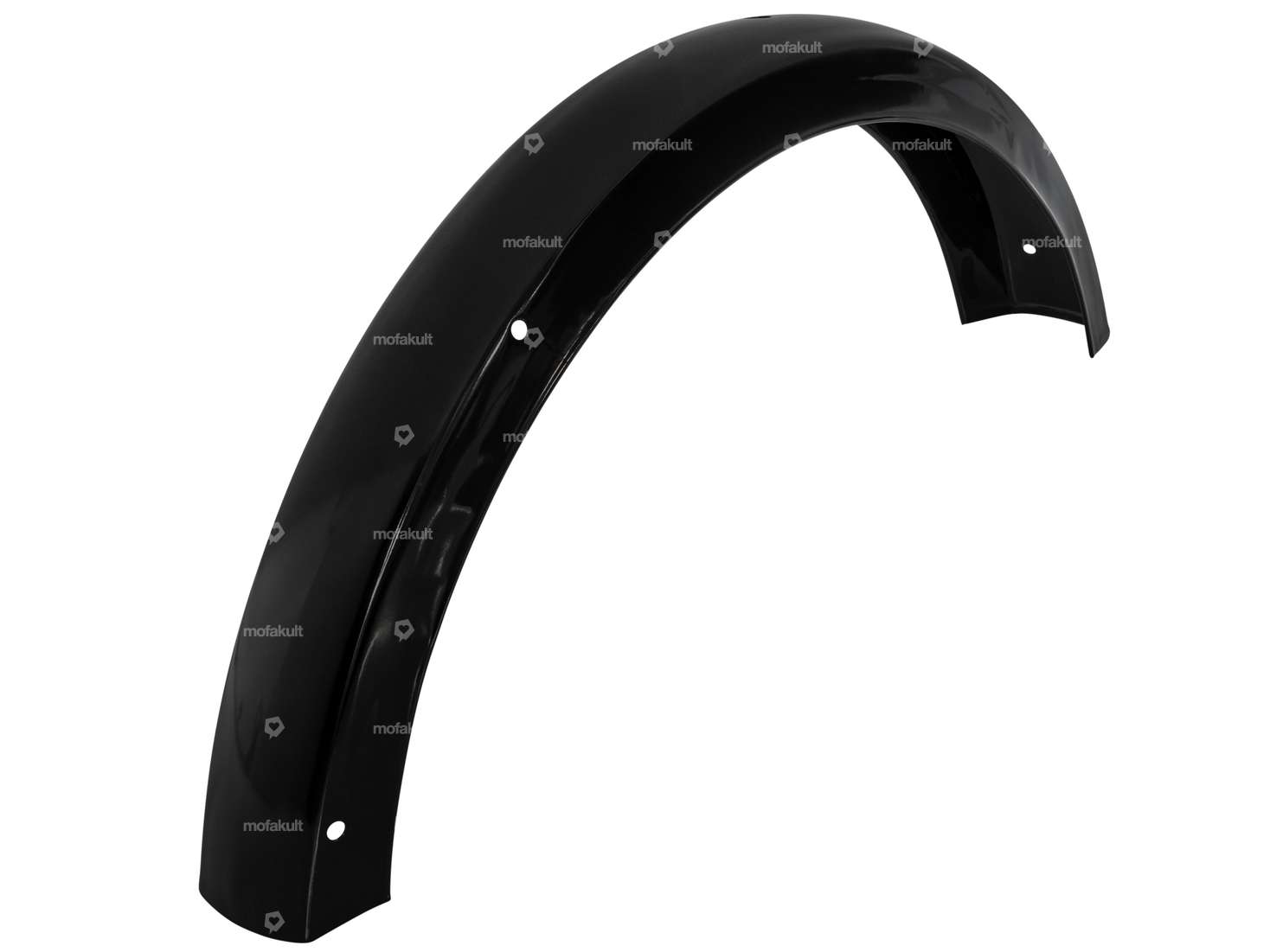

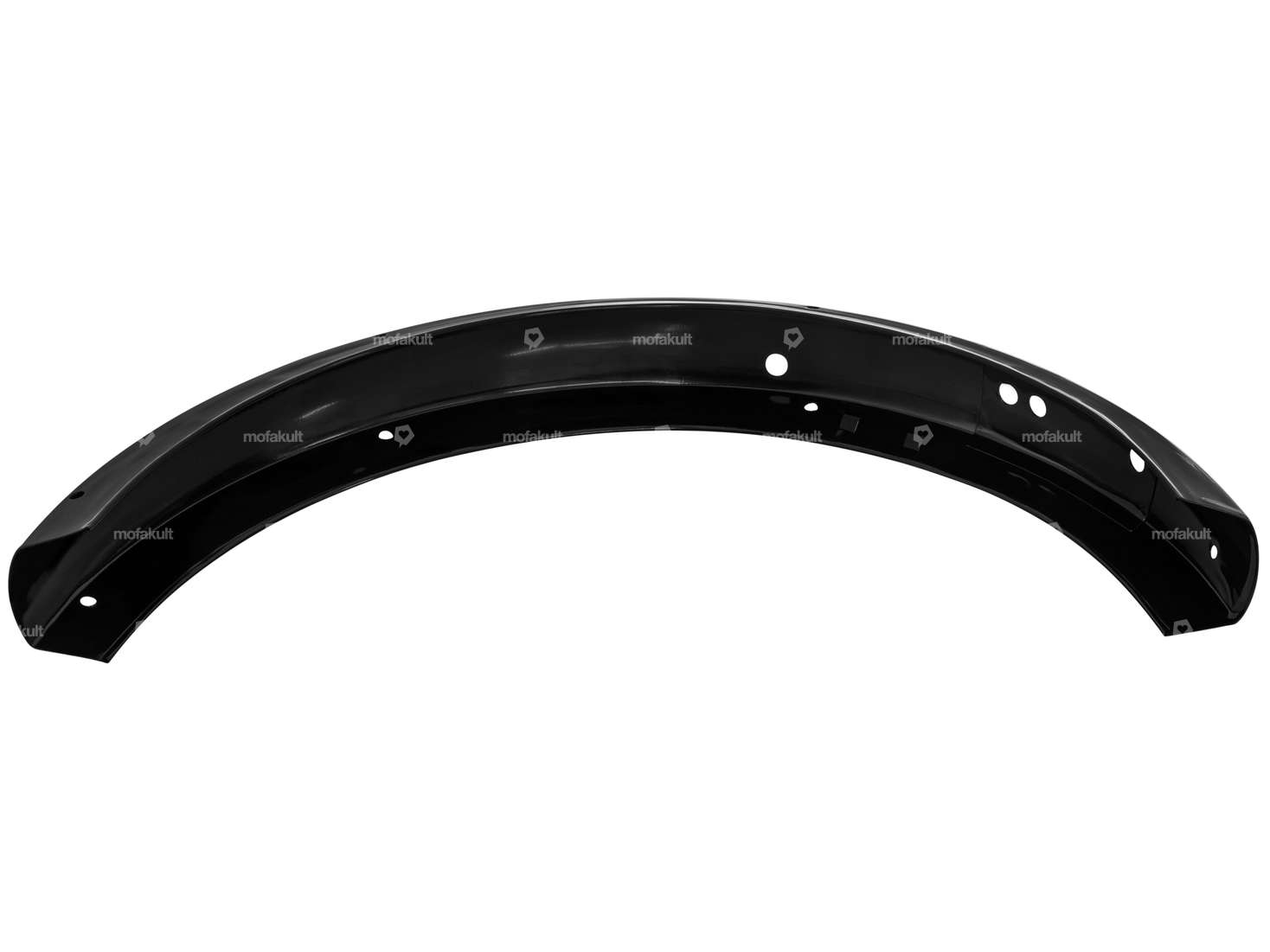

Rear fender black | Tomos A35

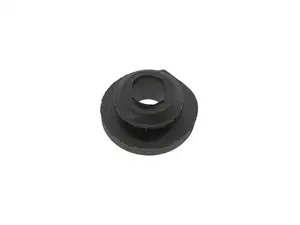

Rubber grommet side panel | Tomos

Manufacturer: Tomos · Material: Rubber · Height: 7.5 mm · Ø Cable bushing: 6 mm · Color: black · Clamping diameter: 10 mm

Cable grommet Ø 10 / 13 mm PVC

Manufacturer: Made in Germany · Material: Polyvinyl chloride (PVC-U_hard) · Ø outside: 10 mm · Height: 6 mm · Ø Cable bushing: 10 mm · Color: black · Ø mounting hole: 13 mm · Material thickness: 2 mm

Spotlight round Ø 13 cm chrome / black

Surface: chrome-plated · Surface: varnished · Test mark: none · Material: Sheet metal (steel) · Housing material: Metal · Ø outside: 130 mm · Thread size: M6 · Lens material: Plastic · Area of application: Standard · Width: 134 mm · Height: 147 mm · Color: Chrome · Color: black · Color: transparent · Bulb holder: BA15d · Mounting type: Screws · Speedometer recording: None · Switch included: No · Battery operated: No · Depth: 80 mm · Number of fixing points: 2 pcs

Union pedals aluminum black

Manufacturer: Union · Material: Aluminum · Material: Plastic · Color: black · Thread type: FG14.3 (9/16" 20G) · Drive: Outer edge · Reflectors: Yes

Airsal 38 mm cylinder kit 12 mm KoBo | Tomos A35

Manufacturer: Airsal · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Ø cylinder neck: 47 mm · Nominal diameter: 38 mm · Ø outlet inside: 25 mm · Inlet window: 28 / 24 x 38 · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 32 mm · Hole spacing inlet: 35 mm · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No

GPO Horn 12V chrome (AC - alternating current)

Surface: chrome-plated · Manufacturer: GPO · Material: Steel · Ø outside: 70 mm · Width: 70 mm · Type of current: Alternating current (AC) · Height: 35 mm · Color: Chrome · Mounting type: Screws · Tension: 12 V · Number of fixing points: 2 pcs

Rear light | Tomos A3, A35

Test mark: none · Material: Plastic · Width: 115 mm · Height: 70 mm · Color: black · Color: red · Bulb holder: BA15s · Mounting type: Nuts & bolts · Brake light: Yes · Battery operated: No · Reflectors: Yes · Number of fixing points: 2 pcs

DMP front fender black (new model) | Tomos A35, Classic

Surface: varnished · Material: Steel · Folding the ends: folded · Color: black · Mounting type: Nuts & bolts · Total length over ends: 490 mm · Scope: 610 mm · Wide mudguard profile: 90 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 150 mm

Front fender primed black (old model) | Tomos A35, Classic

Surface: primed · Material: Steel · Color: black · Mounting type: Nuts & bolts

Main stand spring | Tomos

Spring design: Tension spring · Length spring hook: 17.4 mm · Manufacturer: Tomos · Area of application: Original · Material: Spring steel · Area of application: Standard · Ø outside: 14.5 mm · Ø wire: 2.5 mm · Ø inside: 9.8 mm · Total length: 86.6 mm · Surface: galvanized (blue) · Tomos OEM number: 200609

Front mudguard strut | Tomos Classic, Quadro, Sprint, Fun Sport'R

Surface: varnished · Outer width: 104 mm · Material: Steel · Color: black · Mounting type: Nuts & bolts · Ø mounting hole: 6 mm · Ø mounting hole: 7 mm · Hole spacing: 40 mm · Hole spacing: 43 mm · Total length: 56 mm · Number of fixing points: 6 pcs

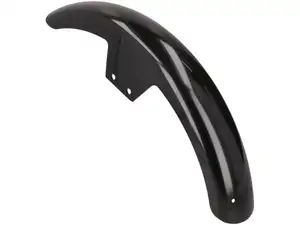

Front fender black | Tomos Revival

Manufacturer: Tomos · Material: Plastic · Folding the ends: folded · Wheel size [inch]: 17 " · Color: black · Shape of the mudguard: partly round · Mounting type: Nuts & bolts · Total length over ends: 530 mm · Scope: 630 mm · Wide mudguard profile: 84 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 150 mm · Tomos OEM number: 242088
