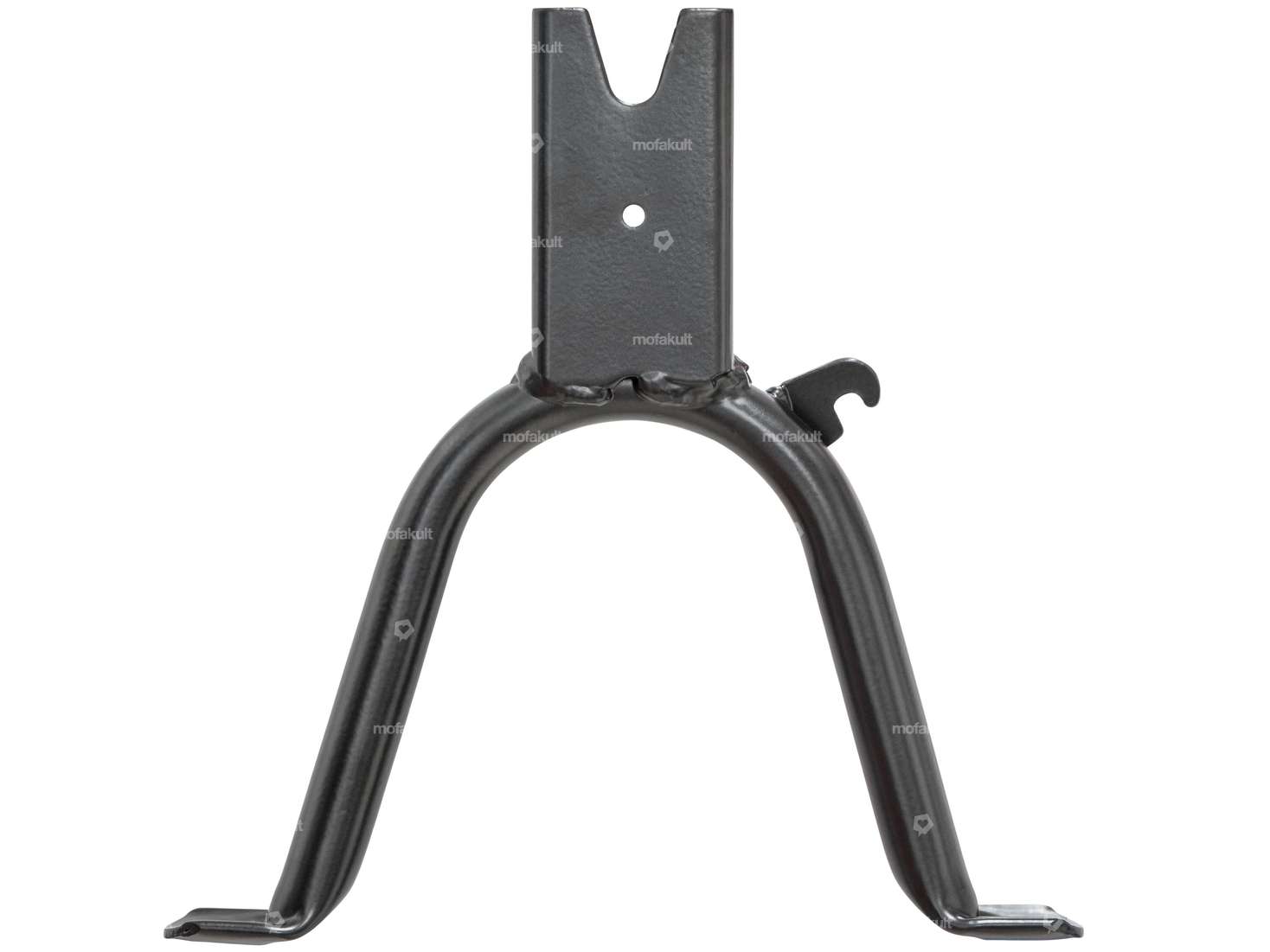

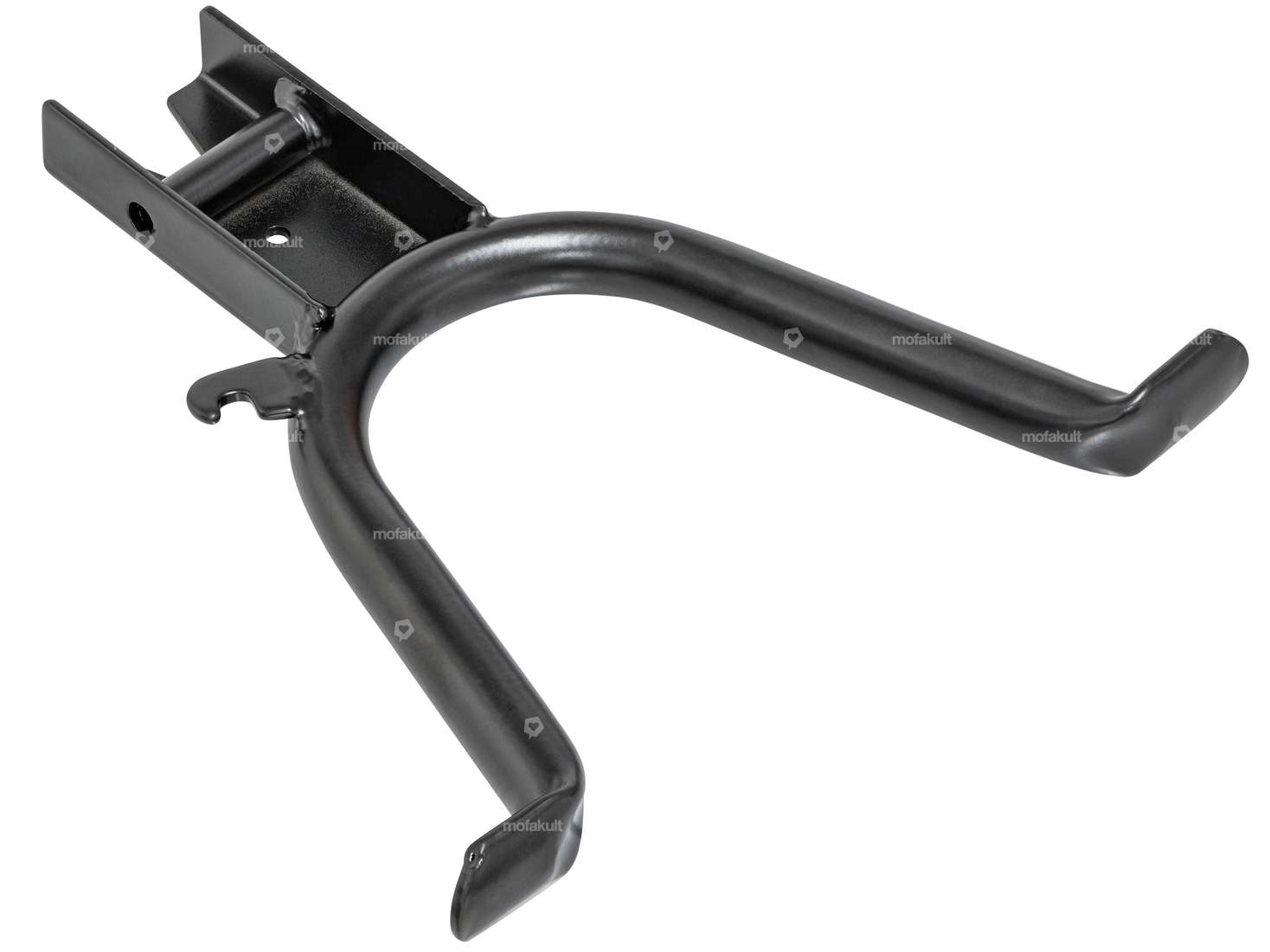

Central support suitable for Tomos A3 / A35 mopeds / mopeds.
This is an inexpensive version with slightly larger dimensional tolerances than its more expensive counterpart, but it fulfills its purpose.
The kickstand is supplied without bolt and spring.
You can find the high-quality finish as well as other parts for your Tomos in the accessories section.
Details
| Material | Steel |
| Surface | varnished |

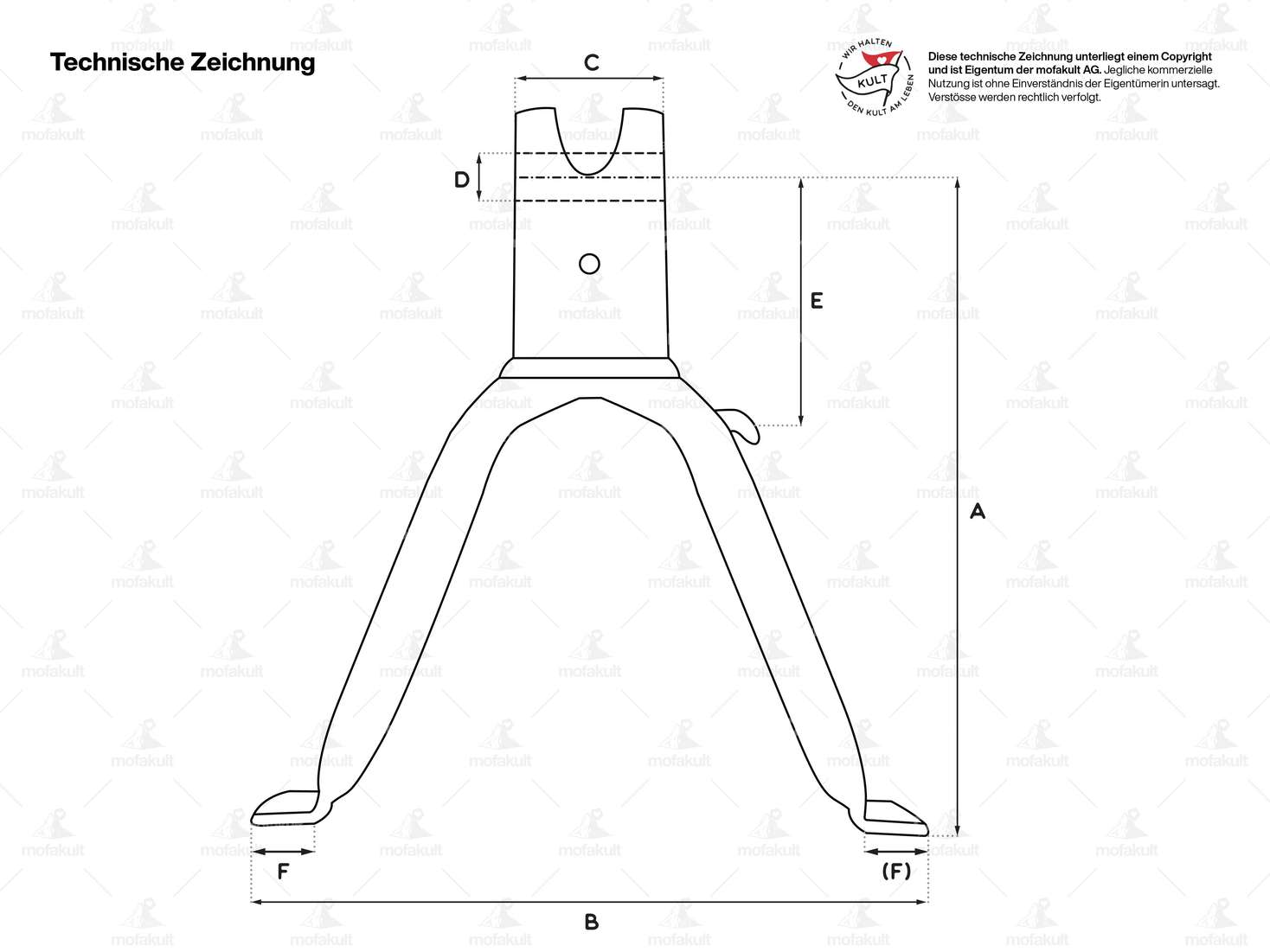

| Stand base - center mount (A) | 200 mm |
| Total width of stand base (B) | 235 mm |
| Wide receptacle (C) | 51 mm |
| Ø Receptacle (D) | 8.1 mm |
| Spring nipple distance - center pivot axis (E) | 65 mm |
| Color | black |
| Wide upright foot (F) | 30 mm |
| Total height | 240 mm |
| Tomos OEM number | 237153S91 |
Suitable for the following models
| Tomos |
Accessories & related products
Jamarcol Fuego exhaust 28 mm black | Tomos
Manufacturer: Jamarcol · Material: Steel · Color: black · Surface: varnished · Ø outside: 70 mm · Total length: 770 mm · Ø Silencer: 50 mm · Number of fixing points: 1 pcs · Ø Internal connection: 25 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cone / double cone · Mounting type: Welded lug · Flame tube attachment: Flange
EUR 76.00
Airsal 44 mm cylinder kit tuning 10 mm KoBo | Tomos A35
Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 65 ccm · Nominal diameter: 44 mm · Ø cylinder neck: 47.4 mm · Ø outlet inside: 22 mm · Number of fixing points: 4 pcs · Inlet window: 29.5 x 37.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31.5 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 10 mm · Hole spacing outlet: 42 mm · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No
EUR 147.20
Main stand 24 cm black | Tomos A3 / A35
Manufacturer: Made in Portugal · Material: Steel · Surface: varnished · Color: black-matt · Stand base - center mount (A): 205 mm · Total width of stand base (B): 220 mm · Wide receptacle (C): 52 mm · Ø Receptacle (D): 7.8 mm · Spring nipple distance - center pivot axis (E): 7.5 mm · Wide upright foot (F): 25 mm · Total height: 240 mm · Tomos OEM number: 237153S91
EUR 36.70

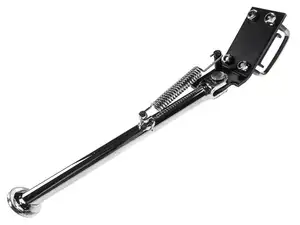

Side stand left chrome | Tomos Quadro, Flexer, Classic
