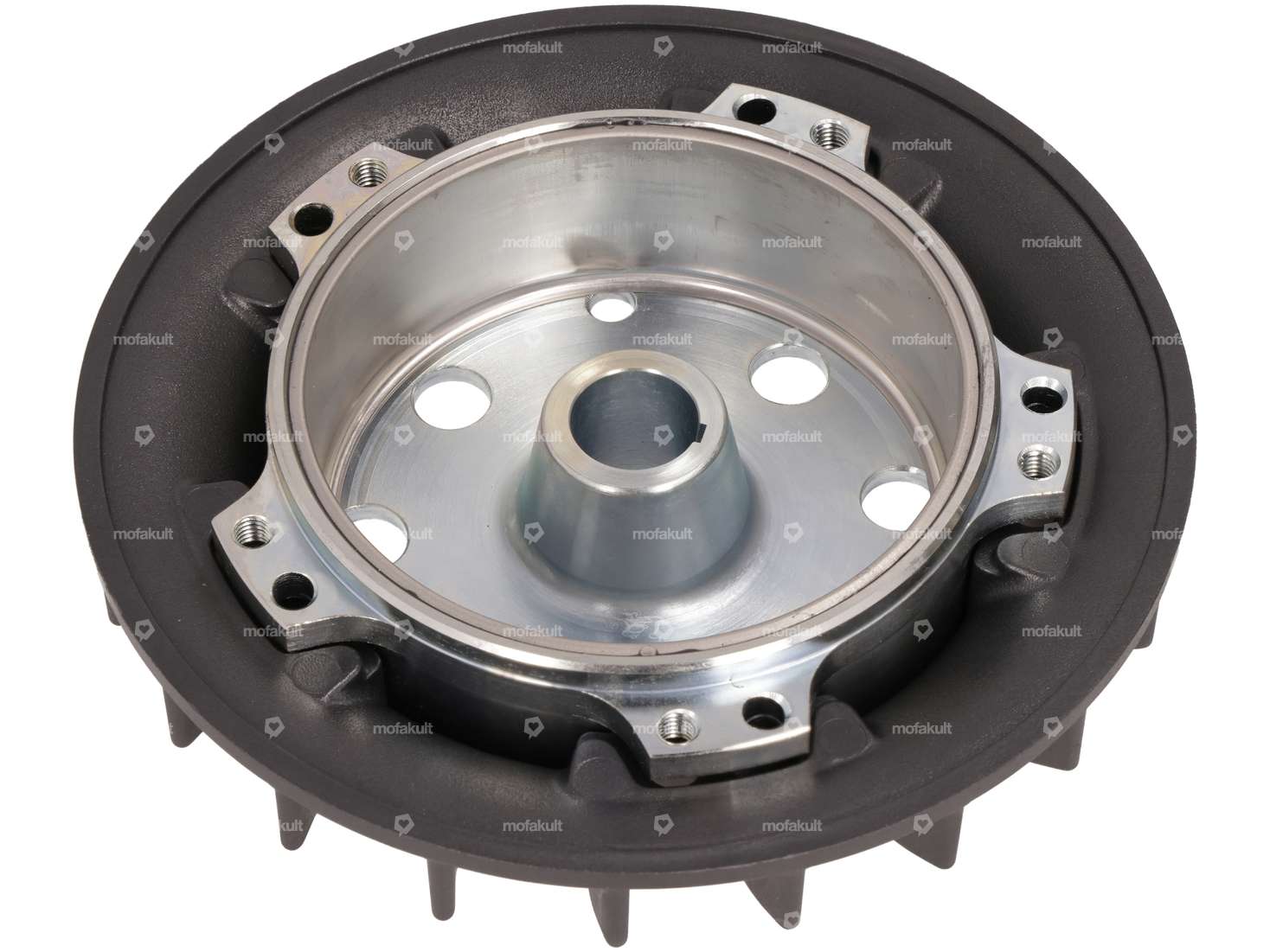

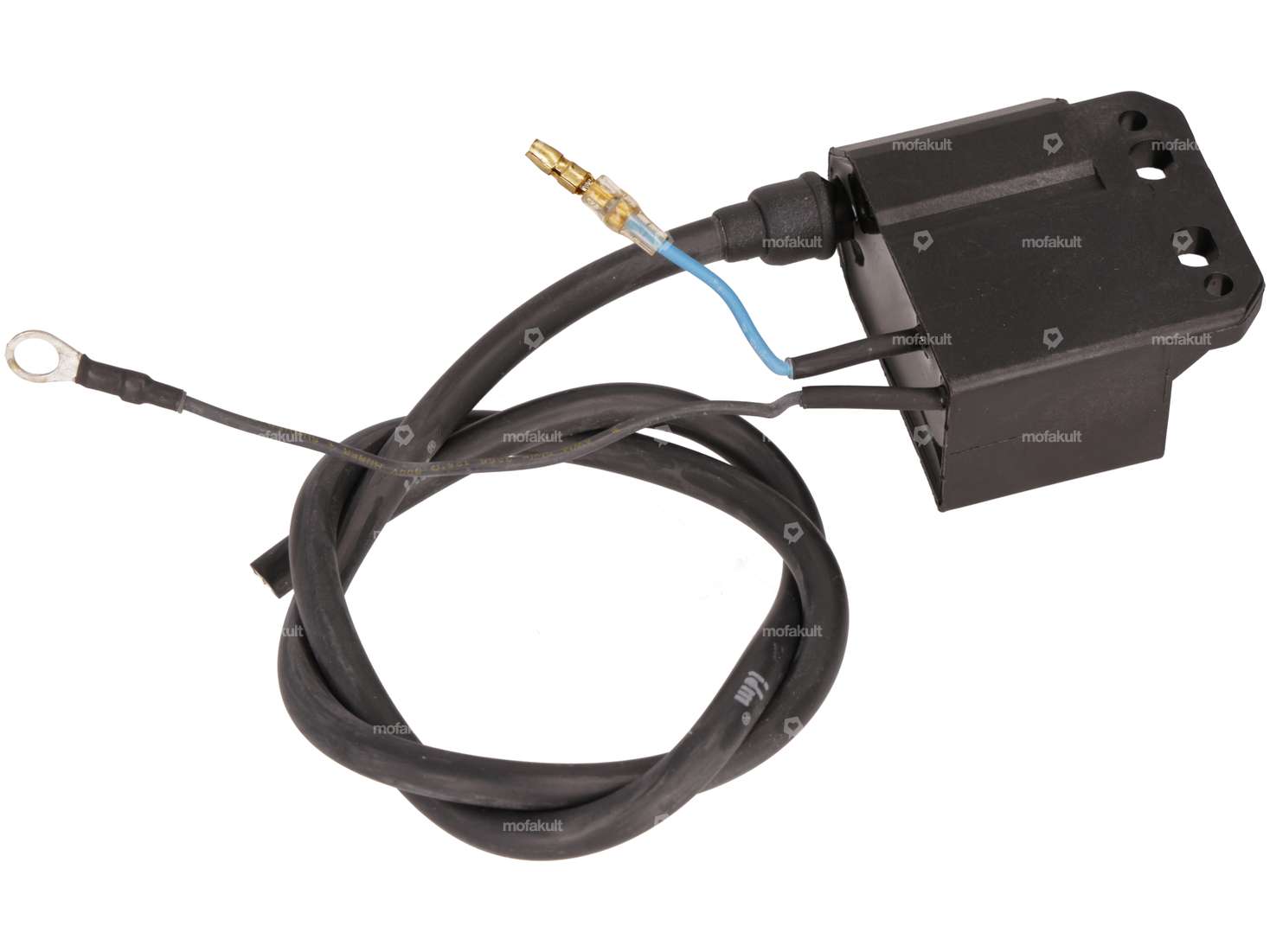

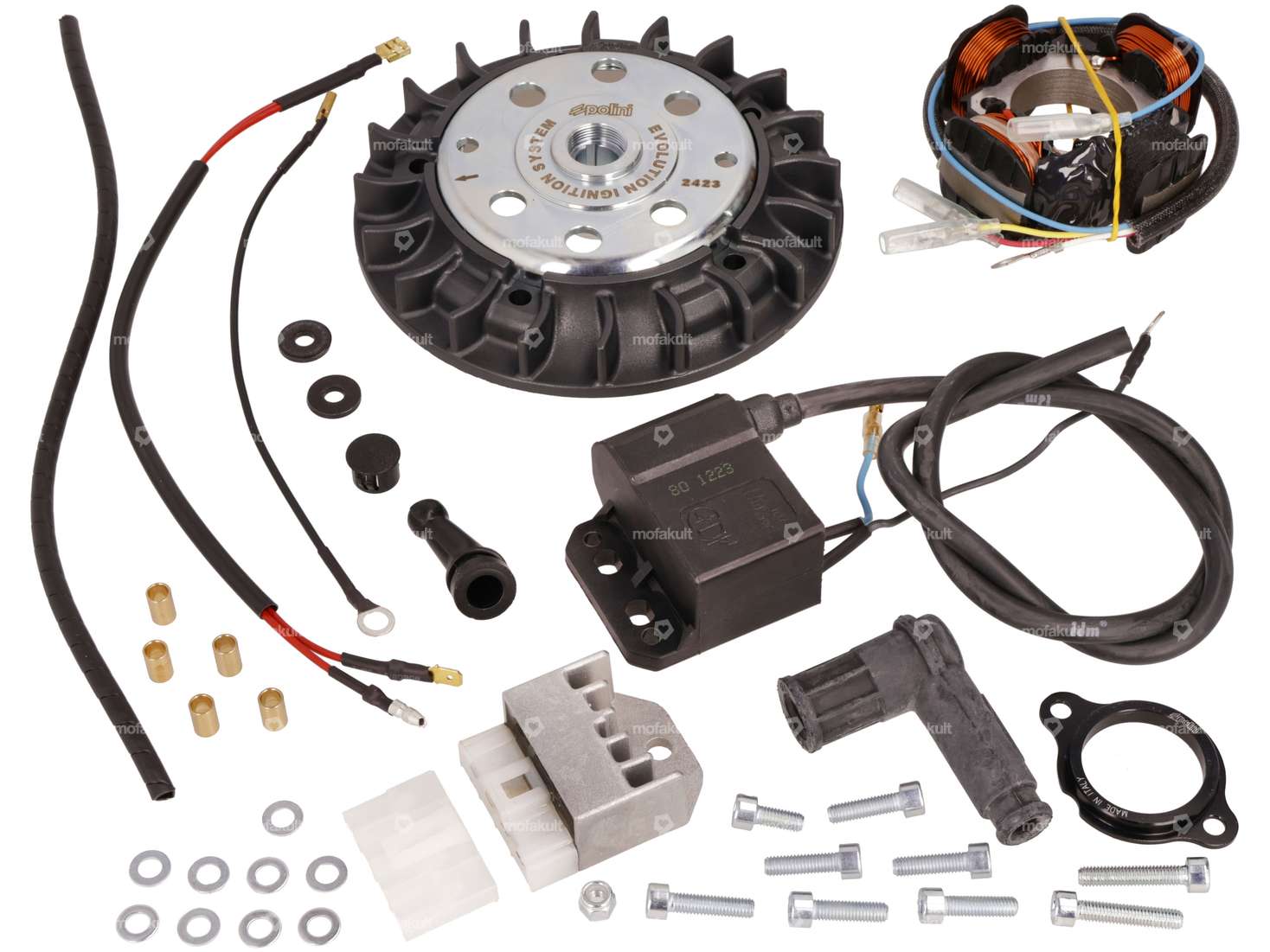

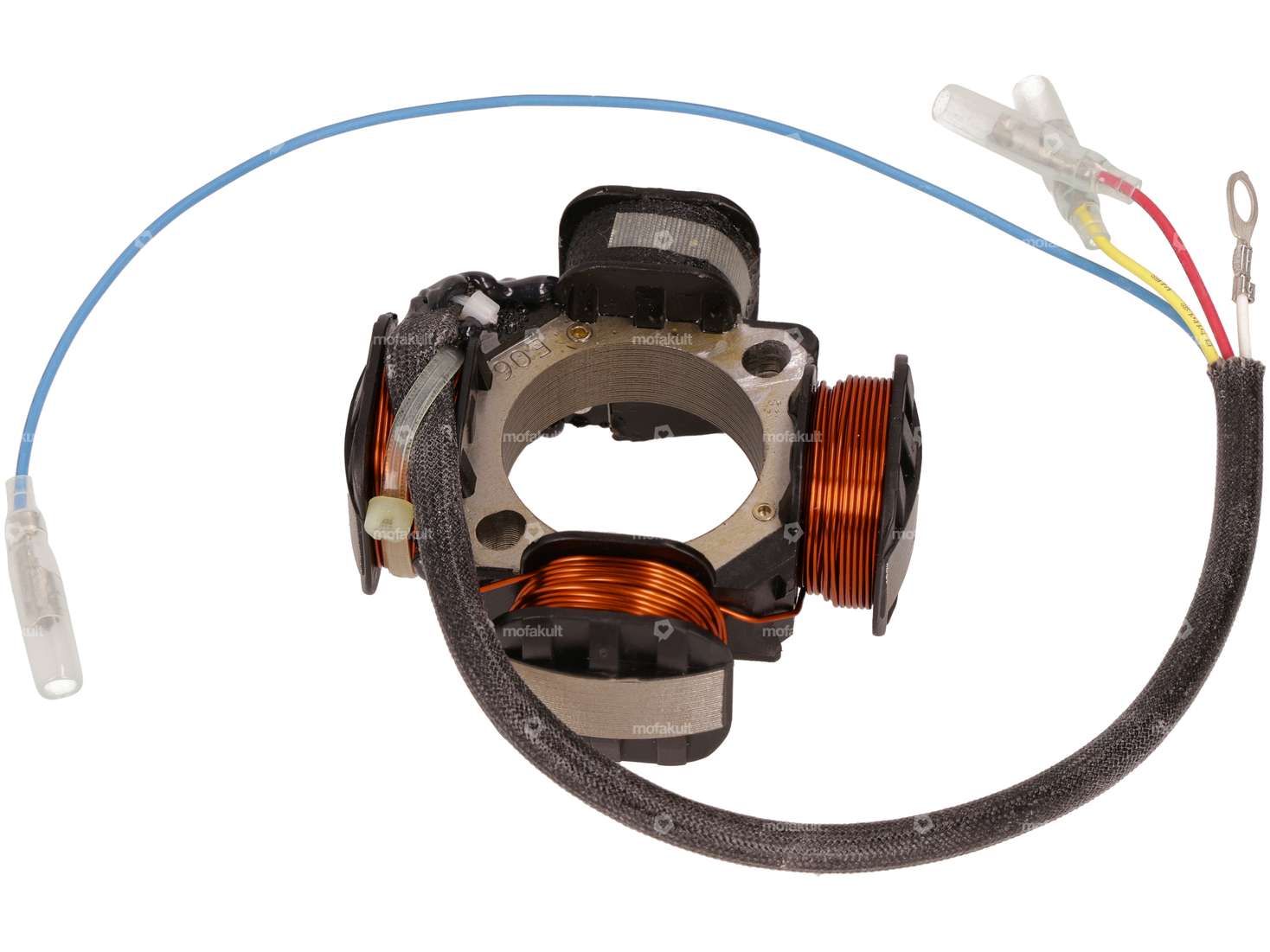

Electronic Polini EVO ignition with 12V voltage and 90W light output, suitable for your Piaggio Ciao, Si, Bravo and Boxer moped / moped, provided the corresponding engine housing is available.
The Polini ignition was developed together with the other EVOLUTION parts, but also fits on racing bikes from other manufacturers.
Details
| Manufacturer | Polini |
| Weight | 554 g |
| Ø Internal flywheel | 80.5 mm |
| Light coil voltage | 12 V |
| Performance | 90 W |
| Direction of rotation | right |
| Ø Flywheel outside | 105 mm, 138.5 mm |
| Number of fixing points | 2 pcs |
| Area of application | High End, Tuning, Racing |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Polini EVO REED crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Grillo
Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Polini · Material: Steel · Cheek type: Full cheeks · Area of application: High End · Area of application: Racing · Area of application: Tuning · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1.25 (fine pitch thread) · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 70 mm · Weight: 784 g · Thread length: 14 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 32.6 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44.7 mm · Length 3rd paragraph: 64 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm
EUR 350.10
Not in stock
Polini 47 mm cylinder kit EVO 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Gray cast iron · Camouflaged: No · Area of application: High End · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 75 ccm · Ø piston pin (B): 12 mm · Nominal diameter: 47 mm · Ø cylinder neck: 49.8 mm · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Decompressor: Yes · Number of fixing points: 4 pcs · Hole spacing outlet: 23 mm · Hole spacing outlet: 38 mm · Thread outlet: M5x0.8 (standard thread) · Hole pattern [mm]: 43 x 52
EUR 338.00
Polini CP 21 mm carburetor & air filter (hand choke) | Piaggio Ciao, SI, Bravo, Boxer
Width: 66 mm · Height: 122 mm · Total length: 71 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Racing · Area of application: Tuning · Carburetor type: CP · Nominal diameter: 21 mm · Nozzle size: 82 · Nozzle size: 84 · Nozzle size: 86 · Ø Inside entrance: 42 mm · Ø Output inside: 22.5 mm · Ø Air filter connection: 47 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Rubber sleeve · Nozzle block: 35-12 · Size of secondary nozzle: 40
EUR 205.20
Hot
Polini EVO exhaust (27 mm connection) | Piaggio Ciao, SI, Bravo, Boxer
Ø outside: 83 mm · Total length: 750 mm · Manufacturer: Polini · Color: black-matt · Color: graphite colors · Material: Aluminum · Material: Steel · Surface: blank · Surface: varnished · Ø Internal connection: 27 mm · Ø Silencer: 60 mm · Ø Flame tube outside: 27 mm · Exhaust type: Cone / double cone · Number of fixing points: 2 pcs · Flame tube attachment: Plug connection · Mounting type: Tab for screwing
EUR 301.80

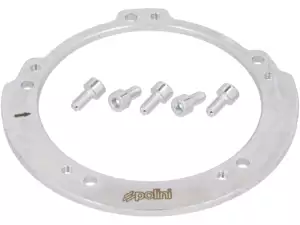

Polini additional weight 110 g EVO ignition & rotary valve shaft | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Steel · Surface: galvanized (blue) · Weight: 110 g · Ø inside: 90 mm · Ø outside: 120 mm · Thickness: 4 mm · Number of fixing points: 5 pcs · Area of application: Tuning
EUR 29.60
