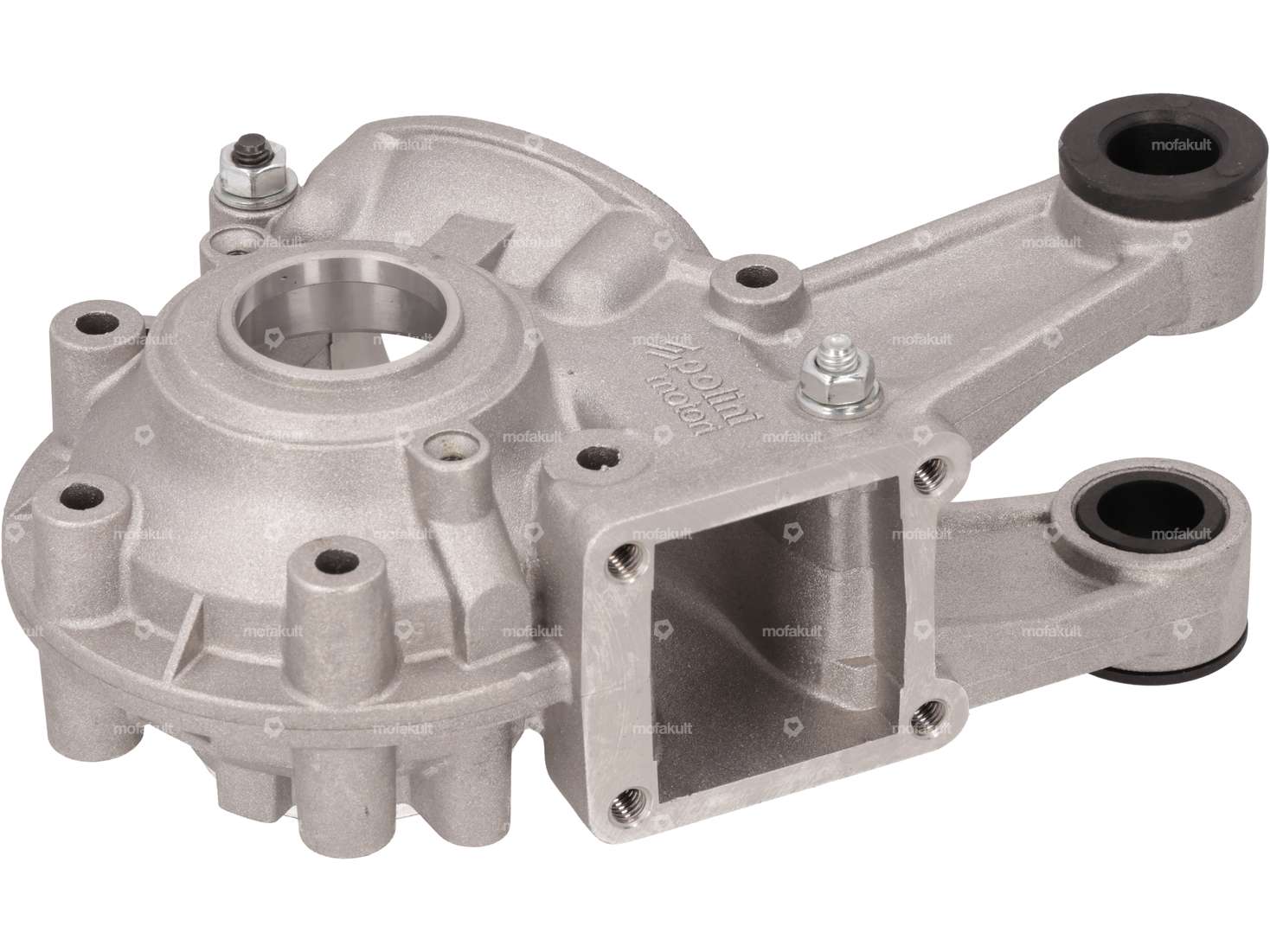

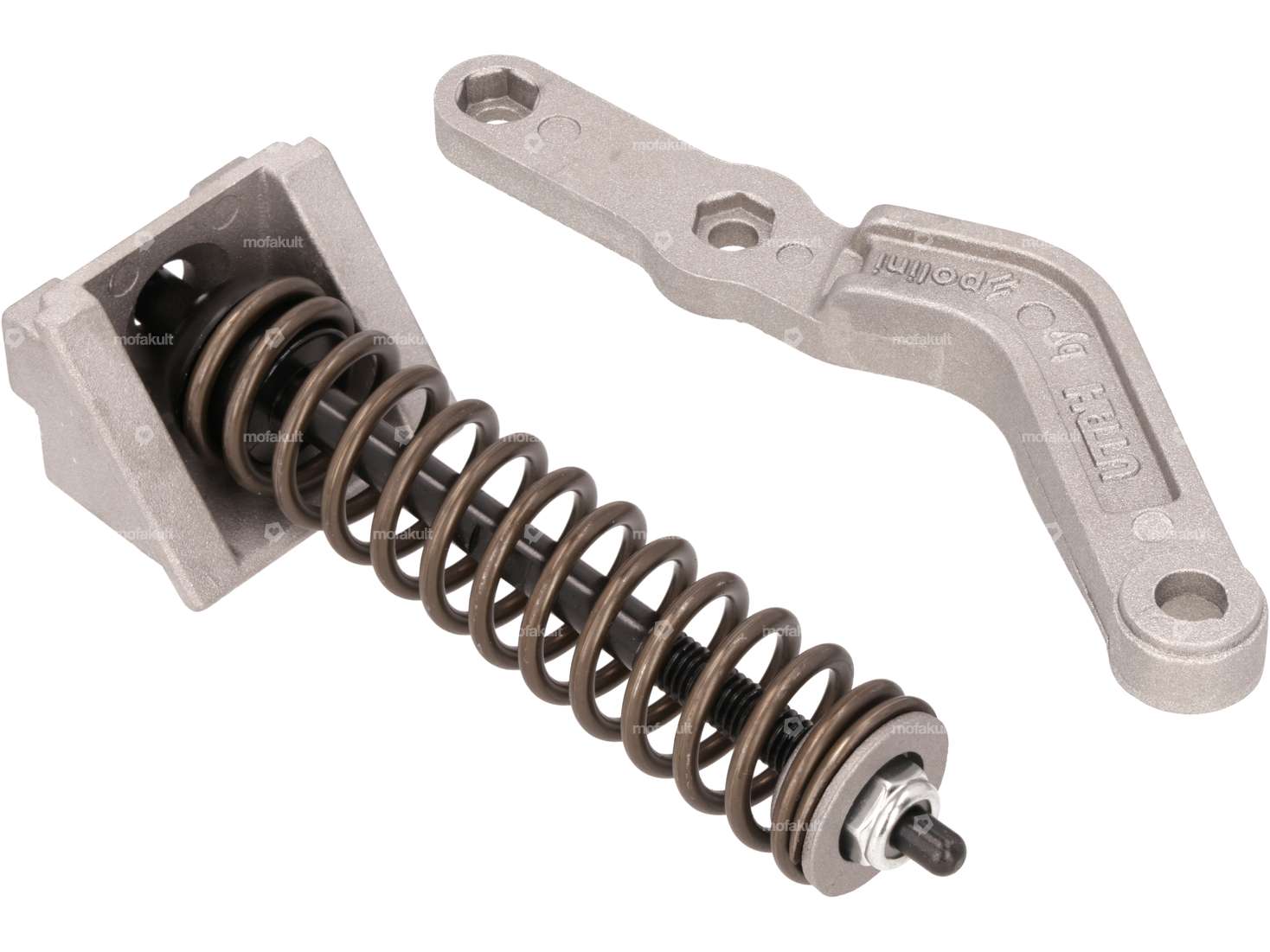

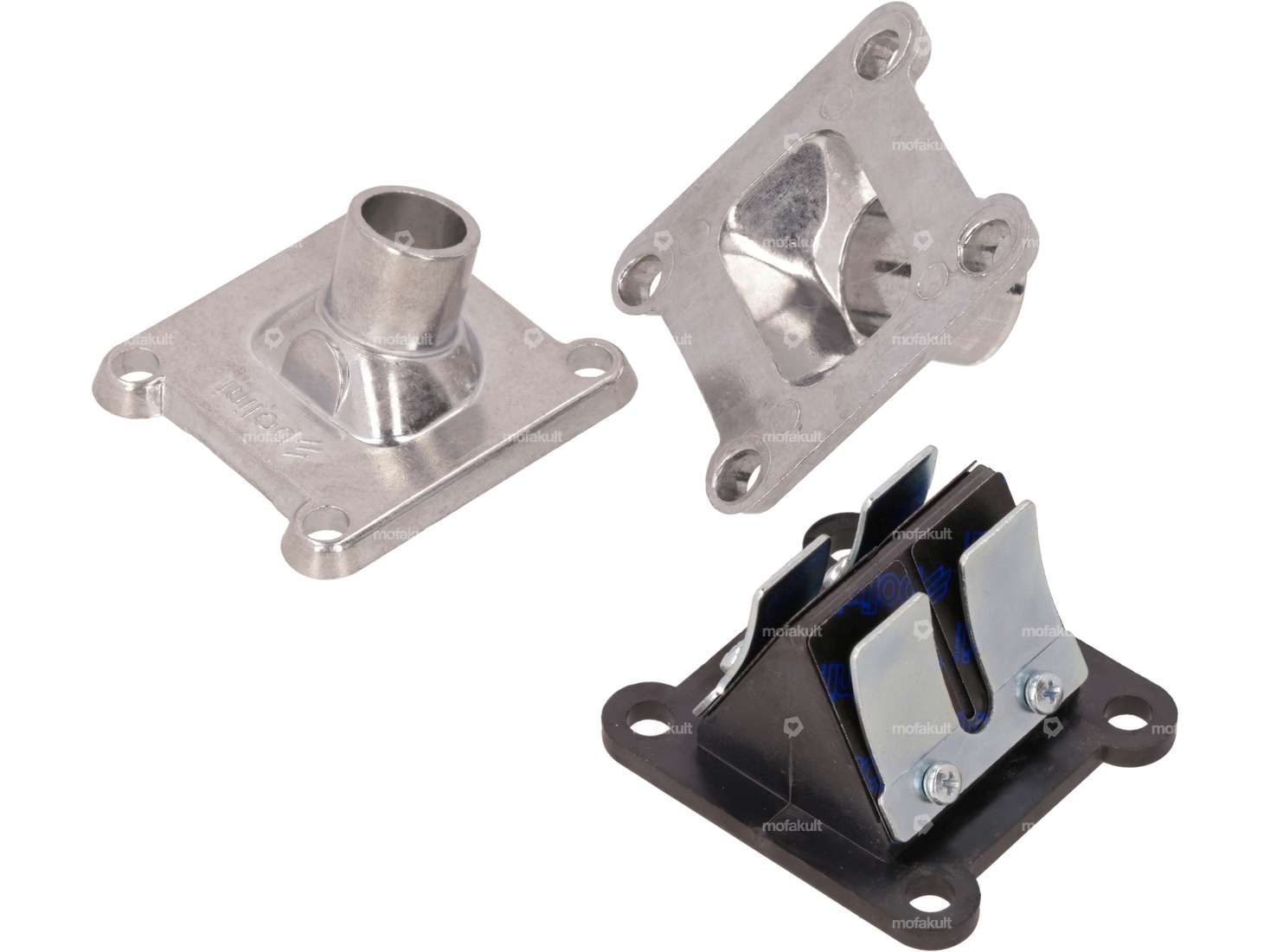

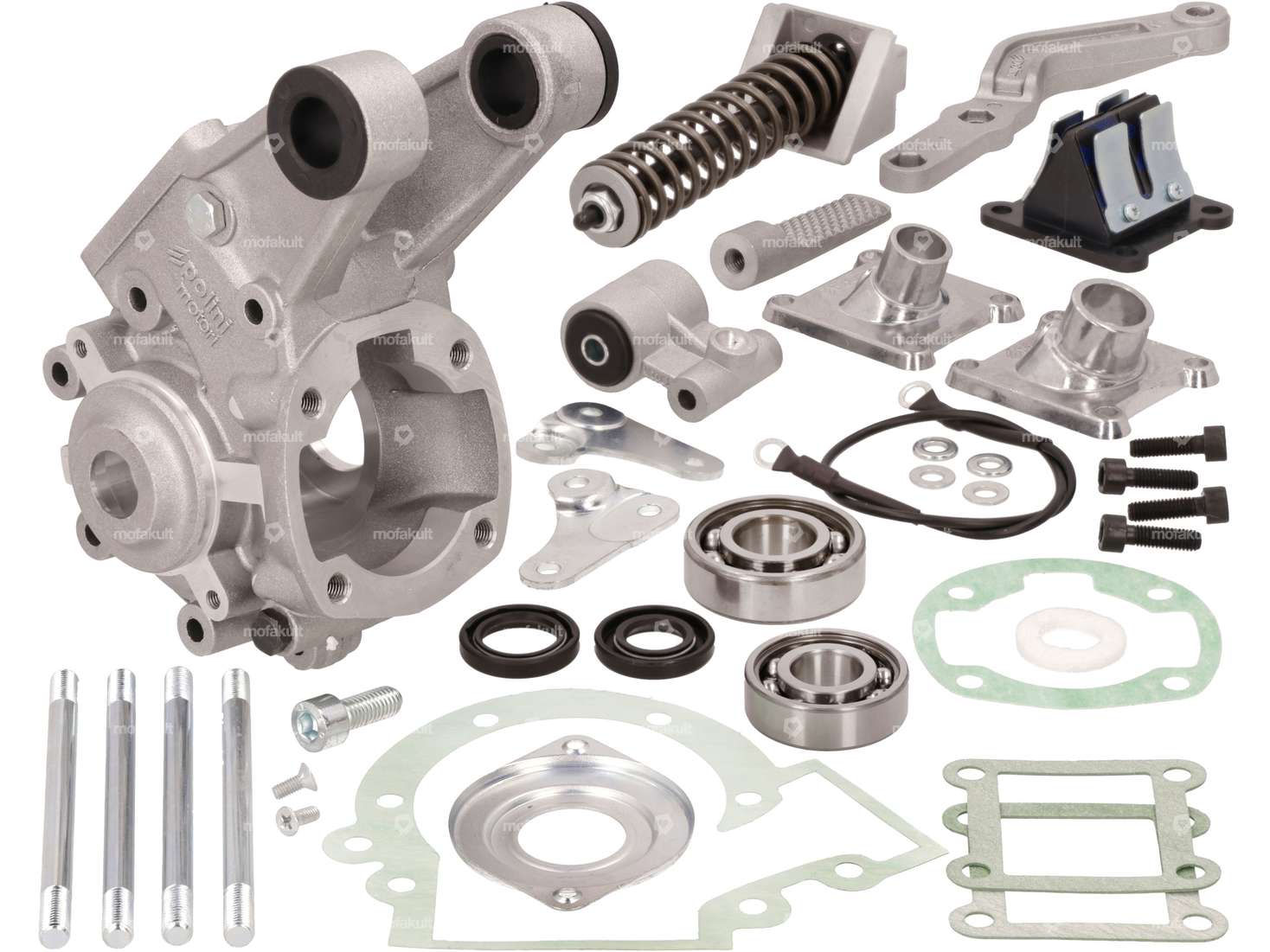

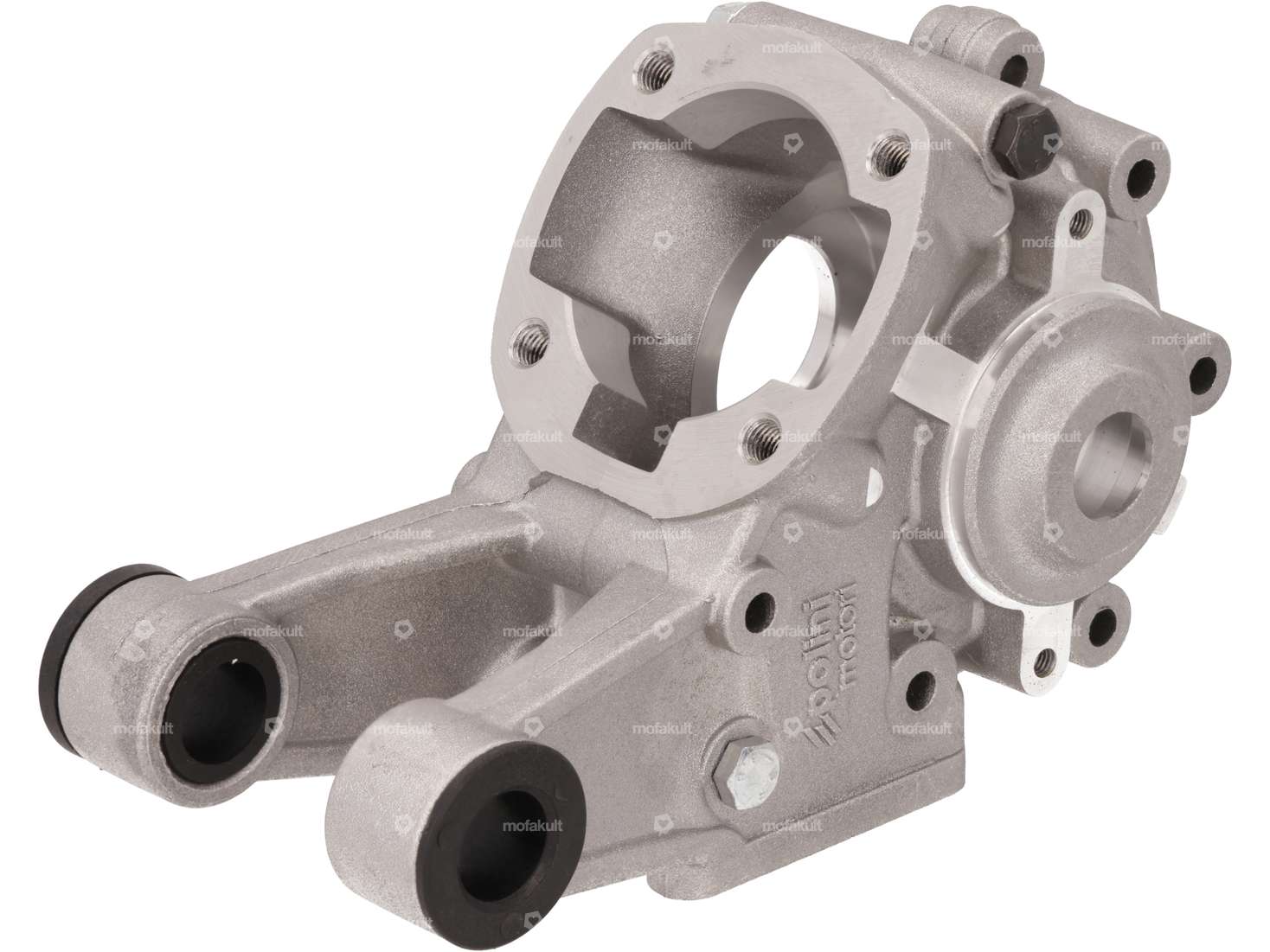

Polini engine housing 4-flap diaphragm & starter pedal | Peugeot 103, 104, 105, GL 10

Airsal 40 mm cylinder kit | Peugeot 103

Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Nominal diameter: 40 mm · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Area of application: Tuning

Airsal 46 mm cylinder kit | Peugeot 103

Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Displacement: 72 ccm · Nominal diameter: 46 mm · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi Rennvariomat Multivar | Peugeot 103 SPX, RCX

Manufacturer: Malossi · Number of weights: 6 pcs · Weight Standard weights: 3 g · Ø Weights: 16 mm · Length Weights: 12.8 mm · Gearbox type: Vario

swiing® ingenious brake shoes Ø 90 x 17 Racing slotted | Peugeot 103

Slotted: Yes · Manufacturer: swiing® ingenious parts · Area of application: Racing · Ø drum: 90 mm · Springs included: Yes · Number of springs: 1 pcs · Width: 17 mm

Simonini exhaust snail | Peugeot 103 SP

Manufacturer: Simonini · Material: Steel · Surface: varnished · Mounting type: Welded lug · Flame tube attachment: Plug connection clamped · Number of fixing points: 2 pcs · Exhaust type: Snail

Athena 40 mm cylinder kit aluminum | Peugeot 103 VOGUE T, L

Nominal diameter: 40 mm · Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: Union nut · Outlet type: slanted · Area of application: Tuning

Set of clutch shoes lightened | Peugeot 103 SPX, RCX

Number of jaws: 3 pcs · Number of springs: 3 pcs · Area of application: Tuning

Airsal 40 mm cylinder head | Peugeot 103

Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Ø cylinder: 40 mm · Width: 105 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 49.5 x 45 · Candle thread: short · Height: 110 mm · Decompressor: Yes · Area of application: Standard

Polini racing exhaust | Peugeot 103, 103 SPX50, 104, 105, GL 10

Manufacturer: Polini · Material: Steel · Mounting type: Flange · Flame tube attachment: Stud bolts & nuts · Number of fixing points: 4 pcs · Exhaust type: Cone / double cone

Polini engine housing 4-flap diaphragm | Peugeot 103, 104, 105, GL 10

Manufacturer: Polini · Material: Cast aluminum · Crankshaft stroke: 39 mm · Hole pattern [mm]: 45 x 50

Polini 46 mm cylinder kit cast iron | Peugeot 103, 104, 105, GL 10

Nominal diameter: 46 mm · Manufacturer: Polini · Material: Gray cast iron · Crankshaft stroke: 39 mm · Displacement: 65 ccm · Ø cylinder neck: 49.9 mm · Ø outlet inside: 23.5 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole pattern [mm]: 46 x 50 · Hole spacing outlet: 50 mm · Area of application: Tuning

Polini gasket set 4-flap diaphragm housing | Peugeot 103, 104, 105, GL

Manufacturer: Polini · Material: Sealing paper · Hole pattern [mm]: 48 x 42 · Number of components: 4 pcs

Polini crankshaft (electronic ignition) | Peugeot 103, 104, 105, GL 10

Manufacturer: Polini · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 39 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF11x1 (fine pitch thread) · Connecting rod length center-center: 76 mm · Total length of crankpin on clutch side: 100 mm · Total length crankpin ignition side: 71 mm · Ø crank webs: 69 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 16 mm · Ø Bearing seat (clutch side): 20 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 10 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 17.2 mm (axe 12) · Wide crank webs: 35.1 mm · Length 1st paragraph: 23 mm · Length 2nd paragraph: 8 mm · Length 3rd paragraph: 59 mm · Ø 1st step (on the coupling side): 20 mm · Ø 2nd shoulder (on the clutch side): 15.9 mm · Ø 3rd step (on the clutch side): 10.9 mm · Length of shoulder (ignition side): 12 mm · Weight: 954 g · Area of application: Racing · Area of application: Tuning

Polini 46 mm cylinder kit aluminum | Peugeot 103, SPX50, 104, 105, GL 10

Nominal diameter: 46 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Displacement: 65 ccm · Ø cylinder neck: 50 mm · Ø Outlet outside: 25 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 7 mm · Hole pattern [mm]: 45.4 x 50.5 · Hole spacing outlet: 50 mm · Outlet type: slanted · Thread outlet: M7x1 (standard thread) · Decompressor: Yes
