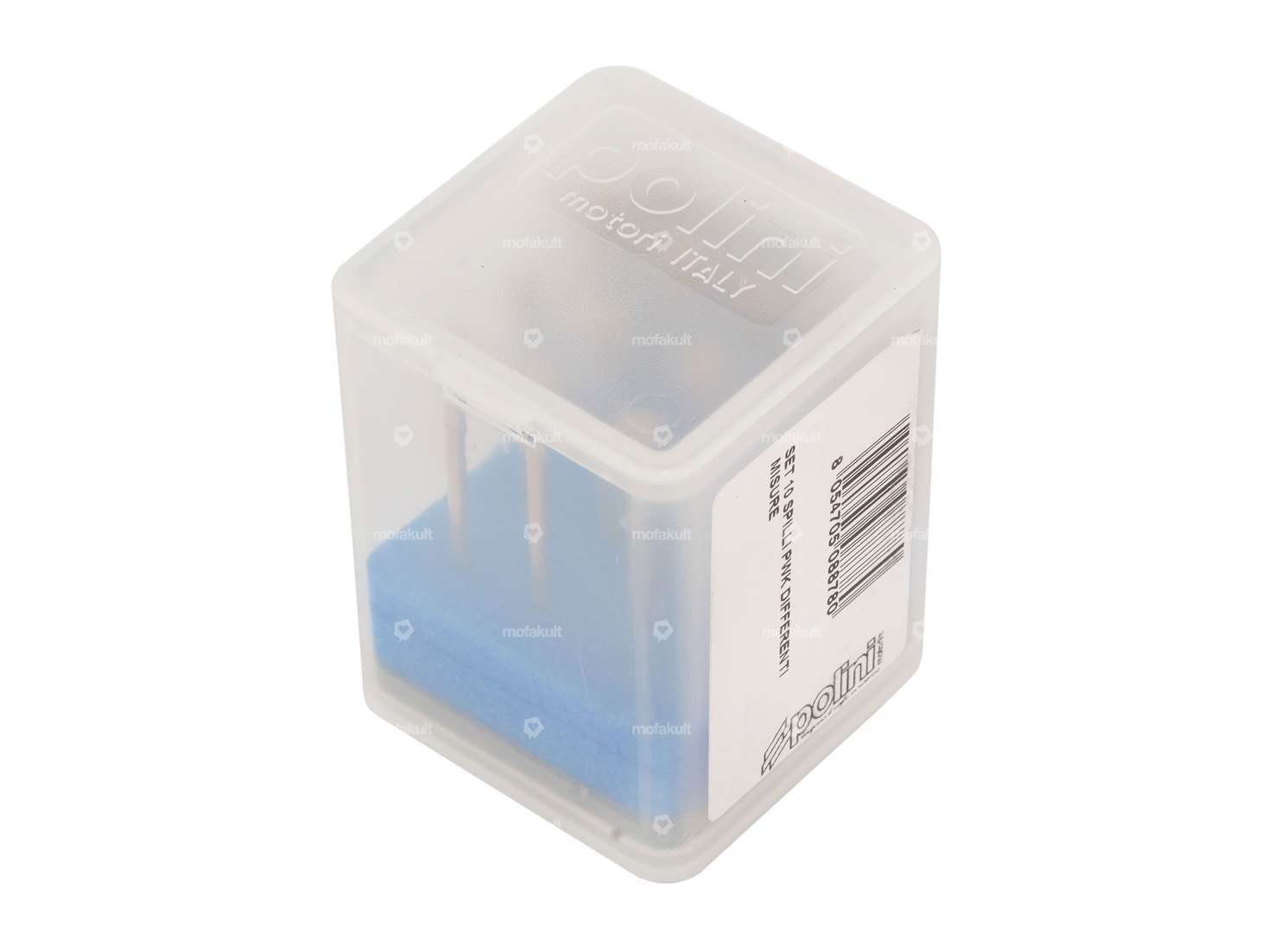

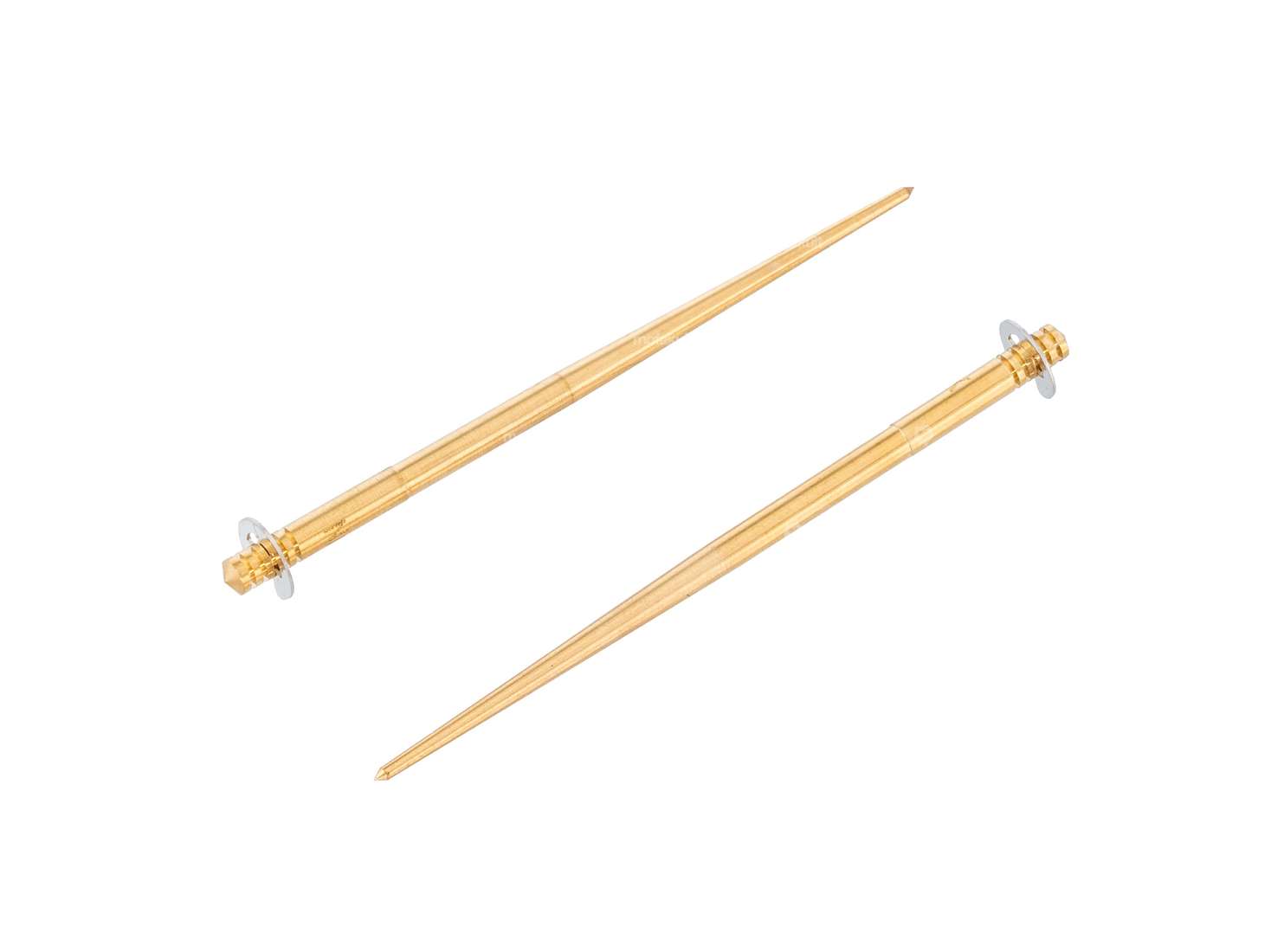

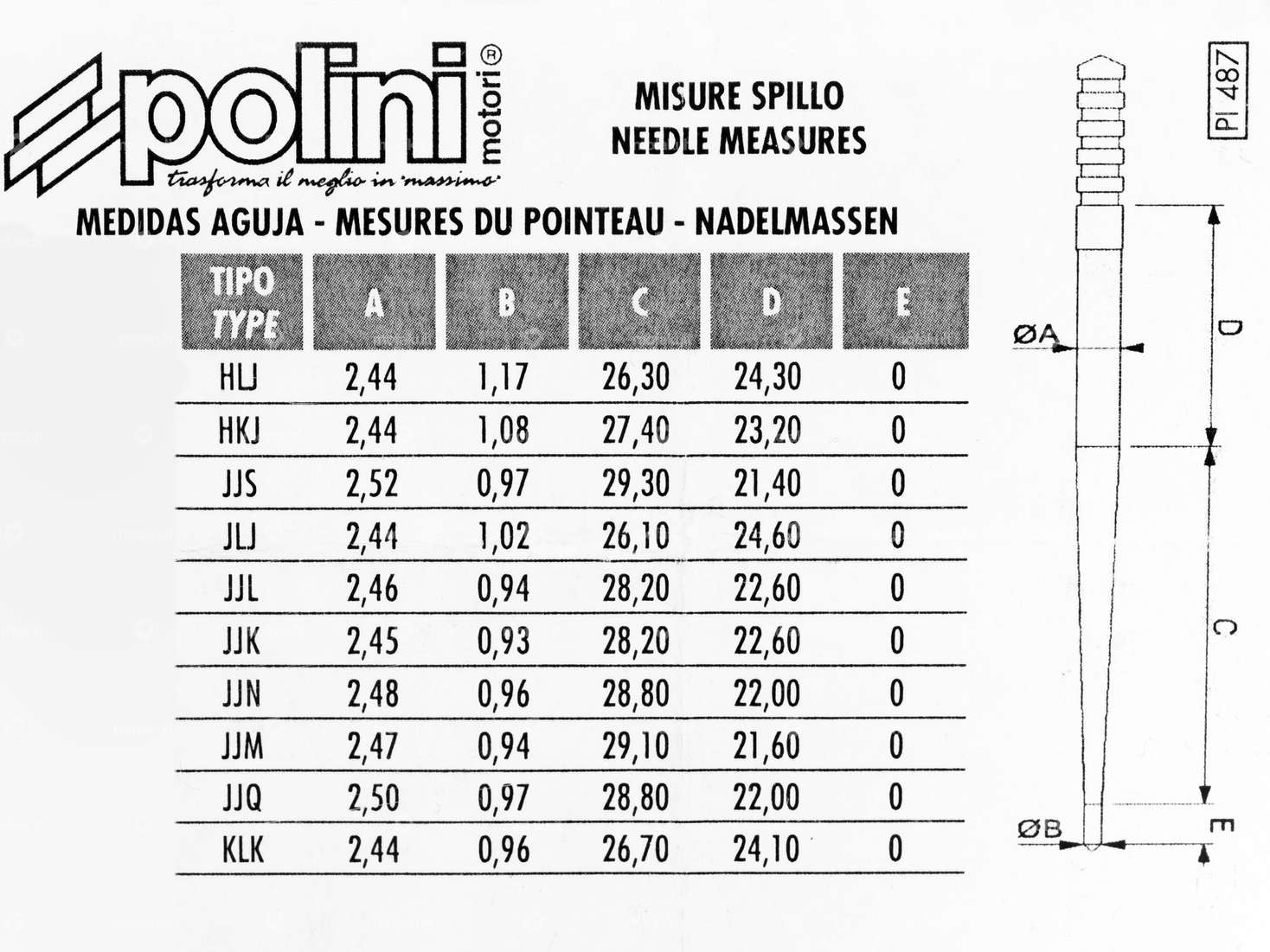

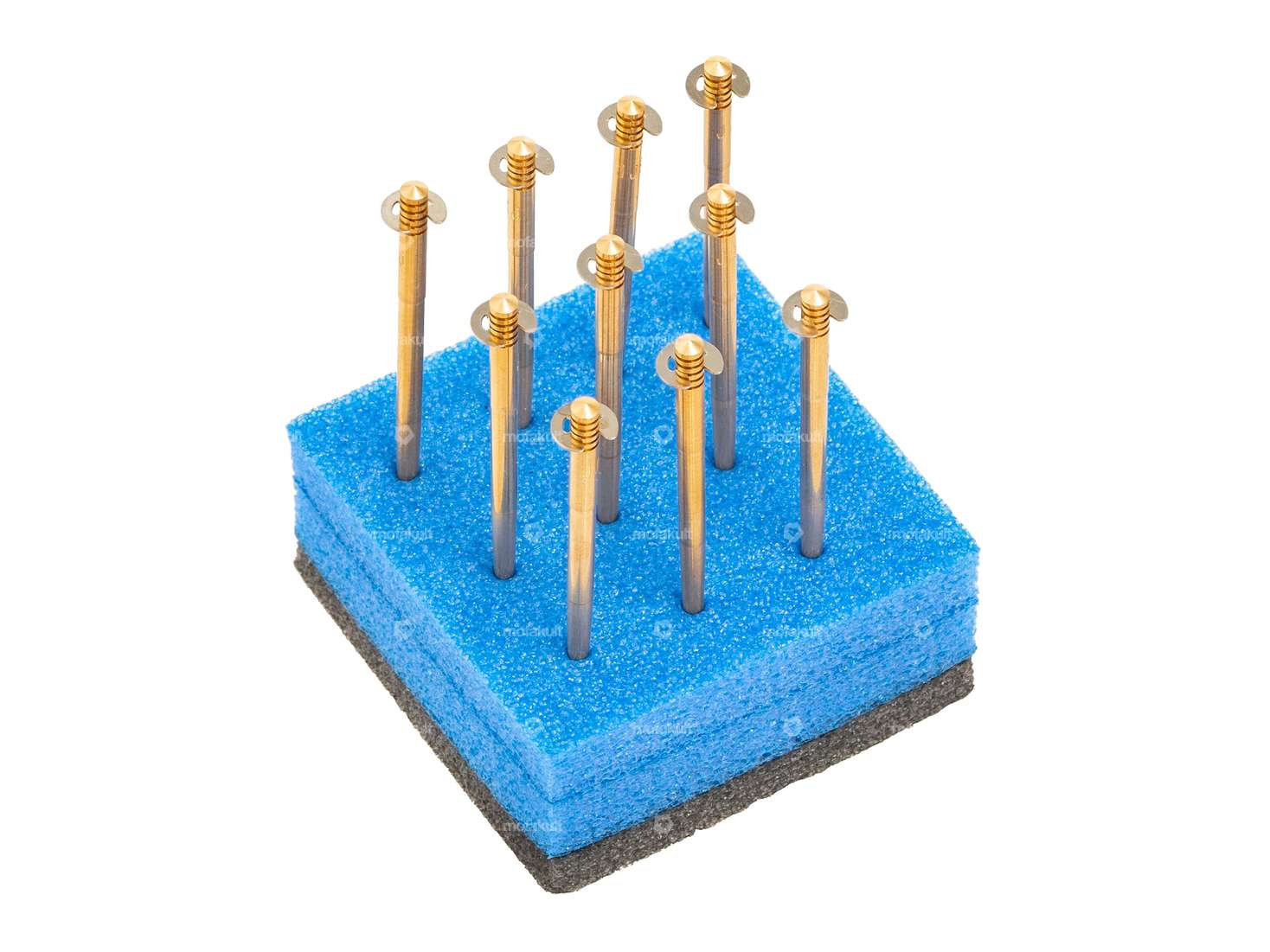

Polini carburetor needle set PWK, Keihin, Stage6, Koso

24 mm PWK carburetor

Component group Carburetor: Carburetor complete · Carburetor type: PWK · Nominal diameter: 24 mm · Ø Air filter connection: 49 mm · Choke control: Hand choke · Mounting type: Plug connection clamped · Area of application: Tuning

Polini auxiliary nozzle set 30 - 40 Keihin / PWK

Manufacturer: Polini · Component group Carburetor: Spraying · Material: Brass · Quantity: 5 pcs · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Secondary nozzle · Nozzle size: 30 · Nozzle size: 32 · Nozzle size: 35 · Nozzle size: 38 · Nozzle size: 40 · Drive: Slot

Polini auxiliary nozzle set 42 - 52 Keihin / PWK

Manufacturer: Polini · Component group Carburetor: Spraying · Material: Brass · Quantity: 5 pcs · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Secondary nozzle · Nozzle size: 42 · Nozzle size: 45 · Nozzle size: 48 · Nozzle size: 50 · Nozzle size: 52 · Drive: Slot

PWK carburetor revision kit

Component group Carburetor: Sealing, revising · Carburetor type: RT-PWK

Stage6 nozzle set main nozzles (size 150 - 172) PWK / Keihin

Manufacturer: Stage6 · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 150 · Nozzle size: 152 · Nozzle size: 155 · Nozzle size: 158 · Nozzle size: 160 · Nozzle size: 162 · Nozzle size: 165 · Nozzle size: 168 · Nozzle size: 170 · Nozzle size: 172 · Drive: External hexagon · Width across flats SW: 6 mm

Stage6 nozzle set main nozzles (size 125 - 148) PWK / Keihin

Manufacturer: Stage6 · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 125 · Nozzle size: 128 · Nozzle size: 130 · Nozzle size: 132 · Nozzle size: 135 · Nozzle size: 138 · Nozzle size: 140 · Nozzle size: 142 · Nozzle size: 145 · Nozzle size: 148 · Drive: External hexagon · Width across flats SW: 6 mm

Stage6 nozzle set auxiliary nozzles (size 35 - 58) PWK / Keihin

Manufacturer: Stage6 · Component group Carburetor: Spraying · Material: Brass · Carburetor type: Coso · Carburetor type: PWK · Quantity: 10 pcs · Nozzle type: Secondary nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 35 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 45 · Nozzle size: 48 · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Drive: Slot

Stage6 R/T RT-PWK 28 mm carburetor *Black Edition*

Manufacturer: Stage6 R/T · Component group Carburetor: Carburetor complete · Surface: varnished · Color: black · Carburetor type: RT-PWK · Nominal diameter: 28 mm · Ø Air filter connection: 50 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Flange · Mounting type: Plug connection · Area of application: Tuning

Stage6 R/T RT-PWK 24 mm carburetor Stage6 *Black Edition*

Manufacturer: Stage6 R/T · Component group Carburetor: Carburetor complete · Surface: varnished · Color: black · Carburetor type: RT-PWK · Nominal diameter: 24 mm · Ø Air filter connection: 50 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Flange · Mounting type: Plug connection · Area of application: Tuning

Stage6 R/T RT-PWK 21 mm carburetor *Black Edition*

Manufacturer: Stage6 R/T · Component group Carburetor: Carburetor complete · Surface: varnished · Color: black · Carburetor type: RT-PWK · Nominal diameter: 21 mm · Ø Air filter connection: 50 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Flange · Mounting type: Plug connection · Area of application: Tuning

Stage6 R/T RT-PWK 26 mm carburetor *Black Edition*

Manufacturer: Stage6 R/T · Component group Carburetor: Carburetor complete · Surface: varnished · Carburetor type: RT-PWK · Color: black · Nominal diameter: 26 mm · Ø Air filter connection: 50 mm · Mounting type: Flange · Mounting type: Plug connection · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Area of application: Tuning

Stage6 nozzle set main nozzles (size 100 - 122) PWK / Keihin

Manufacturer: Stage6 · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 105 · Nozzle size: 108 · Nozzle size: 110 · Nozzle size: 112 · Nozzle size: 115 · Nozzle size: 118 · Nozzle size: 120 · Nozzle size: 122 · Drive: External hexagon · Width across flats SW: 6 mm

Cylinder head gasket 40 - 43.5 mm | Puch

Material: Aluminum · Ø cylinder: 40 - 43.5 mm · Place of use: Cylinder head · Ø screw holder: 8 mm · Thickness: 0.4 mm

Leonelli 6V voltage regulator (1A quality)

Total length: 50 mm · Width: 27 mm · Height: 15 mm · Manufacturer: Leonelli · Material: Aluminum · Material: Plastic · Tension: 6 V · Performance: 50 W · Type of current: Alternating current (AC) · Mounting type: Screws · Ø mounting hole: 6 mm

ESJOT sprocket 45 teeth galvanized | Puch Maxi, X30 NG-2AH

Manufacturer: ESJOT · Material: Steel · Surface: galvanized (blue) · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Number of teeth: 45 pcs · Ø bolt circle: 106 mm · Ø inside: 94 mm · Number of fixing points: 6 pcs · Ø mounting hole: 6.7 mm · Thickness: 4.1 mm · Hole spacing: 36.5 mm · Hole spacing 2: 68 mm · Cranking (offset): 8 mm · Color: silver

Polini auxiliary nozzle set 42 - 52 Keihin / PWK

Manufacturer: Polini · Component group Carburetor: Spraying · Material: Brass · Quantity: 5 pcs · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Secondary nozzle · Nozzle size: 42 · Nozzle size: 45 · Nozzle size: 48 · Nozzle size: 50 · Nozzle size: 52 · Drive: Slot

GPO 45 mm gasket cylinder head 0.2 mm | Puch

Manufacturer: GPO · Material: Aluminum · Place of use: Cylinder head · Thickness: 0.2 mm · Nominal diameter: 45 mm · Ø cylinder: 45 mm · Ø outlet inside: 45.2 mm · Ø screw holder: 6 mm

swiing® revival stud bolt set | Puch X30 Velux

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 7 mm · Thread type: M7x1 (standard thread) · Total length: 106 mm · Thread length: 25 mm · Width across flats SW: 11 mm · Drive: External hexagon

swiing® ingenious 17 mm intake manifold | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Camouflaged: No · Area of application: Tuning · Material: Aluminum · Surface: anodized · Ø inside: 17 mm · Ø External connection: 23 mm · Number of fixing points: 2 pcs · Mounting type: Stud bolt · Hole spacing inlet: 32 mm

GPO inlet gasket BAD ASS Lucifer / GPO Sombrero cylinder | Puch X30 Velux, NG-2AH

Manufacturer: GPO · Place of use: Admission · Material: Oiled paper · Ø inside: 18 mm · Thickness: 0.5 mm · Hole spacing inlet: 32 mm · Ø screw holder: 6 mm

Rito crankshaft Racing (Version 2023) | Puch X30 NS, NL / Velux (Z50)

Weight: 913 g · Manufacturer: Rito · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Number of gears: 2 pcs · Total length of crankpin on clutch side: 58 mm · Total length crankpin ignition side: 67.5 mm · Thread length: 8.5 mm · Thread length: 12 mm · Ø crank webs: 69.8 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 19 mm · Length 2nd paragraph: 18.5 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 18 mm · Area of application: Racing · Area of application: Tuning · Puch OEM number: 349.1.10.215.0 · Puch OEM number: 350.7.10.015.0
