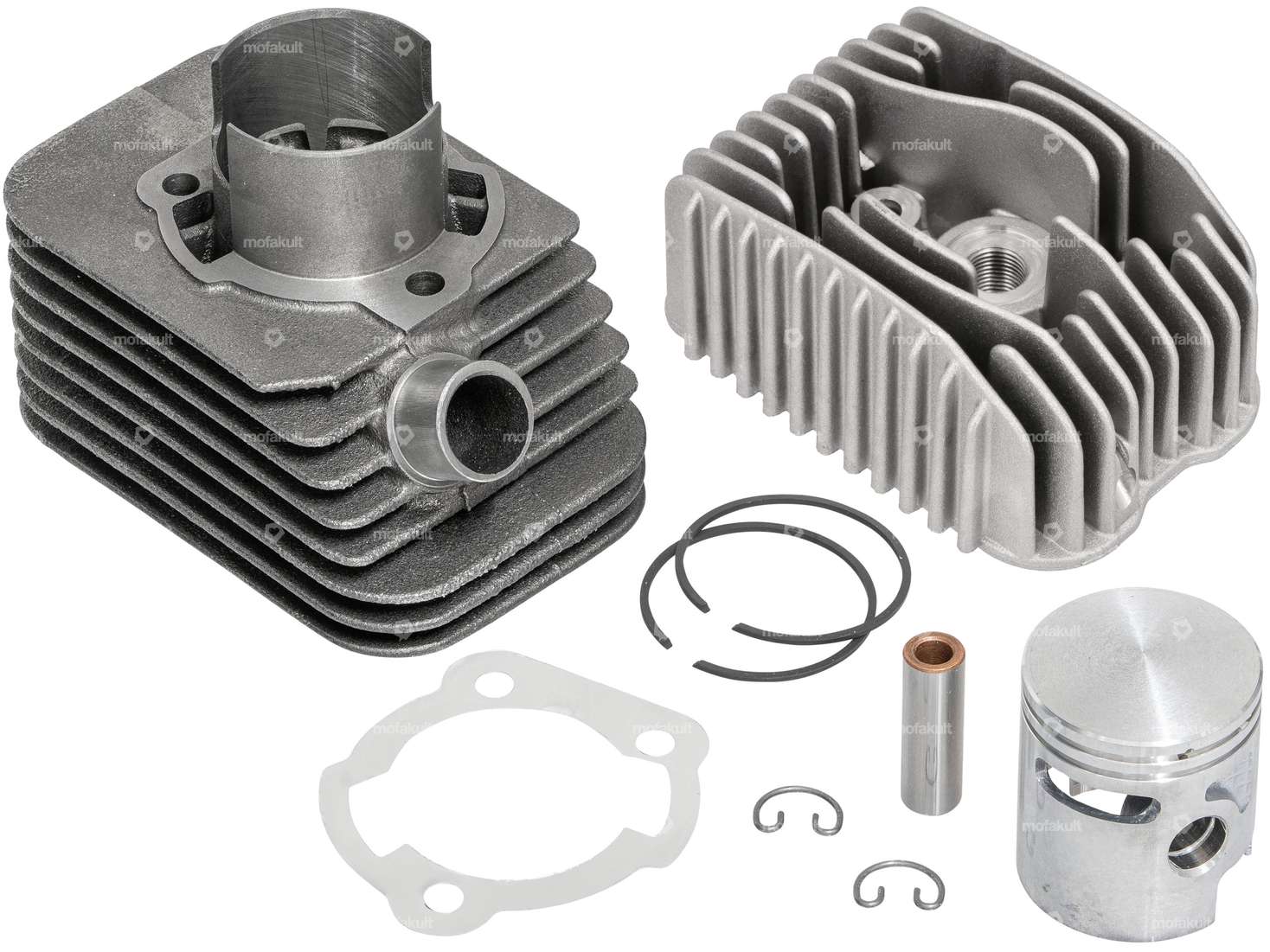

Polini 43 mm cylinder kit incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer

Nut M7 Inox

Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Drive: External hexagon · Height: 5.5 mm · Thread type: M7x1 (standard thread) · Width across flats: 11 mm · Piaggio OEM number: 020107, 1107, 226745

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Color: green · Contents: 1000 ml

GPO piston pin extractor Ø 10, 12, 14 mm

Total length: 130 mm · Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Area of application: (Dis)assembly tool · Width across flats: 10 mm · Width across flats: 17 mm

Stud bolt M7 x 120 (budget)

Total length: 120 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Thread length: 25 mm

Polini cylinder base gasket 43 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Ø cylinder: 43 mm · Place of use: Cylinder base · Thickness: 0.2 mm · Area of application: Racing

Polini 43 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Polini · Ø outside piston (A): 42.92 mm · Compression height (C): 26.55 mm · Curvature (D): 2.5 mm · Total piston height (E): 50.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 84 g

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing cage: Silver cage · Ø inside: 12 mm · Ø outside: 15 mm · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm

swiing® ingenious stud bolt M7x120 / Ø 7.3 shank (10.9 strength)

Total length: 120 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Diameter: 7.3 mm · Strength class: 10.9 · Thread type: M7x1 (standard thread) · Thread length: 20 mm · Thread length: 30 mm

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Material: Plastic · Area of application: Standard · Material: Steel · Number of components: 3 pcs

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX / C24, Bravo, SUPERbravo

Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA (Piaggio) · Total length: 46 mm · Choke control: Hand choke · Width: 60 mm · Height: 96 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Mounting type: Plug connection clamped · Ø Output inside: 13 mm · Area of application: Tuning · Ø Air filter connection: 50.8 mm · Ø Internal connection: 16 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66

Decompressor set | Piaggio Ciao, Bravo, Boxer

Total length: 75 mm · Material: Spring steel · Material: Steel · Surface: blank · Surface: galvanized (blue) · Area of application: Standard

Polini air filter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Camouflaged: No · Material: Plastic · Color: black · Total length: 29 mm · Filter type: Foam · Width: 98 mm · Height: 94.7 mm · Ø outside: 53 mm · Mounting type: Plug connection clamped · Area of application: Tuning · Ø Internal connection: 50.6 mm

Malossi Multivar Rennvariomat | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Gearbox type: Vario · Number of weights: 6 pcs · Weight Standard weights: 6 g · Ø Weights: 16 mm · Length Weights: 13 mm · Ø External variator: 90 mm

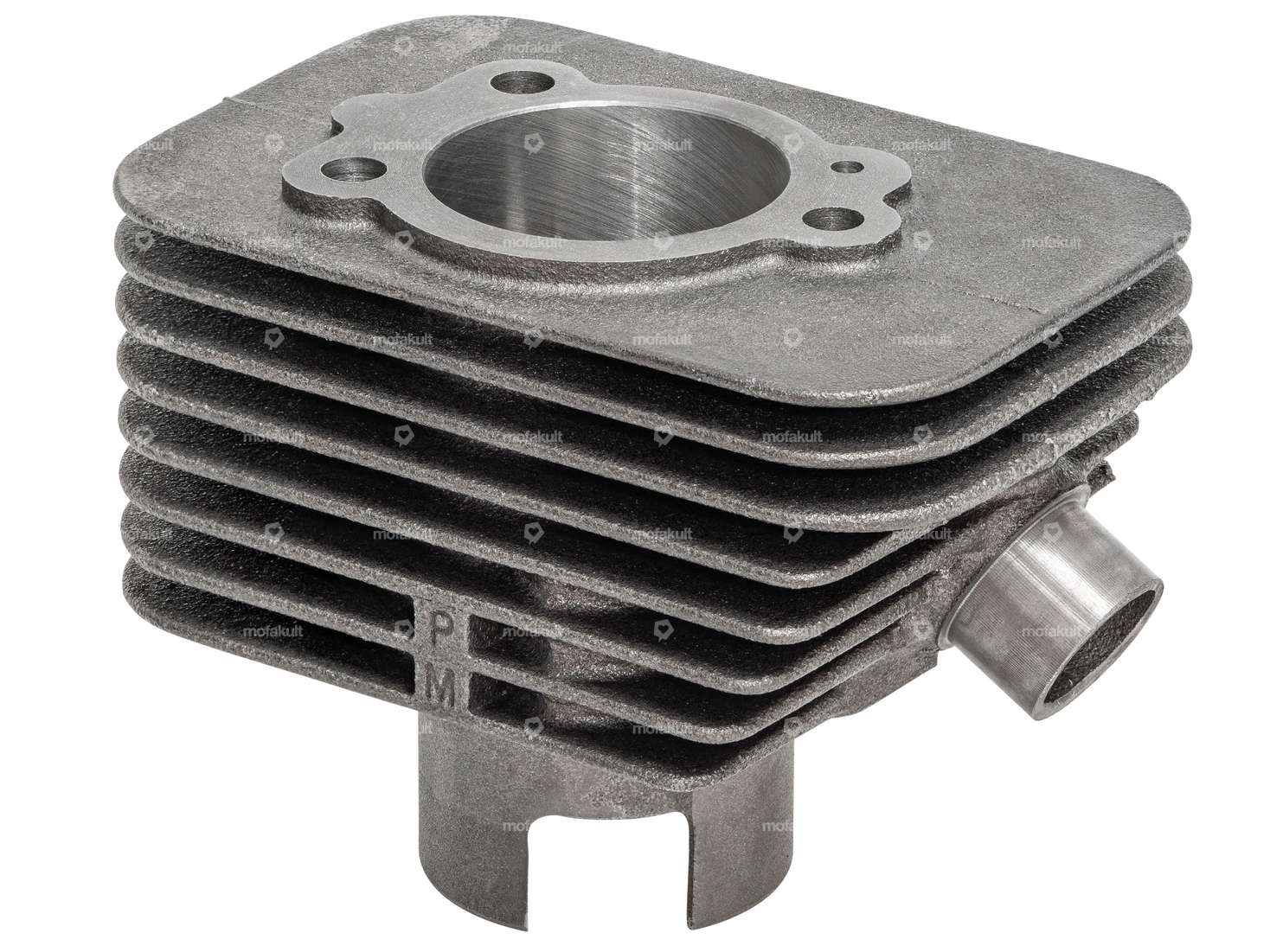

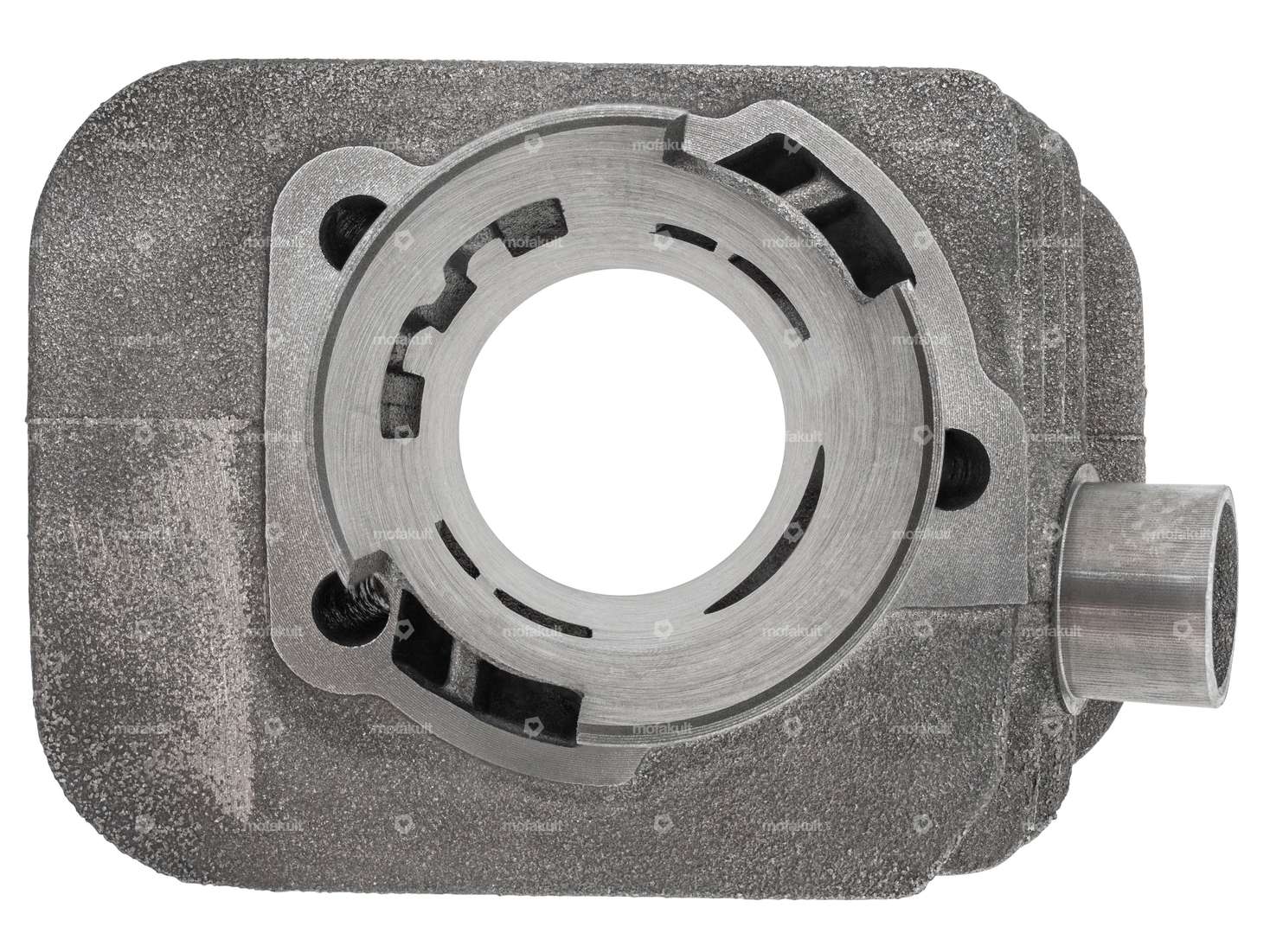

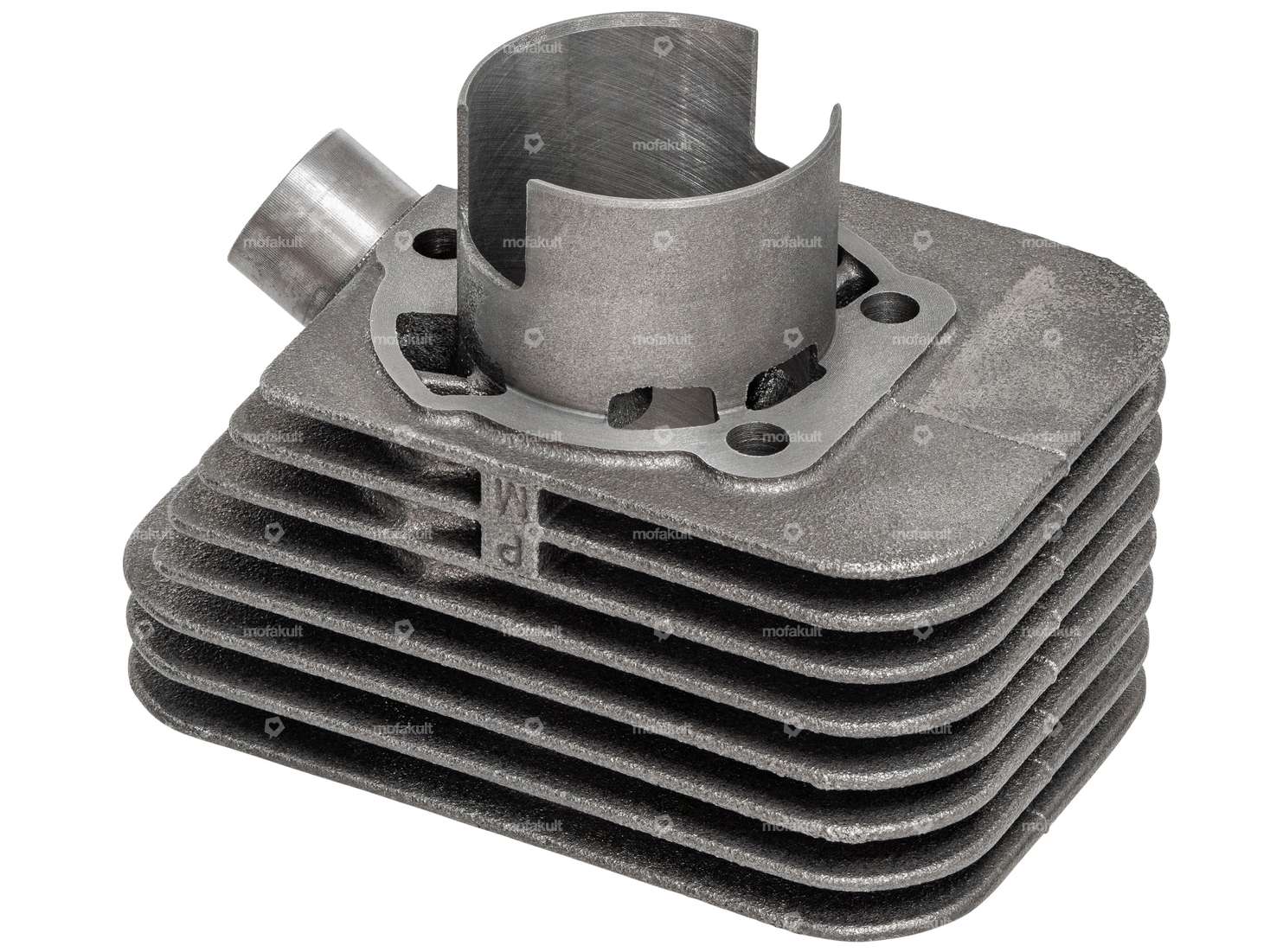

Polini 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Polini · Material: Gray cast iron · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.8 mm · Ø Outlet outside: 22.6 mm · Ø outlet inside: 18.4 mm · Hole pattern [mm]: 55 x 34 · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes

Cuppini lamp grille headlight angular black | Piaggio Ciao

Manufacturer: Cuppini · Material: Plastic · Test mark: none · Color: black · Width: 132 mm · Height: 95 mm · Depth: 27 mm · Hole spacing: 105 mm

Cuppini lamp grille rear light black | Piaggio Ciao, Bravo

Manufacturer: Cuppini · Material: Plastic · Test mark: none · Color: black · Ø Receptacle: 3.5 mm · Width: 135 mm · Height: 58 mm · Depth: 15 mm · Hole spacing: 112.5 mm

Mazzucchelli crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Weight: 705 g · Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Thread type: M8x1.25 (standard thread) · Area of application: Racing · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 °

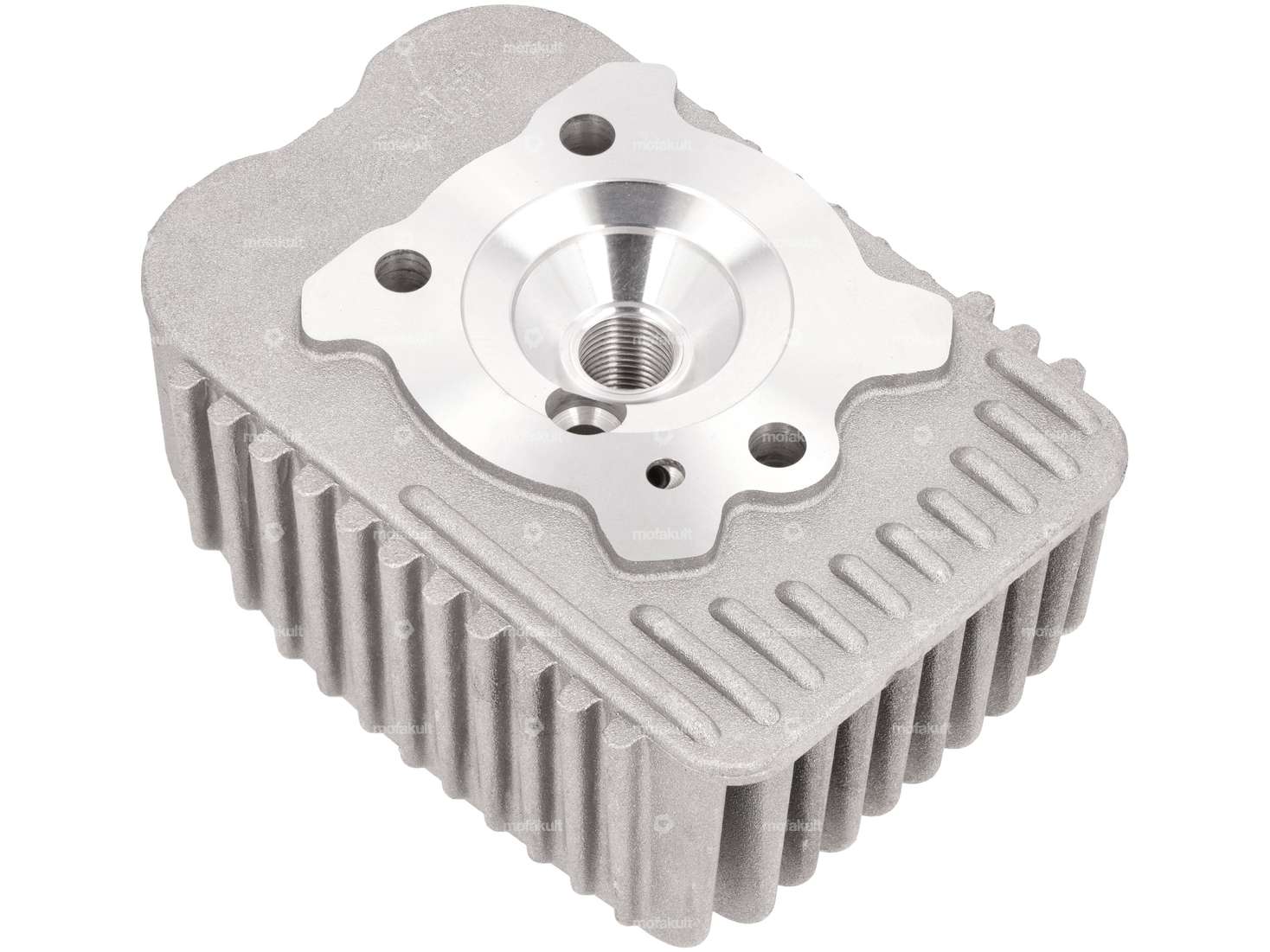

Polini cylinder head for 38.4 - 43 mm cylinder kit | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Ø cylinder: 38.4 - 43 mm · Total length: 118 mm · Width: 85 mm · Height: 58 mm · Area of application: Tuning · Candle thread: long · Decompressor: Yes
