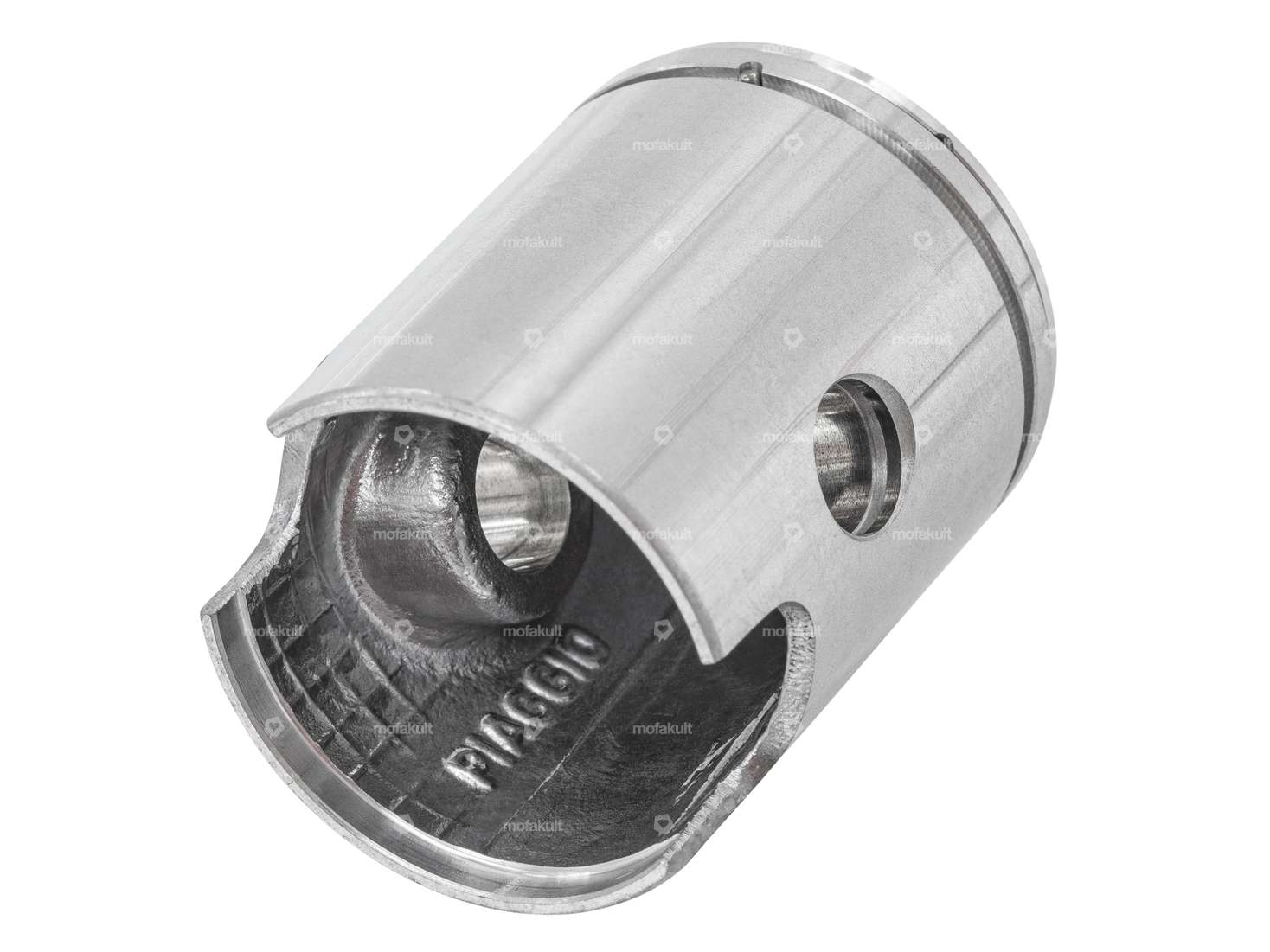

Original 38.60 mm ¨mass piston for your Piaggio Ciao, Si, Bravo and Boxer moped / moped (without catalytic converter).
The piston kit is used for honed cylinders. The piston has a rectangular piston ring with side protection (FS) and an L-shaped piston ring with internal protection (IS).

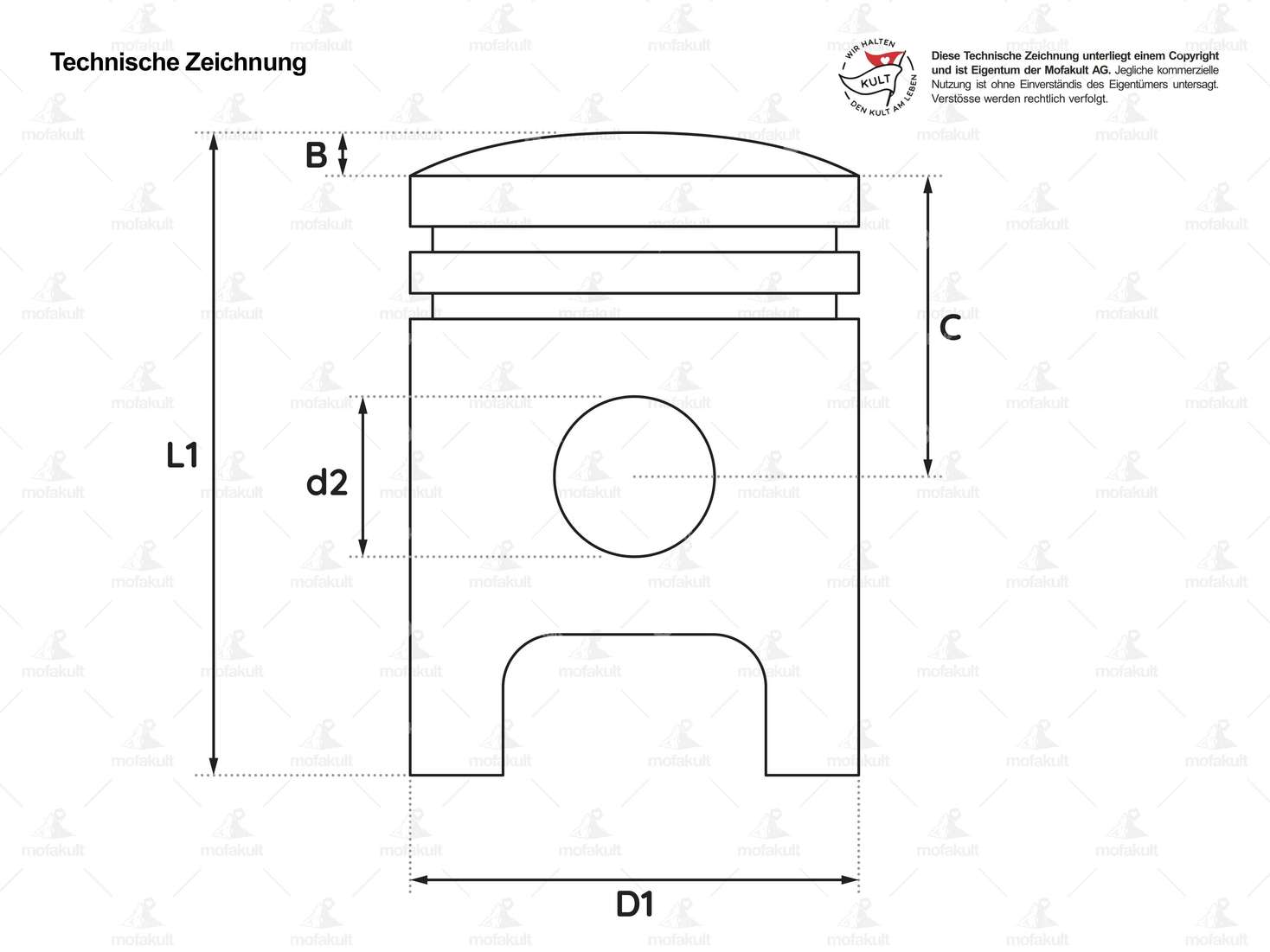

The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Original Piaggio spare part. NOS – New from old stock.
Original Piaggio spare part number: 196116
| Manufacturer | Piaggio |
| Ø outside piston (A) | 38.54 mm |
| Compression height (C) | 26.6 mm |
| Curvature (D) | 3.4 mm |
| Total piston height (E) | 52 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38.6 mm |
| Piston ring mold | Rectangular ring, L-ring |
| Piston ring impact | Flank safety device (FS), Internal fuse (IS) |
| Piston ring height | 2 mm, 1.6 mm |
| Thick piston ring | 1.9 mm, 1.5 mm |
| Ø piston pin (B) | 10 mm |
| Piston weight | 77 g |
| Piaggio OEM number | 196116 |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
