38.90 mm dimension piston from old stock with two pieces of 2 mm rectangular piston rings with flank lock (FS) in 3rd dimension for Sachs mopeds / mopeds with 502, 50/2, 503 2AL, AAL, 2BL, ABL CH engines.

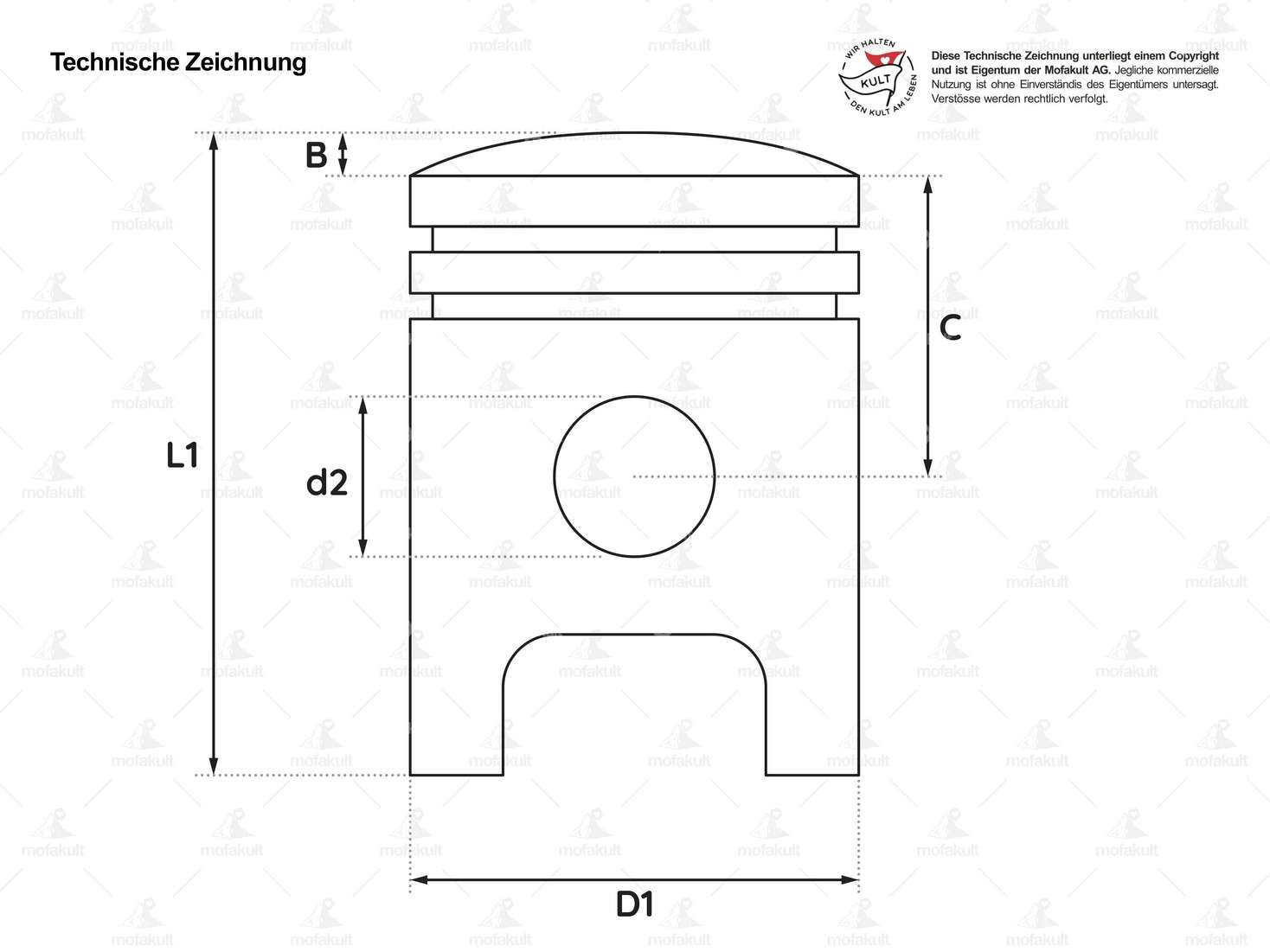

The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their positions and locking types on the legend in the pictures.

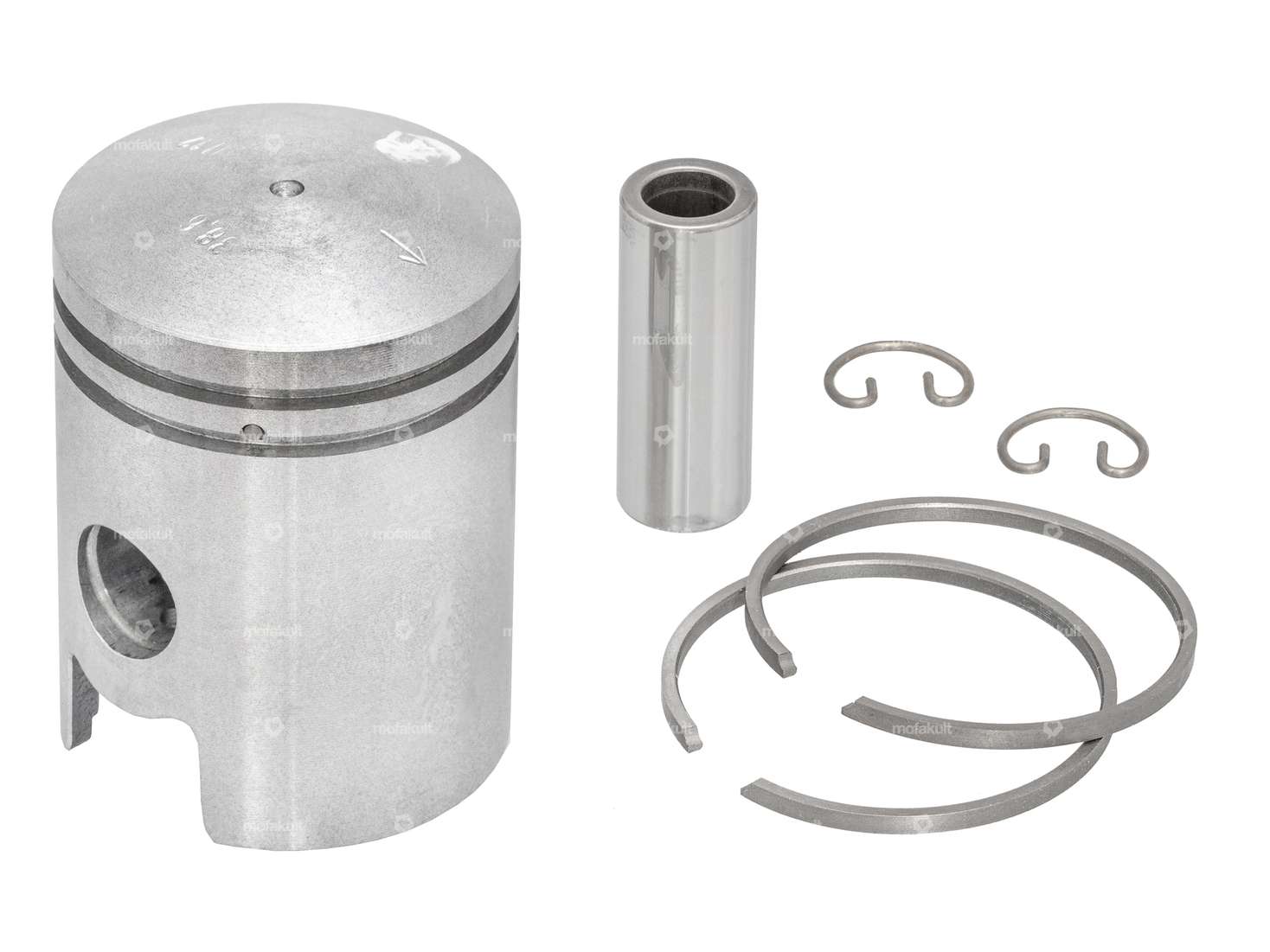

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
NOS – new from old stock.
Original Sachs spare part number: A2775 / 0286 377 013
Details
| Manufacturer | Sachs |
| Ø outside piston (A) | 38.85 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Ø piston pin (B) | 12 mm |
| Tolerance group | 3 |
| Piston weight | 97 g |
| Pony OEM number | A2775 |
| Sachs OEM no. | 0286 377 013 |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
Meteor piston 38.3 mm oversize | Sachs 50/2 & 503
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 38.25 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Piston weight: 81 g · Pony OEM number: A2773 · Sachs OEM no.: 0286 377 011
EUR 61.30
Meteor piston 38.9 mm oversize | Sachs 50/2 & 503
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 38.85 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Piston weight: 86 g · Pony OEM number: A2775 · Sachs OEM no.: 0286 377 013
EUR 61.30
GPO piston pin extractor Ø 10, 12, 14 mm
Number of components: 7 pcs · Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 22.00
EUR 24.40
Meteor piston 39.0 mm oversize | Sachs 50/2 & 503
Manufacturer: Meteor · Ø outside piston (A): 38.95 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 39 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Piston weight: 88 g
EUR 61.30
Collection only possible with online purchase and appointment.
