For: Sachs

11668

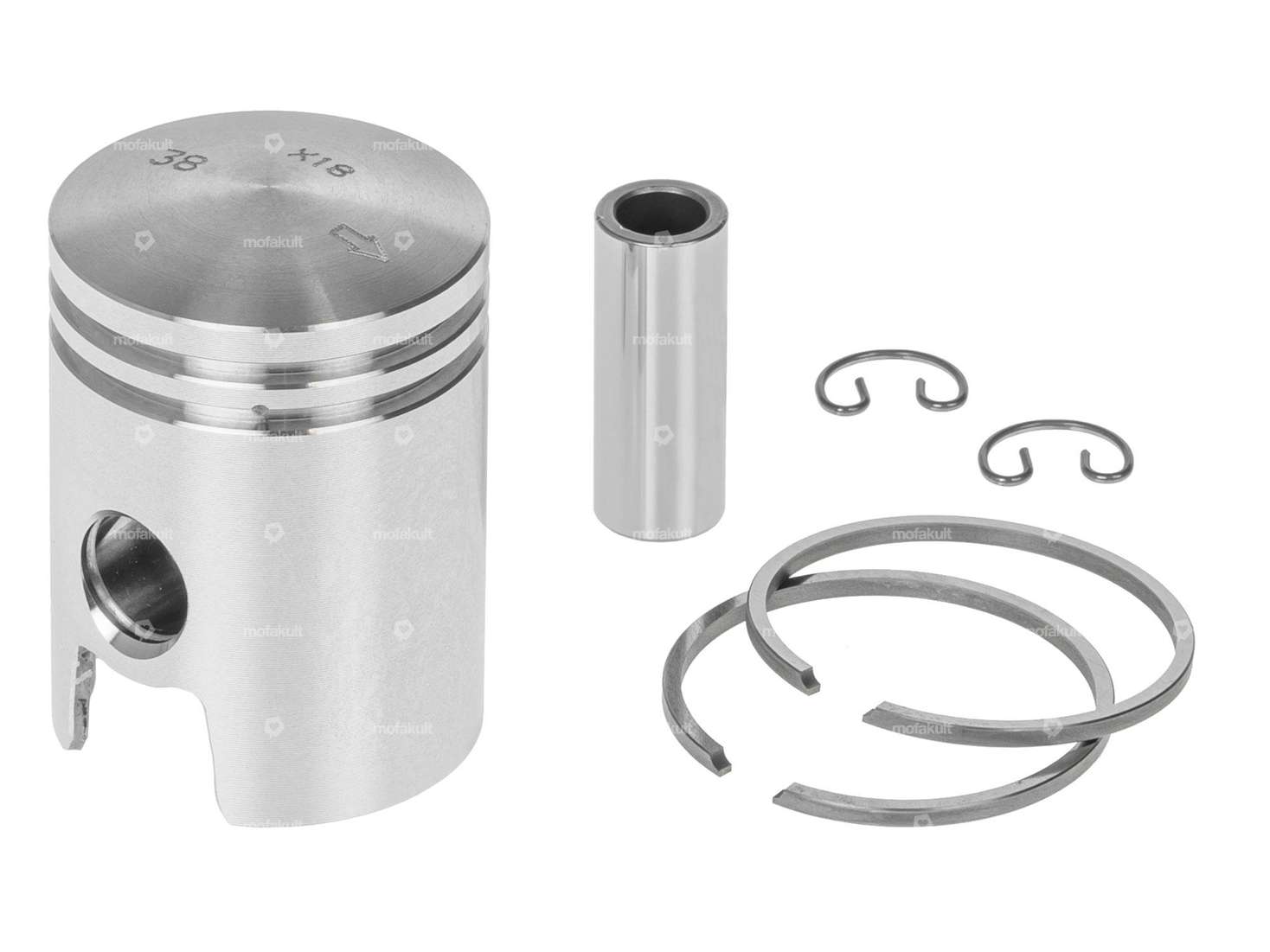

Meteor piston 38.3 mm oversize | Sachs 50/2 & 503

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 61.40

Incl. 25.5% VAT.

Description

38.3 mm ¨bermass piston with 2 pcs. 2 mm rectangular piston rings with flank lock (FS) suitable for Sachs 502, 50/2, 503 2AL, AAL, 2BL, ABL CH mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit is used for bored and honed cylinders.

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)38.25 mm
Compression height (C)28 mm
Curvature (D)3 mm
Total piston height (E)53 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Weight piston kit81 g
Sachs OEM no.0286 377 011
Pony OEM numberA2773
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

503 - AAL , ABL , 2AL / 2BL
