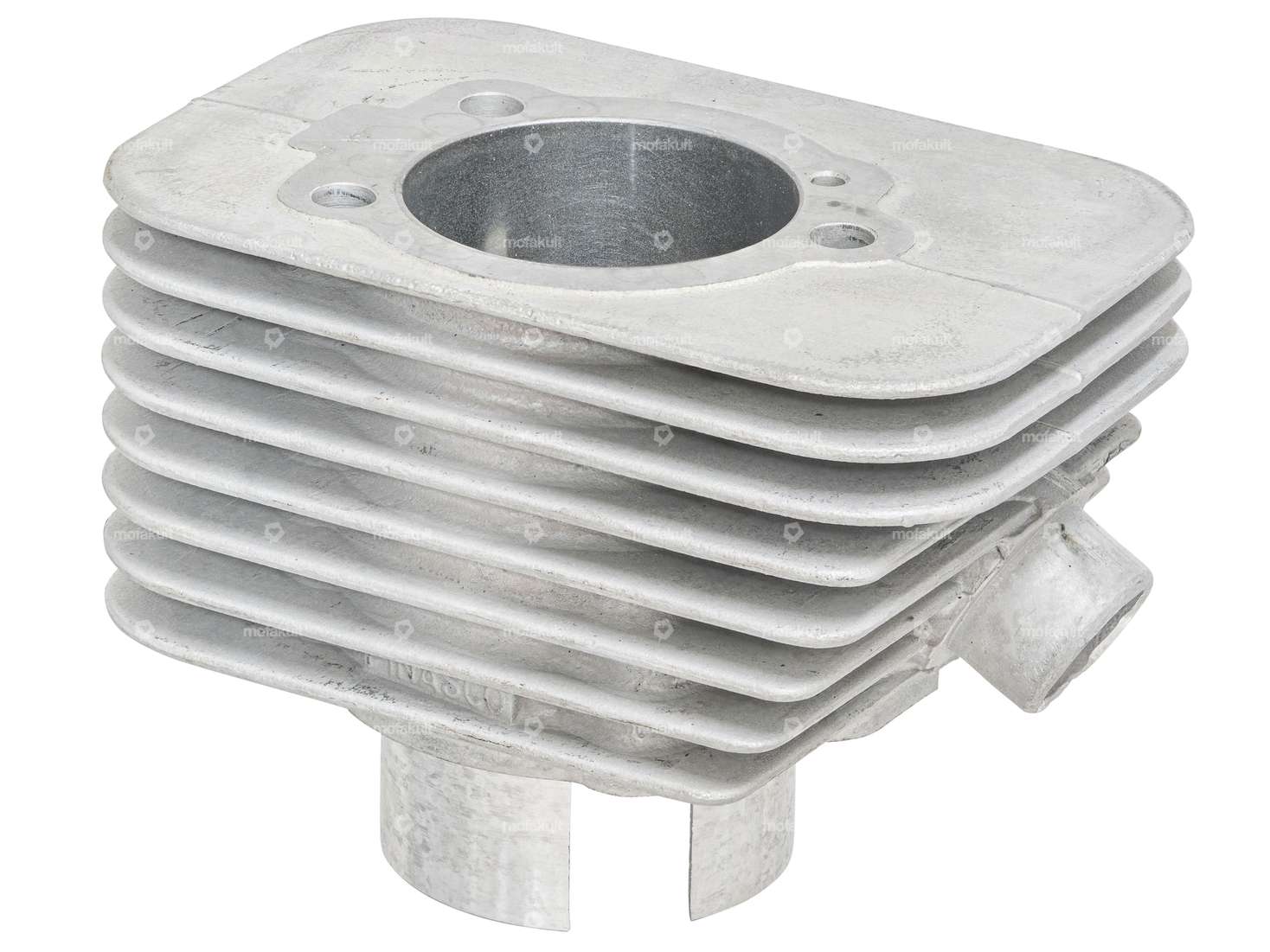

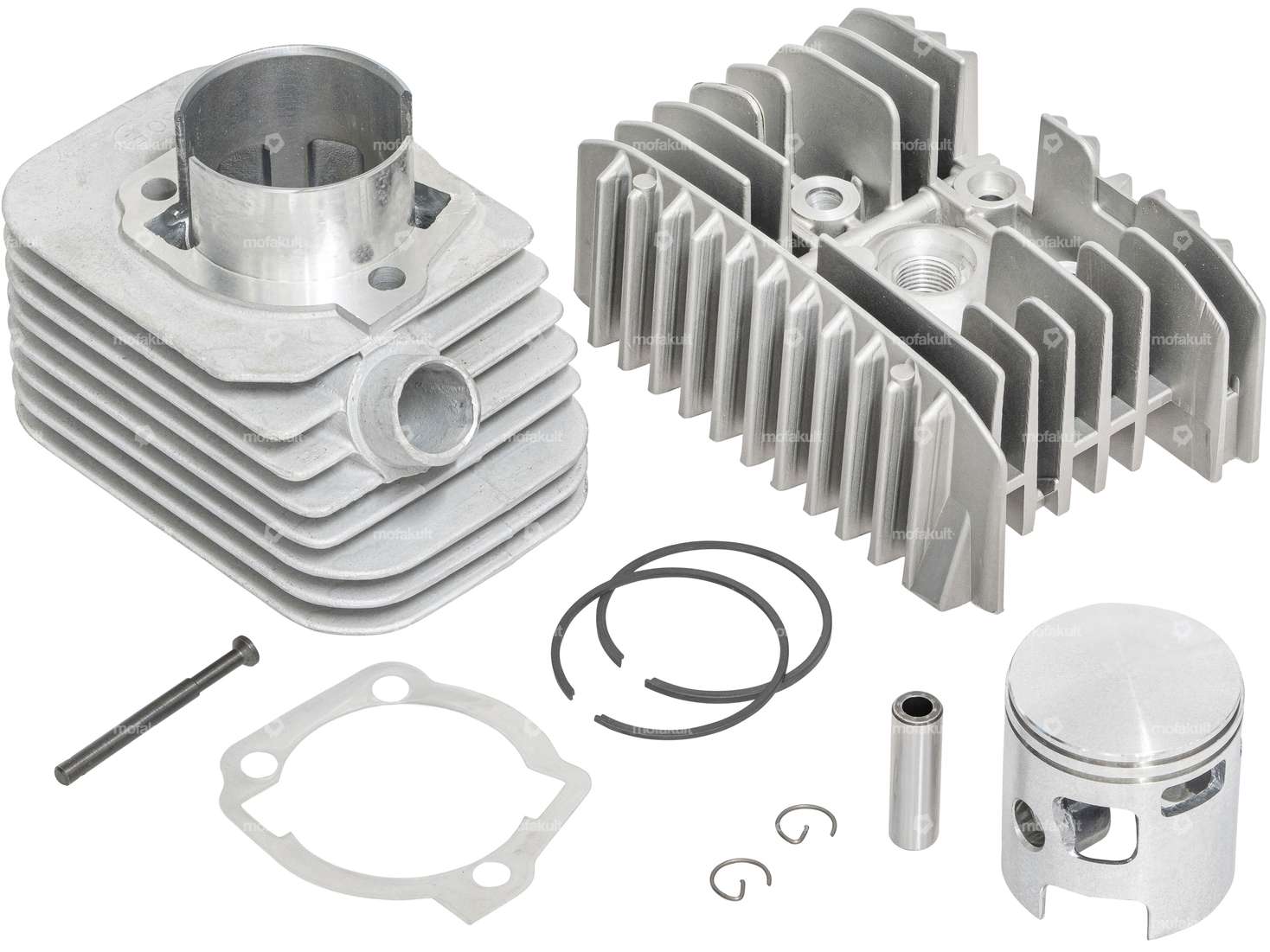

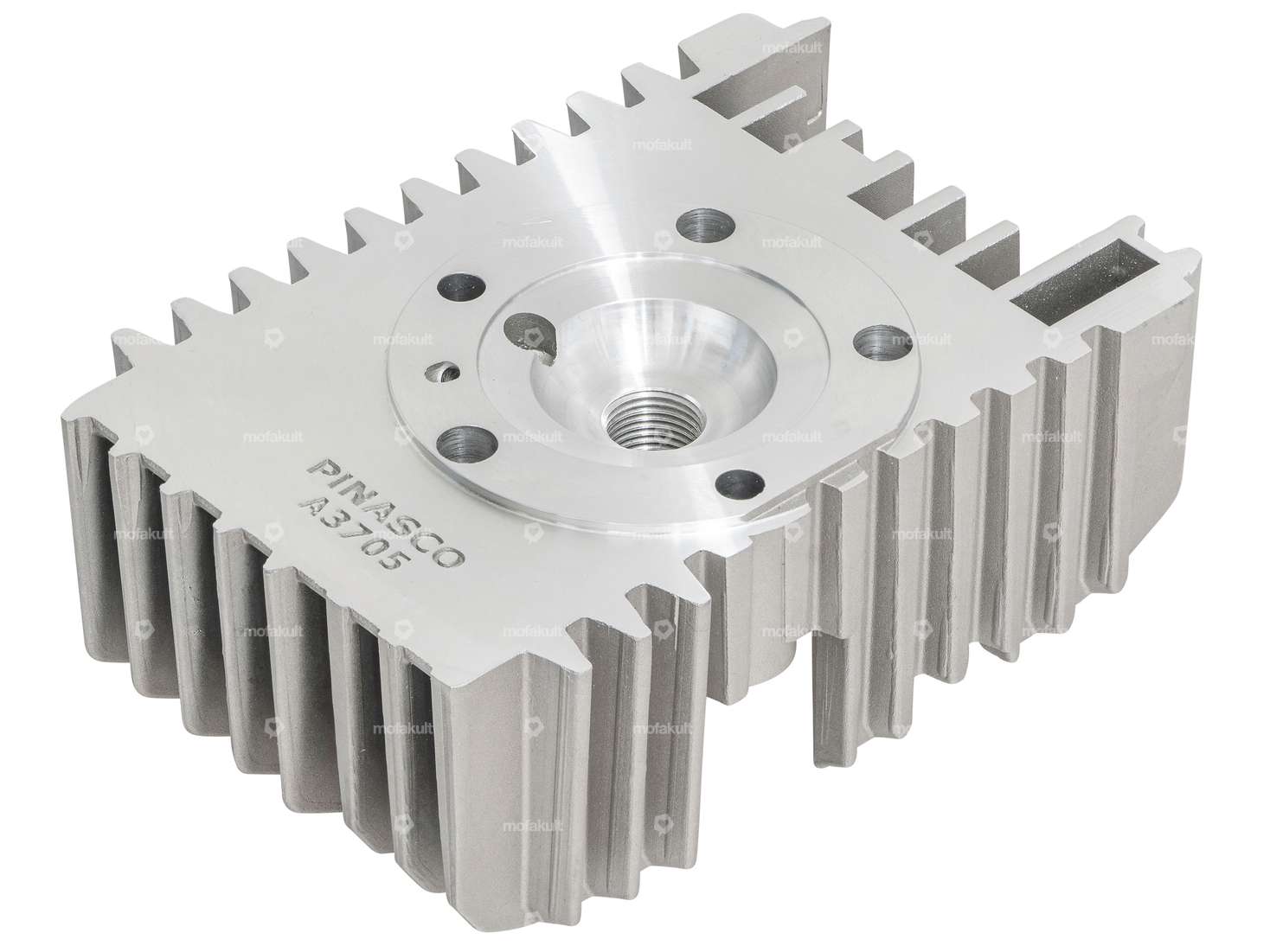

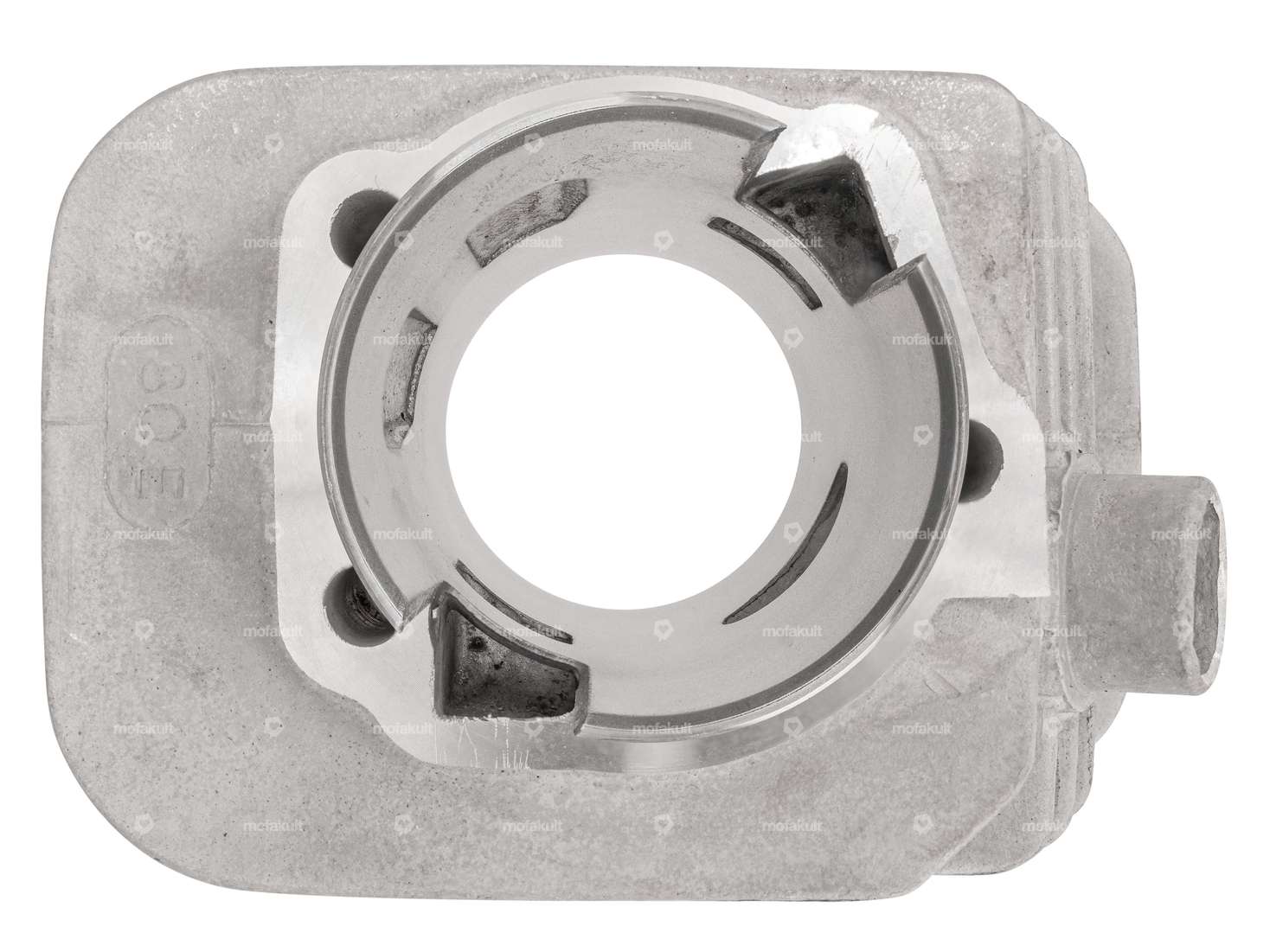

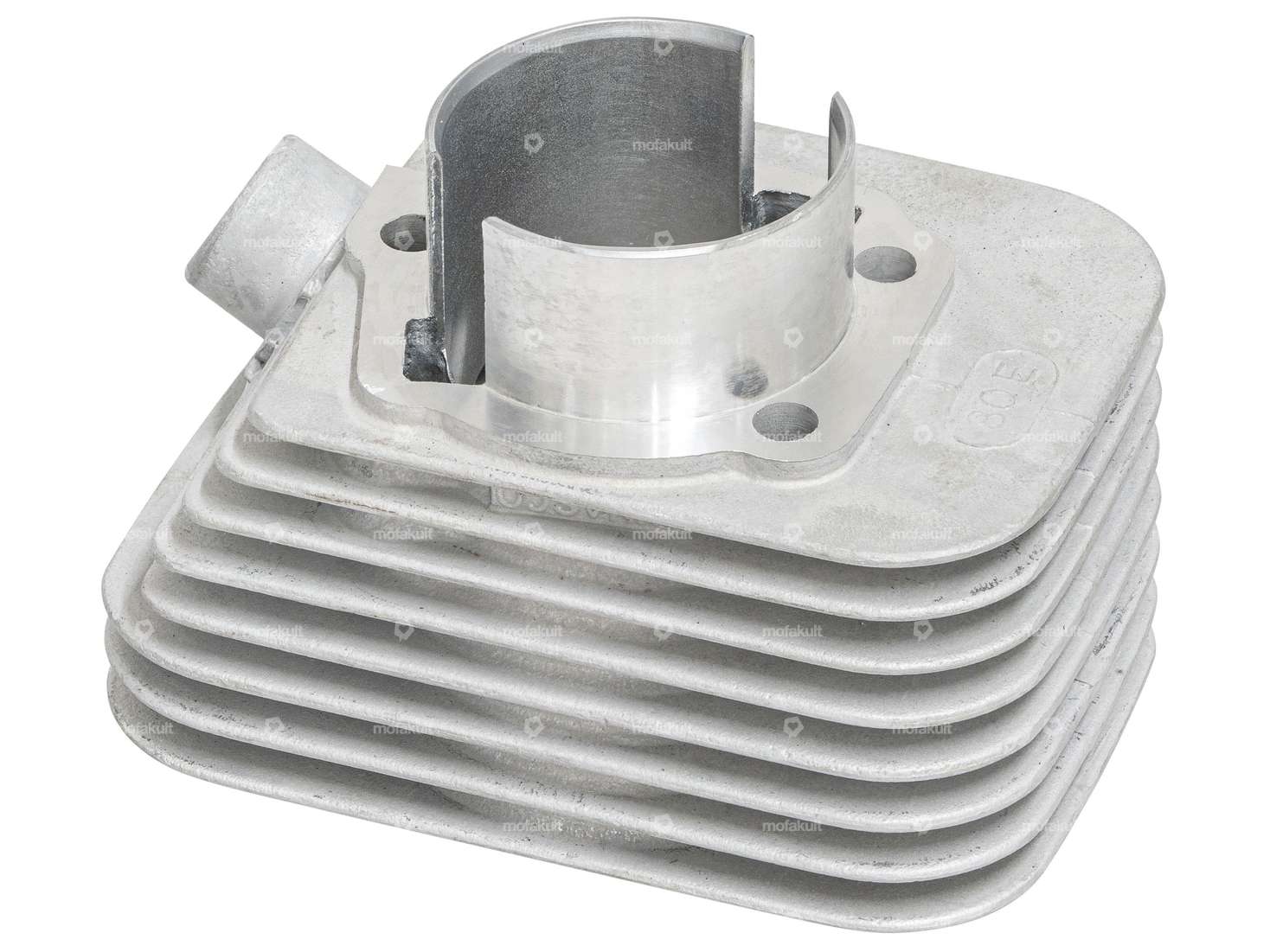

This aluminum cylinder, which is supplied with the matching cylinder head, fits Piaggio Si, Bravo 2 and 3 as well as Grillo mopeds / mopeds.
The 46 mm racing cylinder from Pinasco is one of the best cylinders for Piaggio currently available on the market. Perfect workmanship and detailed tuning characterize this 75 cc cylinder.
This racing cylinder has a high torque due to its design and corresponding timing.
Ø Piston pin: 10 mm
Attention: To be able to install this cylinder on a Piaggio case, the case must be milled or honed. Alternatively, a racing housing with a larger diameter can be used for the cylinder mount.
Alternative cylinders, racing housings and other interesting add-on parts can be found in the accessories section.
Quality product from the Italian manufacturer Pinasco.
| Manufacturer | Pinasco |
| Nominal diameter | 46 mm |
| Material | Aluminum |
| Area of application | Tuning |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 10 mm |
| Outlet type | clamped |
| Number of fixing points | 3 pcs |
| Decompressor | Yes |
| Camouflaged | No |
| Piaggio | Si Bravo / Super Bravo Grillo |
Accessories & related products
Pinasco 42 mm cylinder kit incl. head 10 mm KoBo | Piaggio SI, Bravo, Grillo
Manufacturer: Pinasco · Material: Aluminum · Nominal diameter: 42 mm · Crankshaft stroke: 43 mm · Surface: varnished · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Outlet type: clamped · Decompressor: Yes · Area of application: Tuning
EUR 404.40
Not in stock

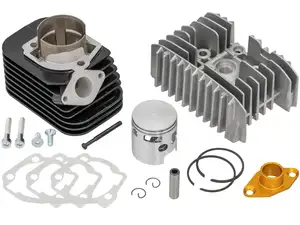

Pinasco 46 mm cylinder kit EVOTEN 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
