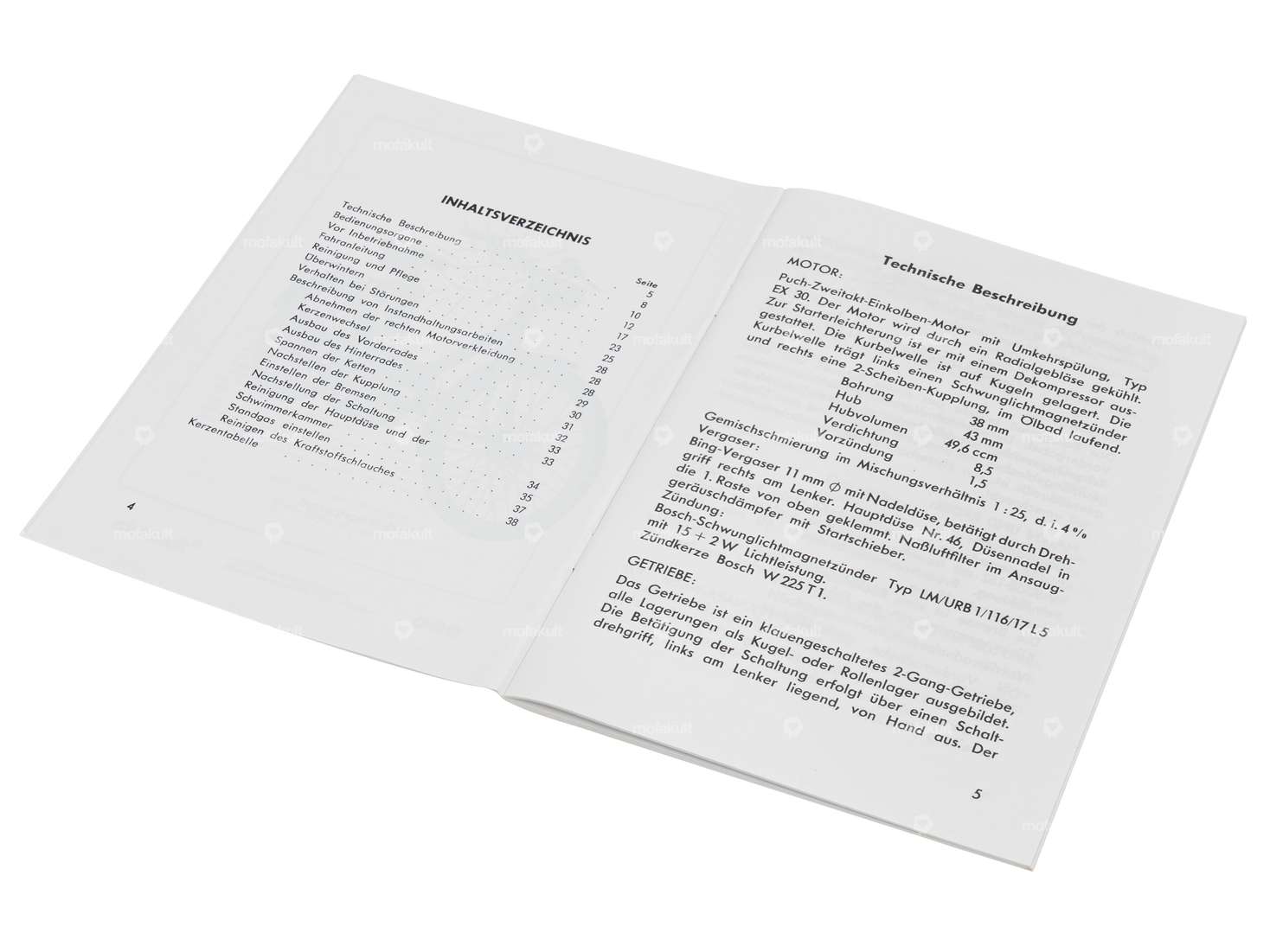

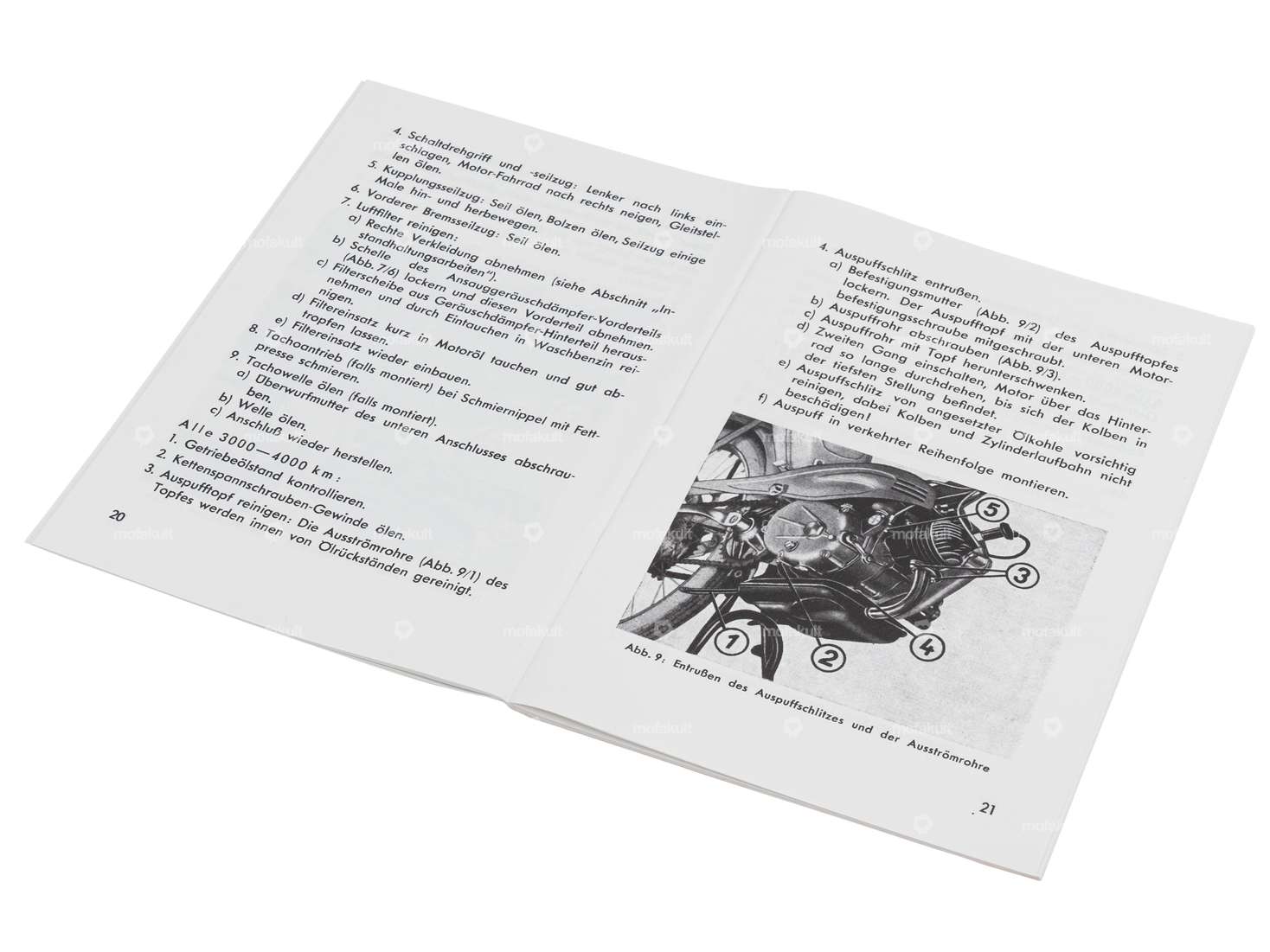

Operating instructions | Puch X30 Velux 1st edition

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Nipple length: 5 mm

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Cable length: 2200 mm · Nipple length: 10 mm

Woodruff key 3 x 3.7 mm

Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm

Bumm mirror round Inox

Manufacturer: Bumm · Material: Chrome steel (known as Nirosta®) · Material: Steel · Color: Chrome · Thread type: M8x1.25 (standard thread) · Surface: chrome-plated · Ø mirror surface: 107 mm · Ø mirror rod: 8 mm · Mirror rod length: 300 mm · Thread size: M8 · Clamping diameter: 22 mm · Total length: 360 mm

Leonelli 12V voltage regulator (1A quality)

Manufacturer: Leonelli · Material: Aluminum · Material: Plastic · Type of current: Alternating current (AC) · Tension: 12 V · Total length: 50 mm · Width: 27 mm · Performance: 100 W · Mounting type: Screws · Height: 15 mm · Ø mounting hole: 6 mm

Karcoma fuel tap M16x1 vertical | Puch X30 Velux

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Thread type: MF16x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Reserve level: 50 mm · Mounting type: Union nut

GPO light coil 6/12V - 15/25W

Manufacturer: GPO · Hole spacing: 55 mm · Ø mounting hole: 4.7 mm · Area of application: Standard · Tension: 6 V · Tension: 12 V · Performance: 15 W · Performance: 25 W · Ø Internal flywheel: 90 mm · Height: 22 mm · Total length: 76.5 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Alternative version of the Pony OEM number: A2110 · Alternative version of the Sachs OEM number: 0265 113 004

swiing® revival stop spring chain guard Inox | Puch X30 Velux

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Ø outside: 22 mm · Ø inside: 18 mm · Total length: 40 mm

GPO rear mudguard strut 19" | Puch X30 Velux

Manufacturer: GPO · Ø mounting hole: 6.2 mm · Material: Aluminum · Surface: raw · Wheel size [inch]: 19 " · Distance mudguard - center hole: 305 mm · Total length: 315 mm · Number of fixing points: 4 pcs · Mounting type: Nuts & bolts · Color: silver
