38.40 mm oversize piston with an L-shaped piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) for all Piaggio mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
The tuning piston is used for bored and honed cylinders.

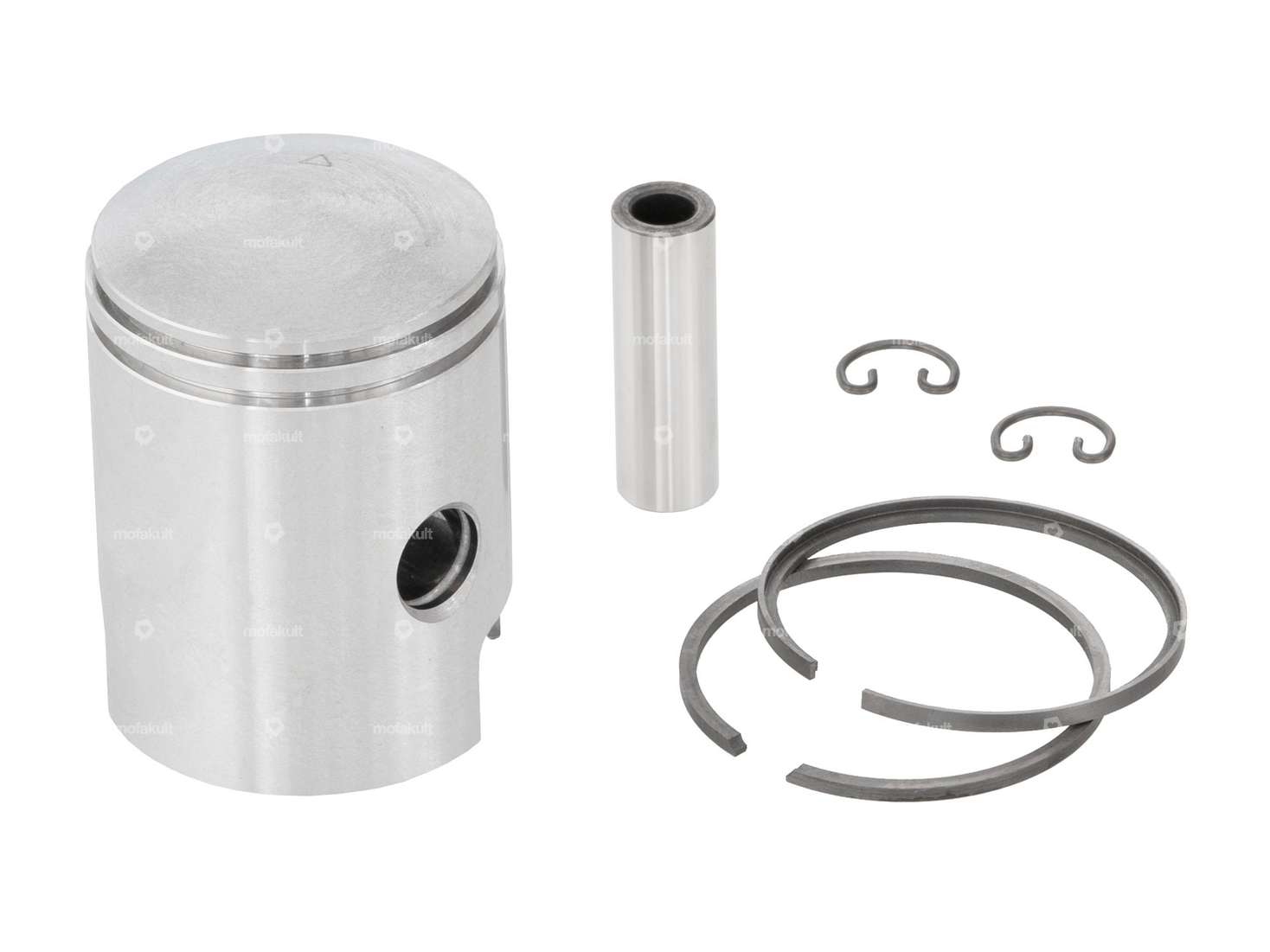

The piston kit contains piston pins, piston clips and piston rings.
You will find the appropriate installation tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Made by the Italian brand Olympia.
Details
| Manufacturer | Olympia |
| Ø outside piston (A) | 38.34 mm |
| Compression height (C) | 26.4 mm |
| Curvature (D) | 3.6 mm |
| Total piston height (E) | 51.9 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38.4 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Ø piston pin (B) | 10 mm |
| Piston weight | 76 g |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
