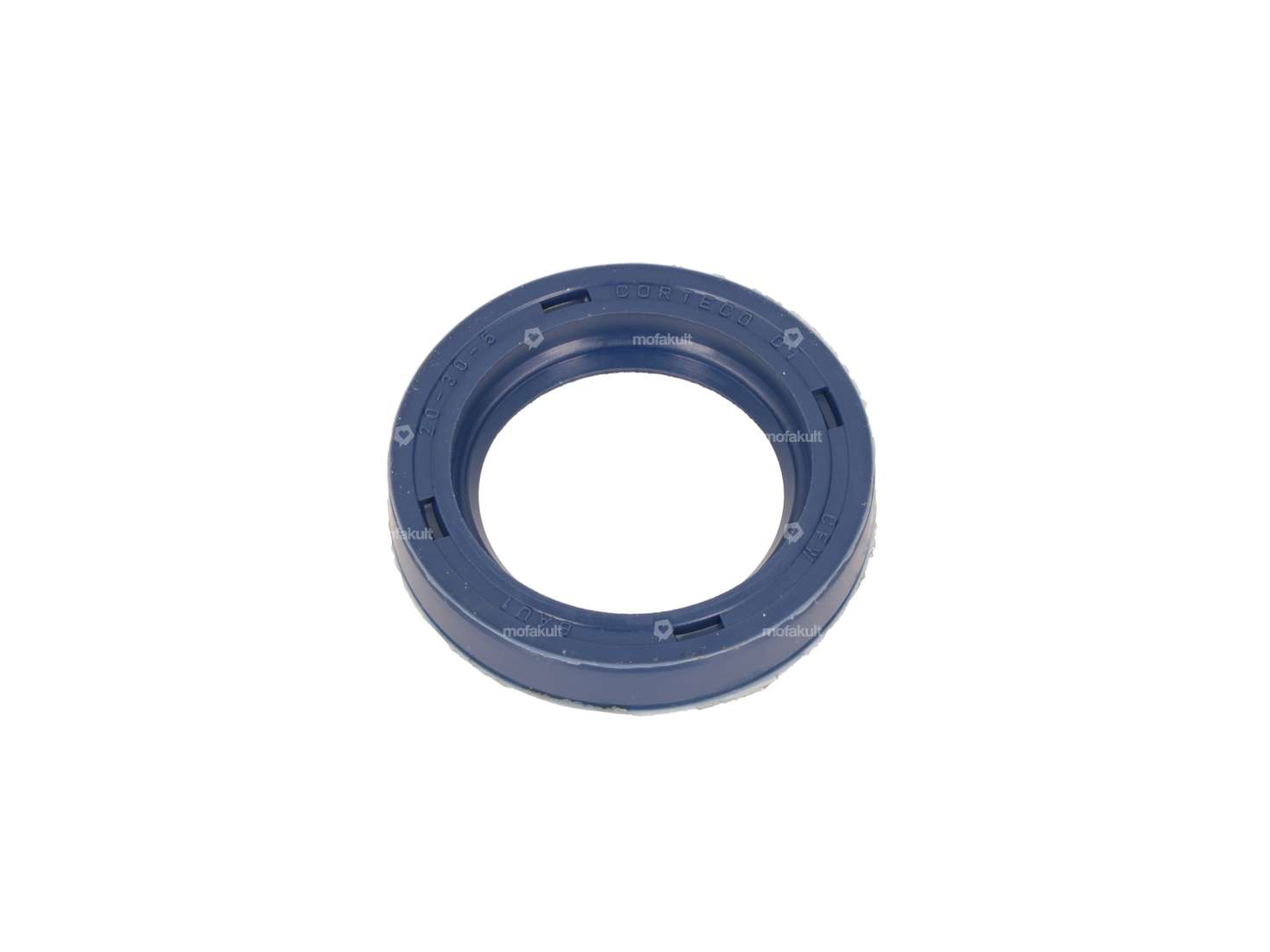

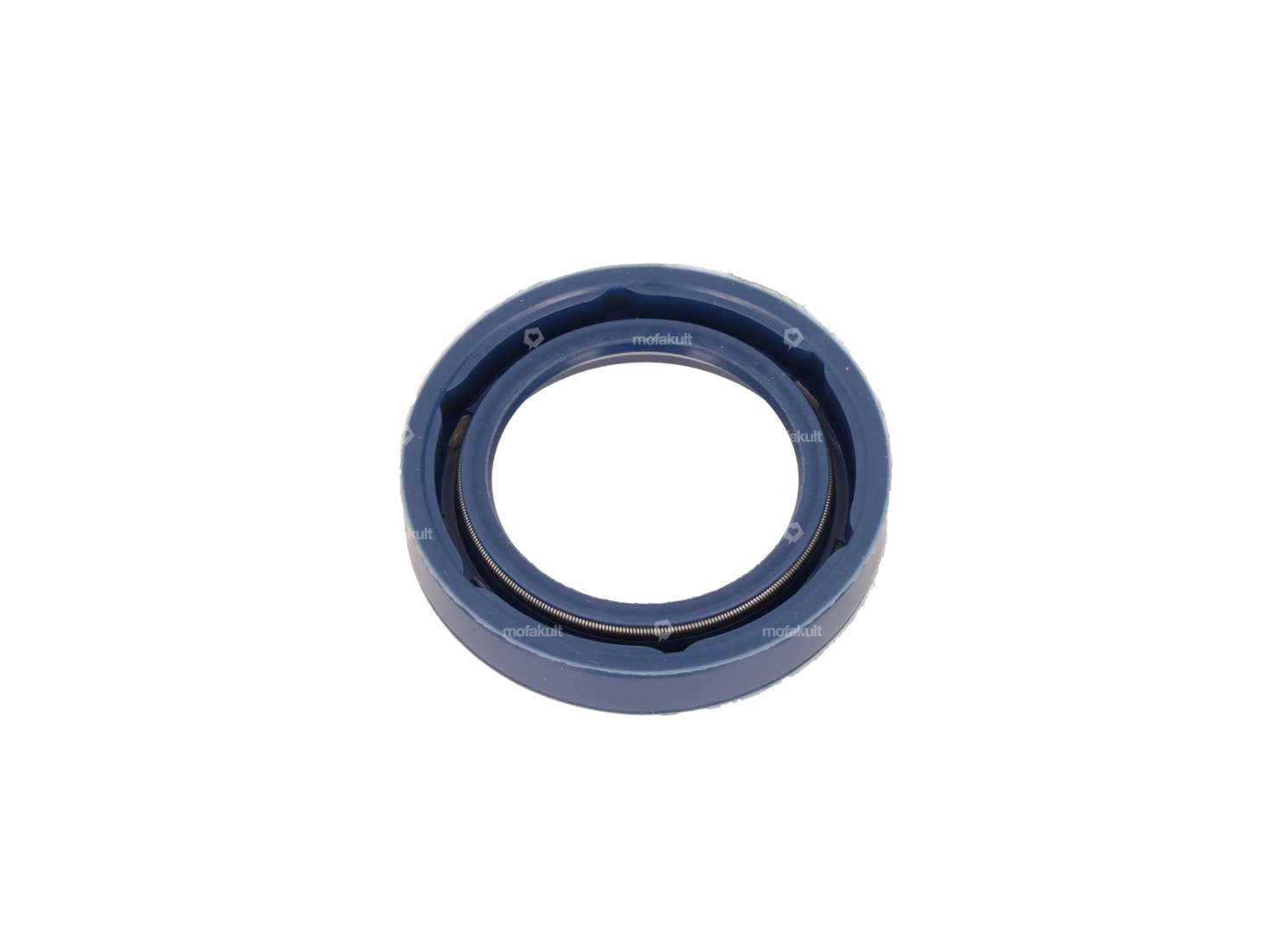

High-quality shaft seal (colloquially known as oil seal) 20x30x5 mm for use on the mono or vario gearbox of your Piaggio Ciao, Si, Bravo, Boxer moped / moped.
This radial shaft seal ring is fitted in the gearbox on the brake pad side.
Note: If you own the first Ciao model C9 with rigid fork and a splined gearbox, you will need a seal ring of the same size on the brake side.
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Made in Italy |
| Width | 5 mm |
| Material | NBR |
| Surface | rubberized |
| Place of use | Gear hub |
| Ø outside | 30 mm |
| Ø inside | 20 mm |
| Temperature resistance (min.) | -30 - 100 °C |
| Piaggio OEM number | 131511 |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
