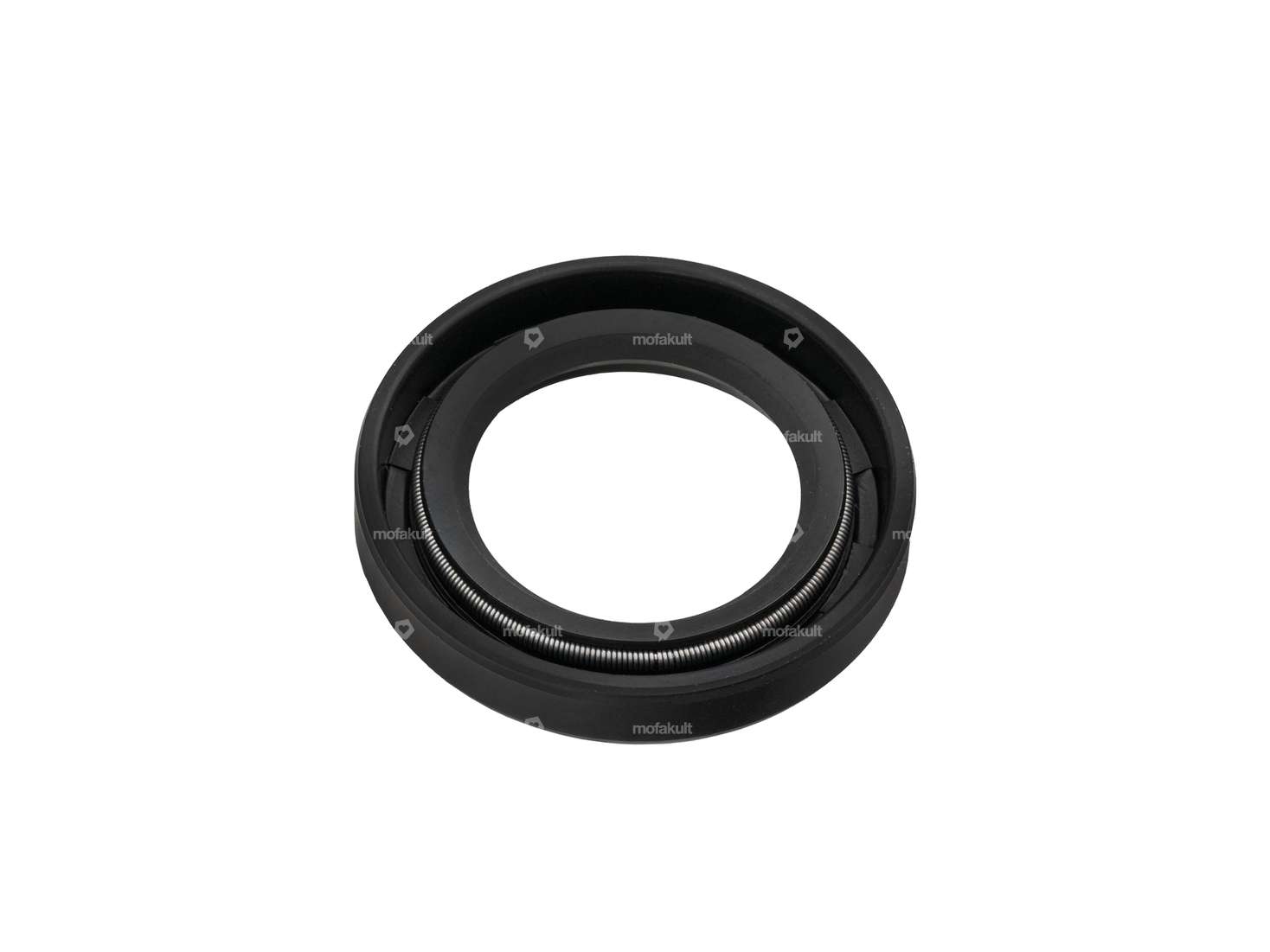

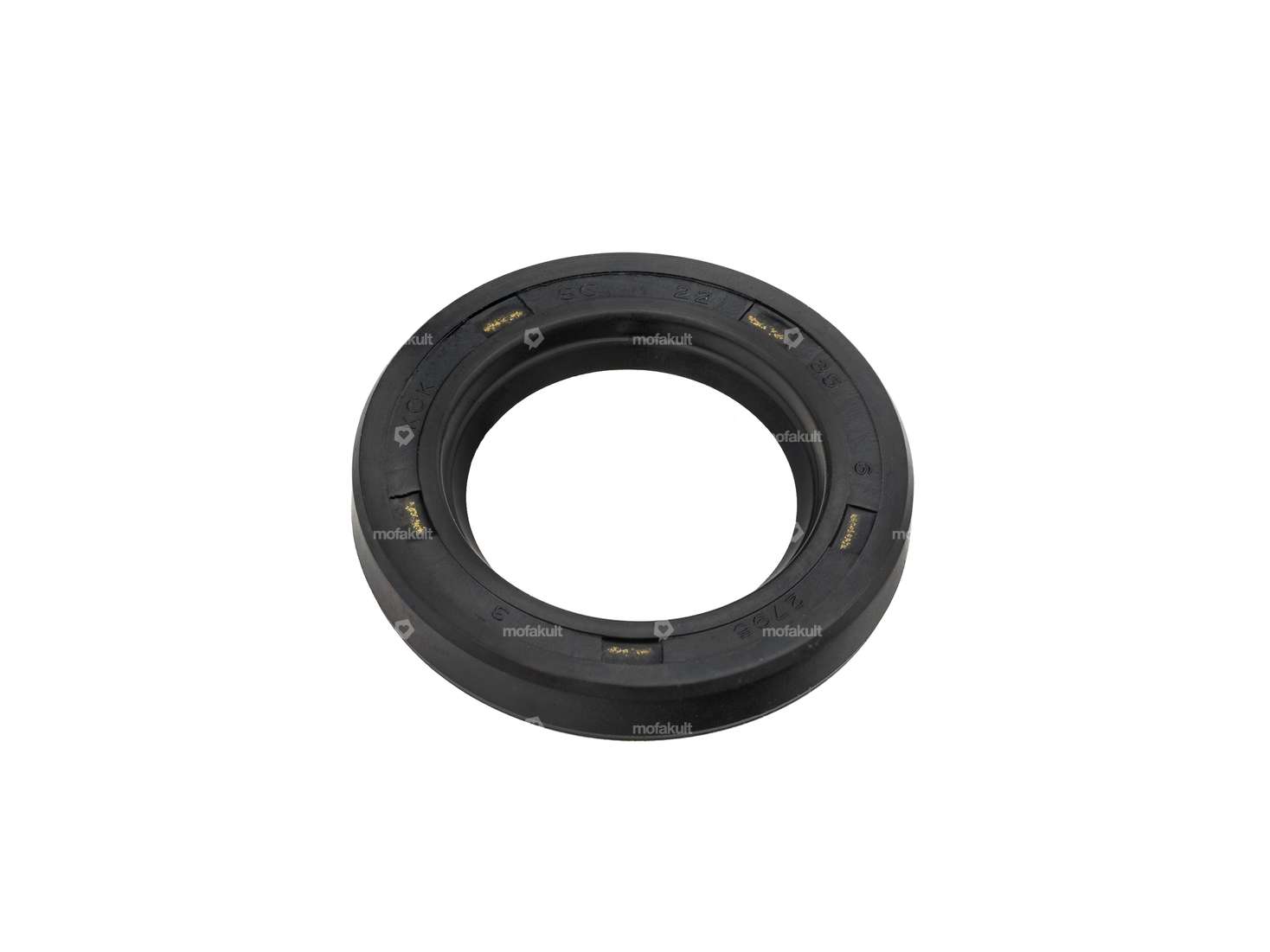

Shaft seal ring 22x35x6 mm for use on the gearbox of your Piaggio Ciao C9 moped / moped with splined gearbox (Mono and Vario).
This shaft seal ring (colloquially known as a radial shaft seal) is fitted in the gearbox on the brake pad side.
Ø inner: 22 mm
Ø outer: 35 mm
Width: 6 mm
Material: NBR
Temperature-resistant: -30 to +100 °C, briefly up to 120 °C
Type: A - With rubberized outer casing and a sealing lip.
Please note that all Piaggio models after the Ciao C9 with rigid fork no longer had a splined gearbox fitted as standard. For this reason, these transmissions require a shaft seal with the dimensions 30x20x5 mm on the brake side.
You can find this oil seal and other parts for your Piaggio transmission in the accessories section.
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Original Piaggio spare part number: 008752
| Shaft seal type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Piaggio |
| Surface | rubberized |
| Material | NBR |
| Width | 6 mm |
| Ø inside | 22 mm |
| Ø outside | 35 mm |
| Temperature resistance (min.) | -30 - 100 °C |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
