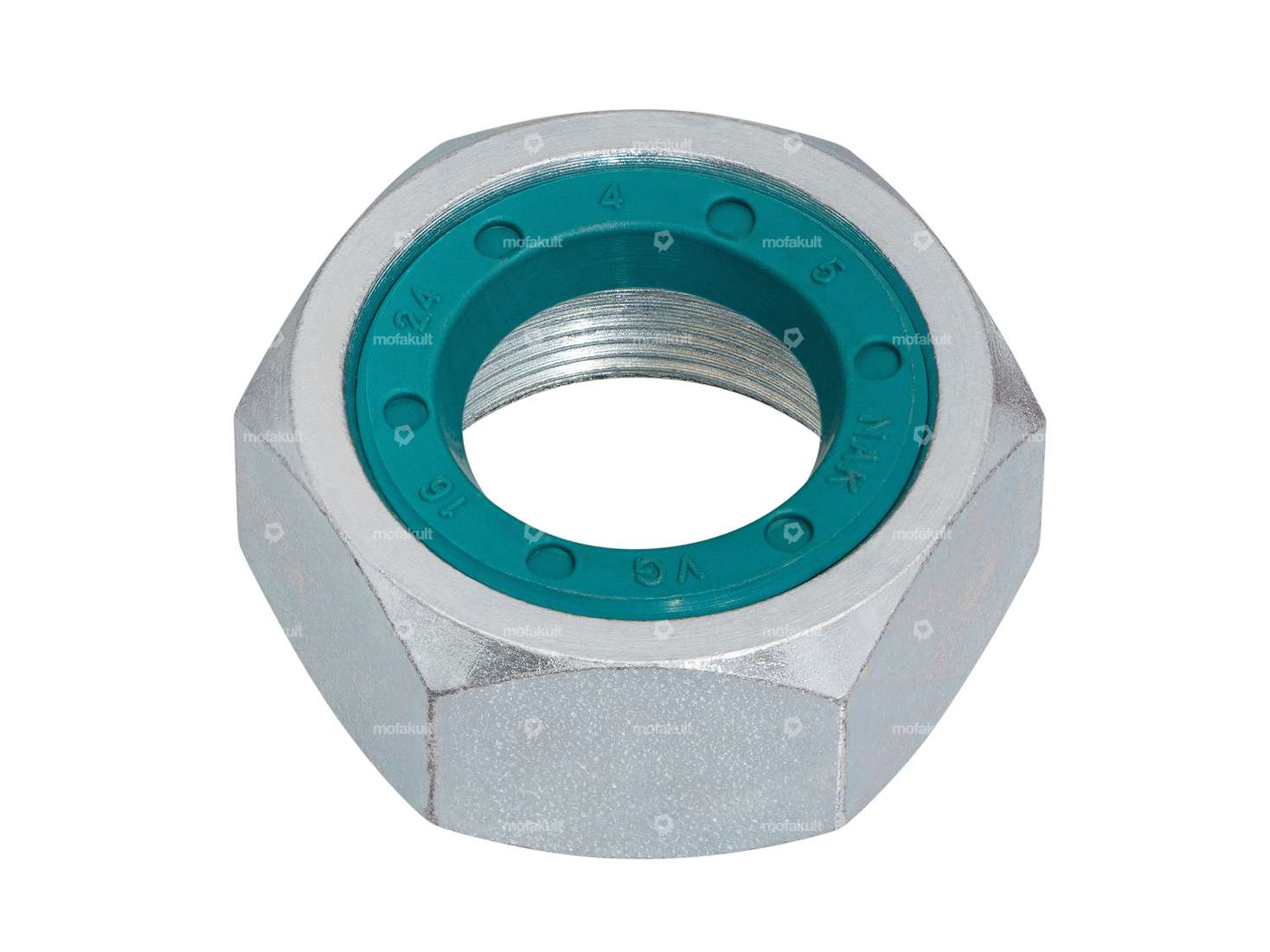

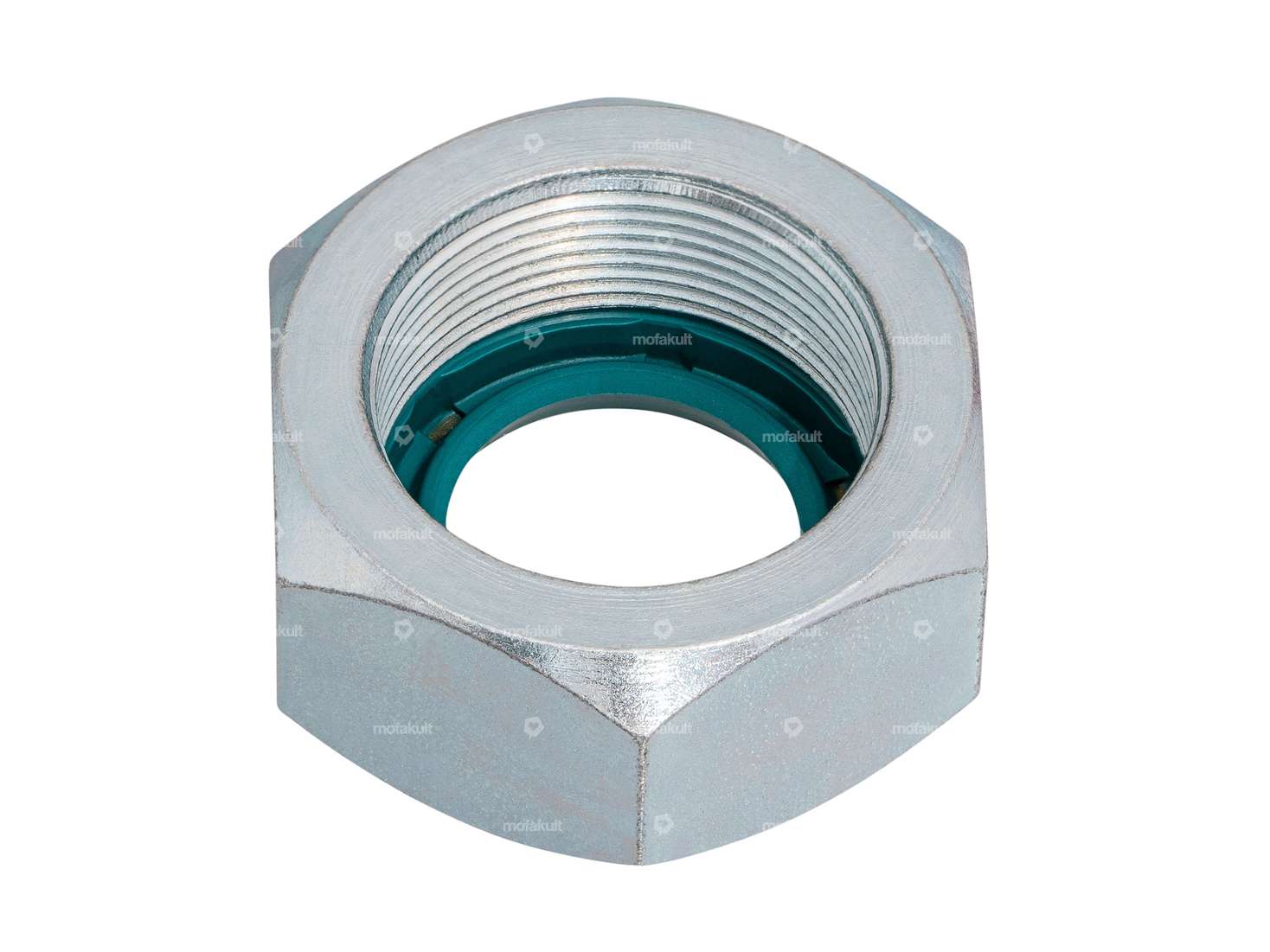

Nut with shaft seal ring pinion (in case of oil loss) | Tomos

EUR 20.60

Incl. 25.5% VAT.

Description

Special nut with an M22 x 1 mm thread for the sprocket shaft on various Tomos models (Quadro, Sprint, Classic, and FunSport).

It is common for Tomos engines to develop an oil leak at the sprocket shaft after some time.
This custom-made nut with an integrated shaft seal (commonly known as a Simmerring) solves this problem quickly and easily.

Simply replace the old nut with this one.

Wrench size: 30 mm
Height: 14 mm
Shaft seal: 16 x 24 x 4 mm

Original Tomos part number: 234388

ManufacturerTomos
Nut typeHexagon nut
Thread typeMF22x1 (fine pitch thread)
Nominal diameter (thread)22 mm
DriveExternal hexagon
Width across flats30 mm
Height14 mm
