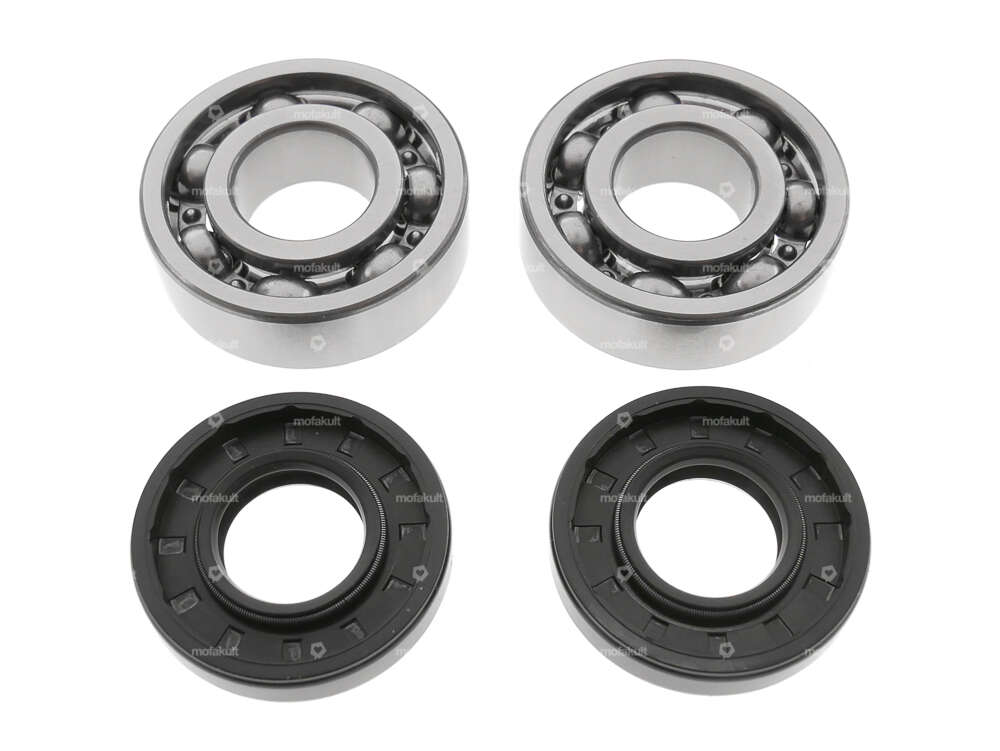

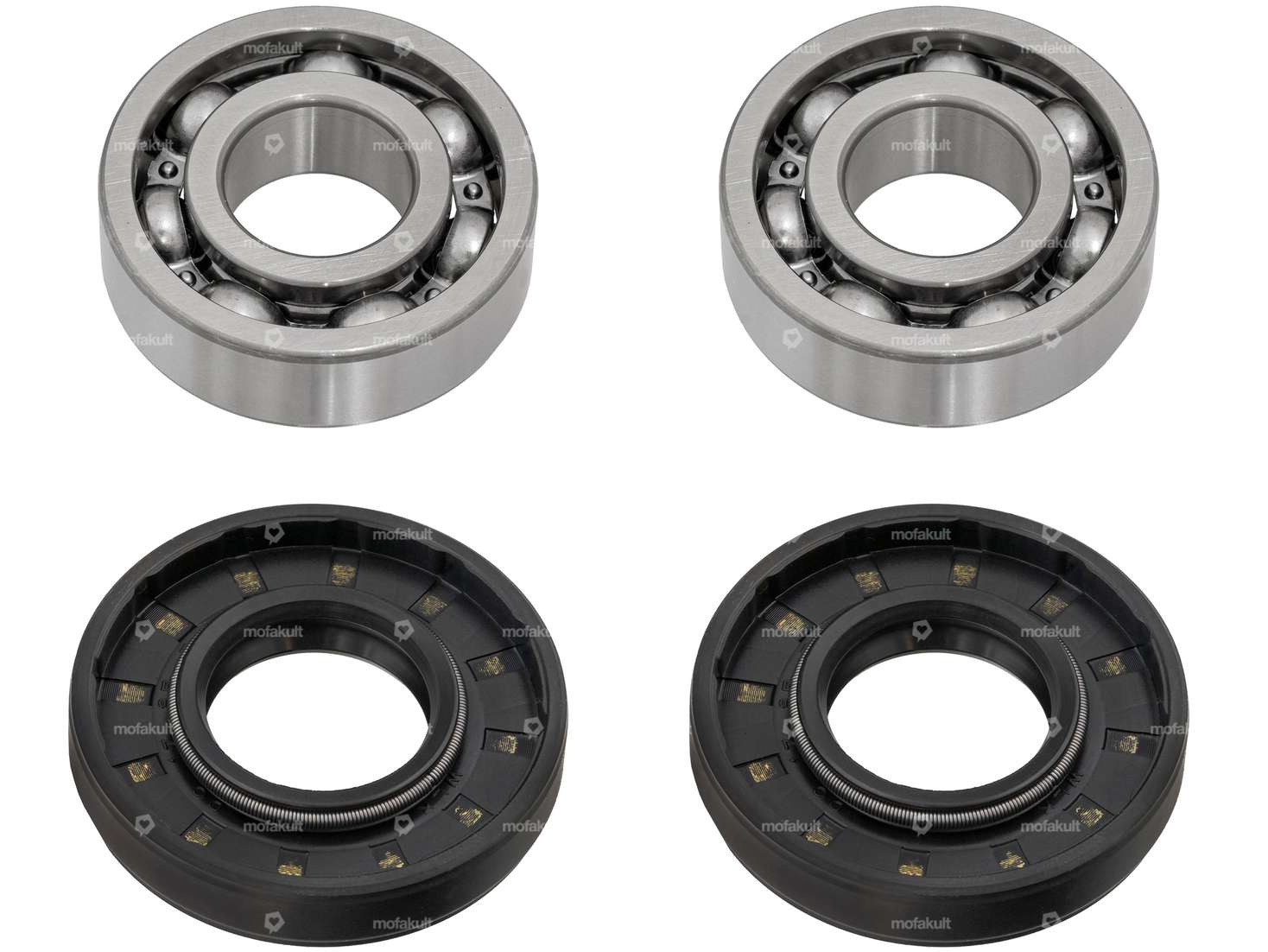

NTN bearing set & crankshaft oil seals | Franco Morini M1 / T5

NTN 6203 C3 Ball bearing 17/40/12

Surface: blank · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: No · Material: Steel · Ø outside: 40 mm · Bearing type: Deep groove ball bearing · Area of application: Standard · Width: 12 mm · Ø inside: 17 mm · Ball bearing closed: No

Oil seal NBR 17/35/7 A DUO

Surface: rubberized · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Material: NBR · Ø outside: 35 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C · Ø inside: 17 mm

Airsal 43.5 mm cylinder kit 12 mm KoBo | Morini

Surface: sandblasted · Nominal diameter: 43.5 mm · Manufacturer: Airsal · Camouflaged: No · Material: Aluminum · Area of application: Tuning · Ø cylinder neck: 47.9 mm · Ø outlet inside: 23.2 mm · Hole pattern [mm]: 46 x 46 · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 35 mm · Thread outlet: M5x0.8 (standard thread) · Decompressor: No · Number of fixing points: 4 pcs

swiing® revival gasket cylinder base 0.45mm | Morini T5-CH Alpa Chopper

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.45 mm

Athena gasket cylinder head | Alpa Chopper

Manufacturer: Athena · Place of use: Cylinder head · Reinforced: Yes

swiing® revival gasket ignition cover 0.45mm | Morini T5-CH Alpa Chopper

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Ignition cover · Thickness: 0.45 mm

Oil level screw engine | Zündapp Bergsteiger / Alpa Chopper / Malaguti Fifty

Surface: galvanized (blue) · Manufacturer: ALPA · Material: Steel · Area of application: Standard · Number of components: 1 pcs · Color: silver · Screw head: Cylinder head · Thread type: M6x1 (standard thread) · Drive: Slot · Thread length: 16 mm

Athena oil seal set | Morini M1/M01, Minarelli V1

Manufacturer: Athena

swiing® ingenious adjusting nut M26x1 control bearing

Thread type: MF26x1 (fine pitch thread) · Manufacturer: swiing® ingenious parts · Material: Steel · Color: black · Surface: Hardened

Jasil crankshaft Racing | Morini M0, M01, M1

Manufacturer: Jasil · Cheek type: Full cheeks · Area of application: Racing · Crankshaft stroke: 39 mm · Total length of crankpin on clutch side: 71 mm · Total length crankpin ignition side: 67.25 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm
