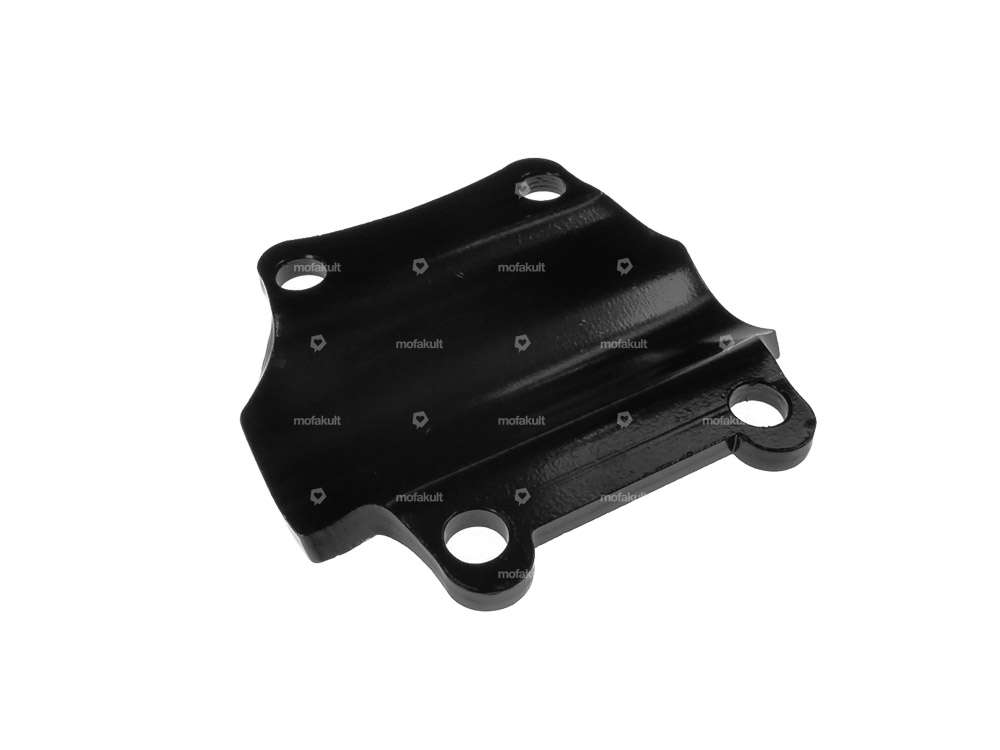

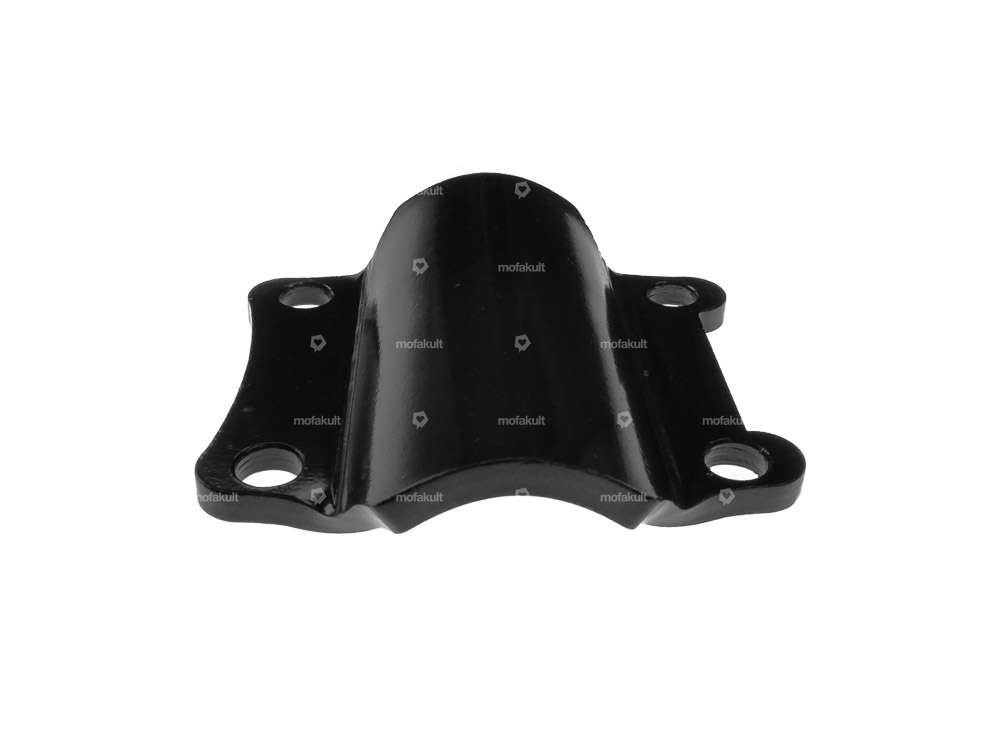

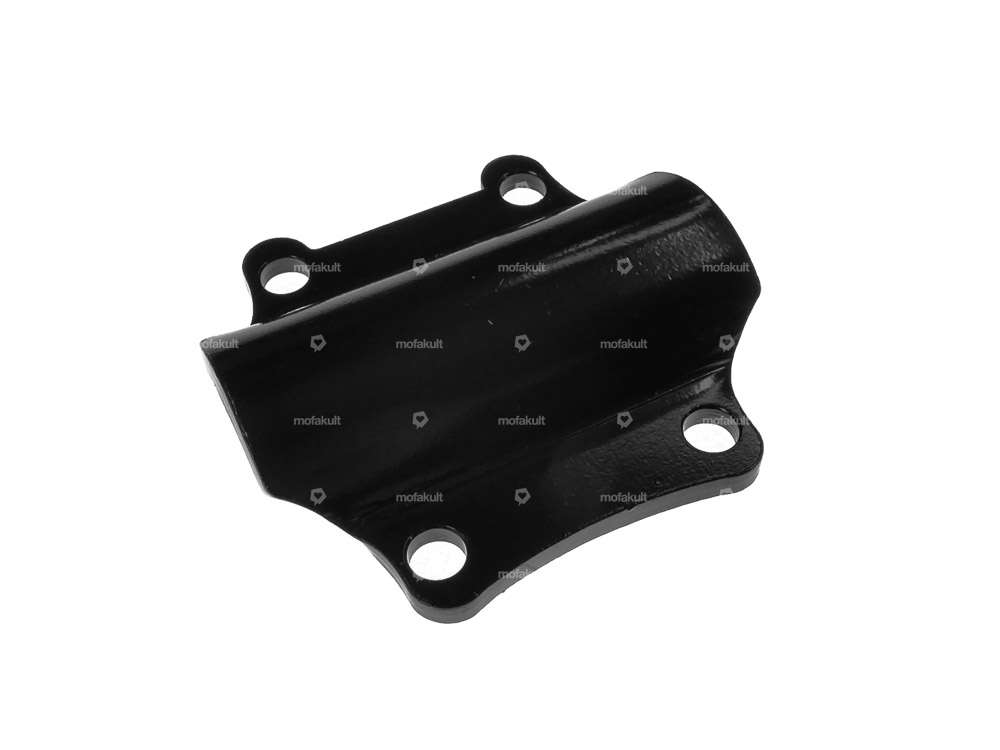

Mounting plate swingarm 5 mm | Puch Maxi S, X30 NG-2AH

GPO control bearing set M26x1 | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Ø inside: 26.8 mm · Ø outside: 41 mm · Thread type: MF26x1 (fine pitch thread)

Adhesive kit tank & frame black PVC carrier film | Puch Maxi S

Material: Polyvinyl chloride (PVC) · Color: black · Color: white · Width: 123 mm · Width: 230 mm · Width: 330 mm · Height: 26 mm · Height: 60 mm · Height: 65 mm · Rear side texture: Adhesive · Consistency: UV-resistant · Consistency: petrol resistant · Place of use: Frame (+ tank)

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

GPO rubber for swingarm mounting | Puch Maxi S, X30

Ø inside: 24 mm · Ø outside: 32 mm · Ø outside: 37 mm · Total length: 90 mm · Manufacturer: GPO · Material: Rubber · Color: black · Puch OEM number: 349.1.21.509.1

swiing® revival shock absorber axle galvanized | Puch Maxi S

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 200 mm · Thread type: M8x1.25 (standard thread)

GPO cable duct black | Puch Maxi, Supermaxi

Manufacturer: GPO · Material: Plastic · Color: black · Total length: 320 mm · Width: 58 mm · Height: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 5.3 mm

swiing® revival side protection screw set black | Puch Maxi S

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Total length: 47 mm · Total length: 60 mm · Drive: Slot · Drive: Triangular head · Thread length: 35 mm · Thread length: 50 mm · Thread type: M5x0.8 (standard thread)

Frame guard without clamp | Puch Maxi S

Material: Plastic · Surface: raw · Color: black · Total length: 75 mm · Width: 50 mm · Height: 31 mm · Ø axle: 44 mm · Ø outside: 41 mm · Mounting type: Plug connection clamped · Ø mounting hole: 32 mm

swiing® revival screw set swingarm Inox | Puch Maxi S, Supermaxi, X30 NG-2AH

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Drive: External hexagon · Number of components: 12 pcs · Screw head: Hexagon

Racing swingarm black | Puch Maxi S, Puch X30 NG-2AH

Total length: 360 mm · Manufacturer: Made in Portugal · Material: Steel · Surface: varnished · Color: black · Width: 165 mm · Height: 125 mm · Wide intake: 125 mm · Area of application: Racing
