Product description

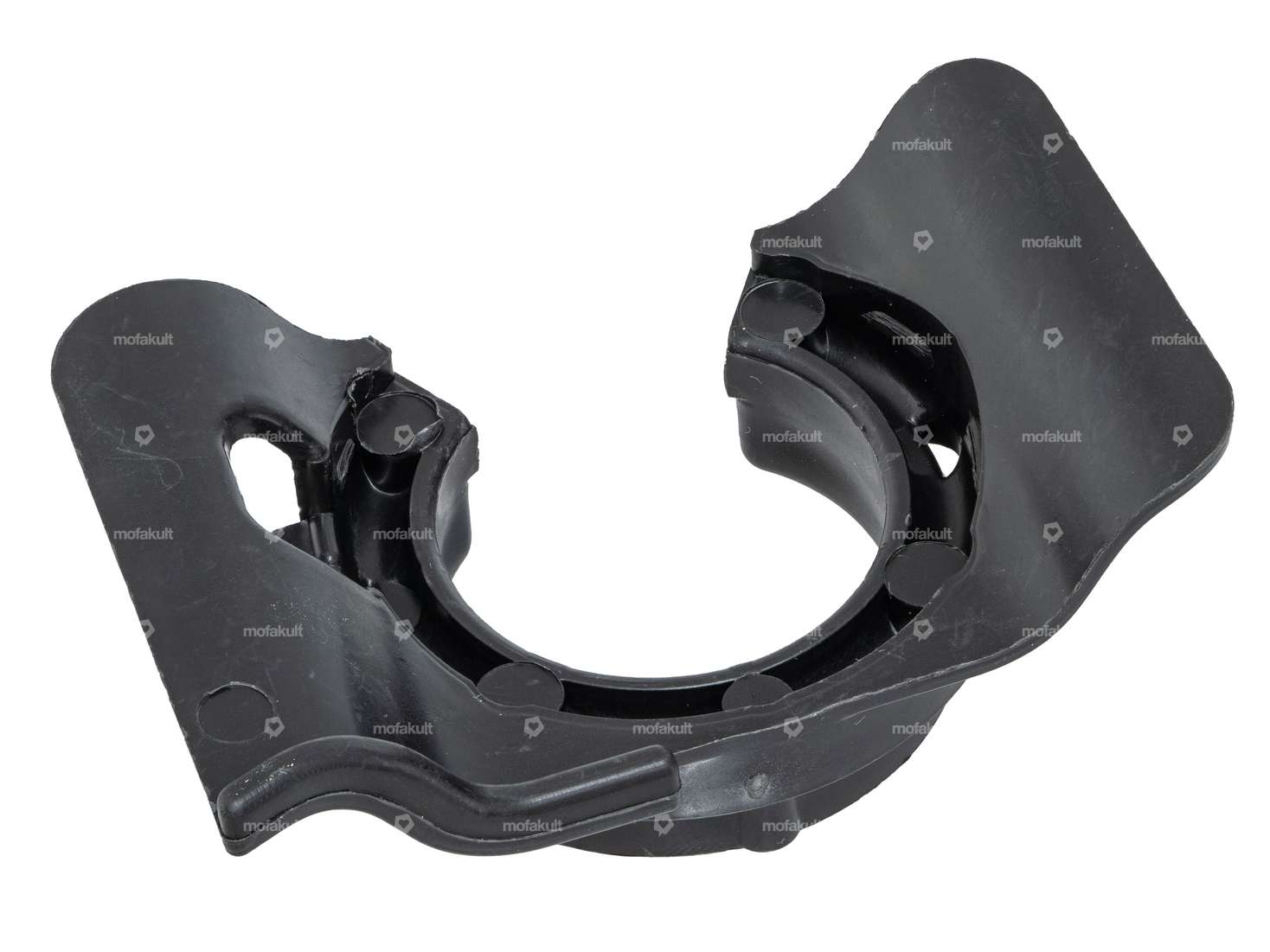

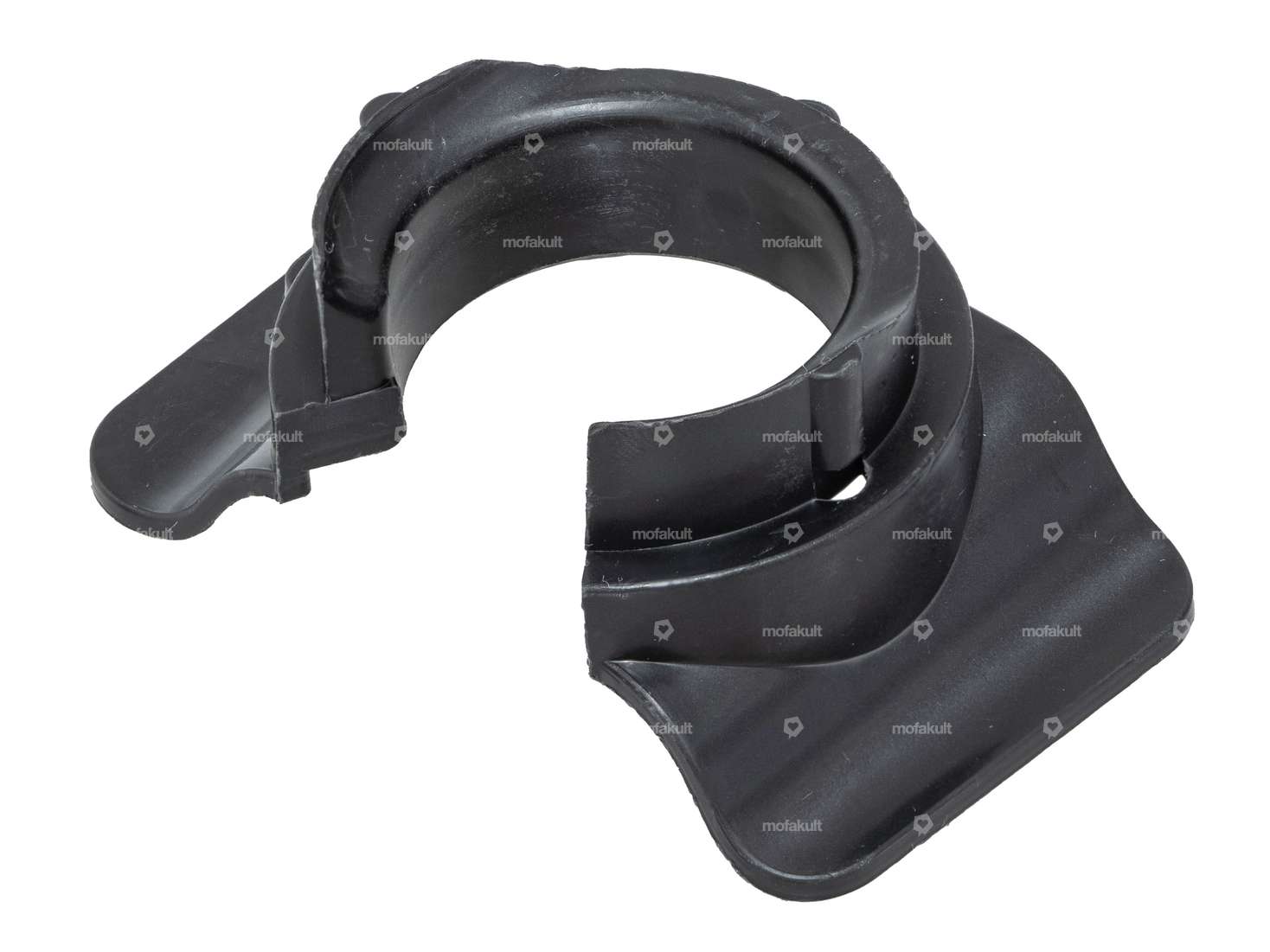

Chain guide suitable for Puch Maxi S mopeds, which protects the frame from the chain.

To make installation easier, the plastic should be slightly heated so that it can be installed without any problems.

The retaining ring is not included in the scope of delivery, you can find this in the accessories section.

Original Puch spare part number: 349.1.20.535.1

Product details

Material	Plastic
Surface	raw
Height	31 mm
Width	50 mm
Color	black
Total length	75 mm
Ø axle	44 mm
Ø outside	41 mm
Ø mounting hole	32 mm
Mounting type	Plug connection clamped

Suitable for the following models

Puch

E50

ZA50 (air-cooled)
