normio-400px

Universal

24529

Normio Locking Plate M6, 2 Tabs

EUR 1.95

Incl. 25.5% VAT.

Description

Galvanized locking plate with 2 tabs for securing screws and nuts.

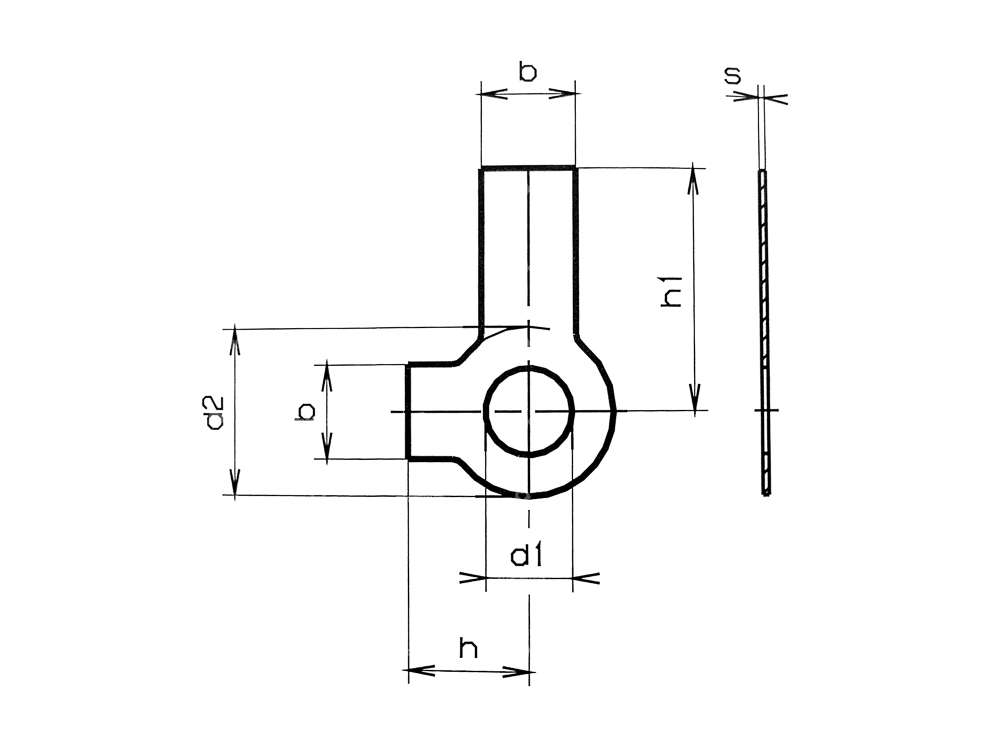

Take the following measurements from Figure 2:

  • d1: 6.4 mm
  • d2: 12.5 mm
  • b: 7 mm
  • h: 9 mm
  • h1: 18 mm
  • s: 0.5 mm

A high-quality product from the Normio brand for select industrial components with high standards for precision, durability, and manufacturing quality.

Ø inside6.4 mm
Ø outside12.5 mm
Width7 mm
Thickness0.5 mm
ManufacturerNormio
MaterialSteel
Surfacegalvanized (blue)
Nominal diameter (thread)6 mm
Number of lobes2 pcs
Thread sizeM6
Total length9 mm
Length 218 mm
Width 27 mm
