Luggage hook / helmet hook aluminum black original | Piaggio Ciao C24, SI, Bravo

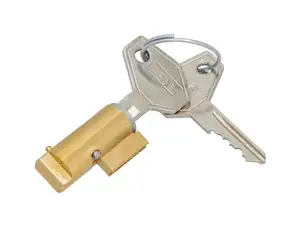

ZADI steering lock 4 mm | Piaggio Ciao, SI, Bravo, Boxer

Ø rotating part: 12 mm · Manufacturer: ZADI · Wide locking block: 4 mm · Material: Brass · Total length: 31 mm

ZADI cover cap for steering lock | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: ZADI · Total length: 37.5 mm · Width: 18.5 mm

ZADI steering lock 6 mm plastic key | Piaggio Ciao, SI, Bravo, Boxer

Ø rotating part: 11.5 mm · Manufacturer: ZADI · Wide locking block: 6 mm · Material: Brass · Total length: 31 mm

ZADI steering lock 4 mm plastic key | Piaggio Ciao, SI, Bravo, Boxer

Ø rotating part: 12 mm · Manufacturer: ZADI · Wide locking block: 4 mm · Material: Brass · Total length: 31 mm

Luggage hook / helmet hook plastic original | Piaggio Ciao C24, Bravo, SI

Manufacturer: Piaggio · Ø mounting hole: 5.25 mm · Material: Plastic · Color: black · Hole spacing: 25 mm · Mounting type: Screws · Piaggio OEM number: 227153

Tank cap 30 mm bayonet lockable | Piaggio Ciao

Material: Cast aluminum · Material: Steel · Fuel filler cap: Bayonet 30 mm · Color: Chrome · Lockable: Yes · Vented: Yes · Surface: chrome-plated · Surface: galvanized (blue) · Ø External head: 53 mm · Ø outside connection piece: 46.4 mm · Height: 39 mm

Piaggio cover cap for steering lock ZADI NOS | Piaggio Ciao, Bravo

Manufacturer: Piaggio · Total length: 38 mm · Width: 19 mm · Ø Pin: 3.8 mm · Piaggio OEM number: 070604

Luggage hook / helmet hook lockable | Piaggio Ciao C24, SI, SUPERbravo

Total length: 56 mm · Width: 47 mm · Area of application: Security · Material: Aluminum · Color: silver · Number of components: 3 pcs · Material hook: Aluminum · Number of fixing points: 2 pcs

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm · Mounting type: Union nut

Pedals angular | Piaggio Ciao. SI, Bravo

Material: Plastic · Surface: ribbed · Thread type: FG14.3 (9/16" 20G) · Drive: Outer edge · Width across flats SW: 15 mm · Color: black · Width: 51 mm · Reflectors: Yes · Height: 29 mm · Total length: 118 mm

RMS V-belt Mono 960 mm (original) | Piaggio Ciao

Manufacturer: RMS · Material: Fabric insert · Material: Rubber · Outer width: 9.8 mm · Gearbox type: Mono · Rolling circumference: 960 mm · Belt profile: untoothed / untoothed · Height: 8.5 mm

Headlight black | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Color: black · Area of application: Original · Area of application: Standard · Test mark: none · Housing material: Plastic · Switch included: Yes · Lens material: Plastic · Tension: 6 V · Tension: 12 V · Bulb holder: P26s · Width: 125 mm · Speedometer recording: 48 mm · Height: 90 mm · Battery operated: No · Mounting type: Screws · Ø External connection: 6.3 mm · Number of fixing points: 2 pcs · Depth: 147 mm · Piaggio OEM number: 584240

SITO exhaust Ø 20 mm | Piaggio Ciao, Bravo

Manufacturer: SITO · Material: Steel · Surface: varnished · Ø Silencer: 65 mm · Ø Internal connection: 22.5 mm · Color: black · Ø Flame tube outside: 20 mm · Exhaust type: Cylindrical · Total length: 605 mm · Mounting type: Welded lug · Flame tube attachment: Plug connection clamped · Number of fixing points: 1 pcs

Pully Ø 94 mm mono gearbox (original) | Piaggio Ciao, SI, Bravo Boxer

Material: Steel · Gearbox type: Mono · Surface: galvanized (blue) · Ø Outer pulley: 94 mm

Handlebar Ø 21 mm with stem 23.5 cm | Piaggio Ciao

Manufacturer: Made in Italy · Material: Steel · Surface: chrome-plated · Color: Chrome · Width: 600 mm · Height: 260 mm · Mounting type: Front boom mounting · Ø Stem: 21 mm · Ø outside: 22 mm · Stem height: 160 mm · Length handlebar ends: 160 mm · Crossbar: No

Footboard black original | Piaggio Ciao PX, C24

Manufacturer: Piaggio · Color: black · Material: Plastic · Number of fixing points: 2 pcs

Dell'Orto 12/10 SHA carburetor hand choke

Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Original · Area of application: Tuning · Nominal diameter: 10 mm · Nominal diameter: 12 mm · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Internal connection: 16 mm · Total length: 55 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Width: 60 mm · Vacuum connection: No · Height: 111 mm · Color: black · Camouflaged: No · Nozzle size: 37

Dell'Orto 12/10 SHA carburetor hand choke | Piaggio Ciao PX

Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Nominal diameter: 12 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 37 · Mounting type: Plug connection clamped · Total length: 45 mm · Width: 60 mm · Height: 96 mm · Area of application: Tuning
