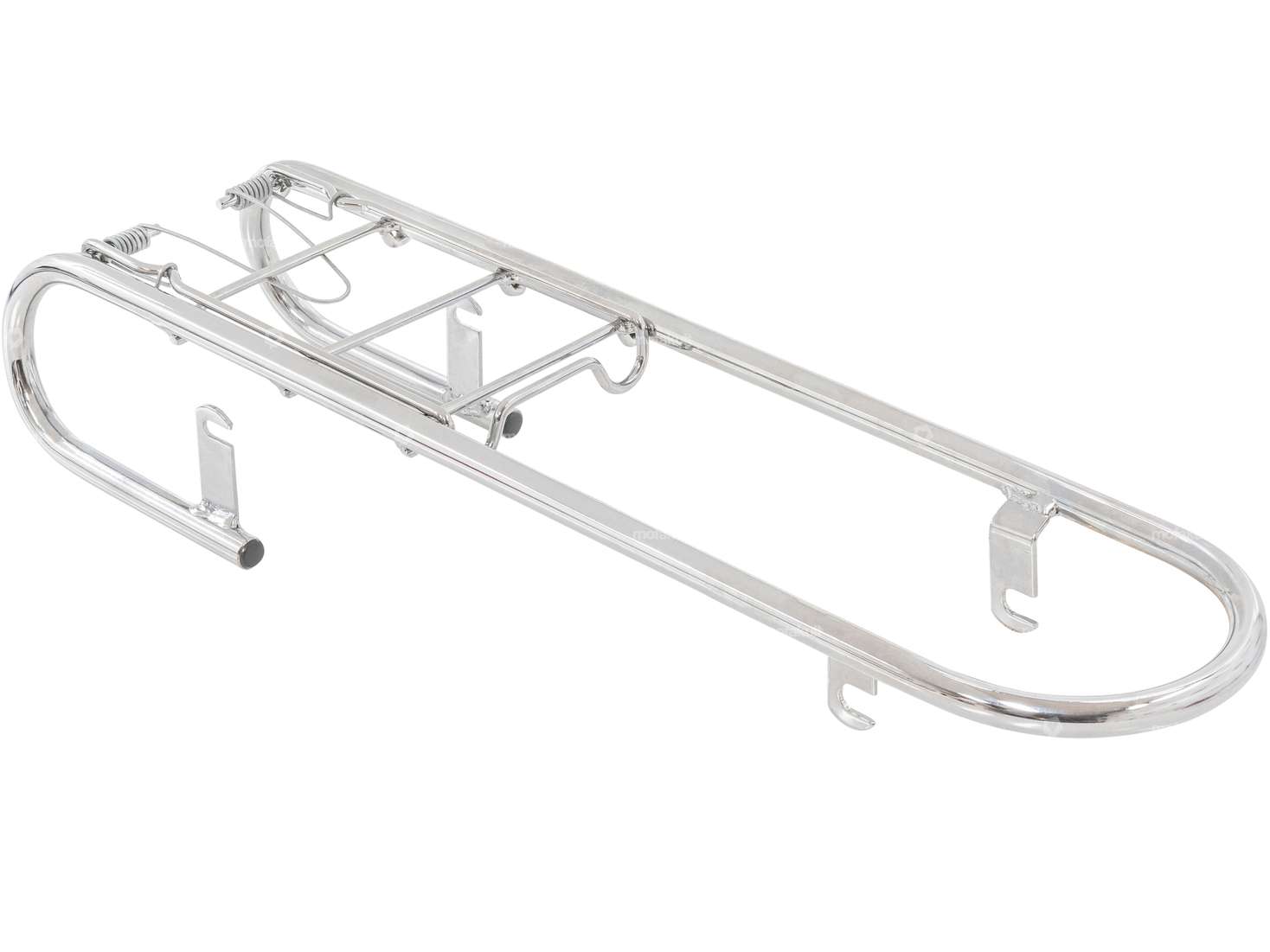

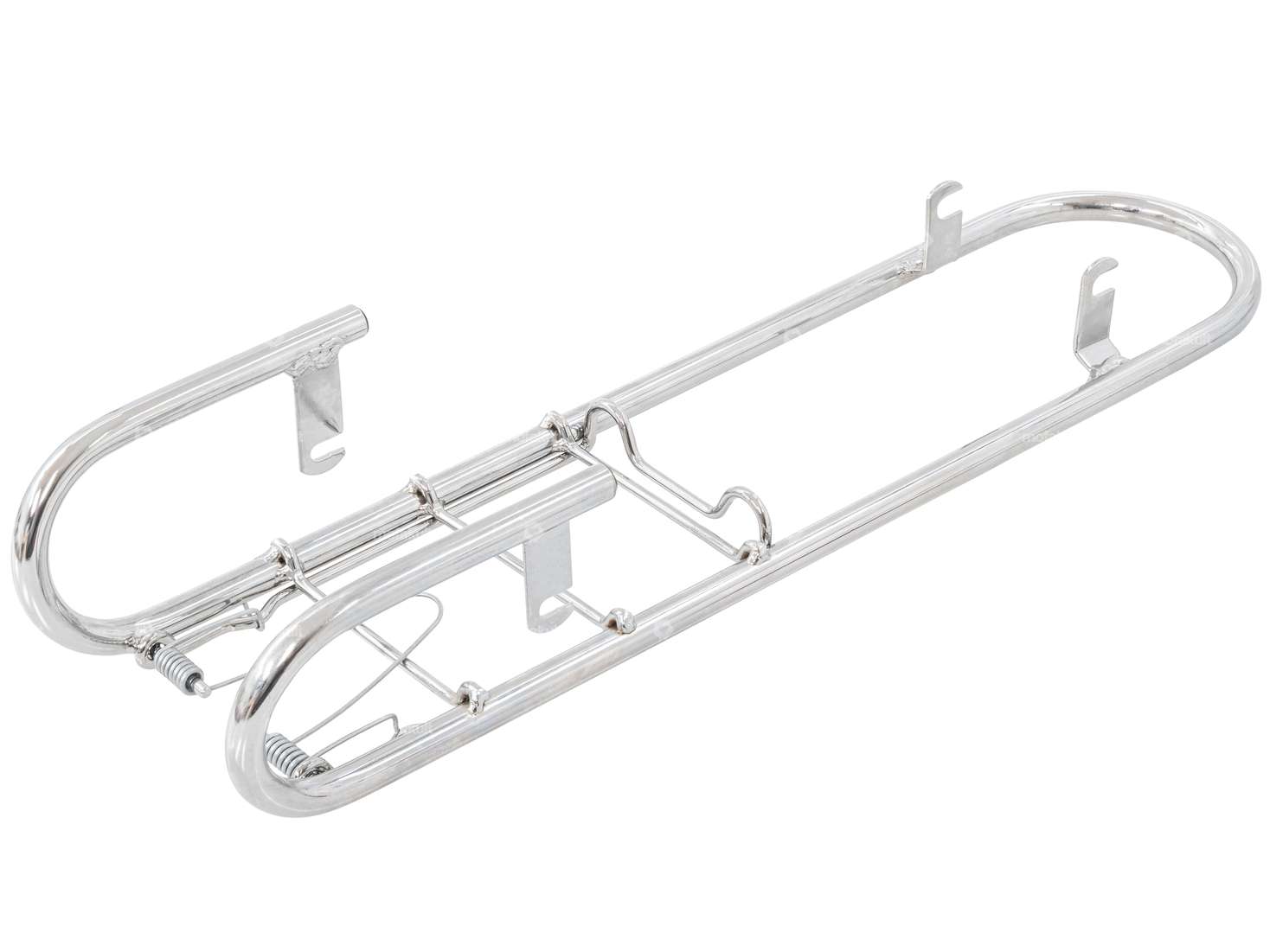

Reproduction of the legendary 70s luggage rack with clamp for your older Piaggio Ciao P moped / moped.
The rear bracket is only suitable for the old model with rigid, angular seat post and rear light on the mudguard.
In contrast to the original, the shape at the front of the saddle has been rounded off more to increase legroom. In addition, the clasp has been lengthened slightly to allow larger items of luggage to be transported.
The saddle is mounted at the original attachment points under the saddle on the luggage rack and on the screws of the struts. The tool compartment remains accessible.
Total length: 575 mm
Width: 140 mm
Height: 100 mm
Fastening distance at the front: 85 mm
Fastening distance at the rear: 135 mm
Length of luggage carrier clamp: 220 mm
Matching luggage bags as well as an alternative luggage carrier can be found in the accessories section.
Alternative to the original Piaggio spare part number: 114151
A quality product made in Italy.
| Manufacturer | Made in Italy |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Total length | 575 mm |
| Width | 140 mm |
| Ø mounting hole | 6.5 mm |
| Height | 100 mm |
| Hole spacing | 85 mm, 135 mm |
| Mounting type | Screws, Nuts & bolts |
| Number of fixing points | 4 pcs |
| Piaggio OEM number | 114151 |
| Piaggio | Ciao - P |
