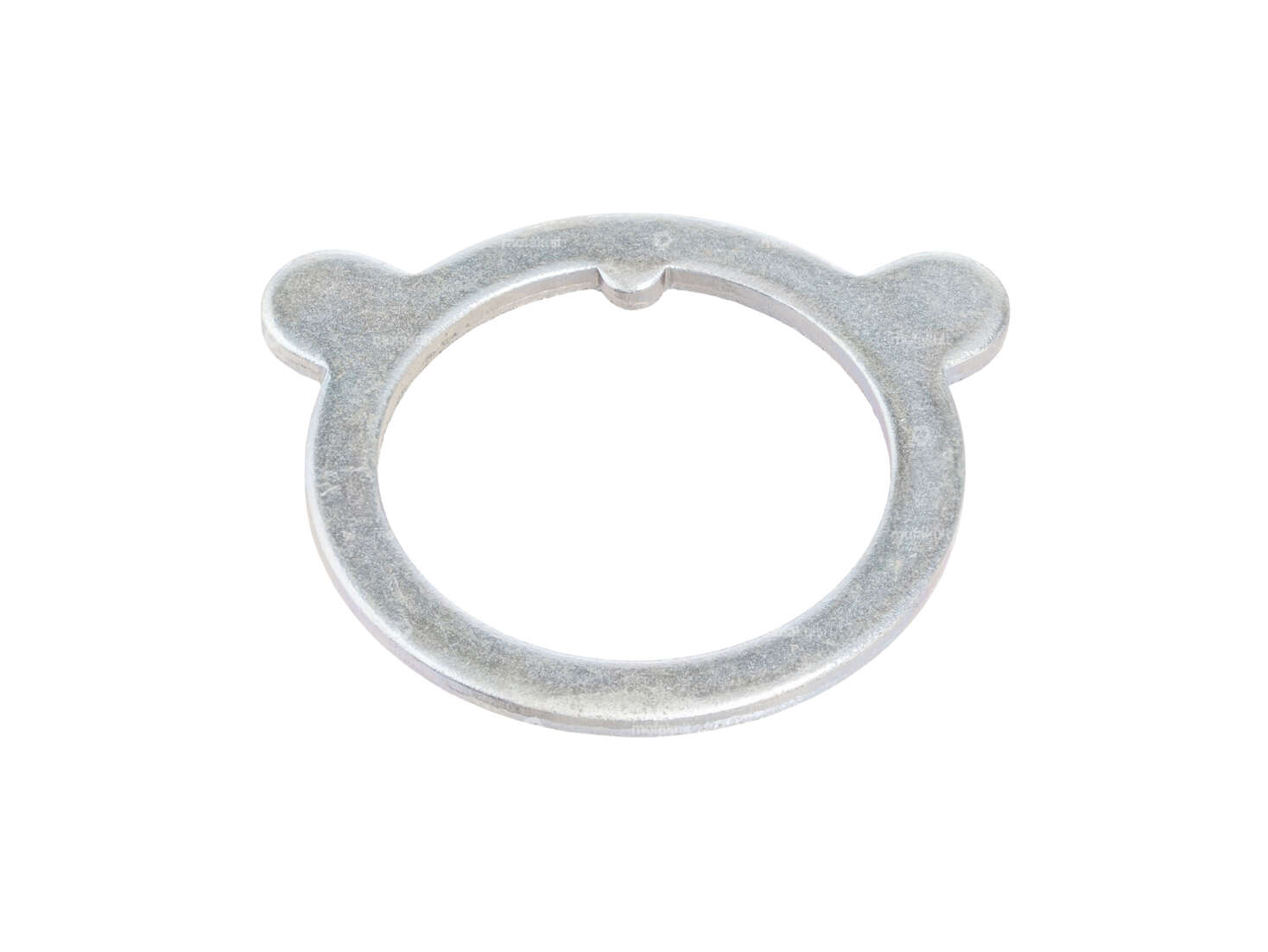

Original lock washer with two tabs and a lug for the steering shaft nut on your Piaggio Si, Bravo, Super Bravo and Boss moped / moped.
The locking tab for M28x1 nuts has the following dimensions:
Ø inner: 28 mm
Ø outer: 36 mm
Thickness: 2 mm
The inner nose of the locking washer engages in the milled groove of the fork and prevents the lower bearing ring from turning further when the lock nut is tightened.
The outer tabs are turned over to prevent loosening.
Original Piaggio spare part. NOS – New from old stock.
Original Piaggio spare part number: 267743
Details
| Ø inside | 28 mm |
| Manufacturer | Piaggio |
| Ø outside | 36 mm |
| Number of lobes | 2 pcs |
| Thickness | 2 mm |
Suitable for the following models
| Piaggio | Si Bravo / Super Bravo |
