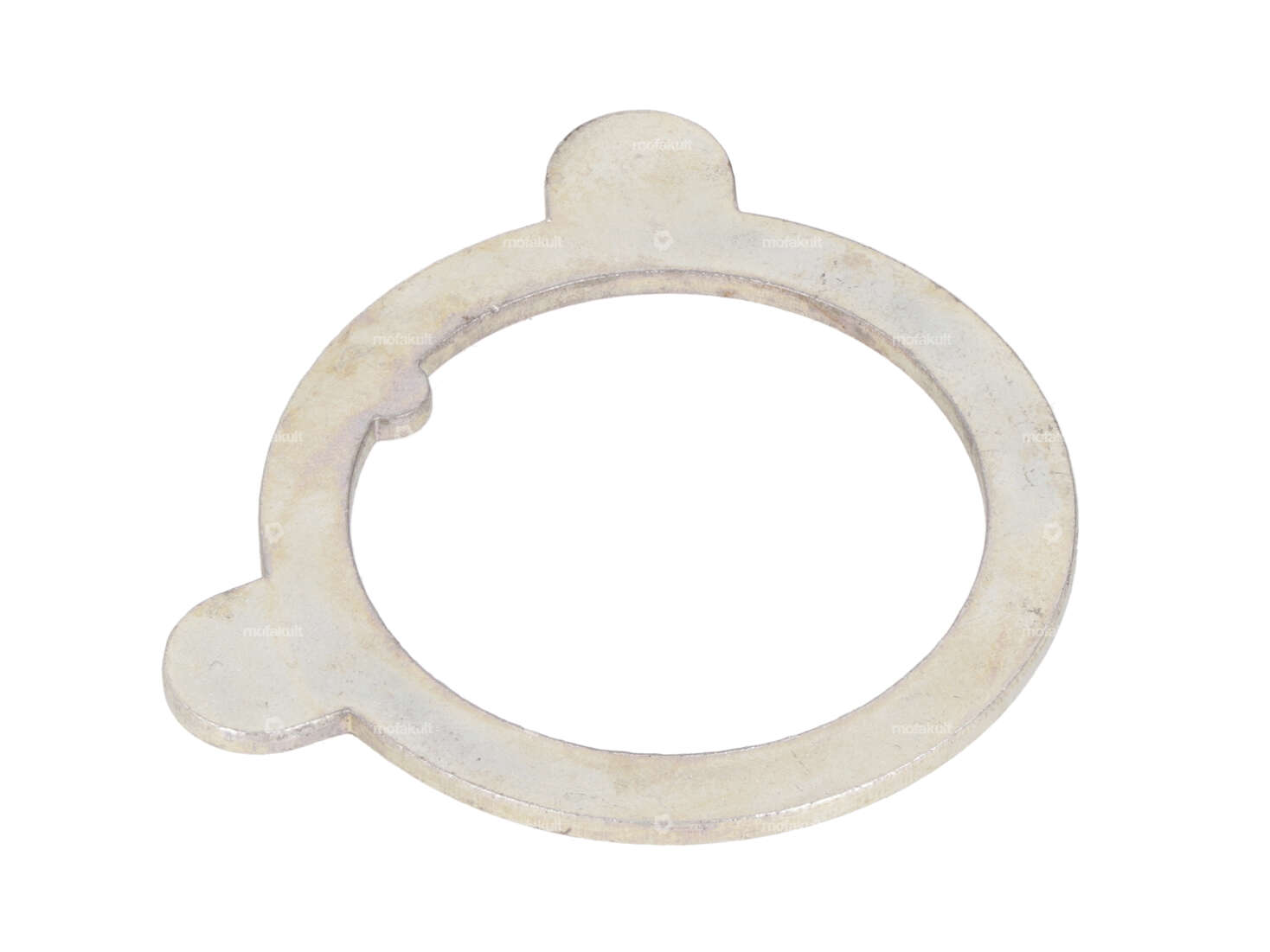

Original lock washer with lug for Piaggio Ciao mopeds / mopeds with original fork.
The intermediate washer is required to secure the end nut of the control bearing. After adjusting the bearing clearance, the tabs are folded over so that the nut can no longer loosen.
Ø inner: 25.5 mm
Ø outer: 32.8 mm
You can find a complete headset set, a matching end nut and other parts in the accessories section.
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Details
| Manufacturer | Piaggio |
| Material | Steel |
| Surface | galvanized (yellow) |
| Color | silver |
| Ø inside | 25.5 mm |
| Number of lobes | 3 pcs |
| Thickness | 1.5 mm |
| Ø outside | 32.8 mm |
| Area of application | Standard |
| Piaggio OEM number | 189305 |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 |
Accessories & related products
EBR standard fork chrome | Piaggio Ciao
Material: Steel · Surface: chrome-plated · Manufacturer: EWC · Adjustable: No · Spar end distance (center-center): 106 mm · Ø outer head tube: 25.4 mm · Ø head tube inside: 21.5 mm · Head tube length: 195 mm · Thread length: 58 mm · Color: Chrome · Fork bridge - center wheel axle: 325 mm · Total length: 585 mm · Thread type: FG25.4 (1" 24G)
EUR 138.60
EBR standard fork black | Piaggio Ciao
Material: Steel · Surface: varnished · Manufacturer: EWC · Adjustable: No · Ø outer head tube: 25.5 mm · Ø head tube inside: 21 mm · Head tube length: 200 mm · Thread length: 58 mm · Color: black · Fork bridge - center wheel axle: 355 mm · Total length: 580 mm · Thread type: FG25.4 (1" 24G)
EUR 133.70
GPO control bearing set | Piaggio Ciao
Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Ø outside: 41.4 mm · Ø outside: 42 mm · Bearing type: Bearing ring · Color: silver · Ø inside: 27 mm · Ø mounting frame: 30.05 mm · Height: 10.5 mm · Height: 17 mm · Thread type: FG25.4 (1" 24G) · Ø ball [inch] / [mm]: 5/32" (4.00 mm)
EUR 23.20

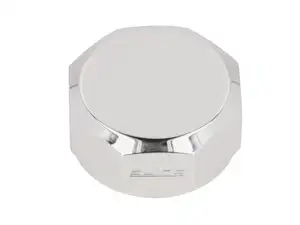

swiing® revival steerer tube nut 1" / 24G closed | Piaggio Ciao
