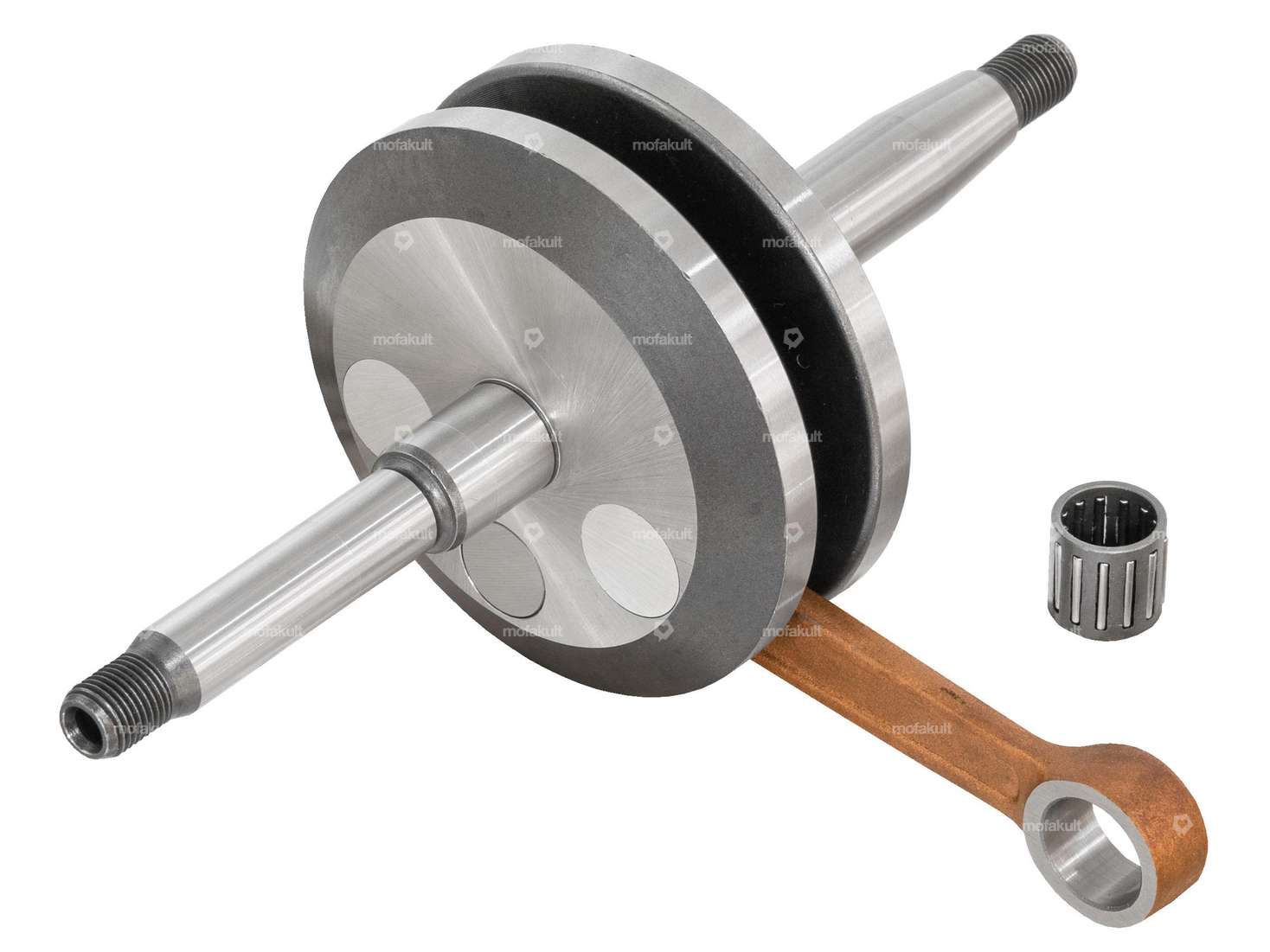

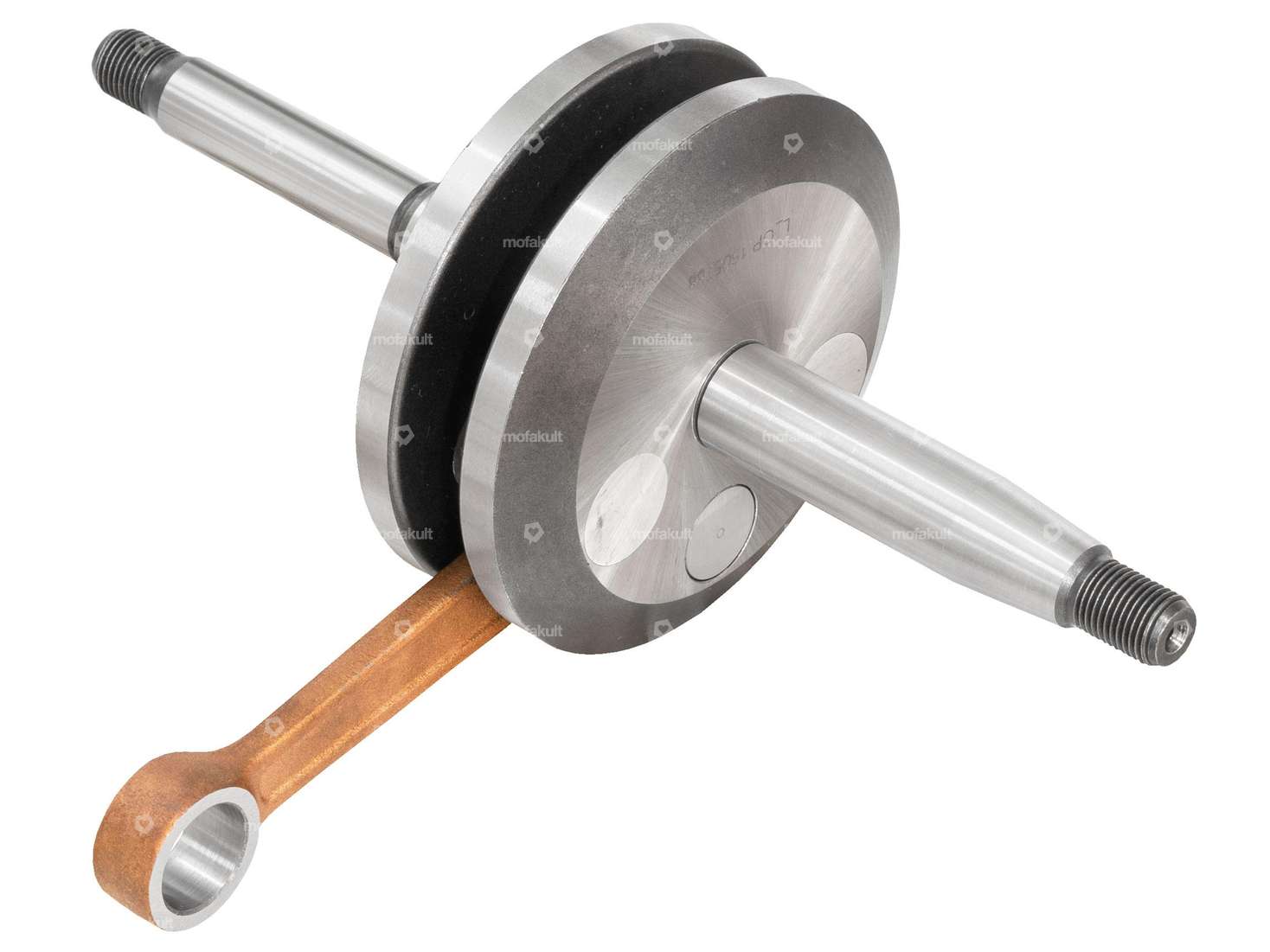

Jasil crankshaft full cheeks | Sachs 505, 535 A1, 535 AV

Crankshaft | Sachs 505, 535 A1, 535 AV (A4477)

Material: Steel · Area of application: Standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 44 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Number of gears: 2 pcs · Thread length: 12 mm · Total length of crankpin on clutch side: 77.5 mm · Total length crankpin ignition side: 73.5 mm · Ø crank webs: 79.9 mm · Ø Connecting rod eye: 15 mm · Weight: 956 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 18 mm · Length 2nd paragraph: 44 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 42.5 mm · Pony OEM number: A4477

Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508

Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Nominal diameter: 45 mm · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 19.5 mm · Ø Inlet inside: 14.3 mm · Number of fixing points: 4 pcs · Inlet window: 23.4 x 12.6 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31.5 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 50 mm · Outlet type: clamped · Outlet type: straight · Hole pattern [mm]: 56 (61) x 56 · Thread outlet: M8x1.25 (standard thread) · Decompressor: M10x1.5 · Camouflaged: No

Repair instructions | Sachs 505/2

Material: Paper · DIN format: A4 · Number of pages: 62 pcs · Language: English · Language: French · Language: German

Wedge for flywheel | Sachs 504, 508

Material: Steel · Total length: 9.3 mm · Width: 2 mm · Height: 3.8 mm · Sachs OEM no.: 0246 005 000

Flame tube 28 mm right | Sachs 505 / Hercules Prima, Optima

Material: Steel · Surface: chrome-plated · Ø outside: 28 mm · Total length: 500 mm · Mounting type: Stud bolts & nuts · Color: Chrome

Jasil crankshaft original | Sachs 505, 535 A1, 535 AV (A4477)

Manufacturer: Jasil · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Total length of crankpin on clutch side: 77.5 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Area of application: Standard · Pony OEM number: A4477

RITO crankshaft solid cheeks | Sachs 505, 535 A1, 535 AV

Manufacturer: Rito · Thread type: MF10x1 (fine pitch thread) · Thread length: 9.5 mm · Thread length: 13 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 44 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 77.8 mm · Total length crankpin ignition side: 73.8 mm · Ø crank webs: 79.5 mm · Ø Connecting rod eye: 16 mm · Weight: 878 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 16 x 15.8 (axe 12) · Wide crank webs: 34.2 mm · Length 2nd paragraph: 16.8 mm · Length 3rd paragraph: 15 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 11.7 mm · Length of shoulder (ignition side): 42 mm

swiing® ingenious tool Ignition adjustment analog M14x1.25

Manufacturer: swiing® ingenious parts · Area of application: Measuring tool · Material: Steel · Thread type: MF14x1.25 (fine pitch thread) · Number of components: 4 pcs · Puch OEM number: 905.6.32.101.0

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Thread type: MF26x1 (fine pitch thread) · Color: silver · Surface: galvanized (blue) · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Ø inside: 26.8 mm · Ø outside: 41 mm

Tank sticker "PUCH maxi S" 204 x 29 mm | Puch Maxi S

Material: Polyvinyl chloride (PVC) · Color: Chrome · Color: black · Color: green · Color: white · Place of use: Tank (+ frame) · Rear side texture: Adhesive · Consistency: UV-resistant · Consistency: petrol resistant · Width: 204 mm · Height: 29 mm · Border: Chrome surround · Puch OEM number: 349.2.20.537.0

Motorex engine oil (gear oil) manual 450 ml

Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Viscosity (SAE): 80W · Area of application: Gearbox lubrication with clutch · Oil type: GL4 · Contents [ml]: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

GPO sprocket 48 teeth black | Puch Maxi, Puch X30 NG-2AH

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Color: black · Surface: powder-coated · Number of teeth: 48 pcs · Ø mounting hole: 6.7 mm · Ø inside: 94 mm · Hole spacing: 36.5 mm · Number of fixing points: 6 pcs · Hole spacing 2: 68 mm · Cranking (offset): 8 mm · Ø bolt circle: 105.5 mm

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Cable length: 1650 mm

swiing® revival side protection screw set black | Puch Maxi S

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Thread type: M5x0.8 (standard thread) · Color: silver · Surface: galvanized (blue) · Surface: raw · Drive: Slot · Drive: Triangular head · Thread length: 35 mm · Thread length: 50 mm · Total length: 47 mm · Total length: 60 mm

Bearing bushing gearbox | Sachs 504, 535 (A4220)

Nominal diameter inside: 15.5 mm · Total height: 9 mm · Material: Steel · Surface: hardened & ground · Ø inside: 15.5 mm · Ø outside: 20 mm · Ø Bundle: 22 mm · Pony OEM number: A4220 · Sachs OEM no.: 0232 155 001
