For the economical repair of damaged or worn threads (of all materials) and as a design element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil®plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion resistance and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, creates an internal thread that is true to gauge and can be used on both sides.

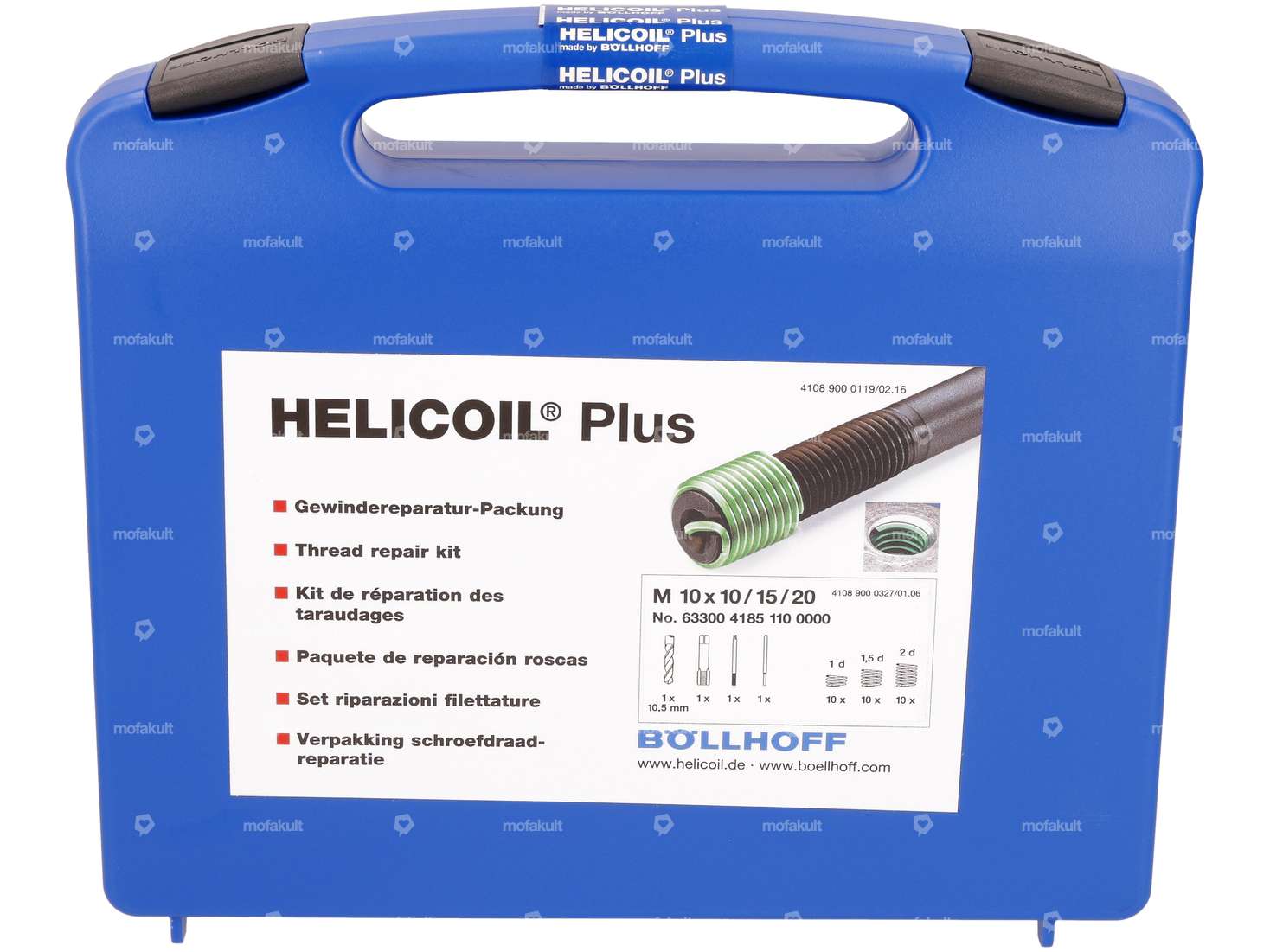

Complete repair kit for M10 thread sizes in a plastic case.
Application:
1. Drill out the defective thread with the enclosed drill.
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang with the tang breaker

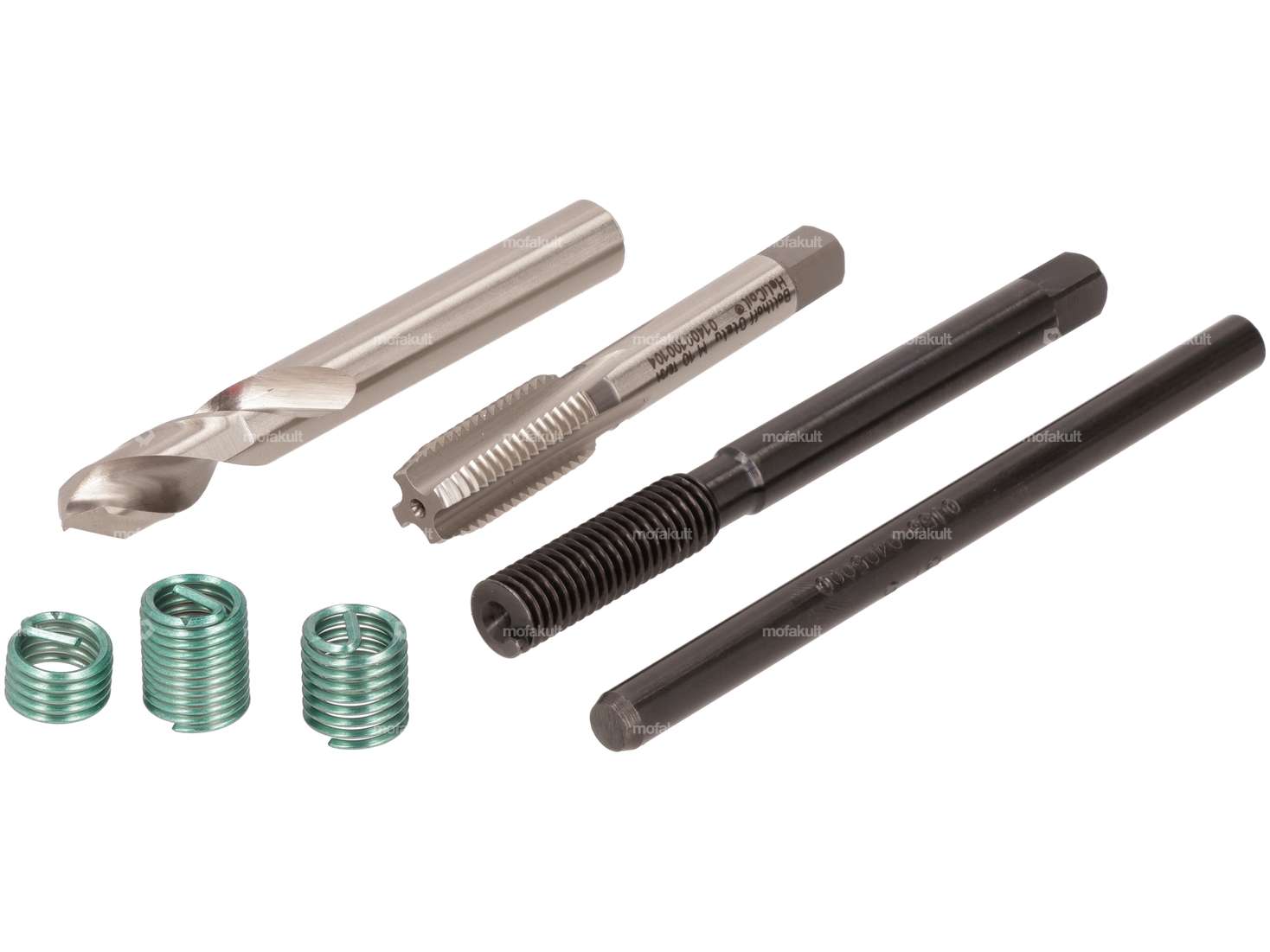

Scope of delivery
- 1 pc. twist drill Ø10.5 mm
- 1 pc. Thread cutter
- 1 pc. Installation tool
- 1 pc. Tang breaker
- 10 pcs. HeliCoil thread insert (1×D)
- 10 pcs. HeliCoil threaded insert (1.5×D)
- 10 pcs. HeliCoil threaded insert (2×D)

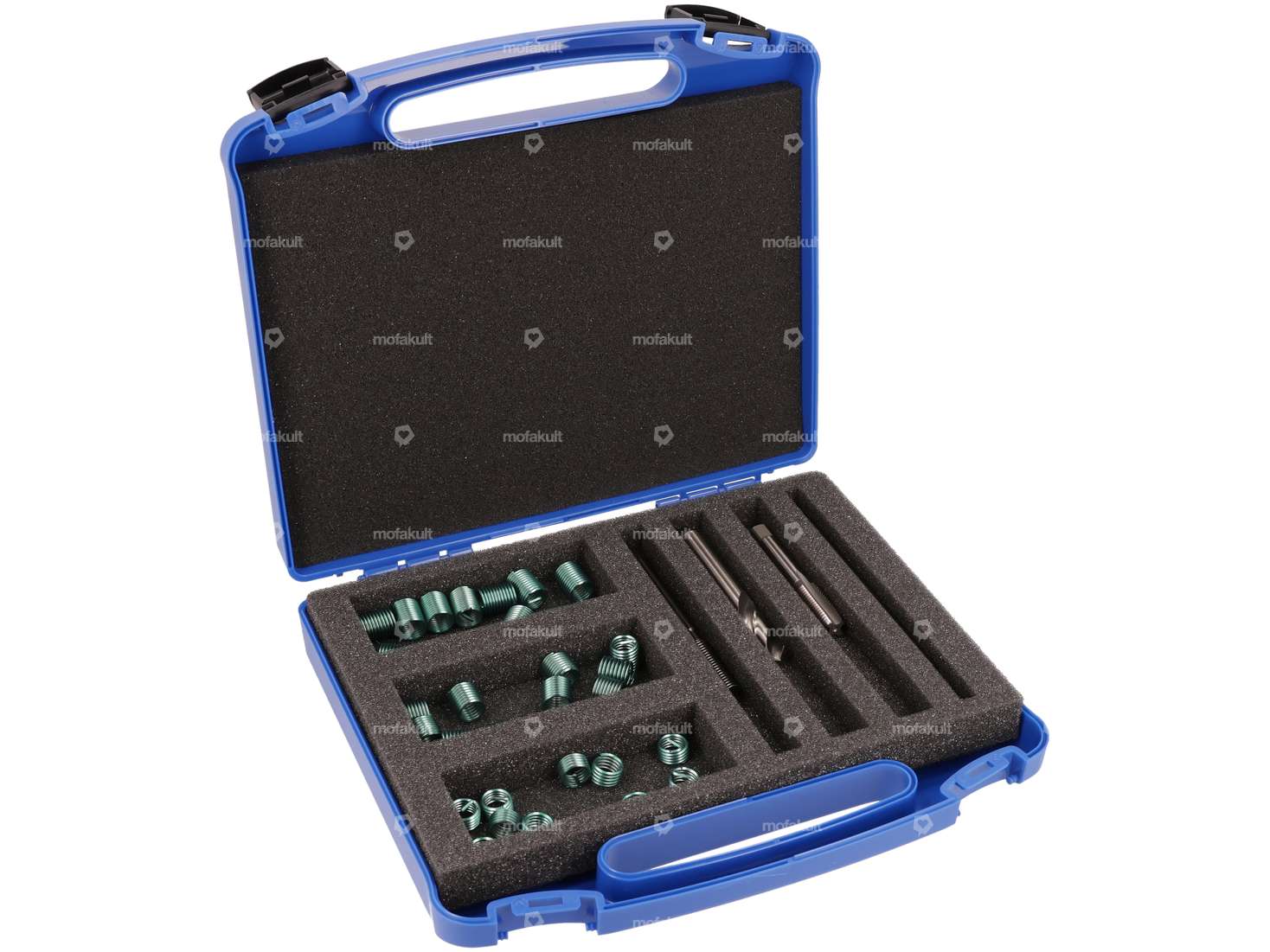

- 1 pc. Plastic case 180×165×45 mm (L×B×H)
Note
Adetailed instruction is included.
Original HeliCoil product from the German manufacturer Böllhoff.
| Manufacturer | HeliCoil |
| Material | Chrome steel (colloquially known as stainless steel) |
| Area of application | Workshop accessories |
| Dimension thread insert | 1D, 1.5D, 2D |
| Total length | 10 mm, 15 mm, 20 mm |
| Thread type | M10x1.5 (standard thread) |
| Ø bore | 10.5 mm |
| Nominal diameter (thread) | 10 mm |
| Storage method | Suitcase |
| Storage box dimension [mm] | 180 x 165 x 45 mm |
| Number of components | 30 pcs |
Ratings
Accessories & related products
Amecoil insert M10 (1D) 10 mm Inox
Manufacturer: Amecoil · Material: Chrome steel (colloquially known as stainless steel) · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 7 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 9 mm · Nominal diameter (thread): 10 mm · Total length: 5 mm · Total length: 6 mm · Total length: 7 mm · Total length: 9 mm · Total length: 10 mm · Total length: 12 mm · Thread size: M10 · Thread size: M6 · Thread size: M7 · Thread size: M8
EUR 1.05
Explore categories from Screws & fastener sets
Moped fans also bought
swiing® revival M8x12 oil drain plug & copper ring | Puch E50, Z50
Total length: 18 mm · Width across flats Screw: 13 mm · Manufacturer: swiing® revival parts · Material: Copper · Material: Steel · Surface: galvanized (blue) · Color: silver · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Thread type: M8x1.25 (standard thread) · Thread length: 12 mm · Puch OEM number: 901.1053
EUR 4.20
Hot
swiing® ingenious "Expert" motor stand
Manufacturer: swiing® ingenious parts · Width: 245 mm · Height: 340 mm · Area of application: Motor bracket · Material: Steel · Surface: varnished · Ø Receptacle: 25 mm · Ø Receptacle: 35 mm · Total length: 370 mm · Color: red · Color: white · Hole spacing: 21.5 mm · Material thickness: 3.5 mm
EUR 89.60
HeliCoil thread repair set M8 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Surface: coated · Area of application: Workshop accessories · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 8.4 mm · Total length: 8 mm · Total length: 12 mm · Total length: 16 mm · Number of components: 30 pcs · Storage method: Suitcase · Storage box dimension [mm]: 180 x 165 x 45 mm
EUR 95.50
MVT internal rotor ignition incl. rev limiter & light 12V | Puch / Sachs
Ø cable: 7 mm · Manufacturer: MVT Allumage · Manufacturer: swiing® ingenious parts · Tension: 12 V · Performance: 65 W · Direction of rotation: left · Ø mounting plate: 96 mm · Ø Flywheel outside: 49.2 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Weight: 268 g · Area of application: Tuning
EUR 436.40
swiing® ingenious pull starter | Puch E50 MVT ignition
Manufacturer: swiing® ingenious parts · Material: Plastic · Material: Steel · Color: Chrome · Color: black-matt · Surface: chrome-plated · Surface: raw · Ignition system: MVT Allumage · Width: 150 mm · Height: 82 mm · Total length: 170 mm · Number of fixing points: 2 pcs · Ø outside: 130 mm · Hole spacing: 138 mm
EUR 179.30
Hot

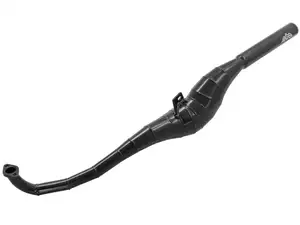

MLM exhaust "Crazy Pipe" black straight outlet | Puch
