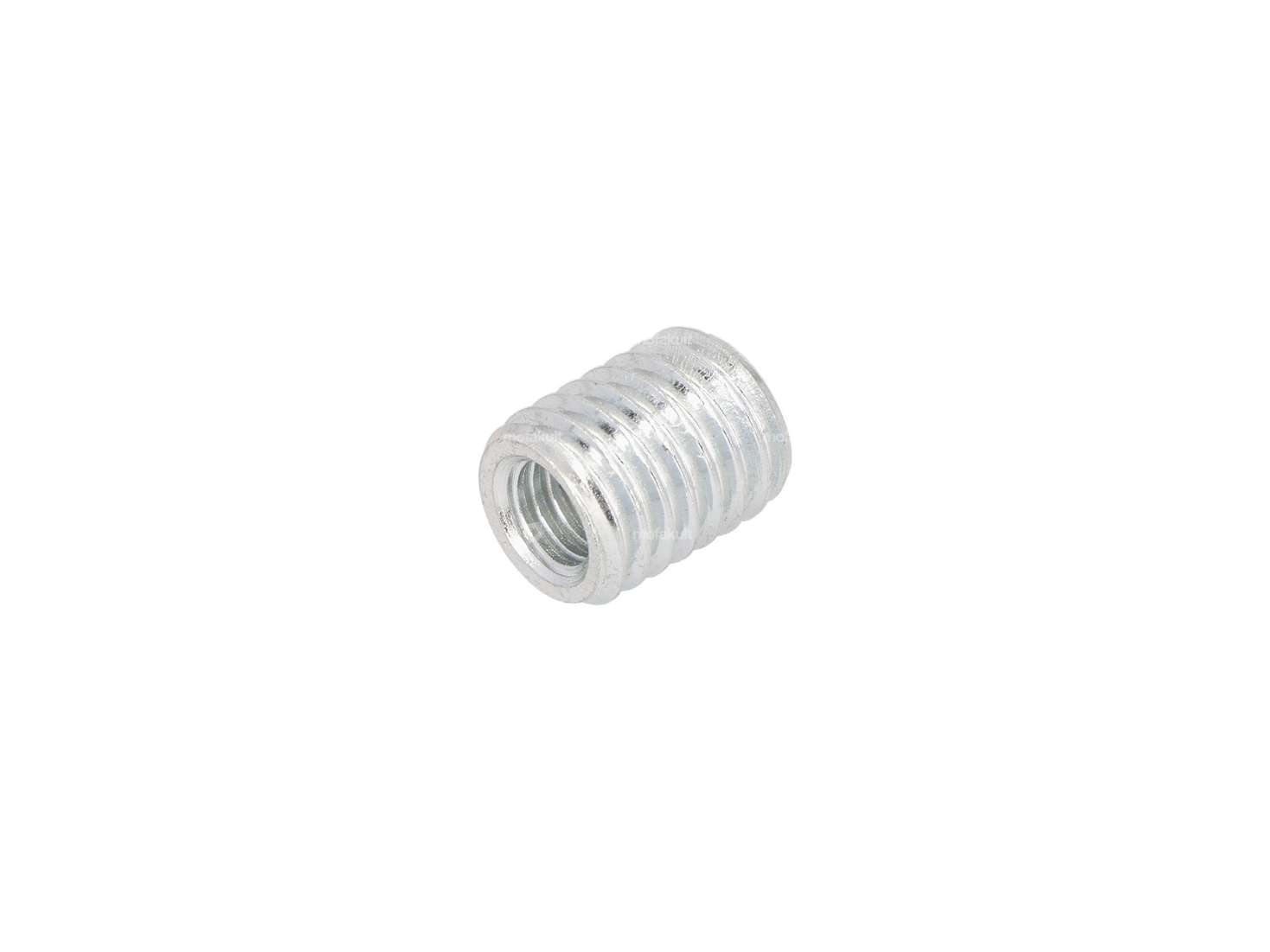

Steel thread repair insert, galvanized.
The perfect solution for repairing torn and defective M6 threads quickly and professionally.
Drill out the torn M6 thread with an 8.5 mm drill and then cut an M10 thread. The threaded bush can then be screwed in. Ideally, the bushing should also be secured with Loctite.
Internal thread: M6
External thread: M10
Total length: 12 mm
Core hole: Ø 8.5 mm
Price per piece.
Matching threadlocker and repair bushes in other diameters can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Manufacturer | GPO |
| Surface | galvanized (blue) |
| Material | Steel |
| Total length | 12 mm |
| Ø bore | 8.5 mm |
| External thread | M10x1.5 (standard thread) |
| Internal thread | M6x1 (standard thread) |
