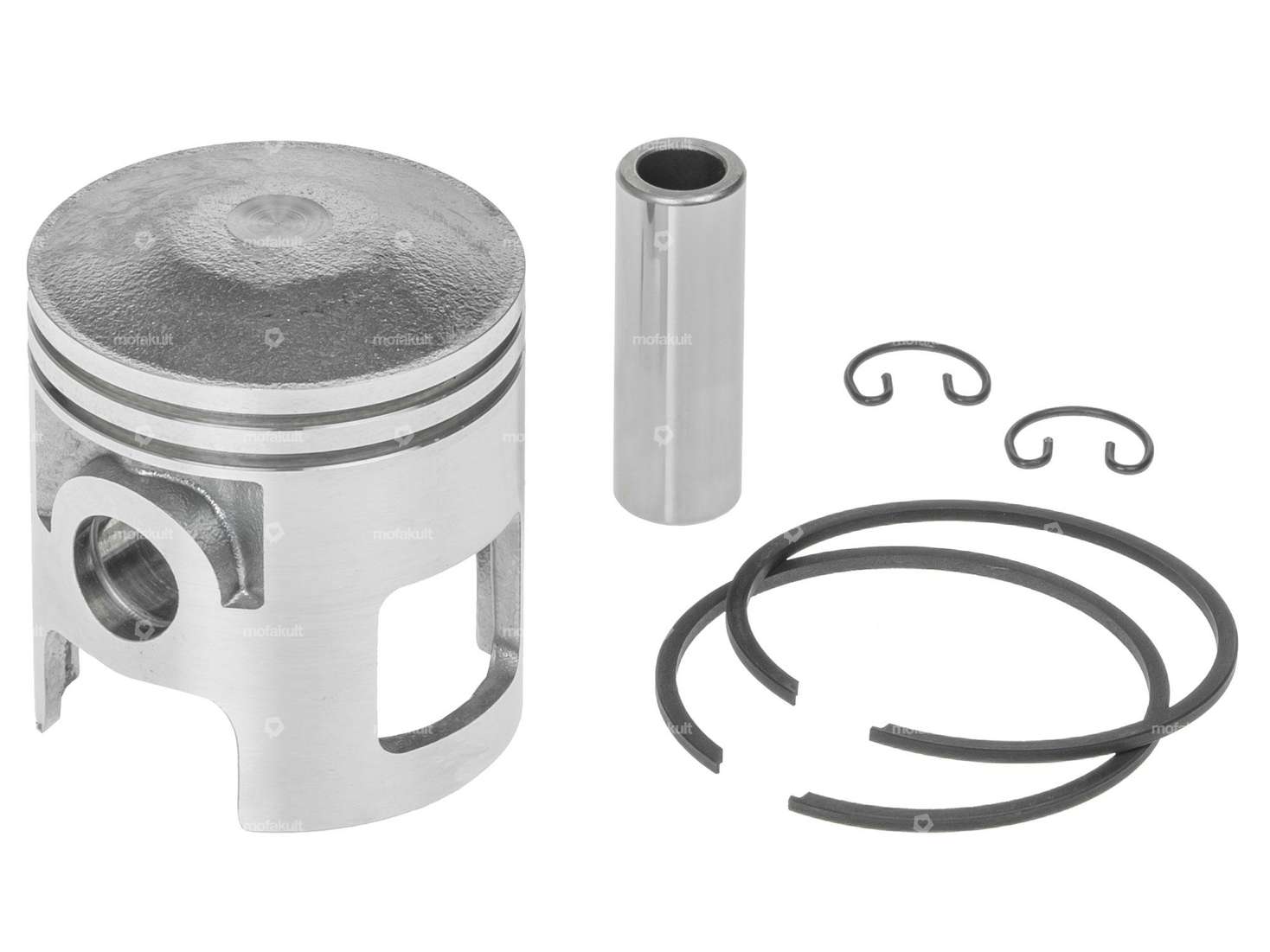

44.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for the 44 mm racing cylinder for your Tomos S25/2, A38B and A35 moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Nominal diameter | 44 mm |
| Manufacturer | GPO |
| Ø outside piston (A) | 43.96 mm |
| Compression height (C) | 21.9 mm |
| Curvature (D) | 4.15 mm |
| Total piston height (E) | 49.55 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tomos |
Ratings
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Number of components: 7 pcs · Area of application: (Dis)assembly tool
EUR 24.60
GPO 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35
Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 44 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 22.8 mm · Inlet window: 35.5 x 29.5 · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing outlet: 42 mm · Outlet type: slanted · Ø piston pin (B): 12 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No
EUR 111.40
Moped fans also bought
NTN 6203 C3 Ball bearing 17/40/12
Bearing type: Deep groove ball bearing · Bearing cage: Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: No · Material: Steel · Surface: blank · Ø inside: 17 mm · Width: 12 mm · Ball bearing closed: No · Ø outside: 40 mm · Area of application: Standard
EUR 11.00
Motorex engine oil (gear oil) manual 450 ml
Manufacturer: Motorex · Oil type: GL4 · Viscosity (SAE): 80W · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C · Area of application: Gearbox lubrication with clutch
EUR 12.30
EUR 27.33/l
Airsal gasket set 44 - 45 mm
Manufacturer: Airsal · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Number of components: 4 pcs · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Area of application: Tuning
EUR 12.20
swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92
EUR 25.80

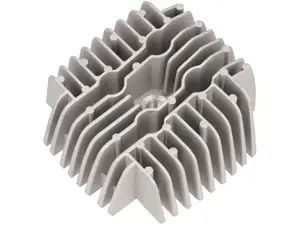

DMP 44 mm cylinder head (higher compression) | Tomos
