For: Puch

11584

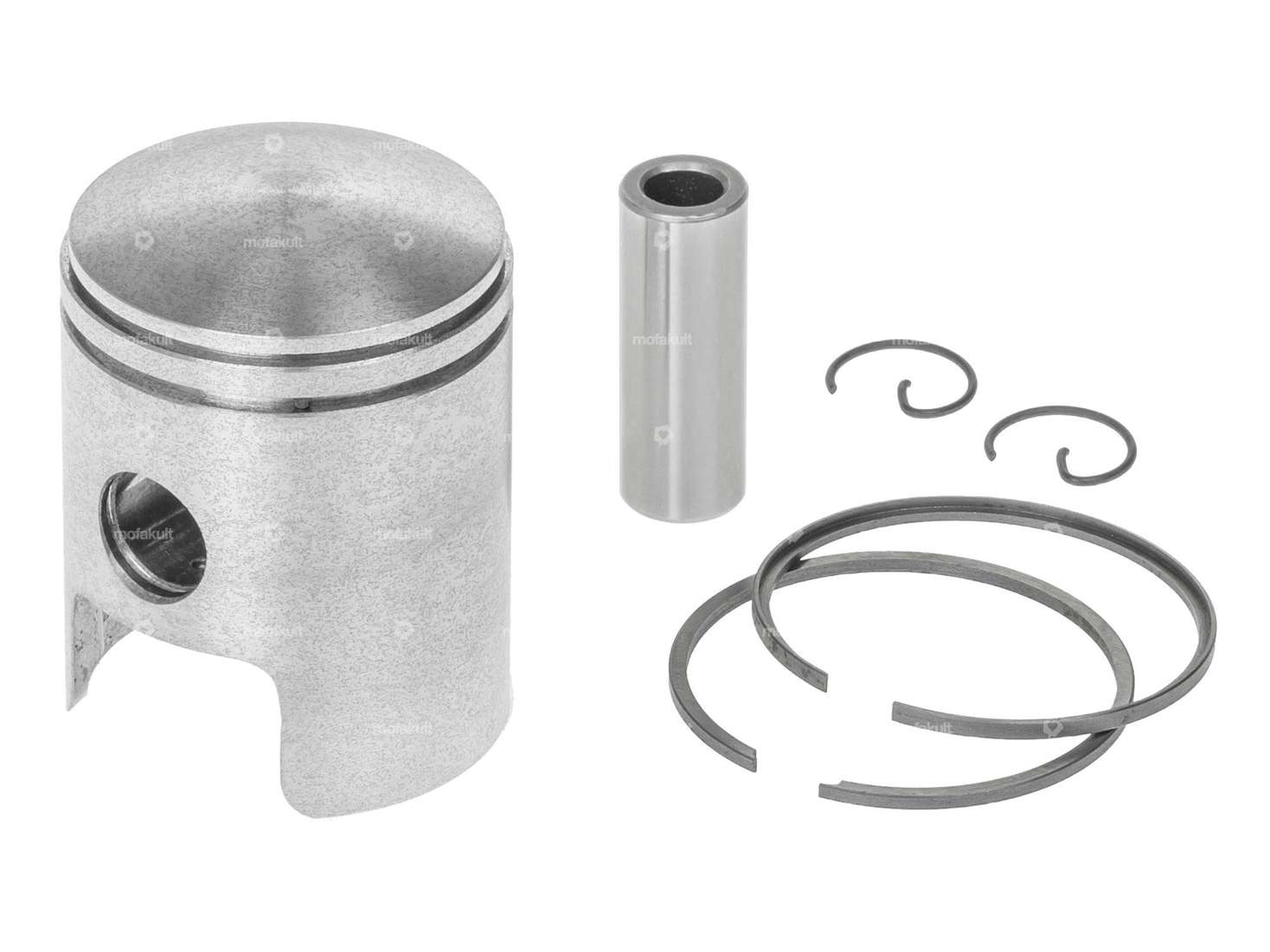

GPO piston 40 mm (12 mm KoBo) | Puch X30 Velux fan-cooled

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 43.00

Incl. 25.5% VAT.

Description

40.0 mm replacement piston with a 2 mm L-piston ring and a 1.5 mm rectangular piston ring for your Puch X30 Velux with 40 mm cylinder.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter40 mm
ManufacturerGPO
Ø outside piston (A)39.94 mm
Compression height (C)22.5 mm
Curvature (D)3.4 mm
Total piston height (E)52.5 mm
Number of piston rings (F)2 pcs
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height2 mm, 1.5 mm
Ø piston pin (B)12 mm
Weight piston kit89 g
Puch

ZA50 (fan-cooled)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
