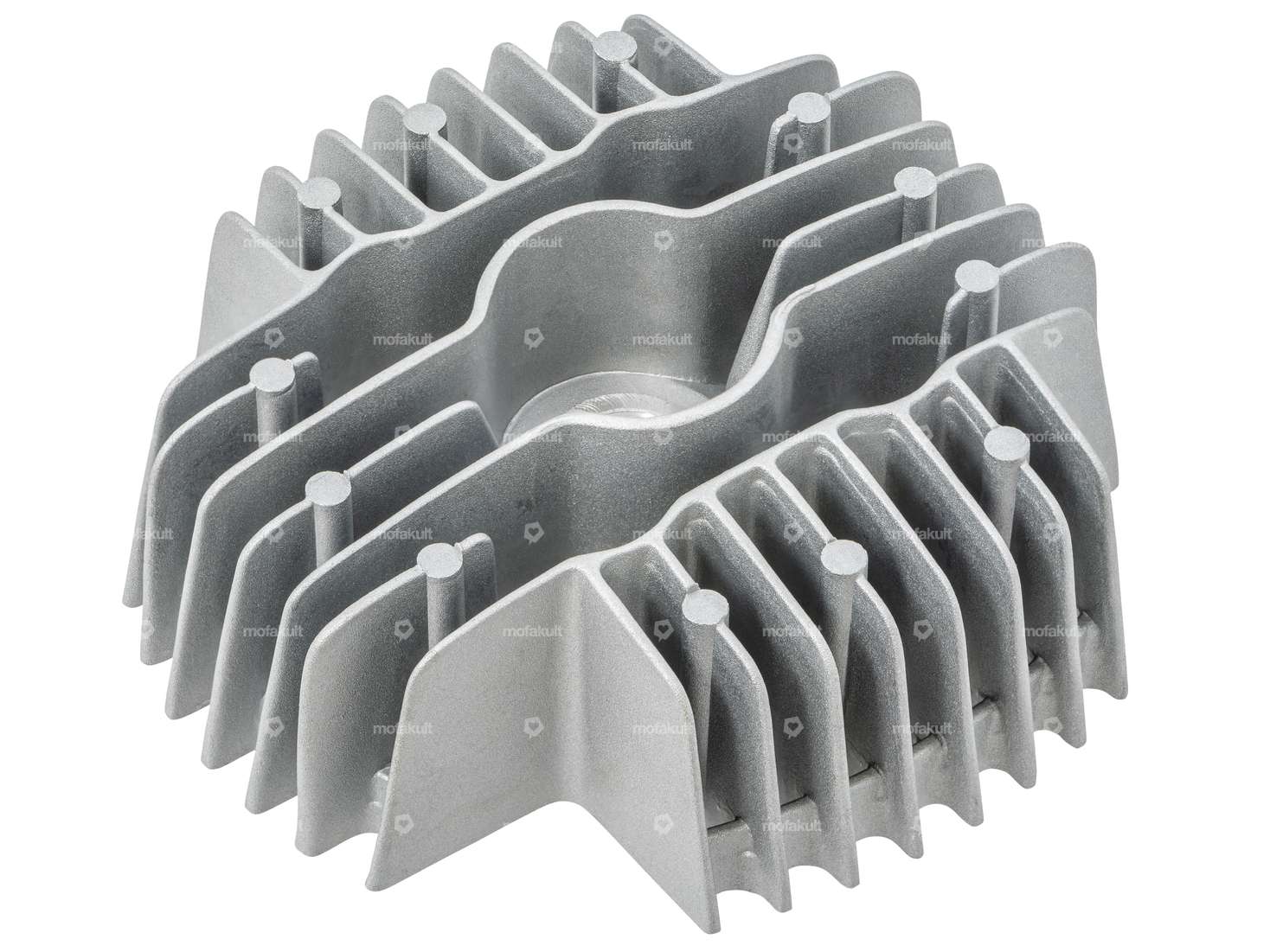

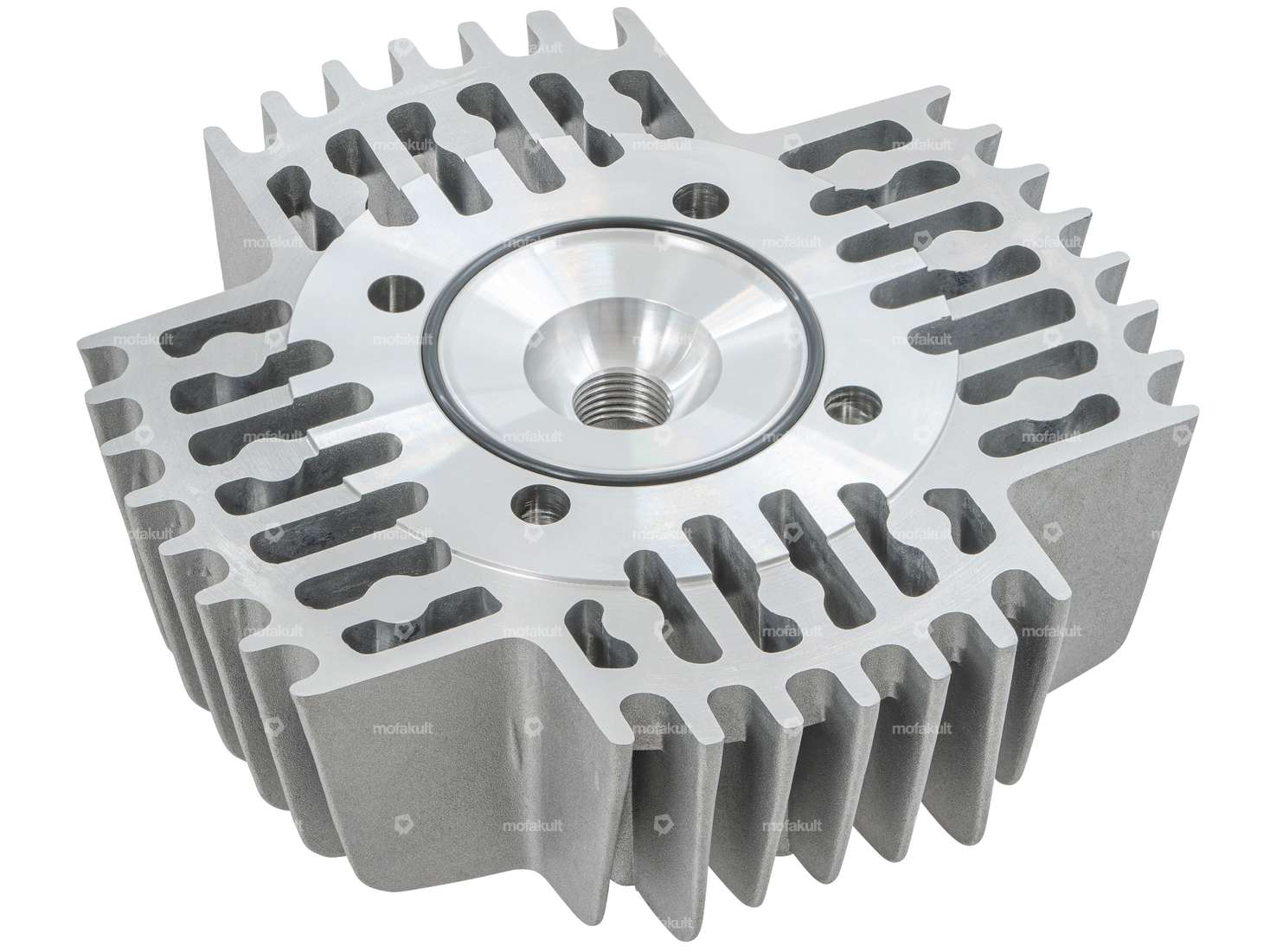

GPO 45 mm cylinder head with O-ring, AT model new version | Puch

Athena 45 mm cylinder kit 70 ccm camouflaged | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø cylinder neck: 48 mm · Ø outlet inside: 23.5 mm · Hole spacing inlet: 38 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Inlet window: 22.3 x 14 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: No · Area of application: Tuning

Athena gasket set 45 / 47 mm slot

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 45 mm · Ø cylinder: 47 mm · Hole spacing inlet: 38 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm

O-ring cylinder head FPM (up to 200°C) 47 x 2 mm | Puch

Place of use: Cylinder head · Temperature resistance (min.): 0 - 200 °C · Ø inside: 47 mm · Cord thickness: 2 mm · Ø outside: 51 mm · Material: FPM - Fluororubber · Color: black

swiing® ingenious 45 mm cylinder kit CH12 camouflaged | Puch

Nominal diameter: 45 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Inlet window: 23 / 21 x 14 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: No

GPO gasket set cylinder 45 mm Puch

Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Area of application: Tuning · Ø cylinder: 45 mm · Hole spacing inlet: 38 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Decompressor: Yes

BAD ASS Lucifer BigBore cylinder kit Ø 45 mm | Puch X30 Velux, NG-2AH

Nominal diameter: 45 mm · Manufacturer: BAD ASS · Material: Gray cast iron · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø cylinder neck: 49 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 25 mm · Ø Inlet inside: 19 mm · Hole spacing inlet: 32 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Area of application: Tuning

Airsal 45 mm cylinder kit 70 ccm camouflaged | Puch

Nominal diameter: 45 mm · Manufacturer: Airsal · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Hole spacing inlet: 38 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Inlet window: 23.5 / 20 x 15 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Area of application: Tuning

GPO sprocket 15 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Material: Steel · Manufacturer: GPO · Surface: Hardened · Number of teeth: 15 pcs · Recording type: Interlocking · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Total thickness: 4.6 mm

Dell'Orto 19 mm PHBG CS carburetor hand choke

Nominal diameter: 19 mm · Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Racing · Area of application: Tuning · Color: black · Carburetor type: PHBG CS · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Ø Inside entrance: 19 mm · Width: 70 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Height: 124 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Total length: 82 mm · Mixed oil connection: Yes · Mounting type: Plug connection clamped · Vacuum connection: Yes · Choke nozzle size: 60 · Size of secondary nozzle: 45

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm · Mounting type: Union nut

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

Material: Aluminum · Camouflaged: No · Surface: polished · Color: Chrome · Area of application: Tuning · Hole spacing inlet: 38 mm · Ø inside: 18.8 mm · Ø External connection: 23.9 mm · Total height: 57 mm · Number of fixing points: 2 pcs · Height flange center hole: 45 mm · Total length: 40 mm · Mounting type: Screws

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Cable length: 1650 mm · Number of components: 1 pcs

Continental 2.00 - 2.50 x 17" tube

Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR6 car valve · Wheel size: 17 "

Airsal 45 mm cylinder kit large ribs

Nominal diameter: 45 mm · Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø cylinder neck: 50 mm · Ø outlet inside: 25 mm · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Inlet window: 23.8 / 21.4 x 16 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: No

O-ring cylinder head FPM (up to 200°C) 47 x 2 mm | Puch

Place of use: Cylinder head · Temperature resistance (min.): 0 - 200 °C · Ø inside: 47 mm · Cord thickness: 2 mm · Ø outside: 51 mm · Material: FPM - Fluororubber · Color: black

GPO secondary nozzle PHBG (size 30 - 62.5) of your choice

Manufacturer: GPO · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: PHBG AD · Carburetor type: PHBG AS · Carburetor type: PHBG BD · Carburetor type: PHBG CS · Carburetor type: PHBG DS · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 32 · Nozzle size: 35 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 48 · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 60 · Nozzle size: 62.5 · Total length: 9.5 mm · Drive: Slot
