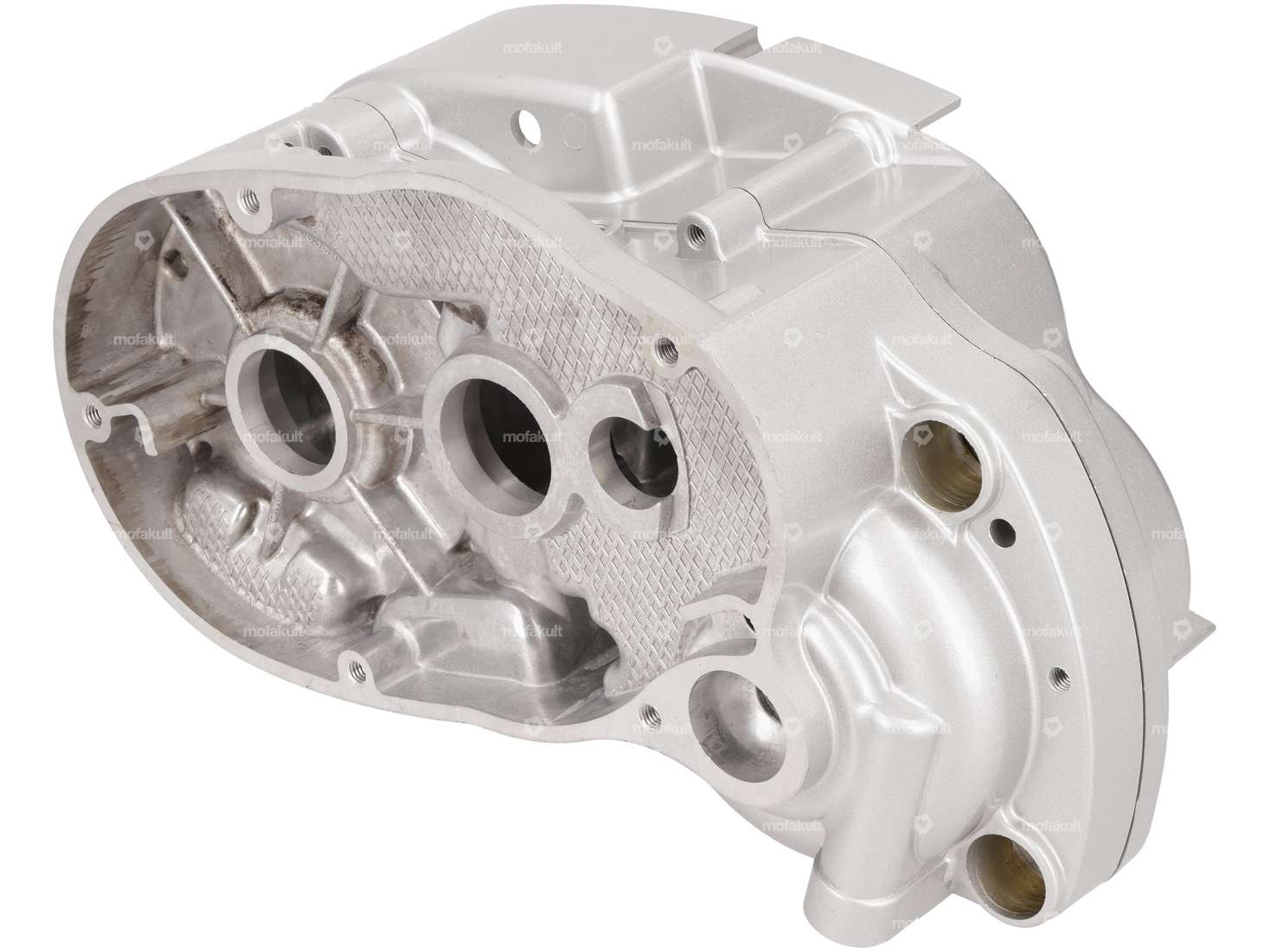

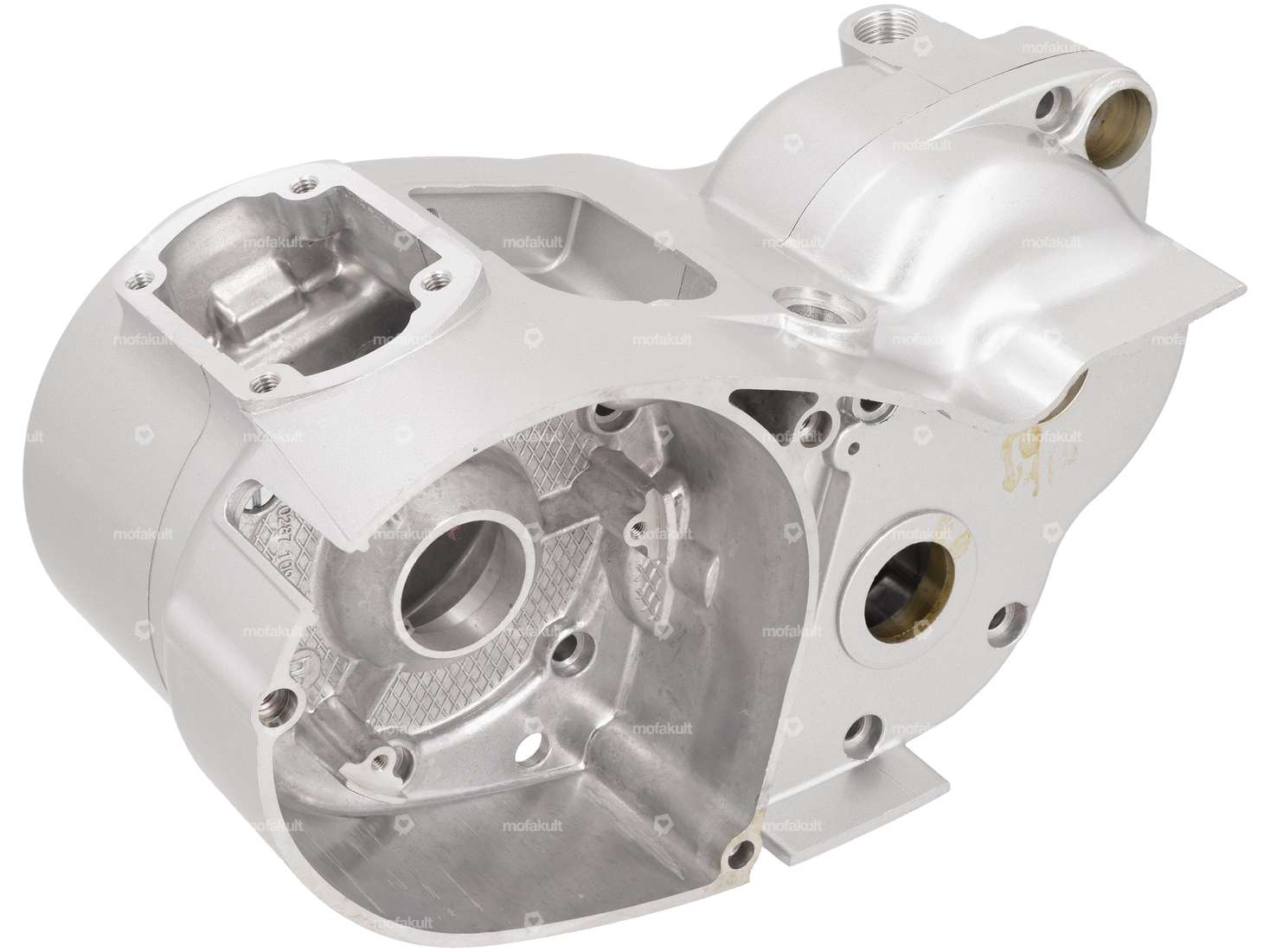

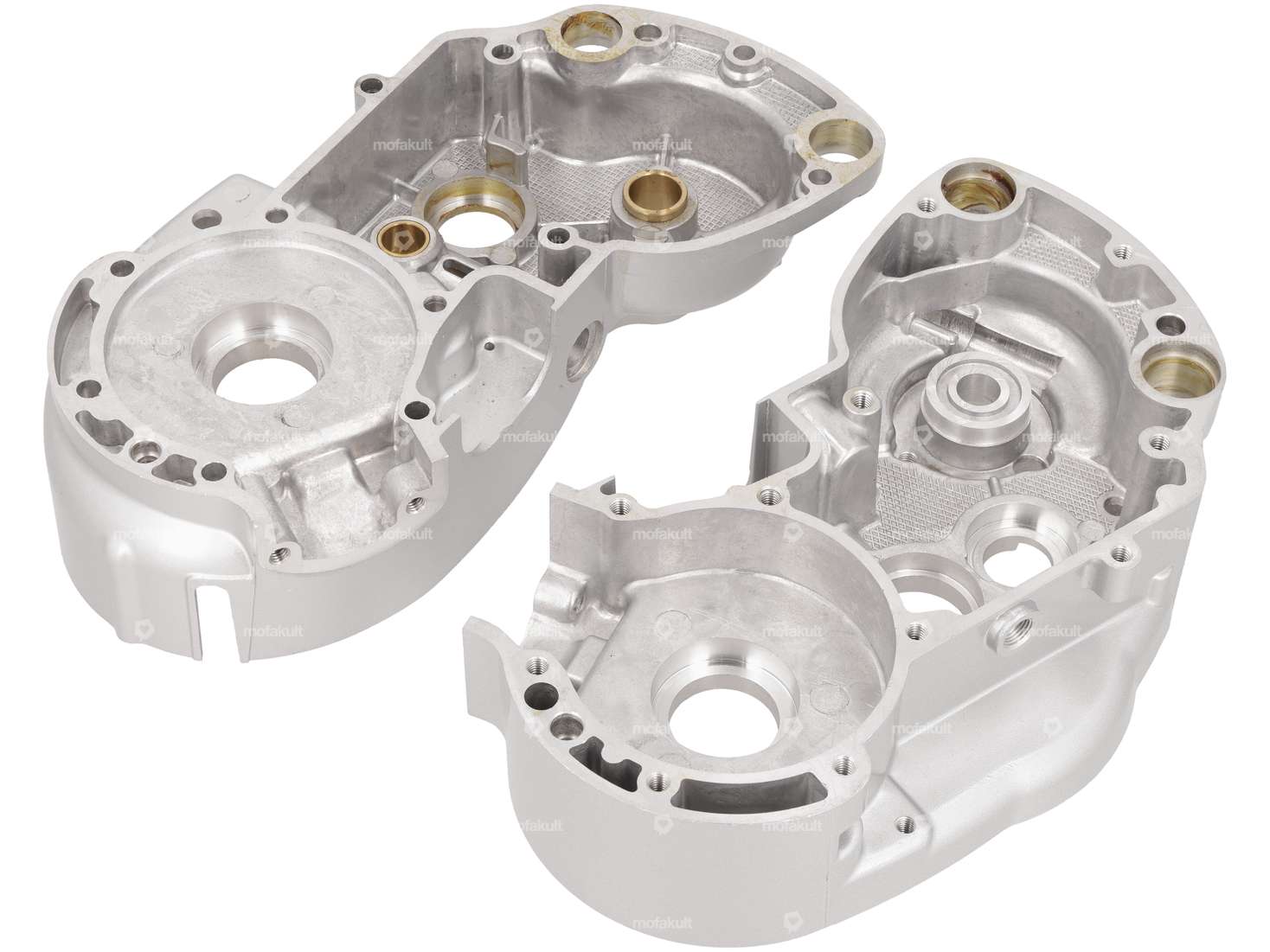

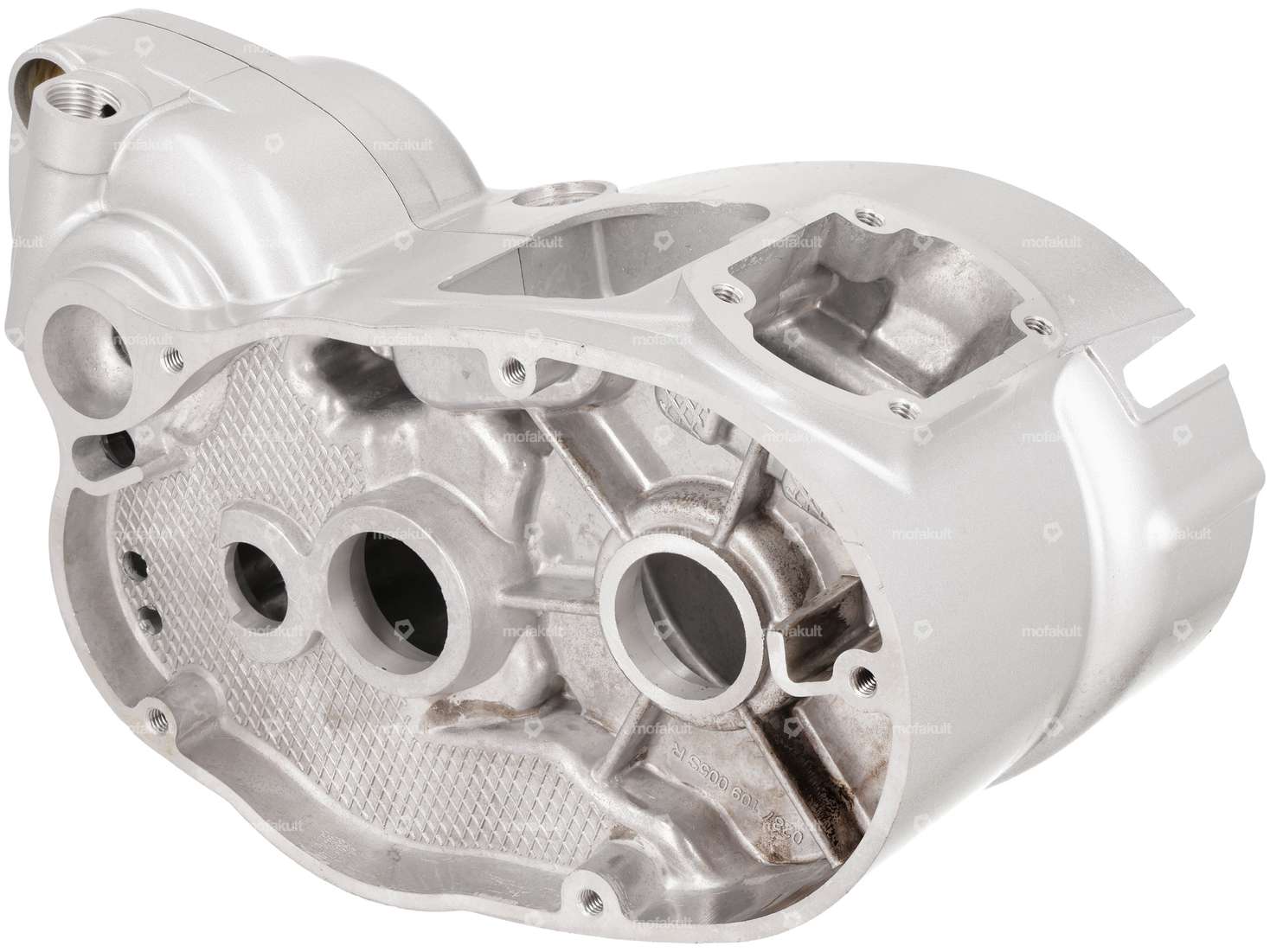

New engine case for Sachs 50/3 and 50/4.
3-/ 4-speed engine case for foot shift and kick start.
Fits versions 50/4 LKH, 50/3 LKH, 50/3 MLFB and 50/4 MFLB.
L17 shoulder ball bearings and the crankshaft with 17 mm cheek journal diameter are installed in this housing.
Can also be converted to a Sachs 50/2 with a great deal of effort. However, this is only something for a skilled mechanic.
| Material | Aluminum |
| Surface | varnished |
| Color | silver |
| Stock number | L17 |
| Sachs | 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Accessories & related products
swiing® ingenious puller L17 / BO15 / E15 shoulder bearing
Width across flats (trigger): 8 mm · Width across flats (trigger): 19 mm · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Total length: 120 mm · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Surface: galvanized (blue) · Number of components: 1 pcs · Diameter: 24 mm · Diameter: 40.3 mm · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Area of application: (Dis)assembly tool
EUR 53.80
Crankshaft Sachs 50/3 & 50/4
Cheek type: standard · Crankshaft stroke: 42 mm · Total length of crankpin on clutch side: 42.8 mm · Area of application: Standard · Total length crankpin ignition side: 70.5 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 3 pcs · Number of gears: 4 pcs
EUR 183.80
swiing® revival engine seal | Sachs 502, 50/2, 50/3, 50/4 (A1828)
Width: 170 mm · Manufacturer: swiing® revival parts · Total length: 250 mm · Number of fixing points: 16 pcs · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Ø inside: 86 mm · Thickness: 0.4 mm · Pony OEM number: A1828 · Sachs OEM no.: 0250 088 100
EUR 7.25
Rito crankshaft High End Sachs 50/3, 50/4 L17 bearing (14 mm KoBo)
Material: Steel · Dimension needle bearing: 14 / 18 x 15.8 mm (axe 14) · Manufacturer: Rito · Cheek type: Full cheeks · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 43.2 mm · Area of application: High End · Total length crankpin ignition side: 69.7 mm · Ø crank webs: 85 mm · Ø piston pin (B): 14 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 18 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 8 mm · Thread length: 13 mm · Wide crank webs: 29.9 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 13.7 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 29.6 mm · Weight: 1067 g · Number of gears: 3 pcs · Number of gears: 4 pcs
EUR 263.50
Set
Hot
swiing 41 mm cylinder kit Racing fan-cooled | Sachs 50/2, 50/3, 50/4 (DE)
Nominal diameter: 41 mm · Manufacturer: swiing · Material: Aluminum · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 · Camouflaged: No · Area of application: Racing
EUR 269.60
Not in stock
swiing® revival stud bolt set M6x30 (strength 10.9) galvanized
Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Total length: 30 mm · Manufacturer: swiing® revival parts · Diameter: 6 mm · Thread type: M6x1 (standard thread) · Strength class: 8 · Strength class: 10.9 · Width across flats SW: 10 mm · Thread length: 12 mm
EUR 13.10

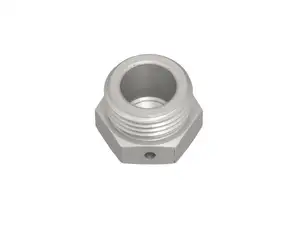

swiing® revival bleed screw M16x1.25 aluminum | Sachs 50/3, 50/4
