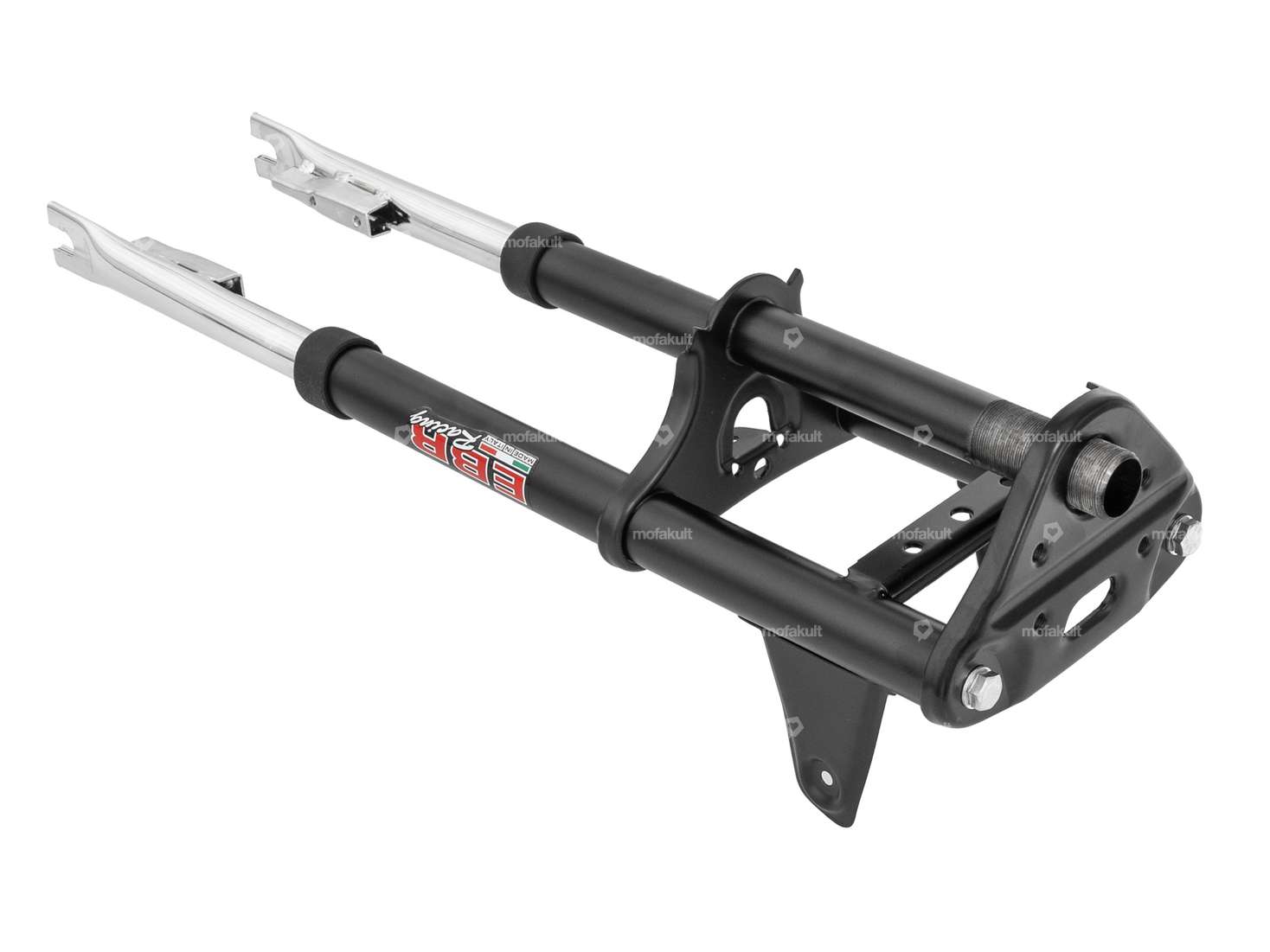

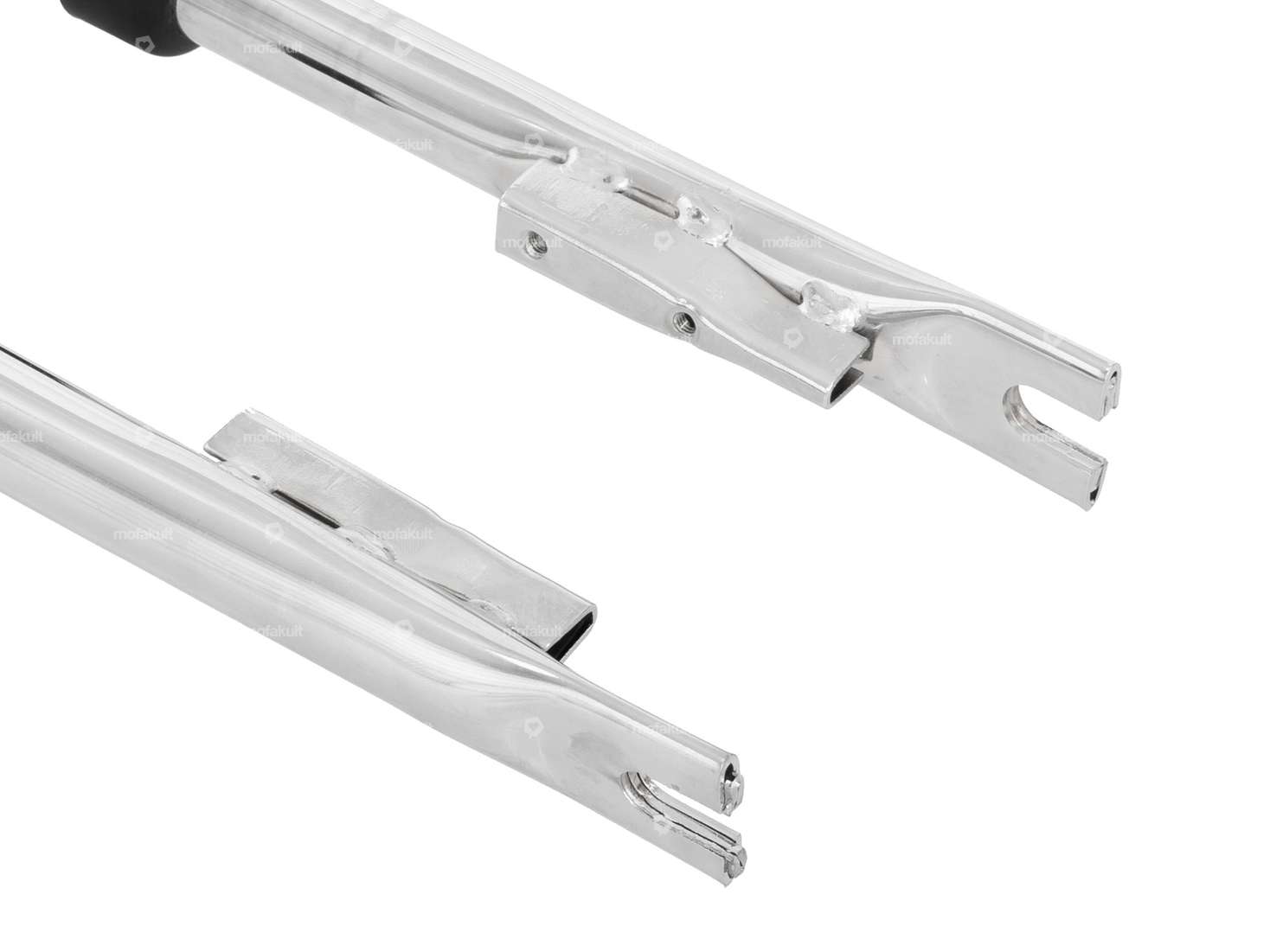

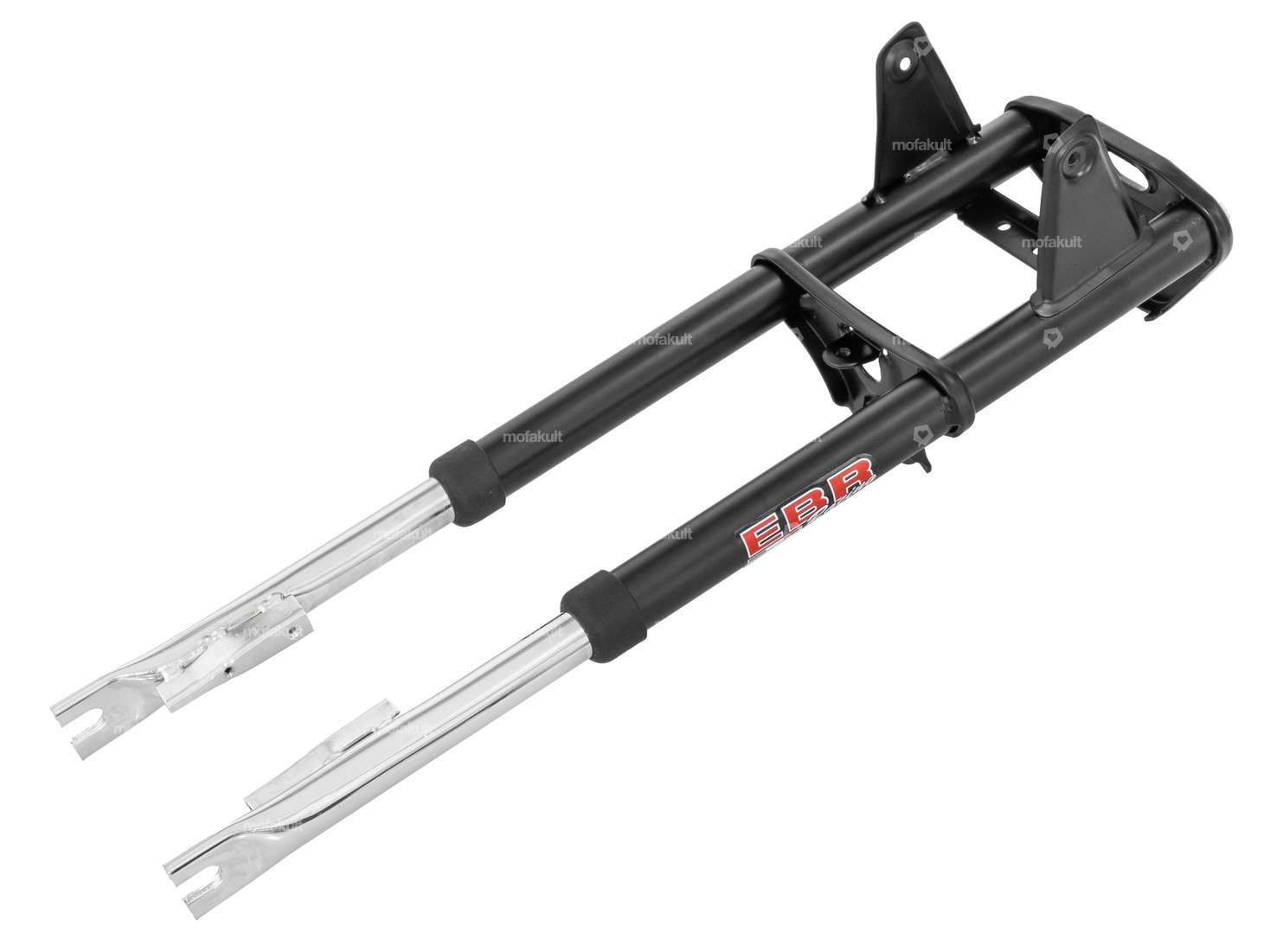

Black EBR standard fork for various Puch mopeds / mopeds.
Optically like the original Puch fork, but without fork lock mount.

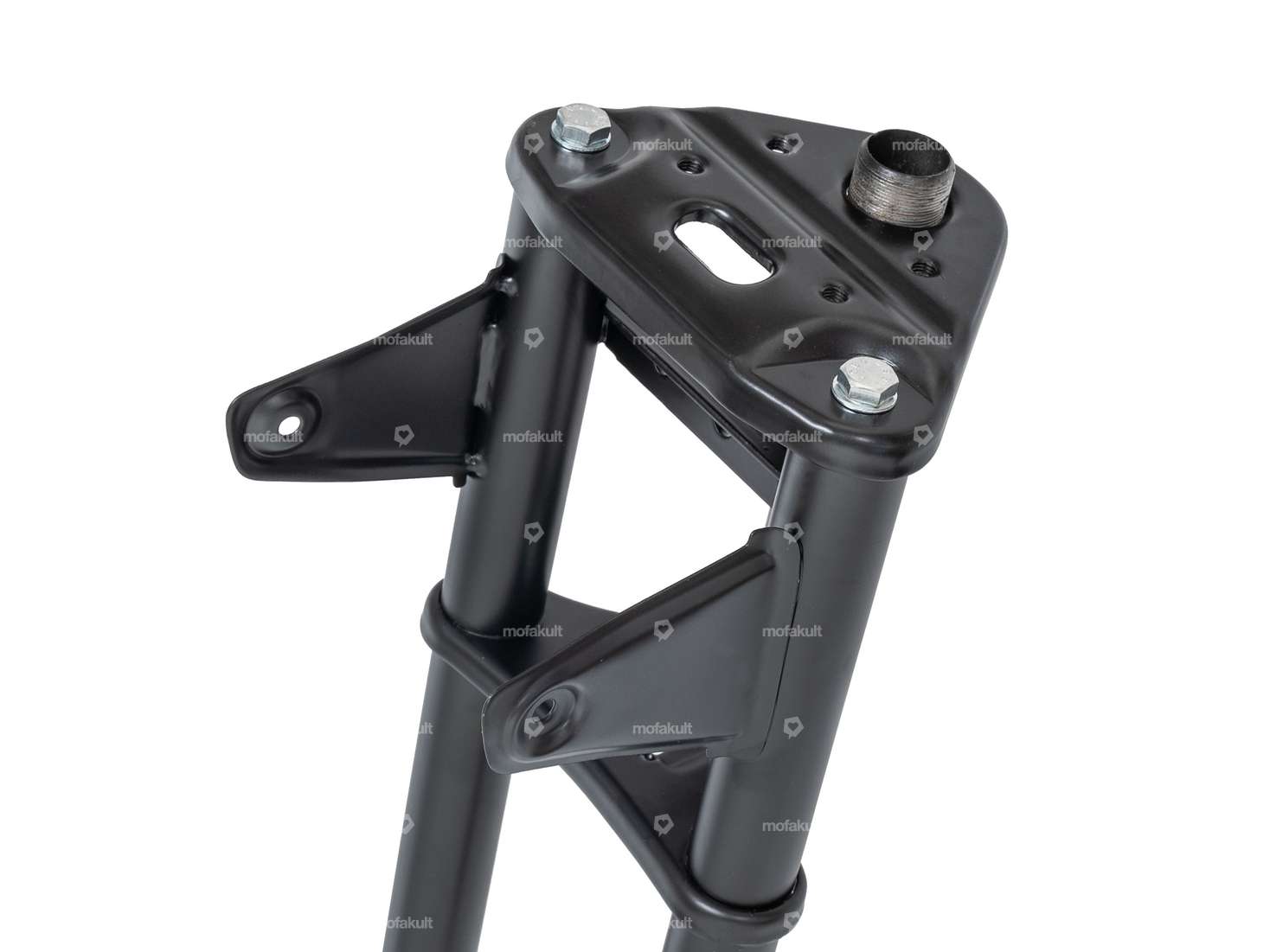

The handlebar mount is provided on the fork plate.
The headlight mount is designed for front lights with a width of 120 mm.
A matching snap ring, headset set and clamps can be found in the accessories section.
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Color | black, Chrome |
| Thread type | MF26x1 (fine pitch thread) |
| Adjustable | No |
| Spar end distance (center-center) | 120 mm |
| Surface | chrome-plated |
| Ø outer head tube | 26 mm |
| Ø spars | 23 mm |
| Ø head tube inside | 22 mm |
| Head tube length | 180 mm |
| Fork bridge - center wheel axle | 383 mm |
| Distance brake cam to wheel axle center-center | 40 mm |
| Total length | 570 mm |
| Thread length | 57 mm |
| Puch |
