For: Puch

35217

DMP piston 45 mm diaphragm cylinder kit | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 36.80

Incl. 25.5% VAT.

Description

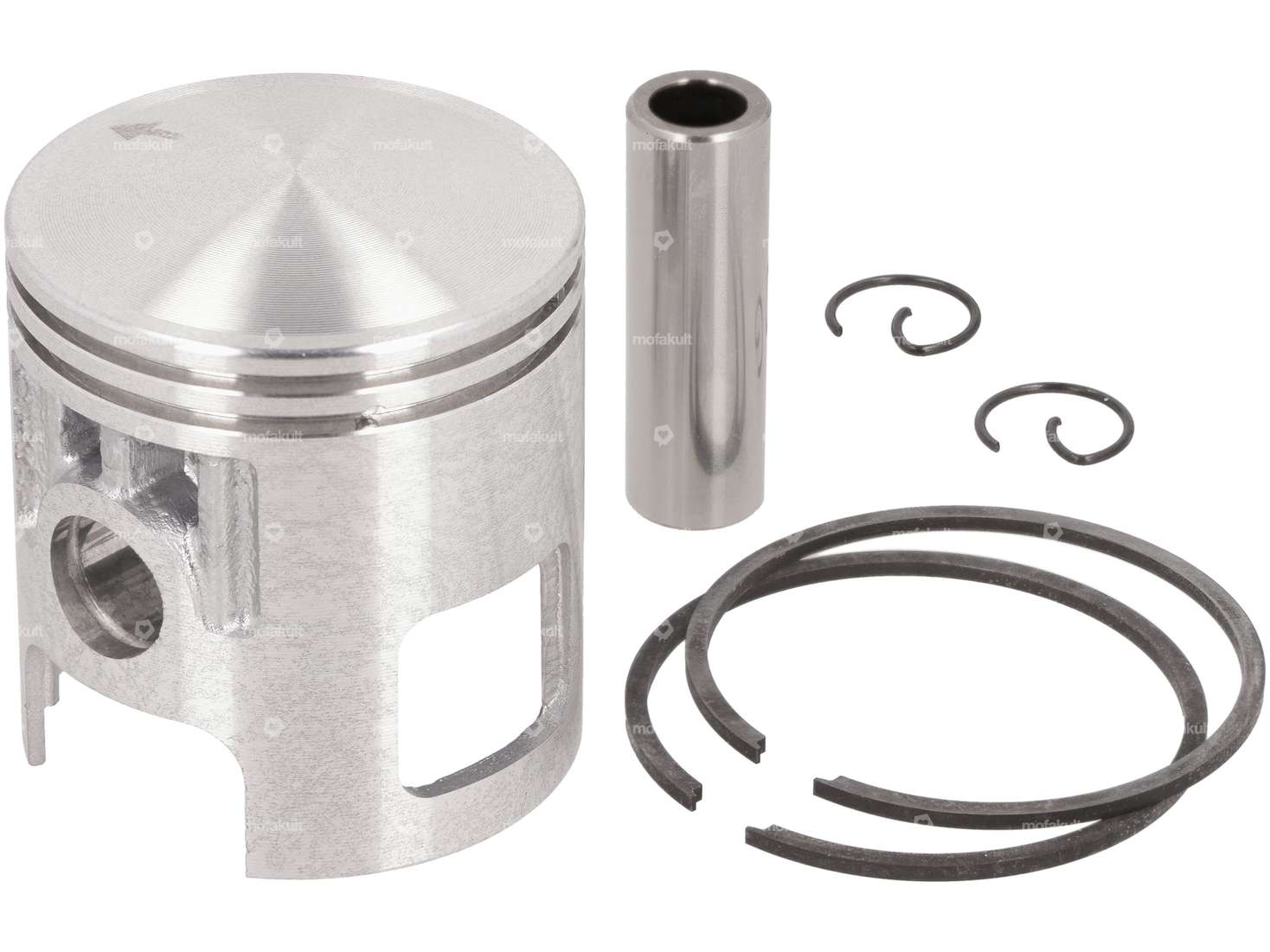

45.0 mm piston with two rectangular piston rings with internal fuse (IS) for your Puch moped / moped with the 45 DMP diaphragm racing kit.

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter45 mm
ManufacturerDMP
MaterialAluminum
Ø outside piston (A)45 mm
Compression height (C)24.4 mm
Curvature (D)3.05 mm
Total piston height (E)50.9 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Thick piston ring1.85 mm
Ø piston pin (B)12 mm
Weight piston kit90 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
