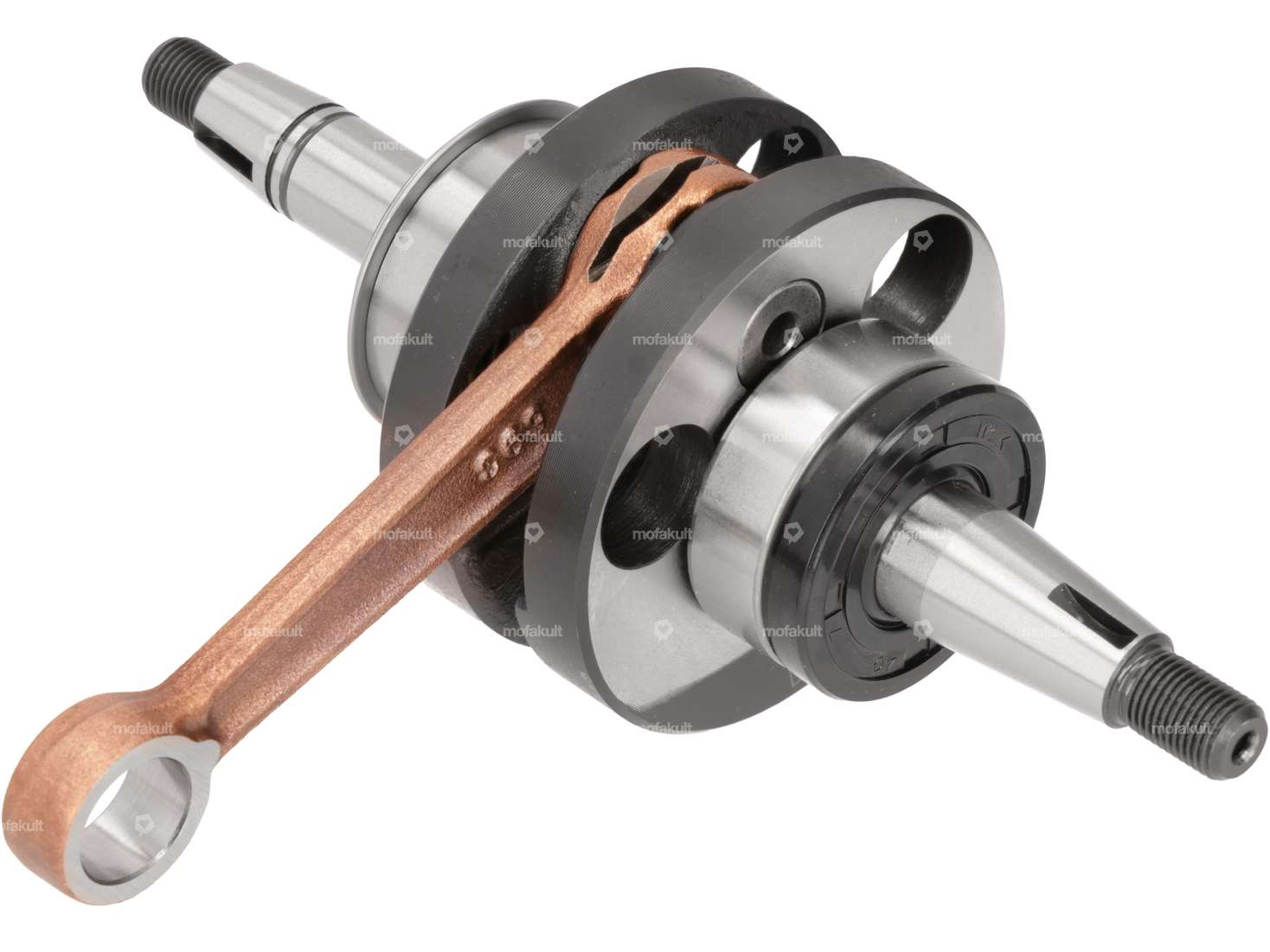

Original crankshaft suitable for Puch Maxi S / N mopeds, as well as Supermaxi LG1 mopeds with 1-speed E50 engine.
High-quality and precisely fitting standard crankshaft weighing 873 grams. This crankshaft was designed for use in original engines. The solid connecting rod is fitted with a Ø 14 mm connecting rod bolt.
Dimensions of the crankshaft:
- Total length of clutch-side crankpin: 74 mm
- Total length of clutch-side crankpin: 67 mm
- Length 1. Heel (clutch side): 9 mm
- Length 2nd heel (clutch side) 14.5 mm
- Length 3rd heel (clutch side) 25 mm
- Ø 1st heel (clutch side): 22 mm
- Ø 2nd heel (clutch side): 17 mm
- Ø 3rd heel (clutch side): 15 mm
- Thread (coupling side): MF10x1 mm
- Length of shoulder (on coupling side): 26.6 mm
- Ø shoulder (on end face): 17 mm
- Thread (on end face): MF10x1 mm
- Ø Crank webs: 69.9 mm
- Width of crank webs: 34 mm
- Ø Connecting rod eye top: 15 mm
- Ø Connecting rod pin bottom: 14 mm
- Conrod length (center-to-center): 90 mm
- Stroke: 43 mm
- Weight (including connecting rod). Connecting rod): 873 grams
- Needle bearing dimensions: Ø 12 / 15 x 14.2 mm (axe 12)

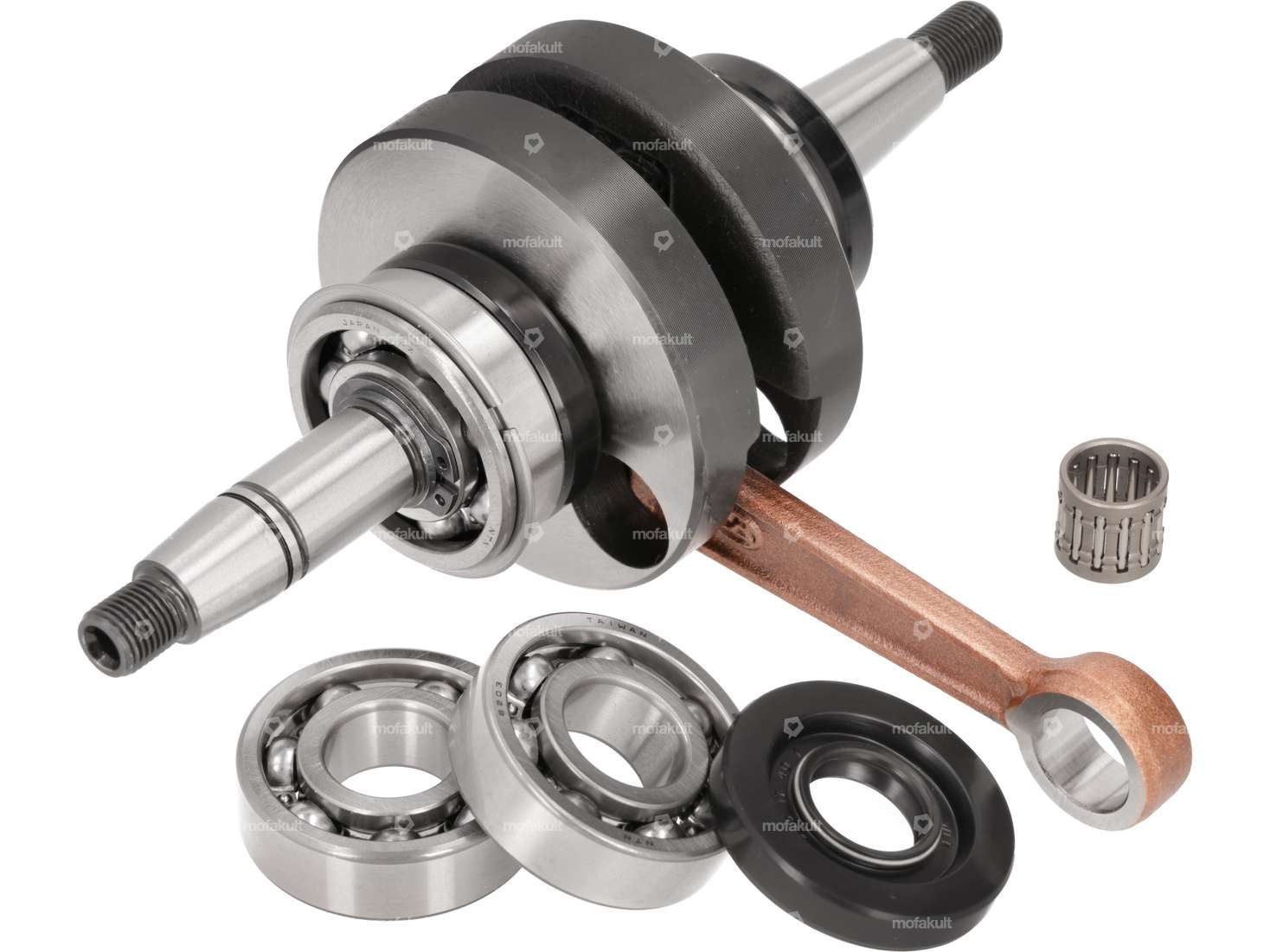

The two standard ball bearings and oil seals are already fitted on the crankshaft.
The two ball bearings, the oil seal from the rear gear and the needle bearing are also included in the scope of delivery. Depending on the gearbox, only one of the two bearings is required.
Branded product from the manufacturer DMP.
| Thread type | MF10x1 (fine pitch thread) |
| Manufacturer | DMP |
| Area of application | Standard |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 74 mm |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.9 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread length | 10 mm |
| Dimension needle bearing | 12 / 15 x 14.2 (axe 12) |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 9 mm |
| Length 2nd paragraph | 14.5 mm |
| Length 3rd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 22 mm |
| Ø 2nd shoulder (on the clutch side) | 17 mm |
| Ø 3rd step (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.6 mm |
| Weight | 873 g |
| Number of gears | 1 pcs |
| Puch | E50 |
