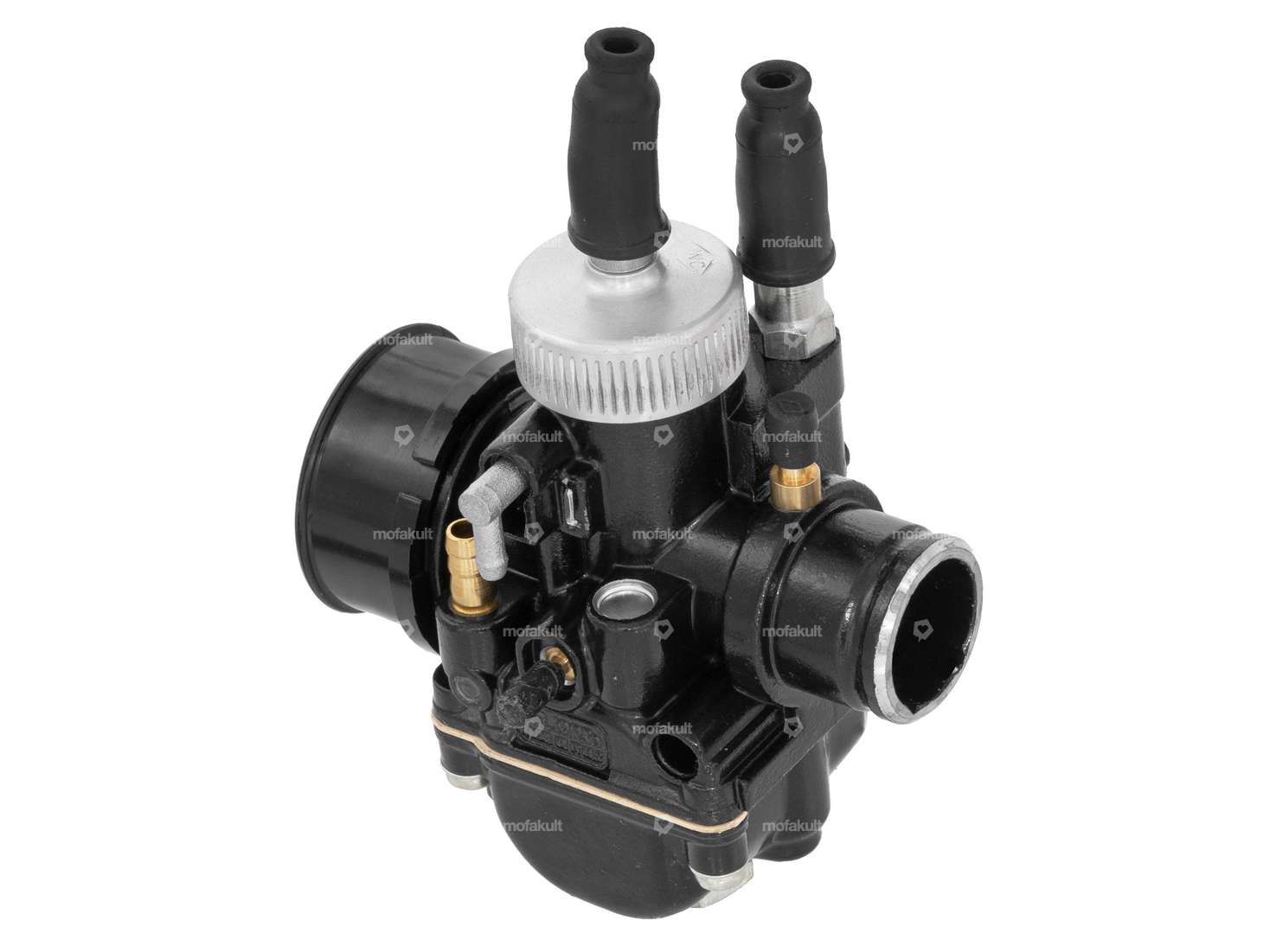

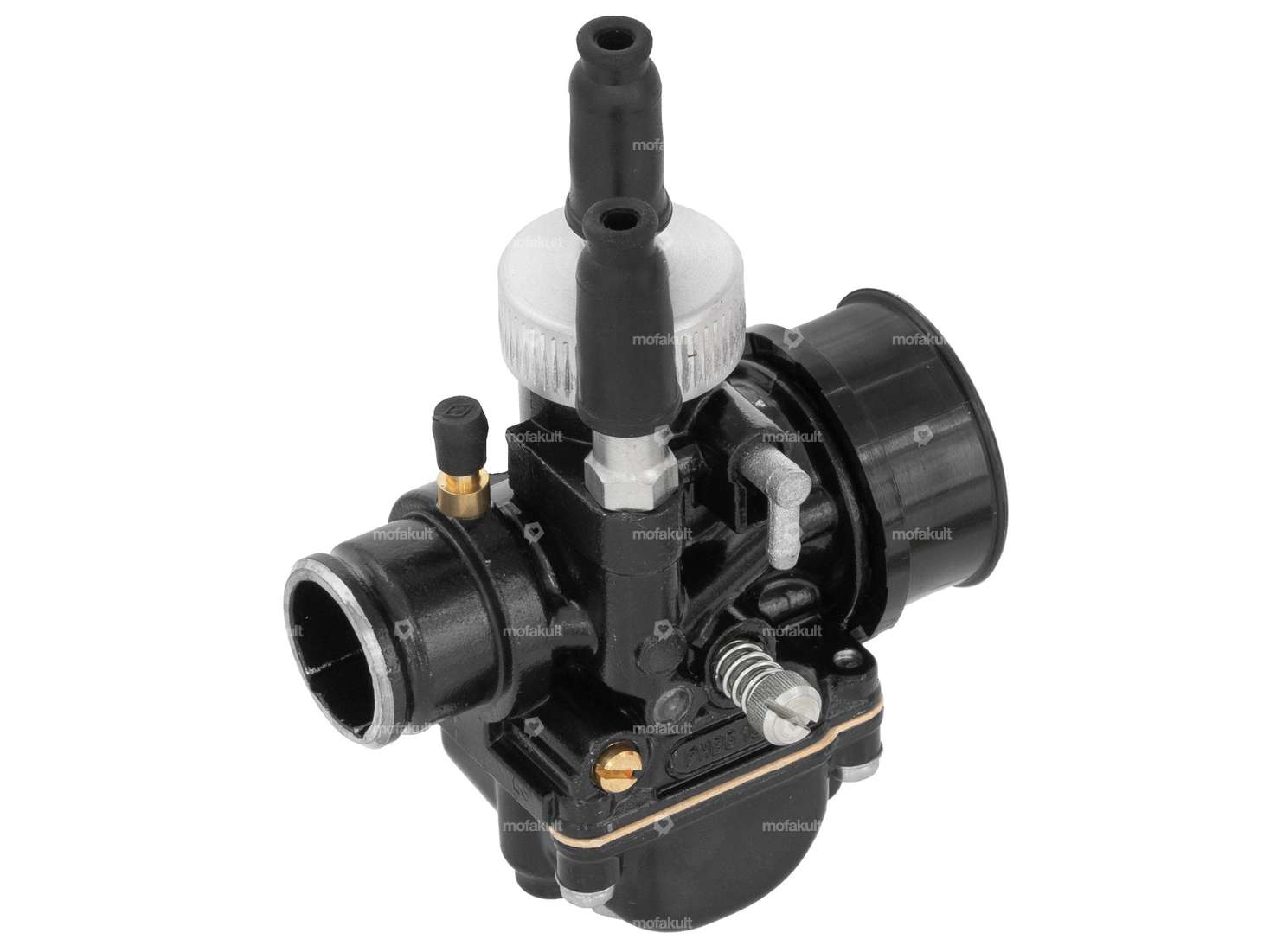

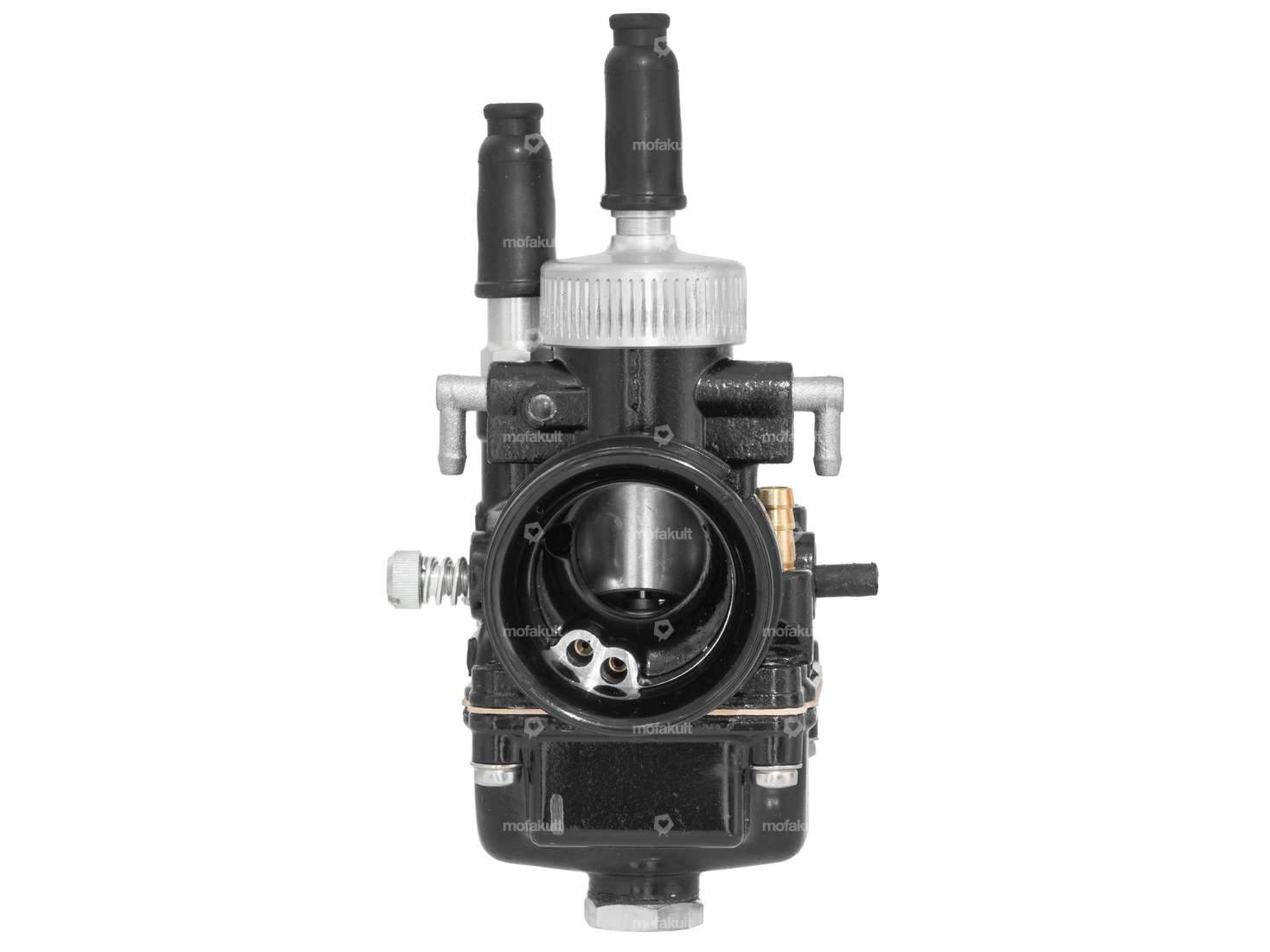

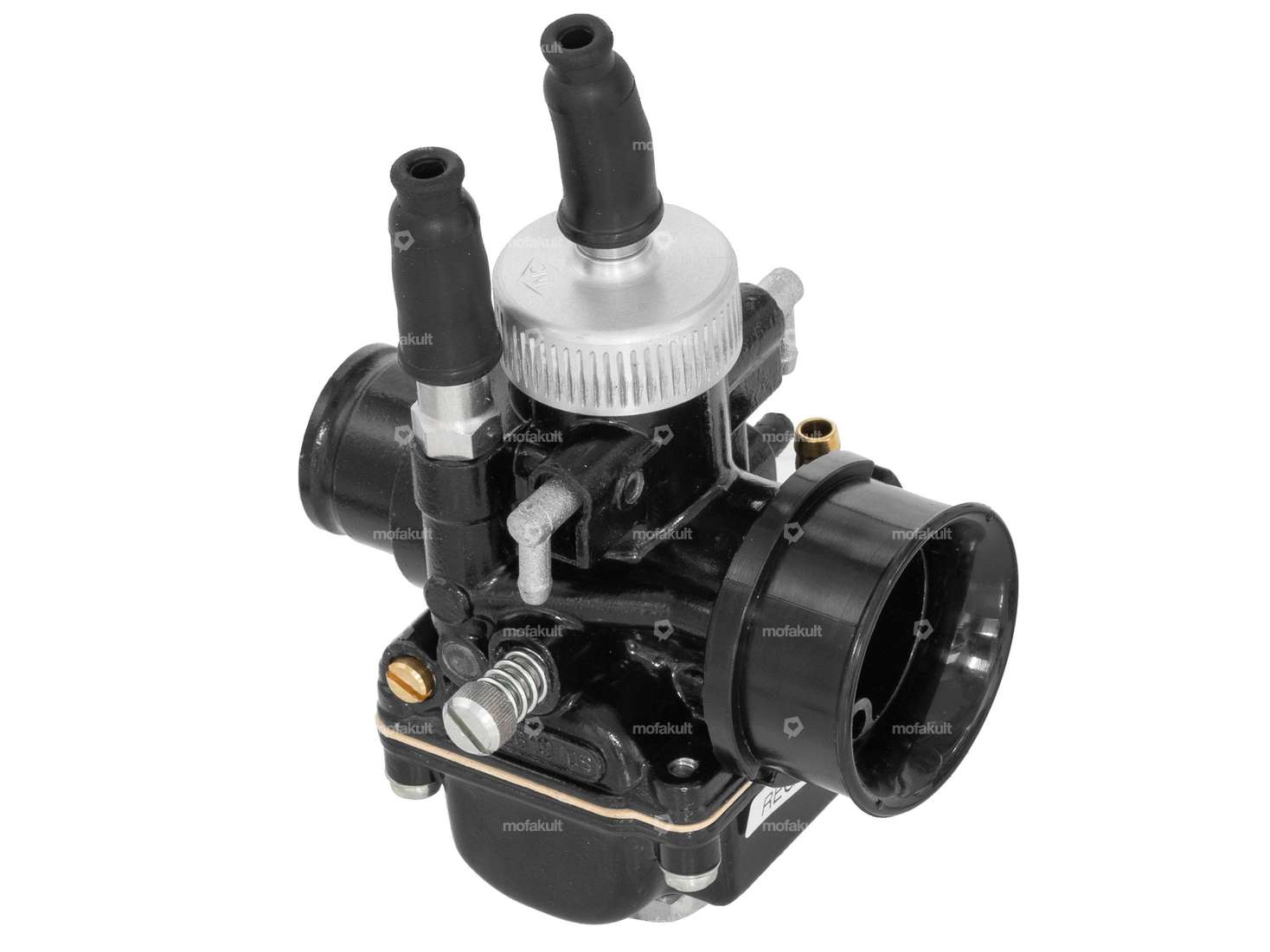

21 mm racing carburetor Dell'Orto PHBG. Ideal for 46 and 47 mm racing cylinders. This is the Black Edition.
An M32x1.25 thread is available for mounting the air filter, with the supplied ring you can thus achieve a diameter of 38 mm.
The carburetor has an oil and vacuum connection.
Connection width of intake manifold: 25 mm
Main diameter: 92
Quality product from the Italian manufacturer Dell'Orto.
| Nominal diameter | 21 mm |
| Manufacturer | Dell'Orto |
| Component group Carburetor | Carburetor complete |
| Surface | varnished |
| Color | black |
| Carburetor type | PHBG DS |
| Choke control | Cable choke |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 92 |
| Ø Inside entrance | 21.2 mm |
| Width | 51.2 mm |
| Ø Output inside | 28.3 mm |
| Ø Air filter connection | 32 mm, 38 mm |
| Height | 134 mm |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Total length | 86.6 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Mounting type | Plug connection |
| Area of application | Tuning |
