For: Piaggio

18564

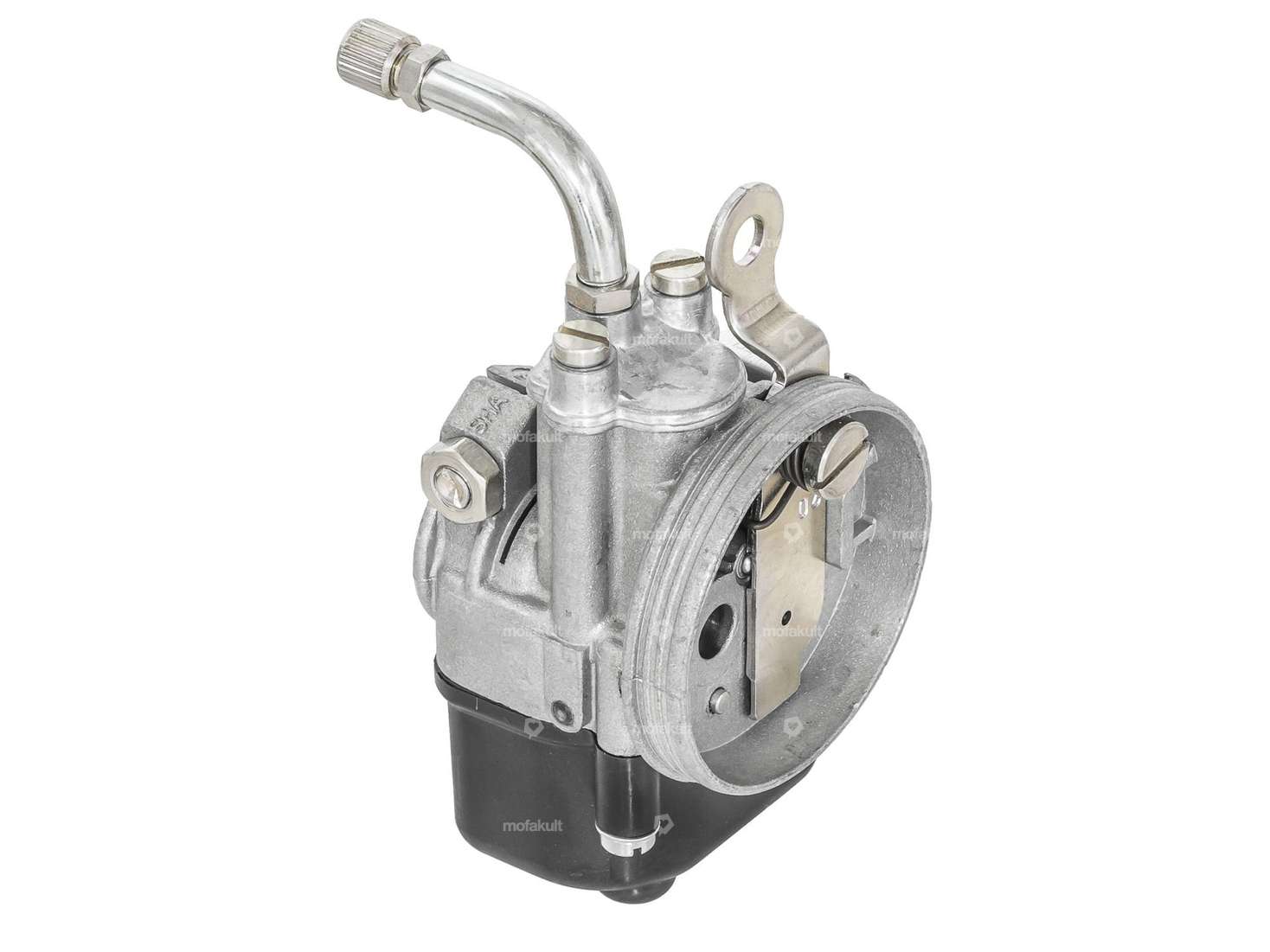

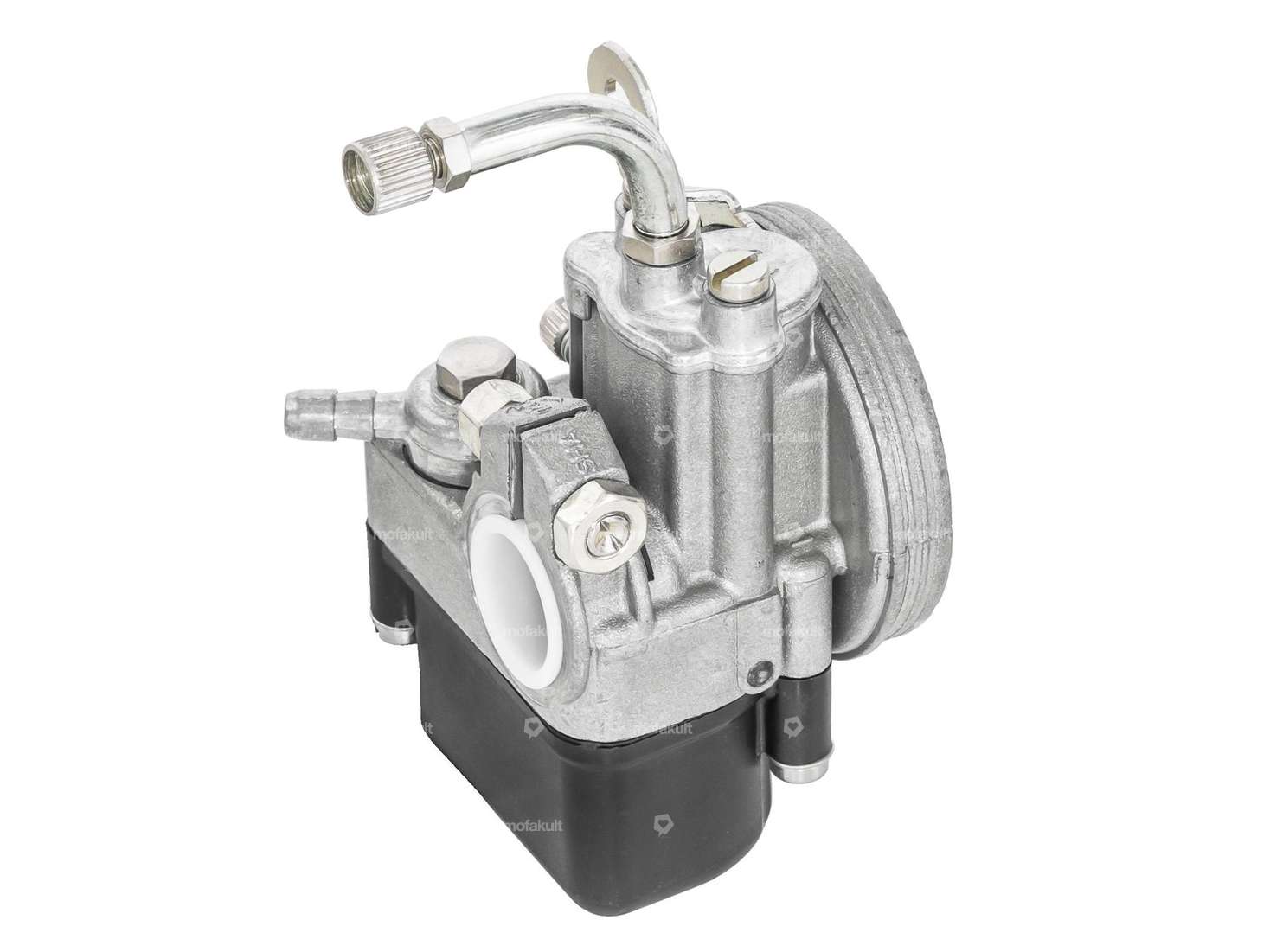

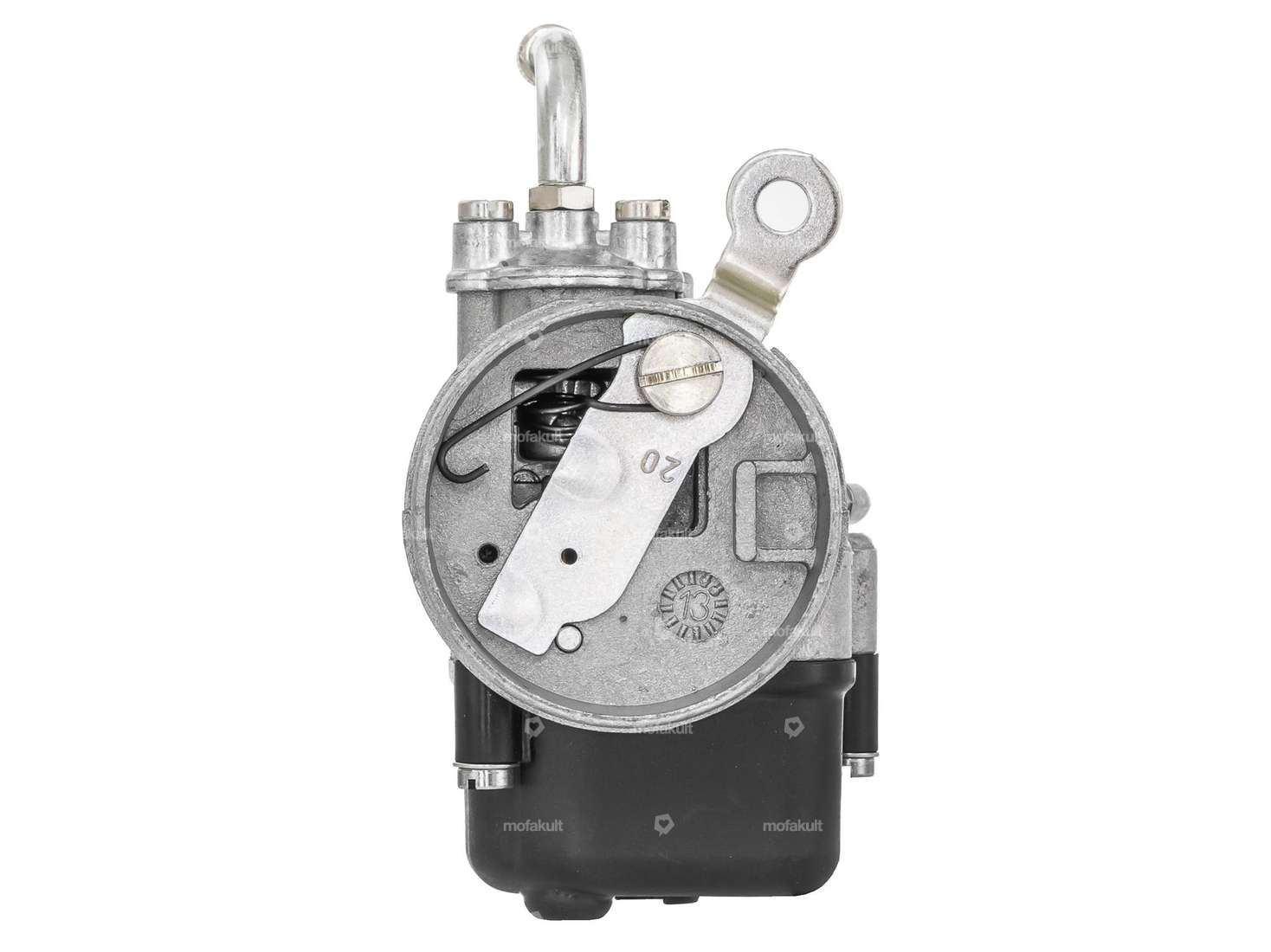

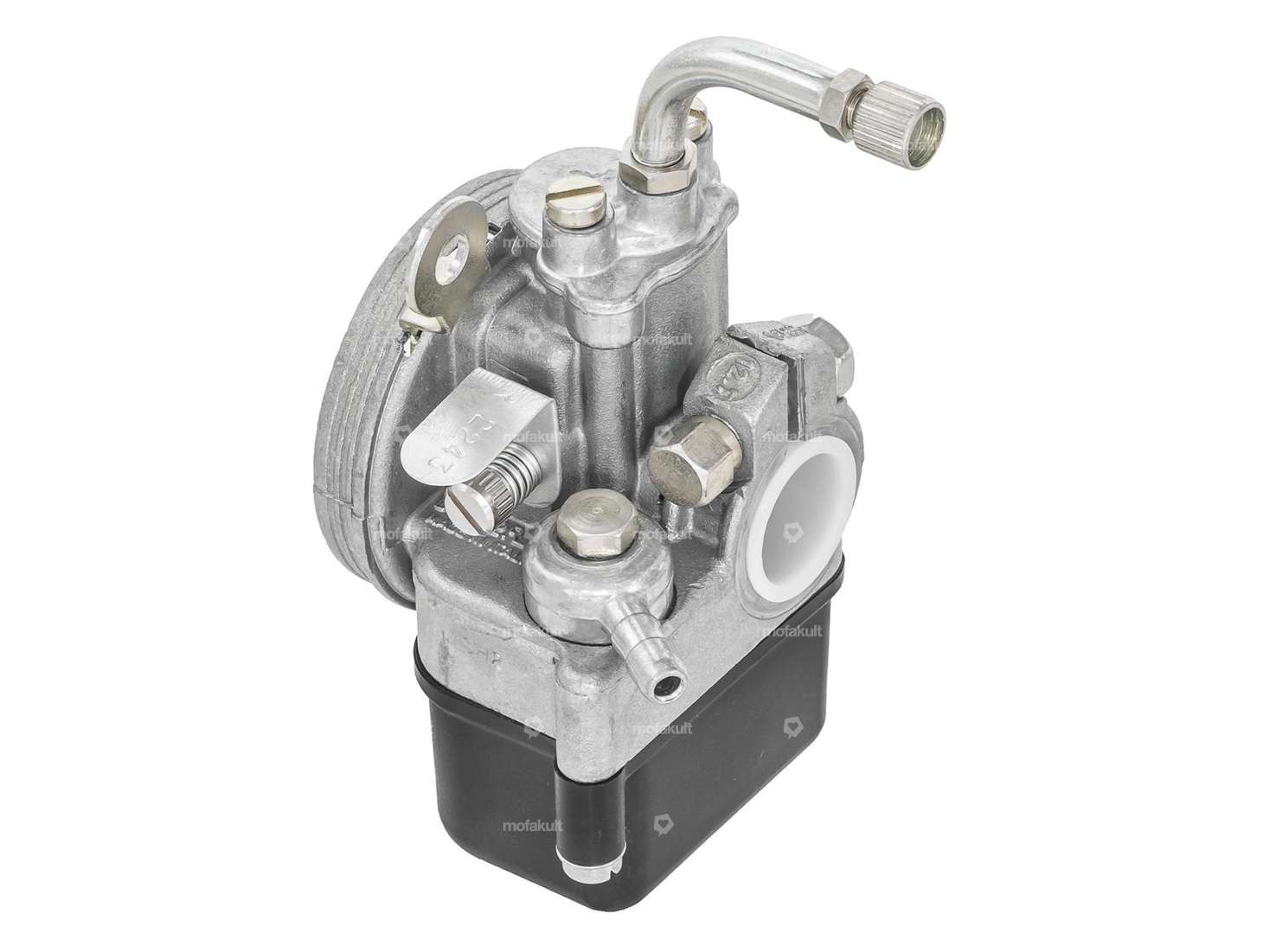

Dell'Orto 12/7 carburetor hand choke original | Piaggio Ciao PX

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 79.90

Incl. 25.5% VAT.

Description

The Dell'Orto 12 / 7 SHA original carburetor impresses with its compact design and can also be used universally for various mopeds, mopeds and small motorcycles in addition to your Piaggio Ciao.

The carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 36
Inlet connection diameter: 16 mm (or 18 mm after removing the reducing sleeve)
Ø external air filter connection: 50.8 mm
Ø passage on air filter side: 7 mm
Ø passage on intake manifold side: 12 mm
Total height: 97 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm

For matching nozzles and alternative air filters, see accessories.

Original Piaggio spare part number: 247270

Quality product from the Italian manufacturer Dell'Orto.

Nominal diameter12 mm
Total length45 mm
ManufacturerDell'Orto
Area of applicationOriginal
Component group CarburetorCarburetor complete
Carburetor typeSHA (Piaggio)
Choke controlHand choke
Width60 mm
Height97 mm
Ø without reducing sleeve18 mm
Ø Inside entrance7 mm
Ø Output inside12 mm
Mounting typePlug connection clamped
Ø Air filter connection50.8 mm
Ø Internal connection16 mm
Ø fuel hose connection6 mm
Nozzle threadM5x0.8 (standard thread)
Nozzle size36
Piaggio

Ciao - PX
