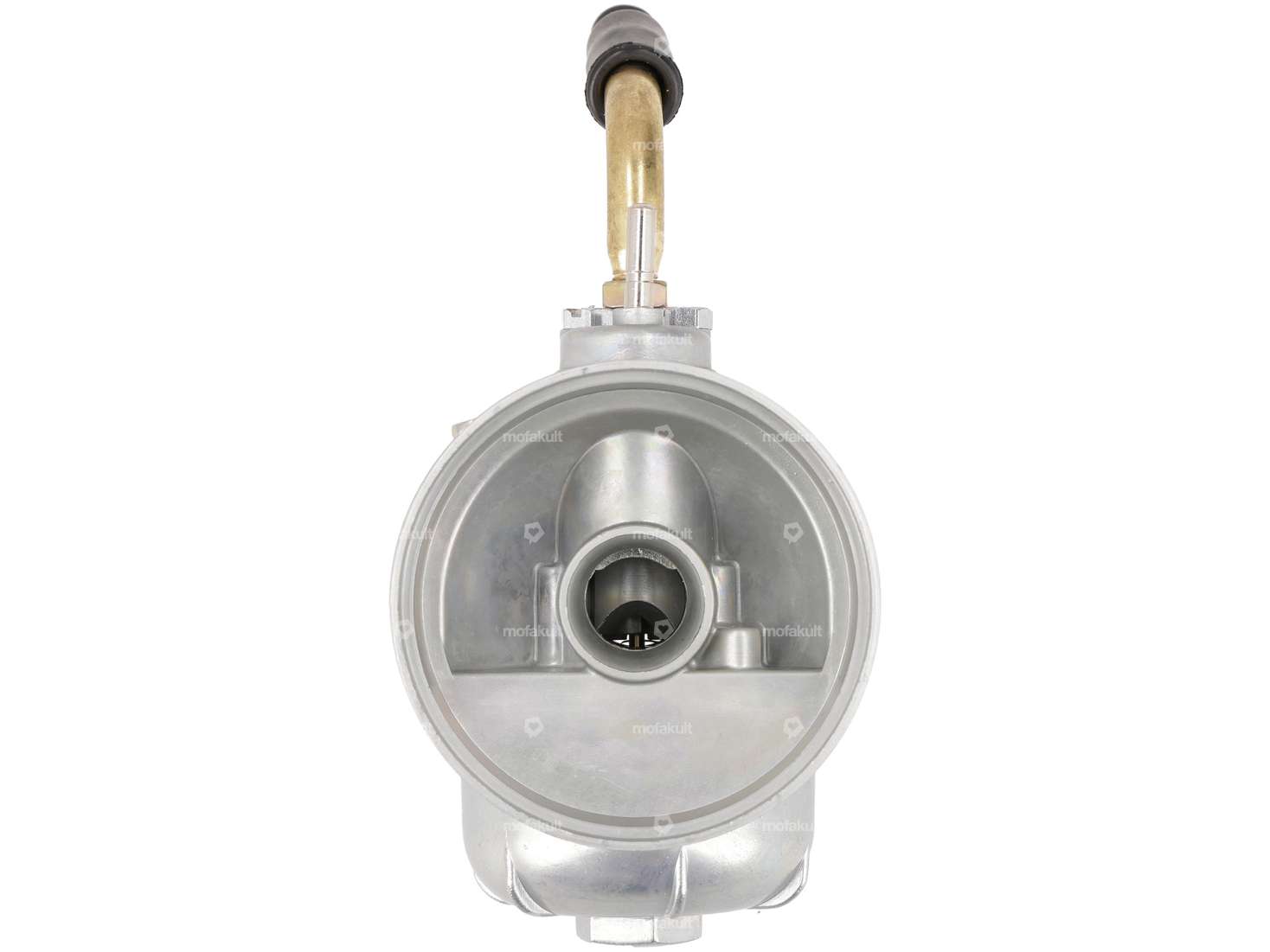

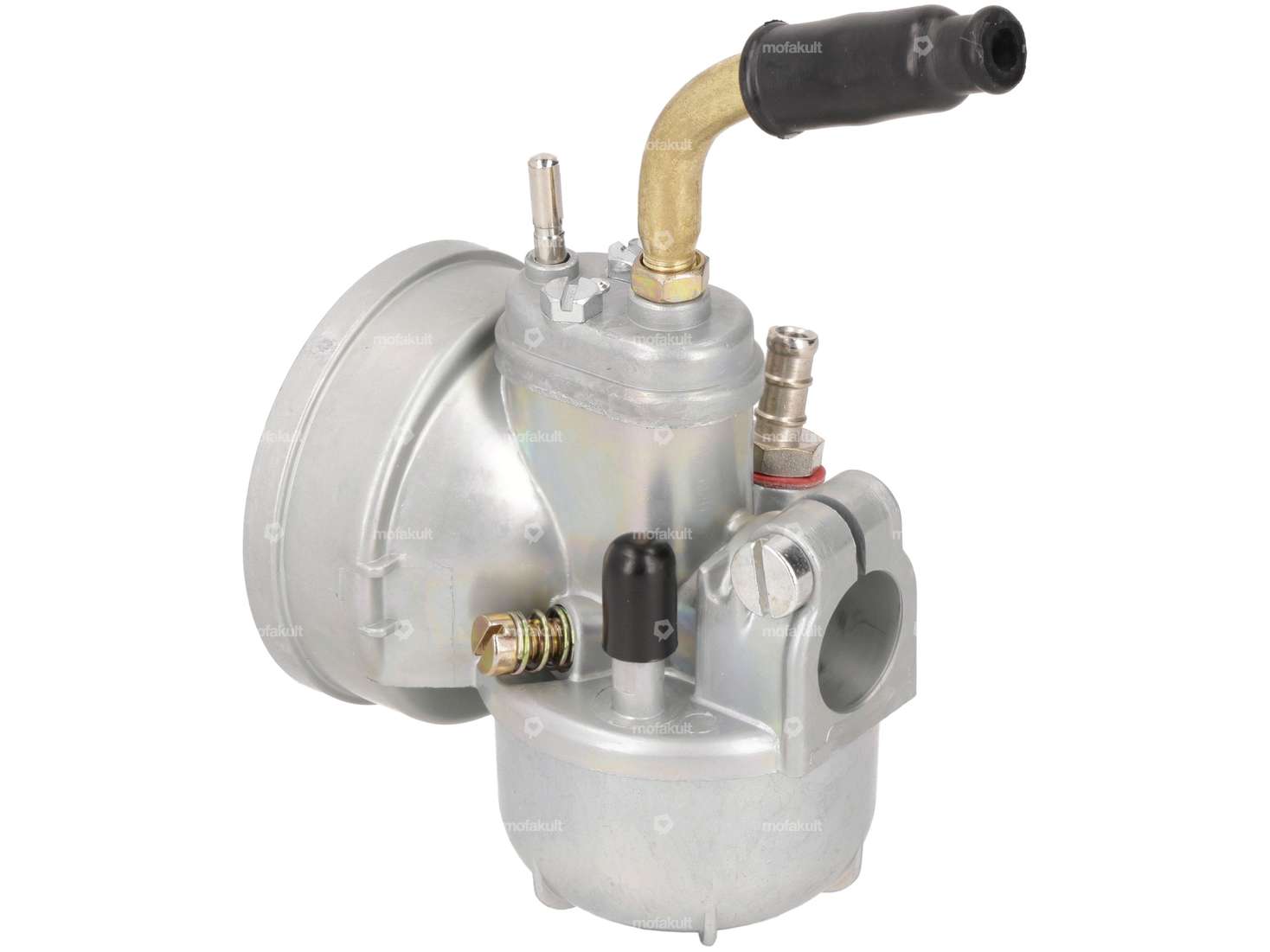

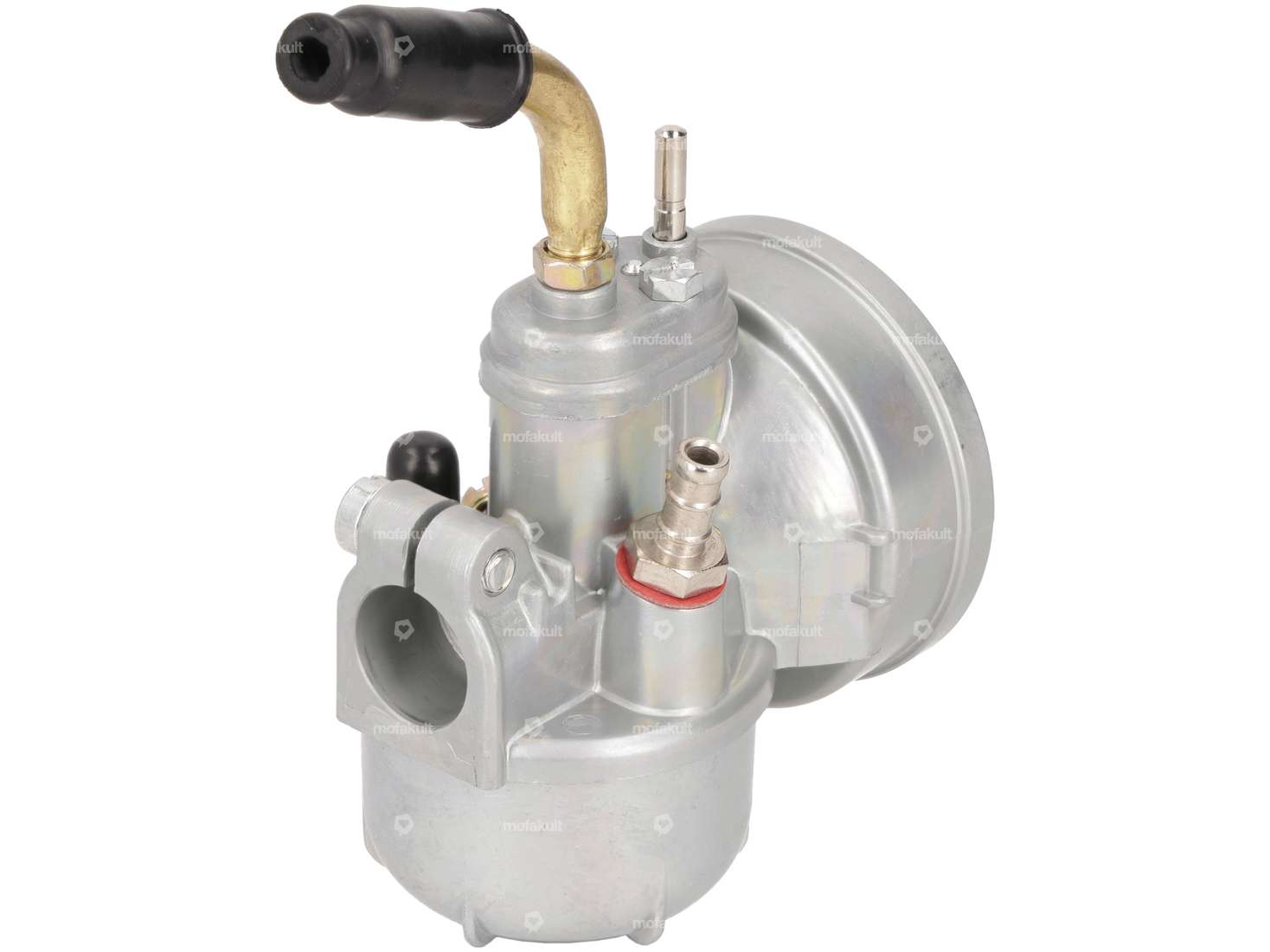

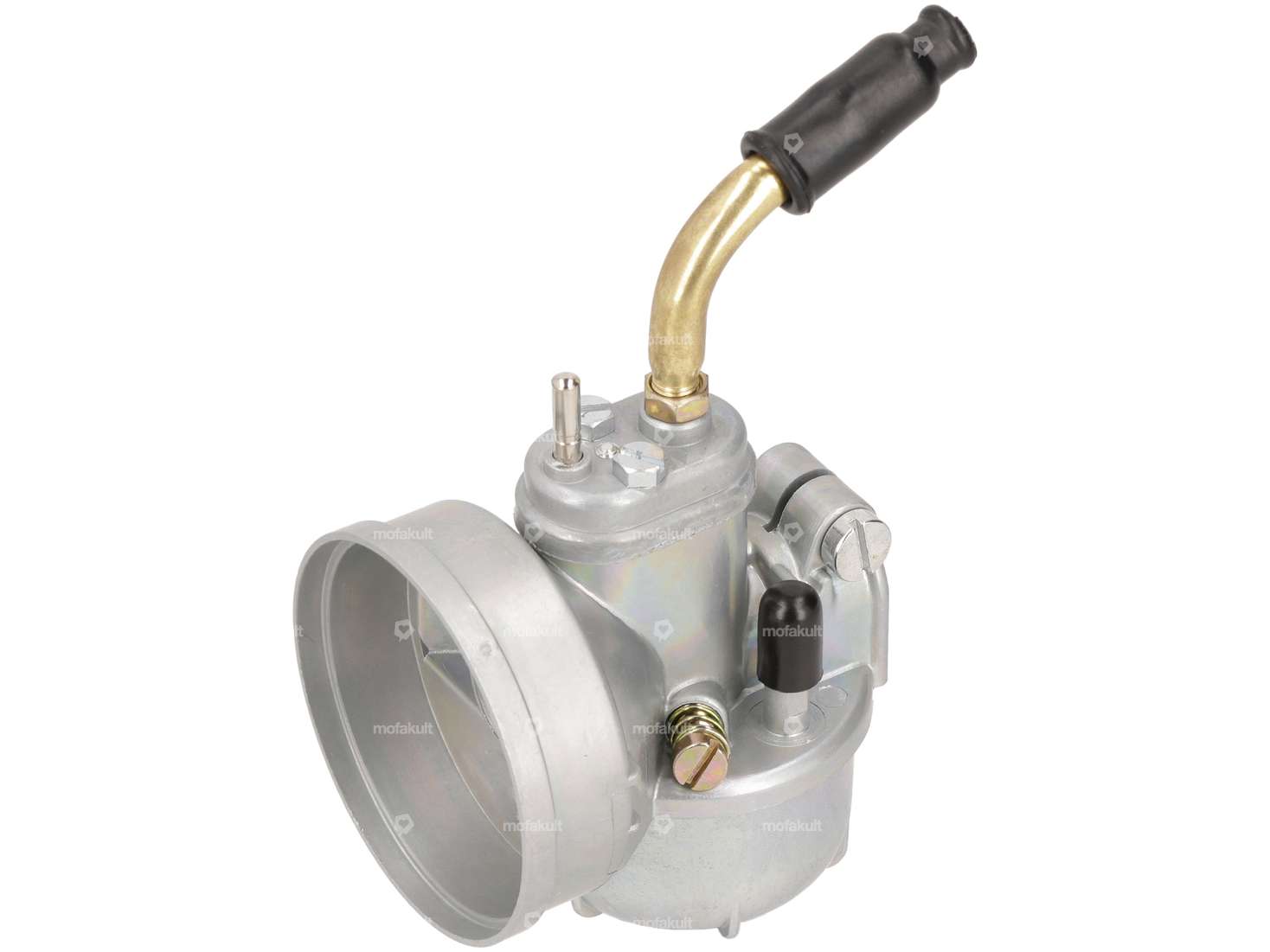

Carburetor Bing 1/12/182 (replica) | Sachs 502 1A, 1B

ESJOT sprocket 12 teeth (large mount) | Sachs 50/2 1A, 1B

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Number of teeth: 12 pcs · Recording type: 2-edge · Thickness: 4.3 mm · Total thickness: 6 mm

Cylinder base and intake gasket | Sachs 502/1B

Manufacturer: Made in Germany · Material: Oiled paper · Number of components: 2 pcs · Thickness: 0.35 mm · Thickness: 0.55 mm · Hole spacing inlet: 30 mm · Hole pattern [mm]: 40 x 41 mm · Sachs OEM no.: 0250 139 000 · Sachs OEM no.: 0250 140 000

Piston 38 mm | Sachs 50/2 1A, 1B

Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Weight piston kit: 87 g

Piston 38.6 mm | Sachs 50/2 1A, 1B

Nominal diameter: 38.6 mm · Ø outside piston (A): 38.54 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Weight piston kit: 92 g

Carburetor Bing 1/10/99 (replica) | Sachs 50/2 1A, 1B

Component group Carburetor: Carburetor complete · Material: Aluminum · Nominal diameter: 10 mm · Ø Internal connection: 16 mm · Ø Air filter connection: 54.5 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.15 · Nozzle size: 56 · Total length: 65 mm
