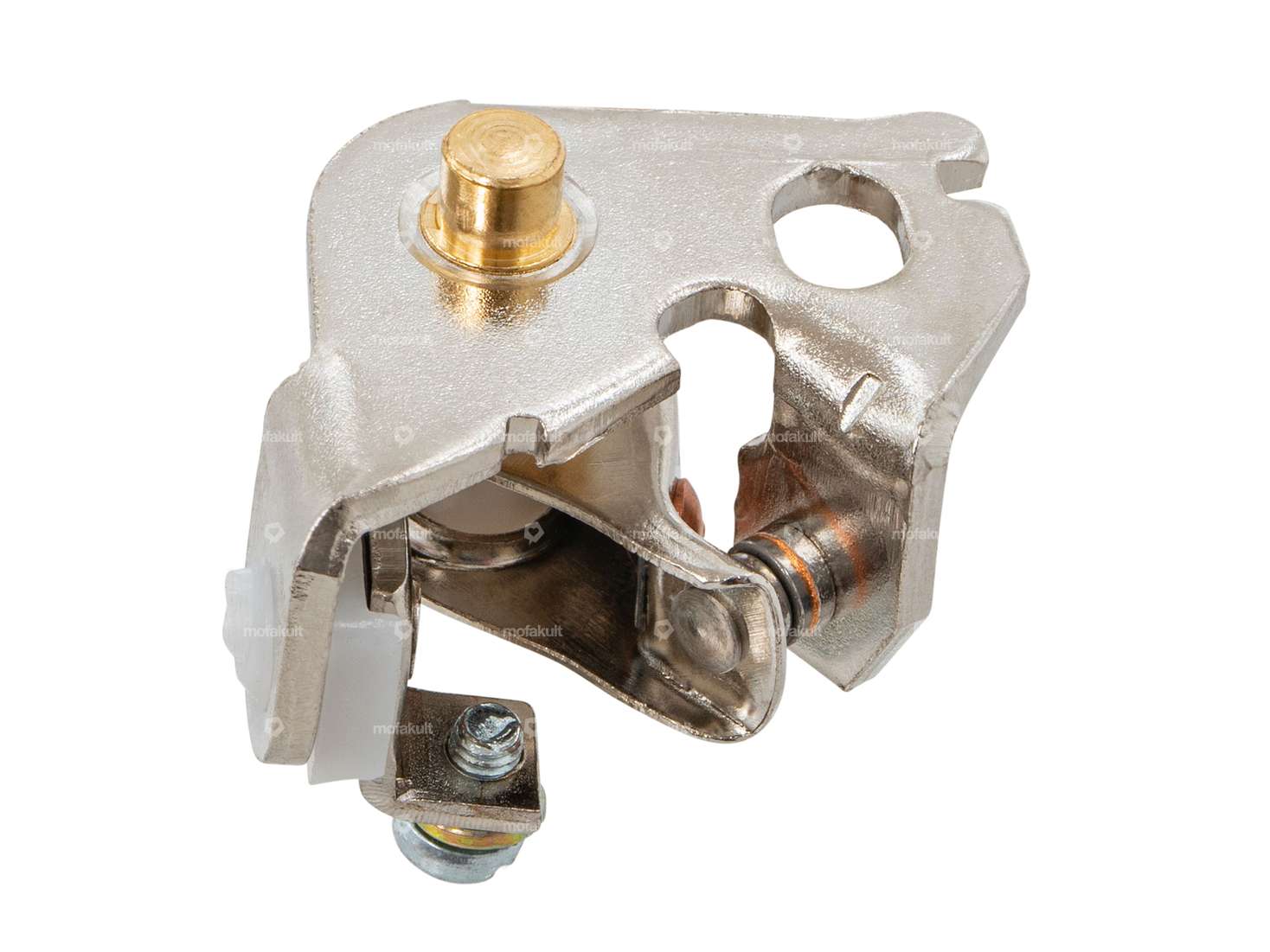

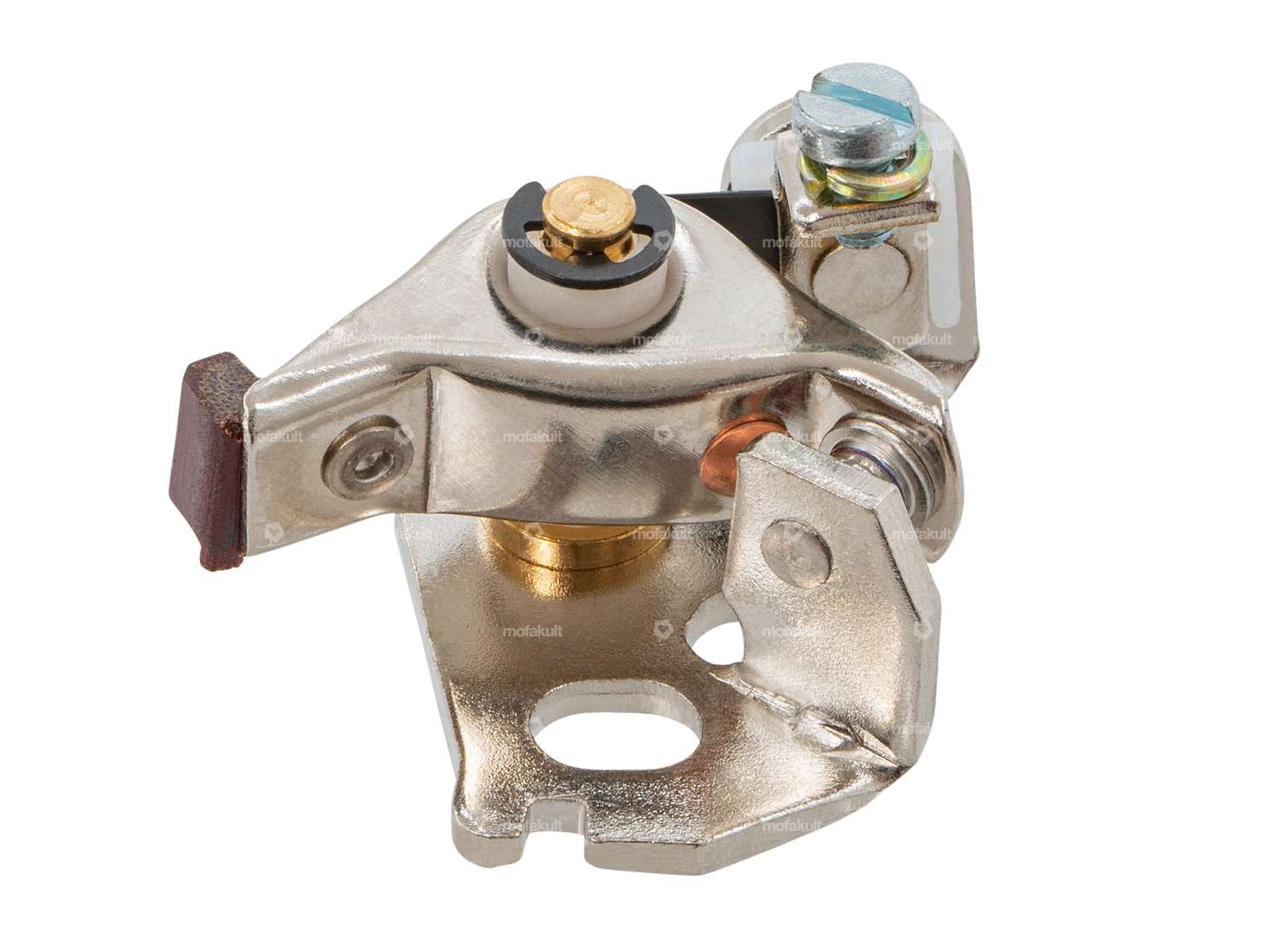

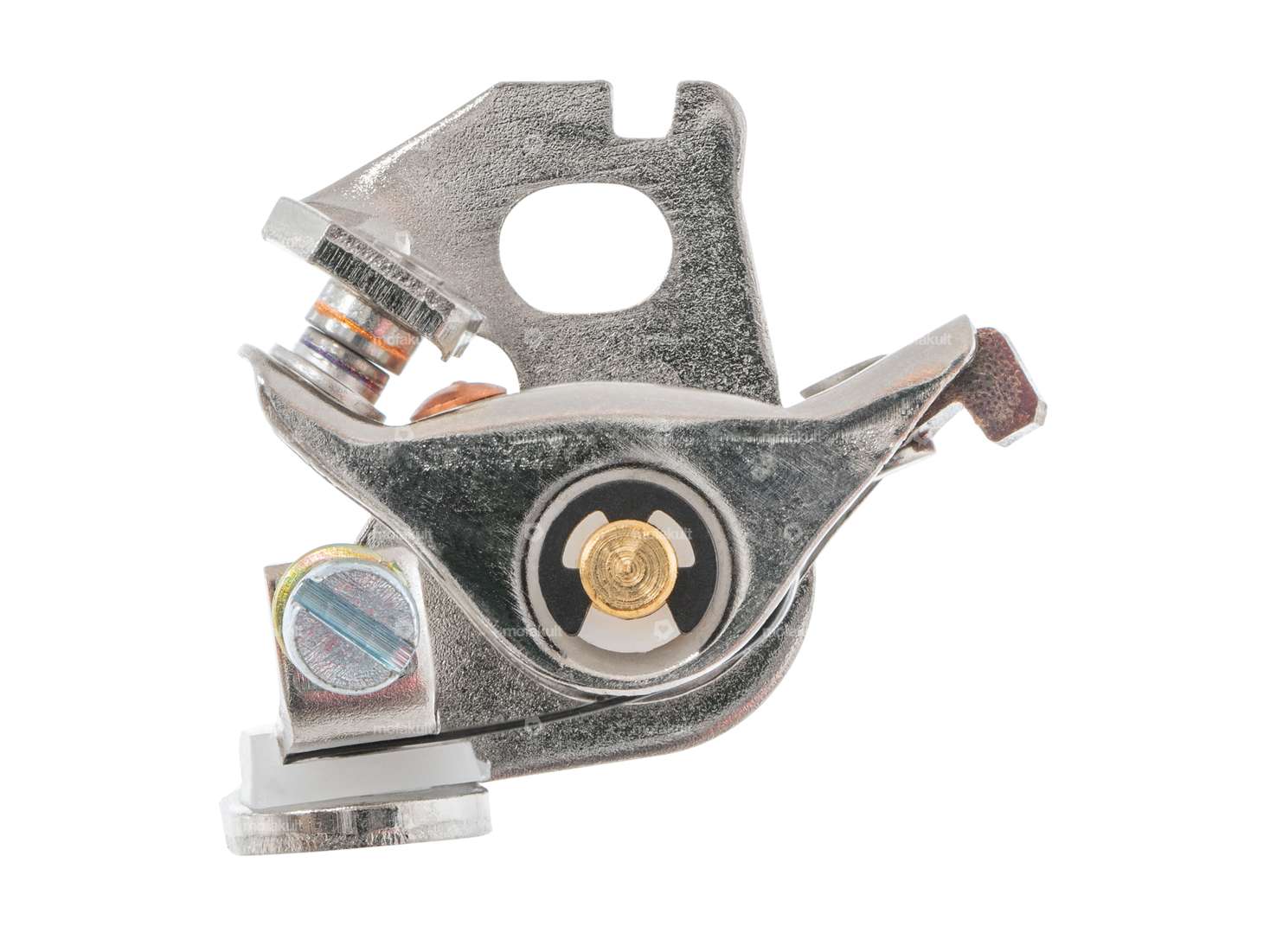

Breaker without cable (budget) | Piaggio Ciao, SI, Bravo, Boxer

CIF impulse coil (1A quality) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Mounting type: Screws · Hole spacing: 50 mm · Area of application: Original · Area of application: Standard · Number of fixing points: 2 pcs

Wedge 12.1x4.9x3 mm

Material: Steel · Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm

GPO breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Material: Steel · Cable available: No · Ø mounting hole: 5 mm · Ø axle: 5 mm · Number of fixing points: 1 pcs · Area of application: Original · Area of application: Standard · Piaggio OEM number: 103133

swiing® revival condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Area of application: Original · Area of application: Standard · Capacity: 0.28 µF · Mounting type: Tab for screwing · Connection type: Cable for screwing · Ø mounting hole: 4.4 mm · Ø outside: 18 mm · Total height: 31 mm · Height: 26 mm · Piaggio OEM number: 102939

Pulse coil | Piaggio Ciao, SI, Bravo, Boxer

Mounting type: Screws · Hole spacing: 50 mm · Ø mounting hole: 4.4 mm · Number of fixing points: 2 pcs · Area of application: Original · Area of application: Standard

NGK B7HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Width across flats SW: 21 mm · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread)

swiing® revival screw set ignition galvanized | Piaggio Ciao, SI, Bravo, Boxer

Drive: Cross recess · Drive: Slot · Manufacturer: swiing® revival parts · Material: Steel · Number of components: 14 pcs · Surface: galvanized (blue) · Screw head: Cylinder head · Screw head: Panhead · Area of application: Standard

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Mounting type: Union nut · Installation direction: horizontal / horizontal · Thread type: MF12x1 (fine pitch thread) · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

Pedals square | Piaggio Ciao, SI, Bravo

Drive: Outer edge · Material: Plastic · Width across flats SW: 15 mm · Color: black · Surface: ribbed · Thread type: FG14.3 (9/16" 20G) · Total length: 118 mm · Reflectors: Yes · Width: 51 mm · Height: 29 mm

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Material: Steel · Cable available: No · Ø mounting hole: 4.5 mm · Ø axle: 5 mm · Number of fixing points: 1 pcs · Area of application: Original · Area of application: Standard · Piaggio OEM number: 103133

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Capacity: 0.26 µF · Mounting type: Tab for screwing · Connection type: Cable for screwing · Ø mounting hole: 4.4 mm · Ø outside: 18 mm · Total height: 31 mm · Height: 26 mm · Area of application: Original · Area of application: Standard · Piaggio OEM number: 102939

swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer

Diameter: 12 mm · Diameter: 24 mm · Width across flats (trigger): 10 mm · Width across flats (trigger): 17 mm · Width across flats Screw: 19 mm · Manufacturer: swiing® ingenious parts · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Number of components: 2 pcs · Total length: 100 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread)

Fan cover | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Plastic · Color: black · Ø inside: 120 mm · Number of fixing points: 4 pcs · Total length: 230 mm · Width: 182 mm · Height: 20 mm

Lubricating felt flywheel / contact breaker ignition

Material: Felt · Color: white · Area of application: Original · Pony OEM number: A4665 · Sachs OEM no.: 2865 008 000

GPO chain tensioner | Piaggio Ciao

Manufacturer: GPO · Material: Plastic · Material: Steel · Color: black · Surface: galvanized (blue) · Color: silver · Number of teeth: 8 pcs · Ø outside sprocket: 33 mm · Thread type: M8x1.25 (standard thread) · Total length: 64 mm · Number of fixing points: 1 pcs · Width: 45 mm

swiing® revival condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Area of application: Original · Area of application: Standard · Capacity: 0.28 µF · Mounting type: Tab for screwing · Connection type: Cable for screwing · Ø mounting hole: 4.4 mm · Ø outside: 18 mm · Total height: 31 mm · Height: 26 mm · Piaggio OEM number: 102939

GPO Pulse coil | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Tension: 6 V · Ø mounting hole: 4.6 mm · Mounting type: Screws · Ø Internal flywheel: 91 mm · Total length: 80 mm · Number of fixing points: 2 pcs · Width: 23.8 mm · Hole spacing: 50 mm · Height: 23.8 mm · Area of application: Standard
