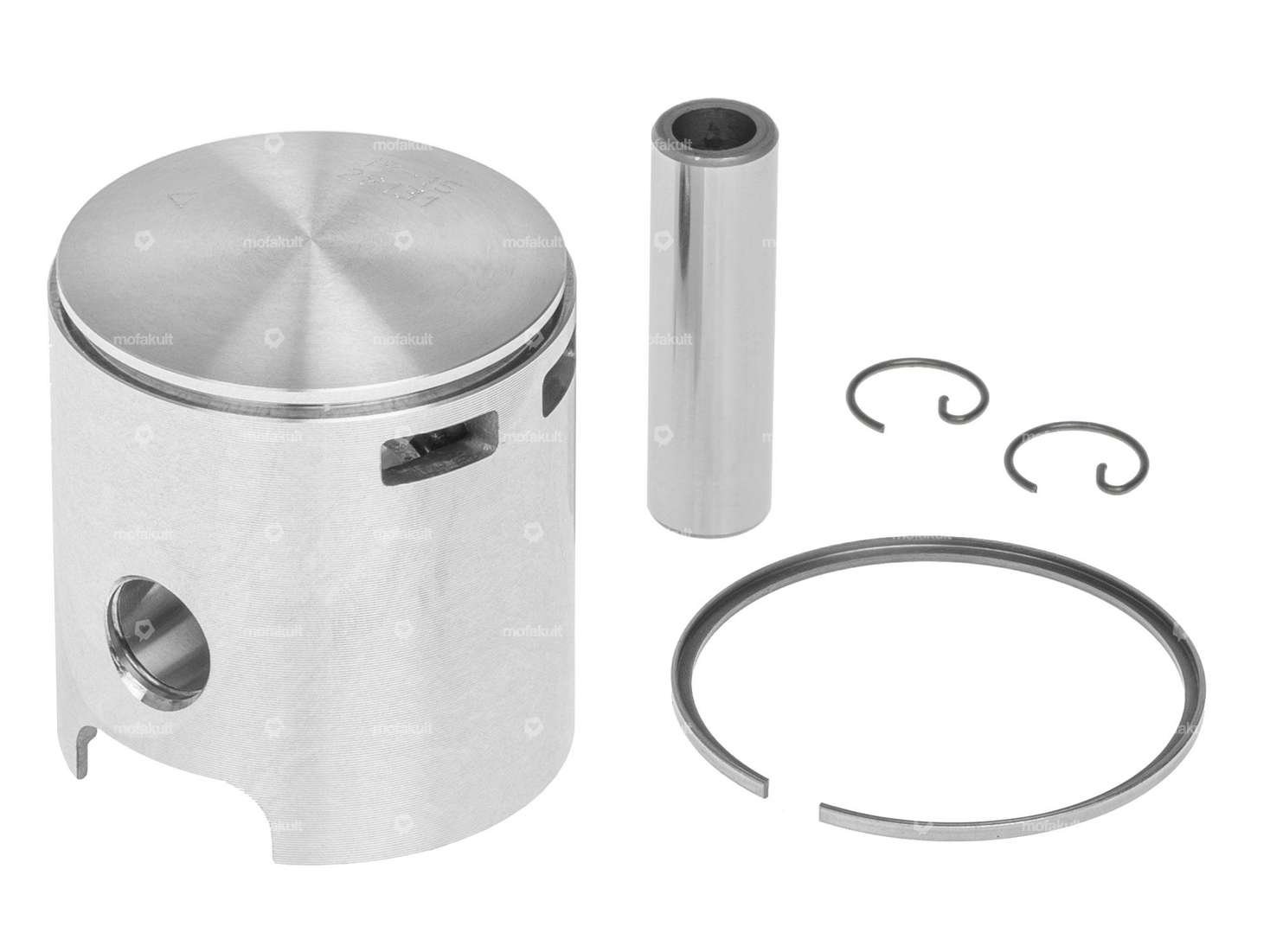

Athena piston 48 mm #B | Sachs 503 AB, AC, ADV

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 98.30

Incl. 25.5% VAT.

Description

48 mm replacement piston with a 2 mm L-piston ring with internal circlip (IS) for mopeds / mopeds with the original Sachs 503 AB / AC / ADV wide-wall cylinders.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter48 mm
ManufacturerAthena
Ø outside piston (A)47.93 mm
Compression height (C)29.1 mm
Curvature (D)2.1 mm
Total piston height (E)52 mm
Number of piston rings (F)1 pcs
Piston ring moldL-ring
Piston ring impactInternal fuse (IS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Tolerance groupB
Weight piston kit113 g
