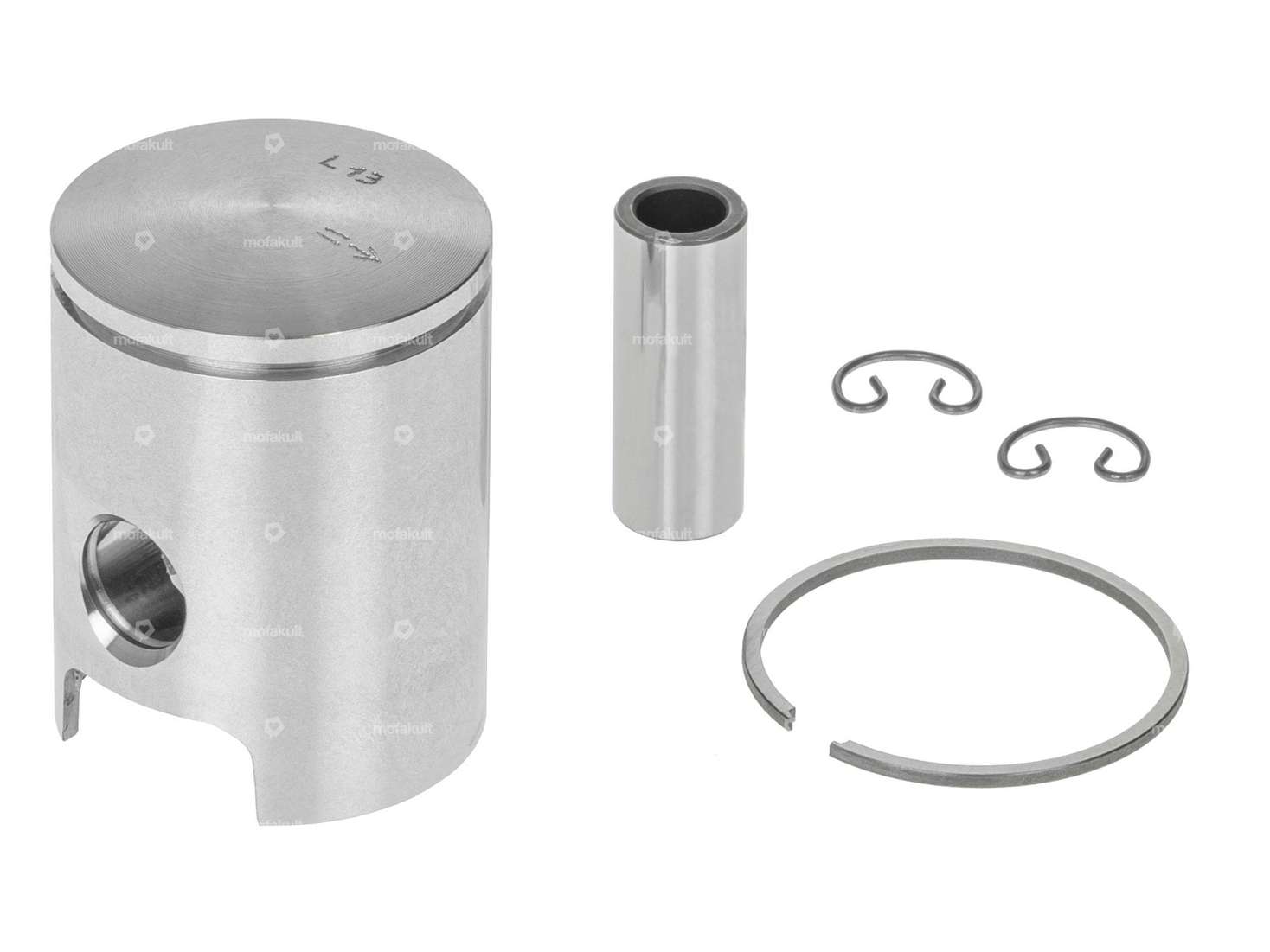

Meteor piston 38 mm #D | Sachs 503 AB/AC

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 68.80

Incl. 25.5% VAT.

Description

38.0 mm piston with a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Sachs mopeds / mopeds with 503 AB / AC engines.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)37.99 mm
Compression height (C)28 mm
Curvature (D)2 mm
Total piston height (E)51 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Tolerance groupD
Weight piston kit74 g
Pony OEM numberA5685D
Sachs OEM no.0286 382 306
Sachs

503 - AB , AC
