For: Piaggio

20616

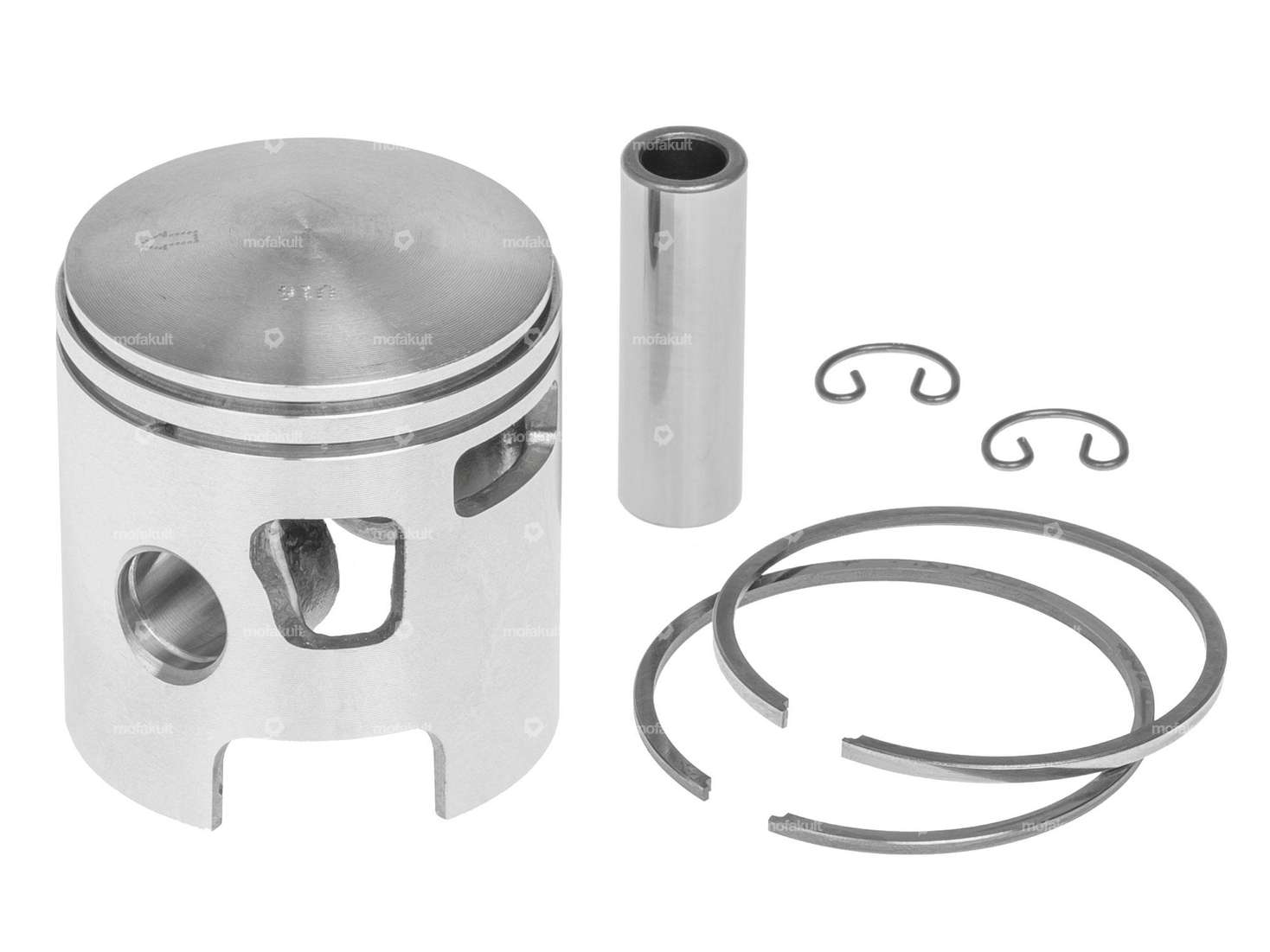

Athena piston 46 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 86.00

Incl. 25.5% VAT.

Description

46 mm piston with a 2 mm and a 1.5 mm rectangular piston ring with internal circlip (IS) for Piaggio mopeds / mopeds with Athena cylinder kit.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter46 mm
ManufacturerAthena
Ø outside piston (A)45.93 mm
Compression height (C)26 mm
Curvature (D)2.92 mm
Total piston height (E)51 mm
Number of piston rings (F)2 pcs
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height2 mm, 1.5 mm
Ø piston pin (B)10 mm
Weight piston kit94 g
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo
