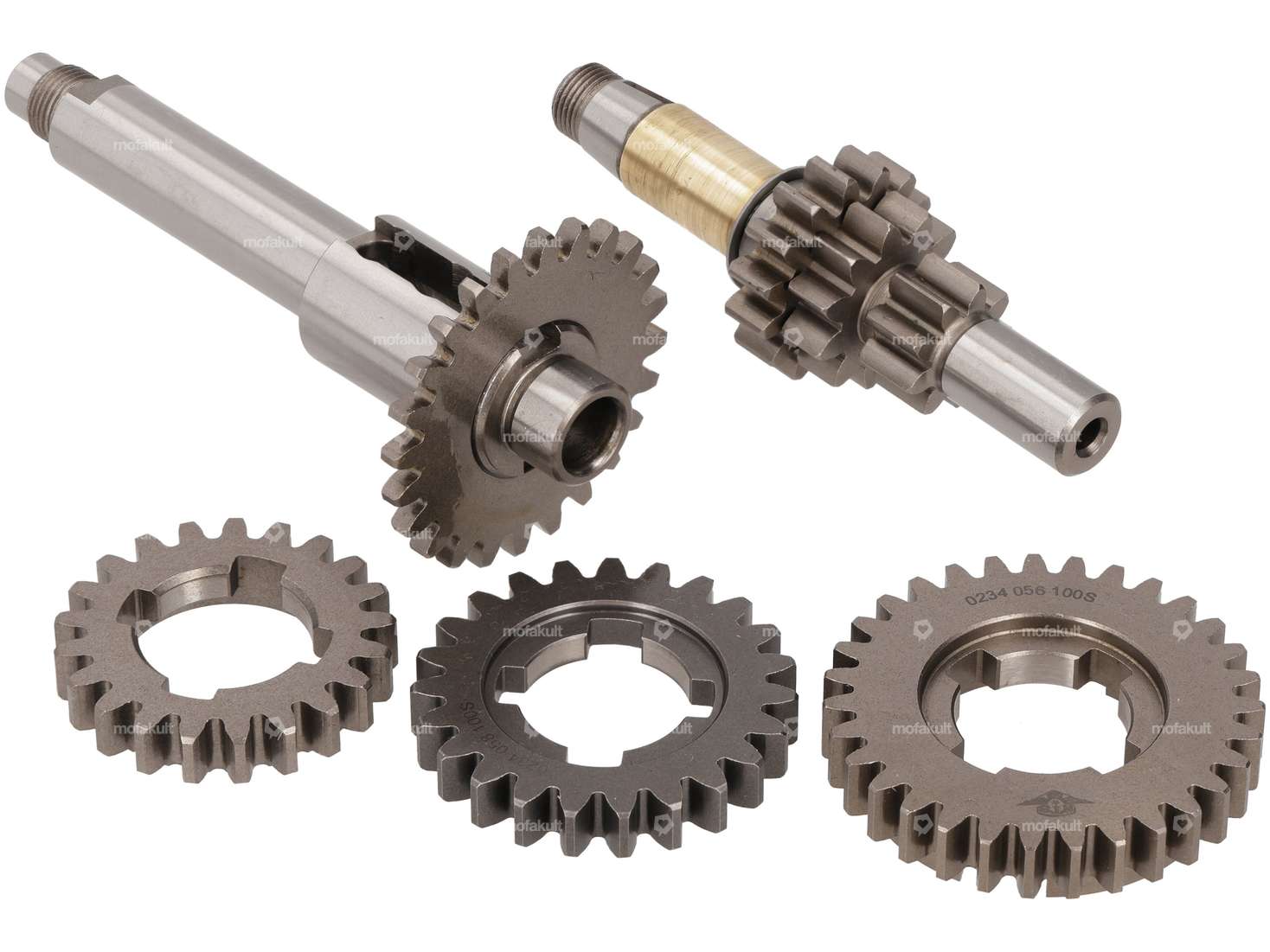

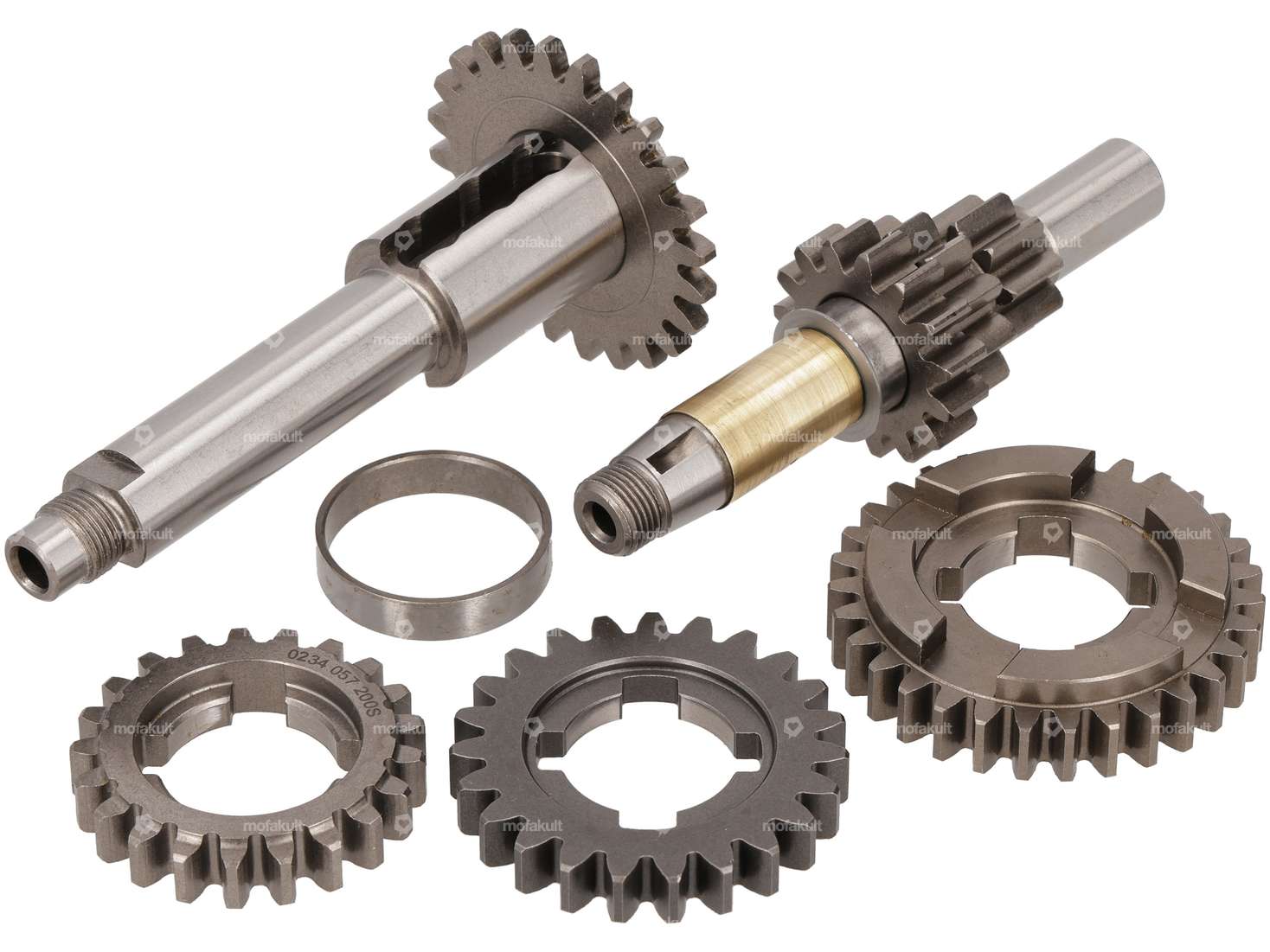

Foot-shifted 3-speed transmission compatible with your small motorcycle equipped with a Sachs 50/3 (DE) engine.
This transmission kit is compatible with the following Sachs 50/3 models equipped with foot-operated shifting: MAKF (SF, X), KF (S), BKF (S), MLFB, LFH, LFS, MLKB, MLKA (X), and LKH.
Package contents:
• Large idler sprocket, 31 teeth•
Ring, 29x32x7 mm•
Shift sprocket, 23 teeth•
Small idler sprocket, 21 teeth•
Main shaft, 24
teeth• Intermediate shaft
Original Sachs part numbers: 0234 056 100 (large idler gear), 0247 020 000 (ring gear), 0234 058 100 (shift gear), 0234 057 200 (small idler gear), 0285 107 008 (main shaft), 0286 205 000 (intermediate shaft)
| Sachs OEM no. | 0234 056 100, 0247 020 000, 0234 058 100, 0234 057 200, 0285 107 008, 0286 205 000 |
| Sachs | 50/3 |
