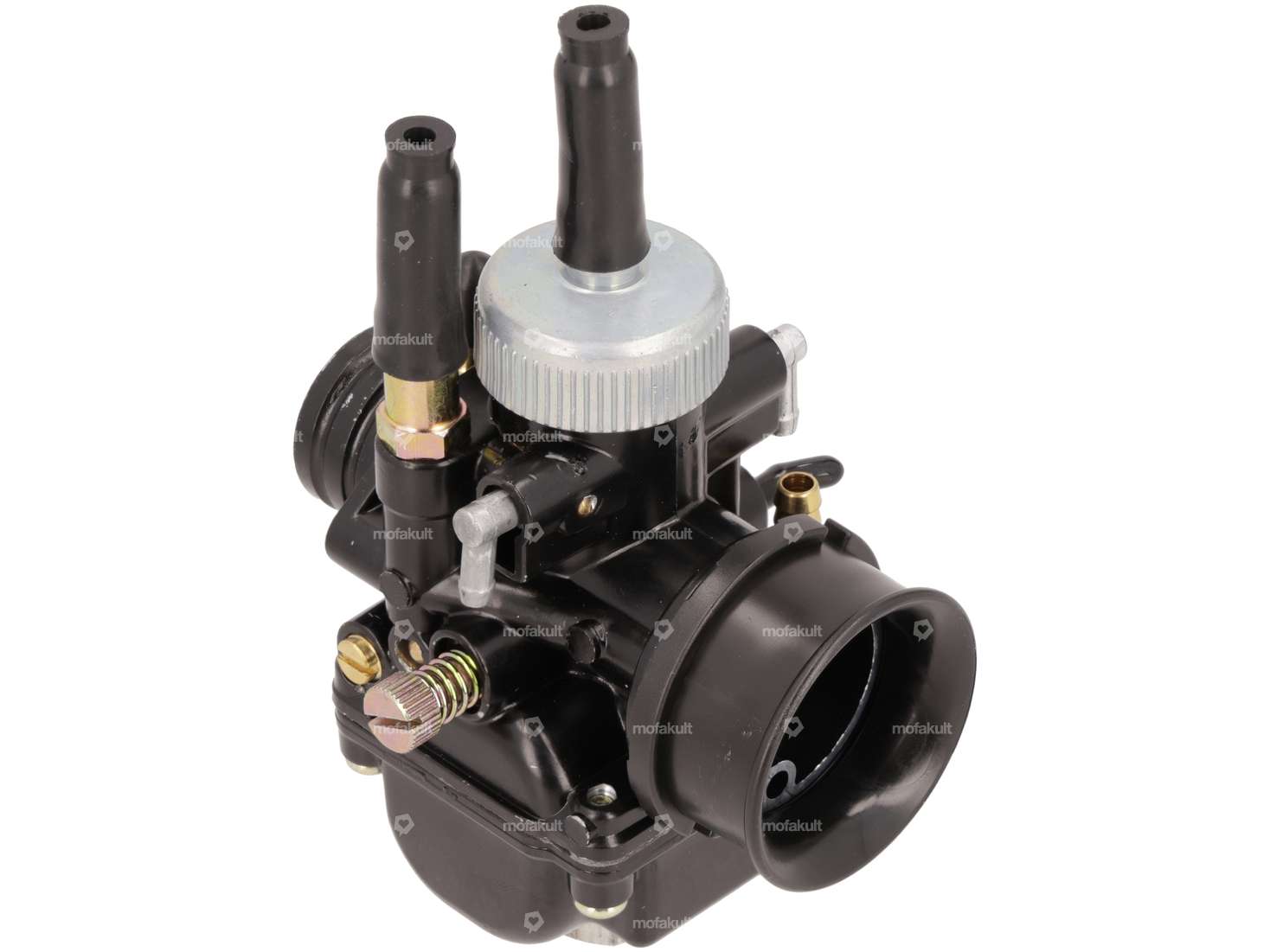

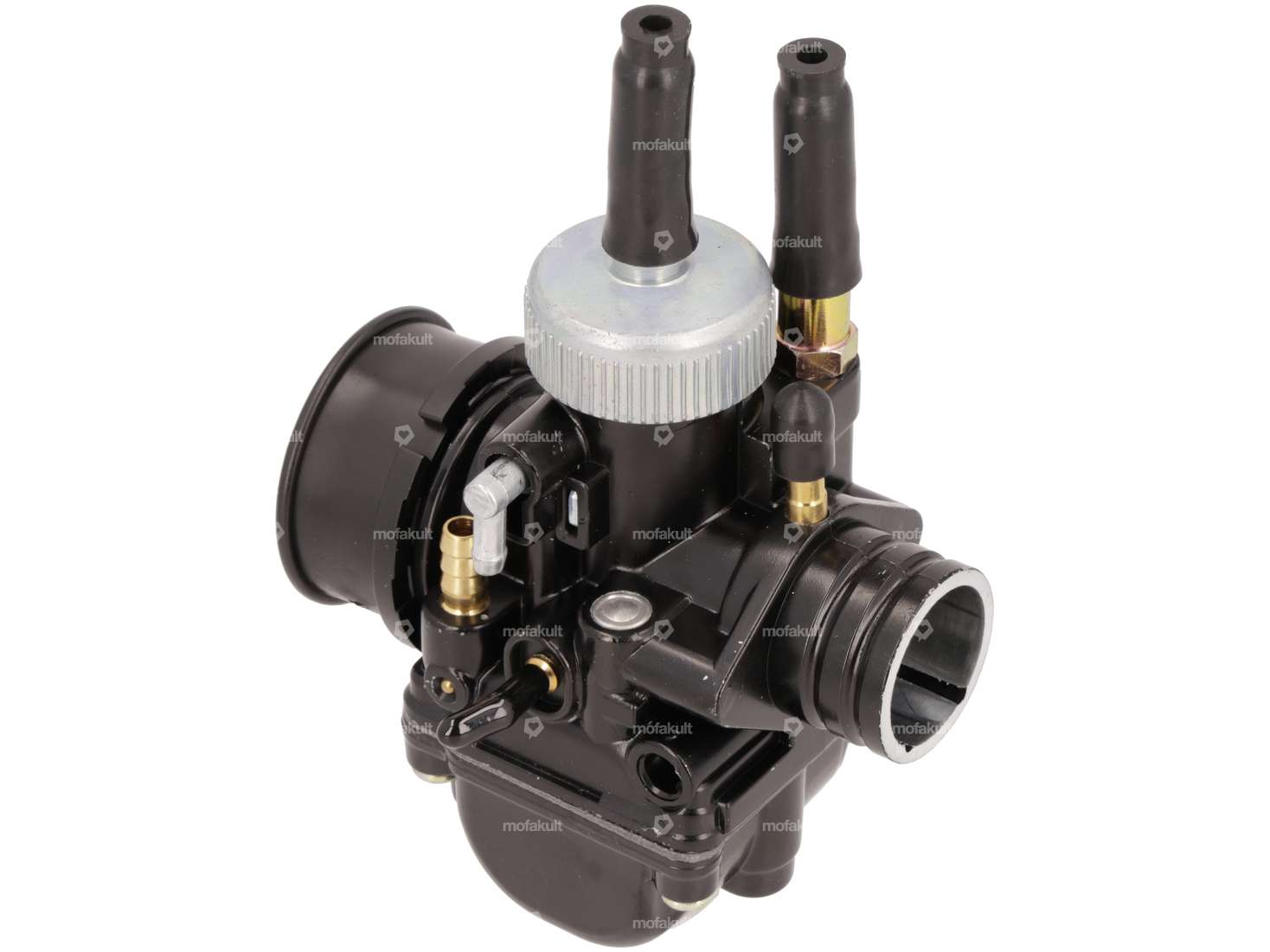

21 mm PHBG racing carburetor for universal use on your moped, moped or small motorcycle.
This Dellorto replica racing carburetor is suitable for tuning and is designed for racing bikes between 65 and 125 cc.
The tuning carburetor has a cable-operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary air flow as well as the mixture adjustment screw.
On the air filter side, the carburetor has an M32x1.25 thread on which an intake funnel / venturi is mounted. If required, this can be removed in order to attach the air filter directly to the thread.
| Nominal diameter | 21 mm |
| Width | 77 mm |
| Height | 130 mm |
| Total length | 87 mm |
| Color | black |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Surface | varnished |
| Carburetor type | PHBG |
| Choke control | Cable choke |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 90 |
| Mounting type | Plug connection clamped |
| Ø Inside entrance | 21 mm |
| Ø Output inside | 28.2 mm |
| Ø Air filter connection | 32 mm |
| Ø Internal connection | 21 mm |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Mixed oil connection | No |
| Vacuum connection | Yes |
| Choke nozzle size | 45 |
| Nozzle block | 2624AU |
| Size of secondary nozzle | 60 |
