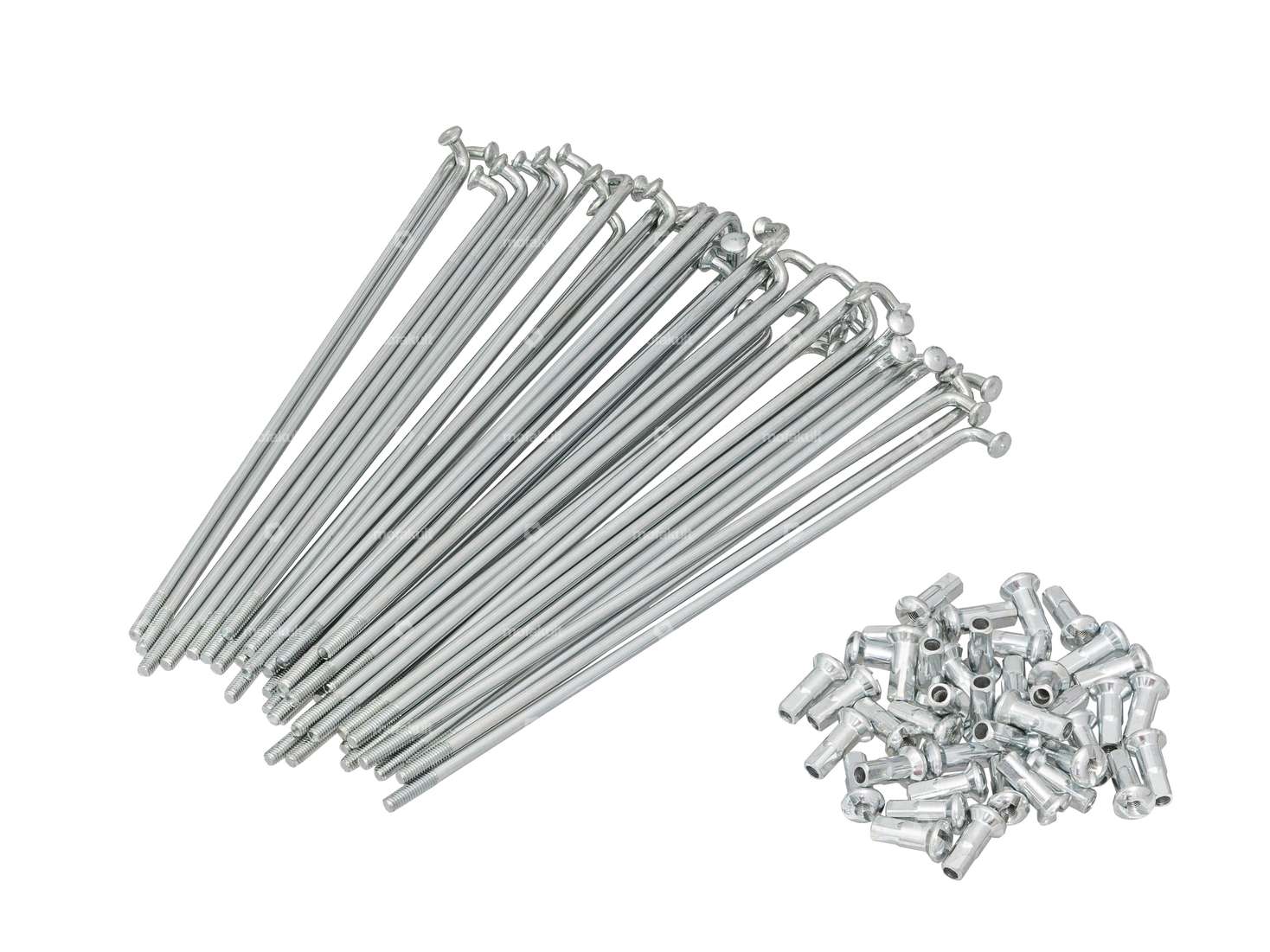

Complete, universal spoke set, suitable for various bikes. (Please compare the dimensions exactly beforehand).
This spoke set can be used for 14" chopper wheels.
The kit consists of 40 spokes and 40 nipples made of galvanized steel.

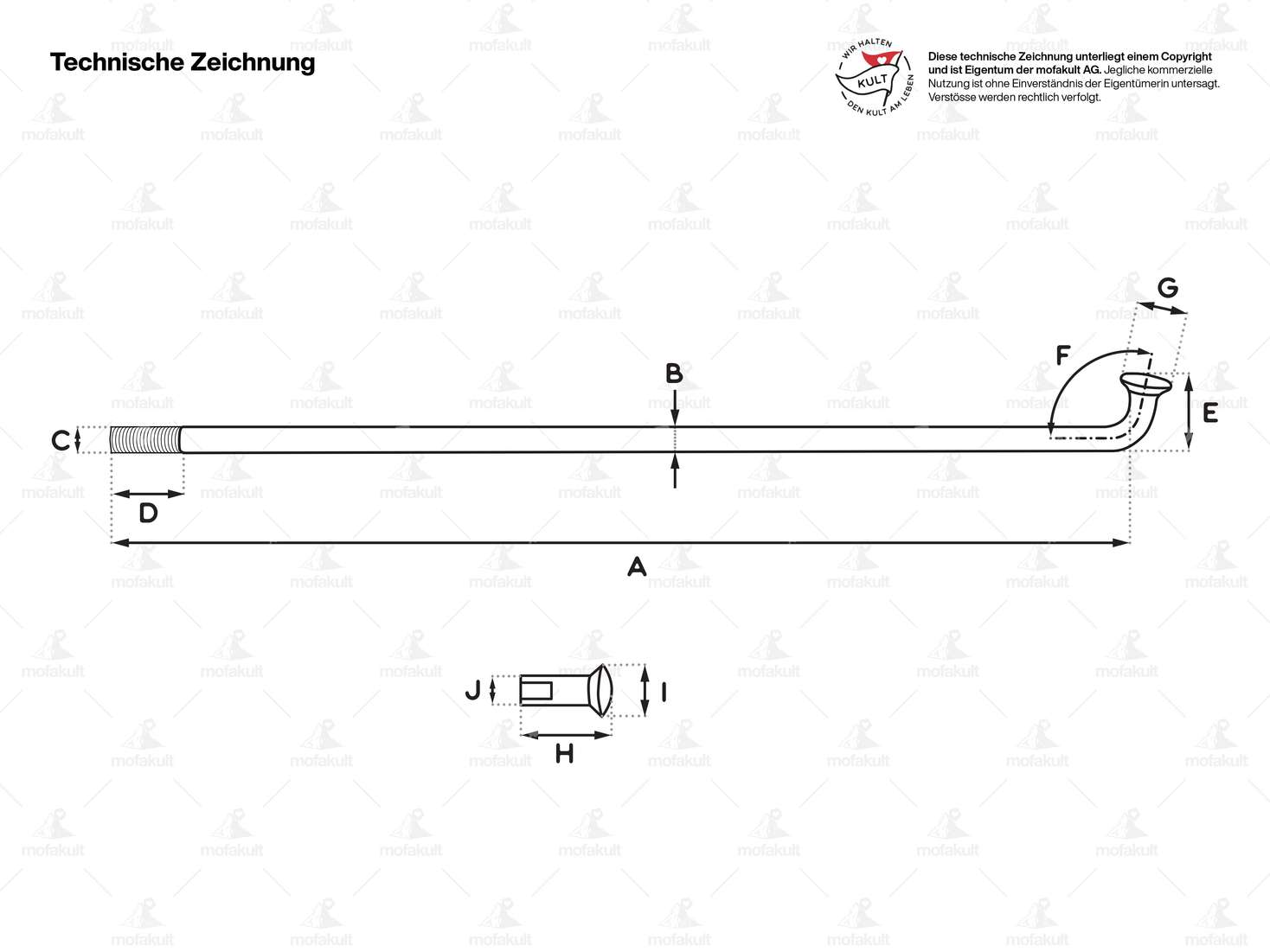

Dimension spokes:
Length from hook inside (A): 145 mm
Ø spoke (B): 2.9 mm
Ø thread (C): 3.2 mm
Hook length (D): 10.1 mm
Thread length (E): 10.5 mm
Hook angle (F): 90°
Ø spoke head (G): 5.4 mm
Material: Galvanized steel
Dimension spoke nipple:
Total length (H): 14.5 mm
Ø nipple head (I): 8 mm
Ø nipple neck (J): 5 mm
Material: Galvanized steel
You can find suitable mounting tools, rim tapes, etc. in the accessories section.
Details
| Nipple length | 14.5 mm |
| Material | Steel |
| Surface | galvanized (blue) |
| Quantity | 40 pcs |
| Length from hook | 145 mm |
| Ø spoke head | 5.4 mm |
| Ø spoke | 2.9 mm |
| Nominal diameter (thread) | 3.2 mm |
| Ø nipple head | 8 mm |
| Ø Nipple neck | 5 mm |
| Thread length | 10.5 mm |
| Hook length | 10.1 mm |
| Hook angle | 90 ° |
