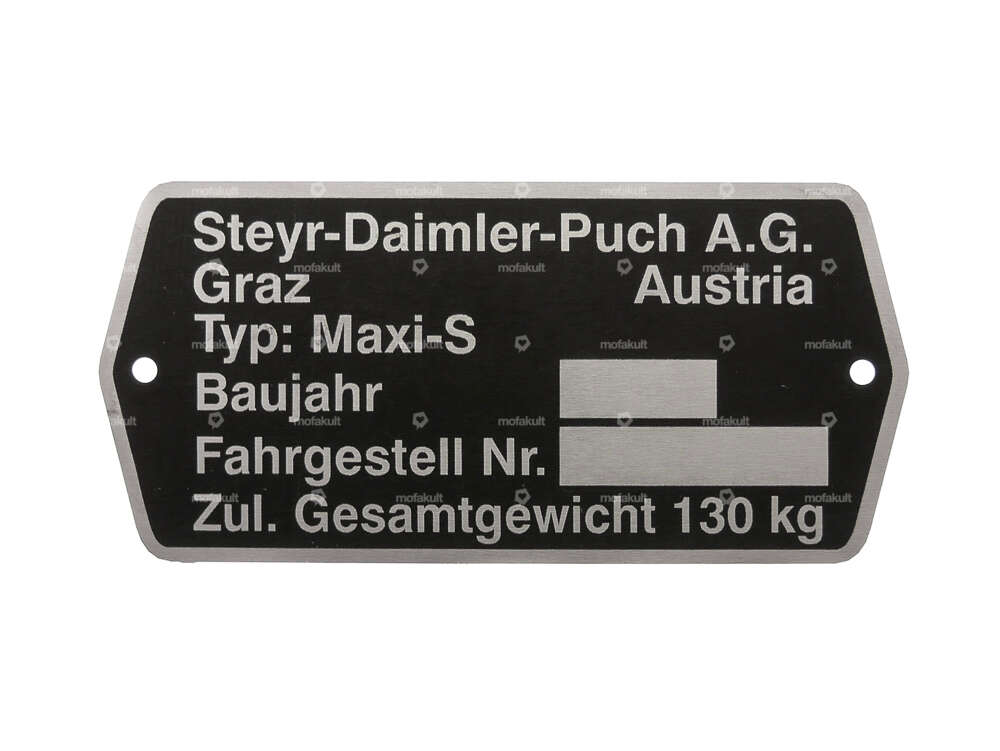

Type plate | Puch Maxi S Austria

Hammer head screws Ø 2.9/5 x 8.35 mm (Maxi)

Ø Rivet pin: 2.4 mm · Rivet pin length: 0.7 mm · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Ø External head: 5.2 mm · Ø bore: 2.6 mm · Ø outside: 2.9 mm · Total length: 8.5 mm

swiing® revival cable guide mudguard black | Puch

Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Mounting type: Plug connection · Total length: 74 mm · Height: 12.5 mm · Number of fixing points: 2 pcs · Hole spacing: 63 mm

Main stand black (budget) | Puch Maxi S, P1 / X30 NS, NL, NG

Color: black · Material: Steel · Stand base - center mount (A): 207 mm · Surface: varnished · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm · Total height: 220 mm

Side panels black matt | Puch Maxi S

Manufacturer: Made in Italy · Material: Plastic · Color: black · Puch OEM number: 349.4.28.502.2 · Alternative version of the Puch OEM number: 349.4.28.603.2 · Puch OEM number: 349.7.28.503.2

Pedestal bearing shell | Puch

Material: Aluminum · Material: Steel · Color: silver · Surface: galvanized (blue) · Surface: raw · Mounting type: Screws · Total length: 70 mm · Height: 20 mm · Number of fixing points: 3 pcs · Width: 46 mm · Hole spacing: 41 mm

swiing® revival light switch MERIT two buttons

Manufacturer: swiing® revival parts · Material: Plastic · Housing material: Steel · Color: Chrome · Substructure material: Plastic · Color: black · Ø Handlebars: 22 mm · Surface: chrome-plated · Functions: High beam (headlights) · Functions: Horn · Functions: Light off · Functions: Low beam · Functions: Motor stop · Number of positions: 3 pcs · Total length: 55 mm · Height: 30 mm · Width: 27 mm

swiing® revival stud bolt set M6 x 106 mm | Puch

Drive: External hexagon · Diameter: 5.9 mm · Manufacturer: swiing® revival parts · Material: Steel · Width across flats SW: 10 mm · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 13 mm · Thread length: 18.5 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

Hammer head screws Ø 2.9/5 x 8.35 mm (Maxi)

Ø Rivet pin: 2.4 mm · Rivet pin length: 0.7 mm · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Ø External head: 5.2 mm · Ø bore: 2.6 mm · Ø outside: 2.9 mm · Total length: 8.5 mm

Bumm mirror round Inox black

Mirror property: none · Manufacturer: Bumm · Test mark: none · Material: Steel · Surface: varnished · Color: black-matt · Ø mirror surface: 98 mm · Ø mirror rod: 8 mm · Mirror rod length: 300 mm · Thread size: M8 · Clamping diameter: 22 mm · Total length: 350 mm · Thread type: M8x1.25 (standard thread)

Screw M5x16 countersunk head Inox

Drive: Slot · Material: Chrome steel (known as Nirosta®) · Screw head: Countersunk head · Thread type: M5x0.8 (standard thread) · Total length: 16 mm

Petrol hose Ø 5 / 7 mm transparent 30 cm

Manufacturer: Made in Italy · Color: transparent · Ø inside: 5 mm · Ø outside: 7 mm · Total length: 300 mm
